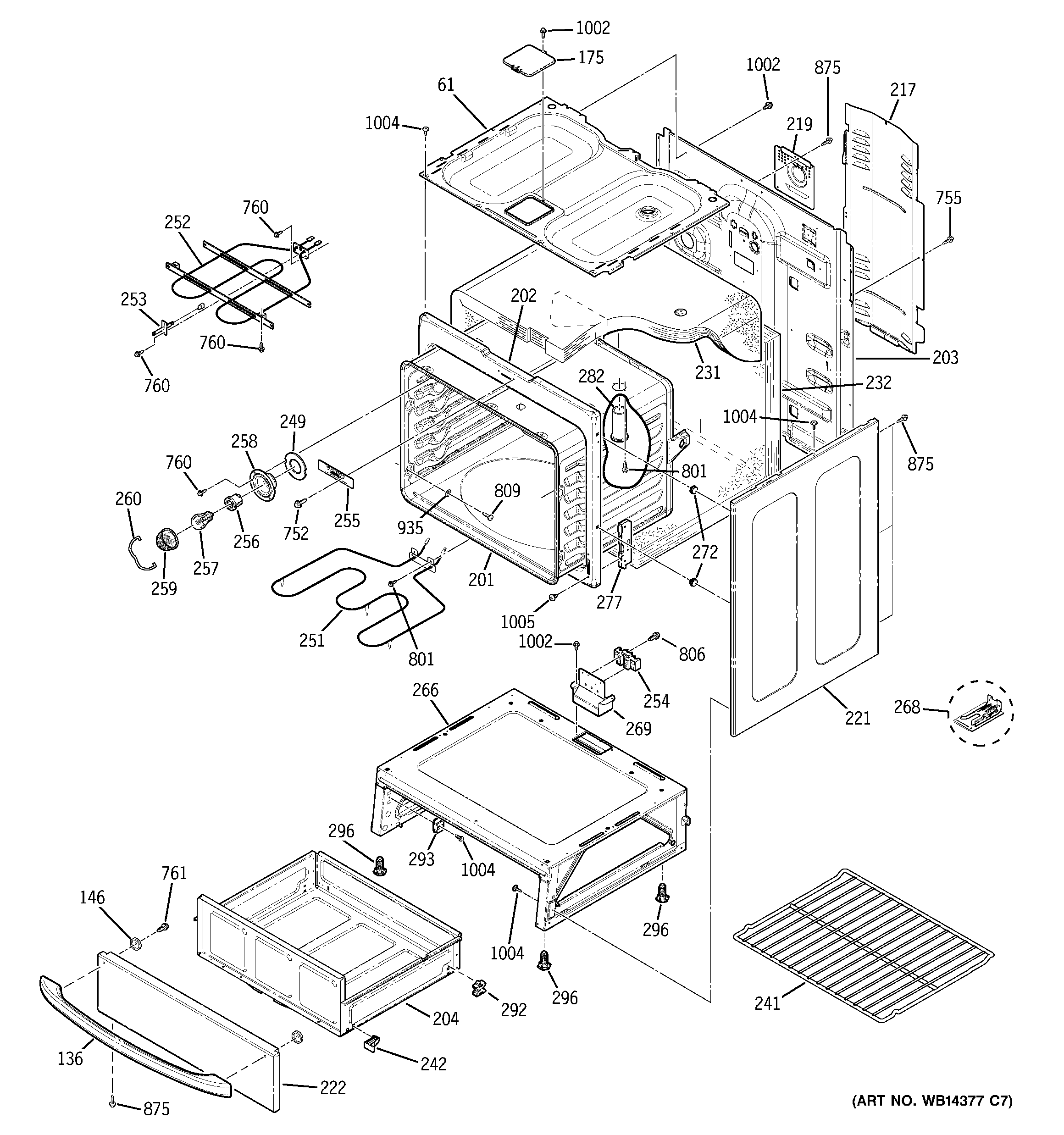

Body parts diagram
Part #WX12X1510
Replaced by #40A15

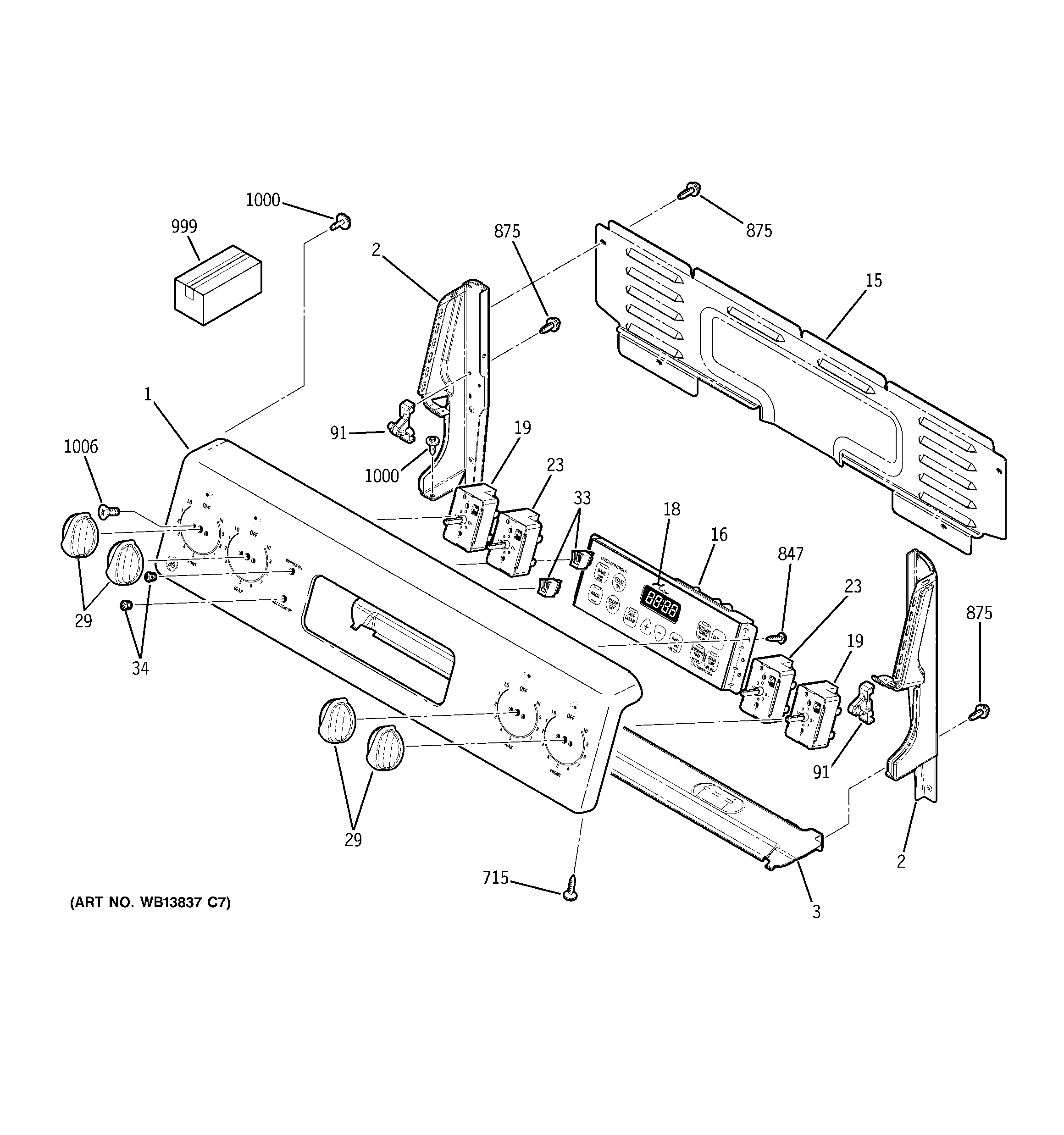

Control panel diagram
Part #WB27T11273
Replaced by #WB27X45466
Body parts diagram
Part #WB44T10059
Replaced by #WB44T10011

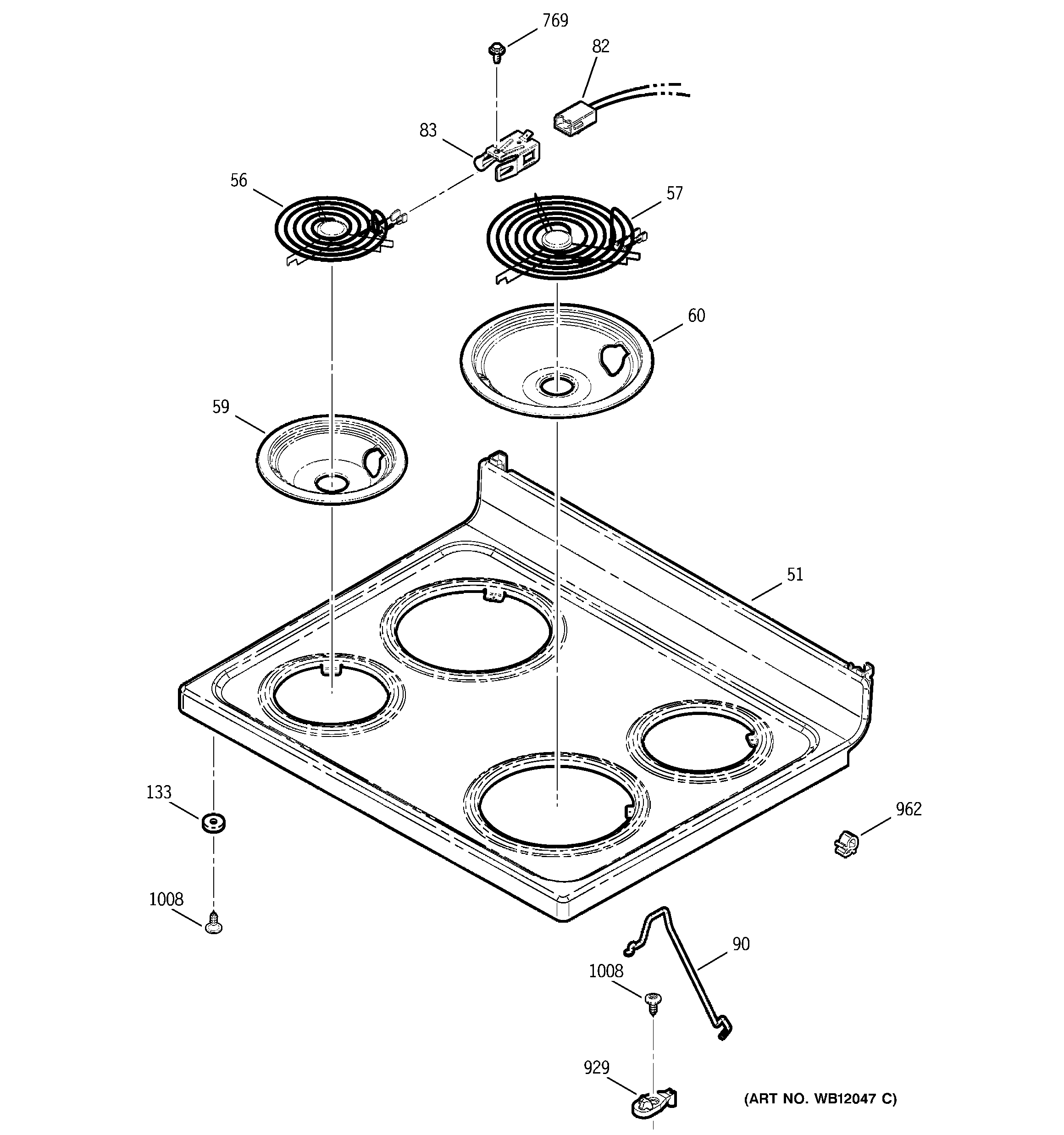

Cooktop diagram
Part #WB31T10011
Control panel diagram
Part #WB24T10058

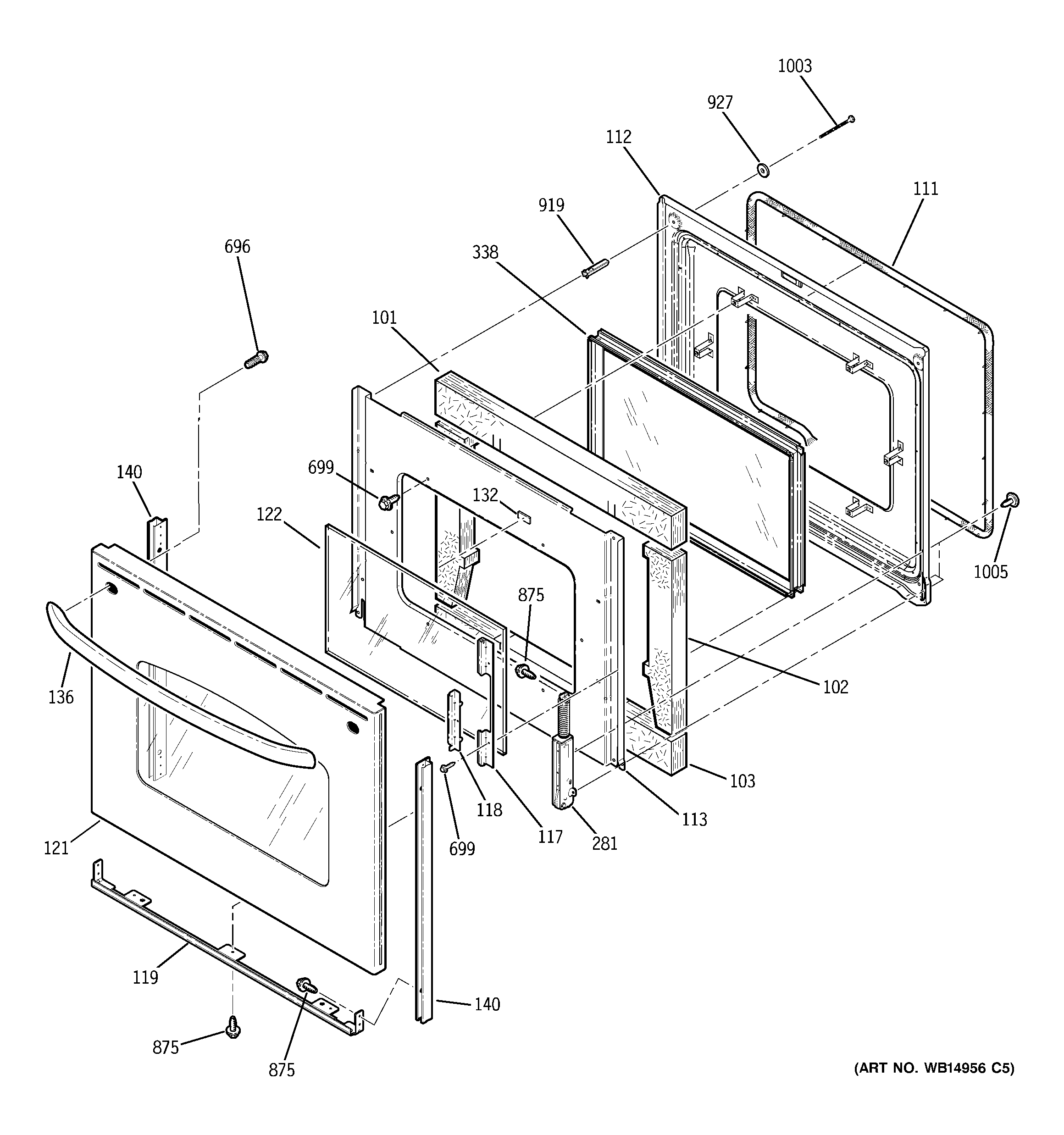

Door diagram
Part #WB56T10105
Body parts diagram
Part #WB17T10012
Replaced by #WB17T10011
Door diagram
Part #WB04T10001
Replaced by #WB04T10086
Door lock diagram
Part #WB14T10092
Replaced by #WB14X41386
Part #WB01T10008
