Model # DSC-TX20/B Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-TX20-B digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Plate 415053802
#70

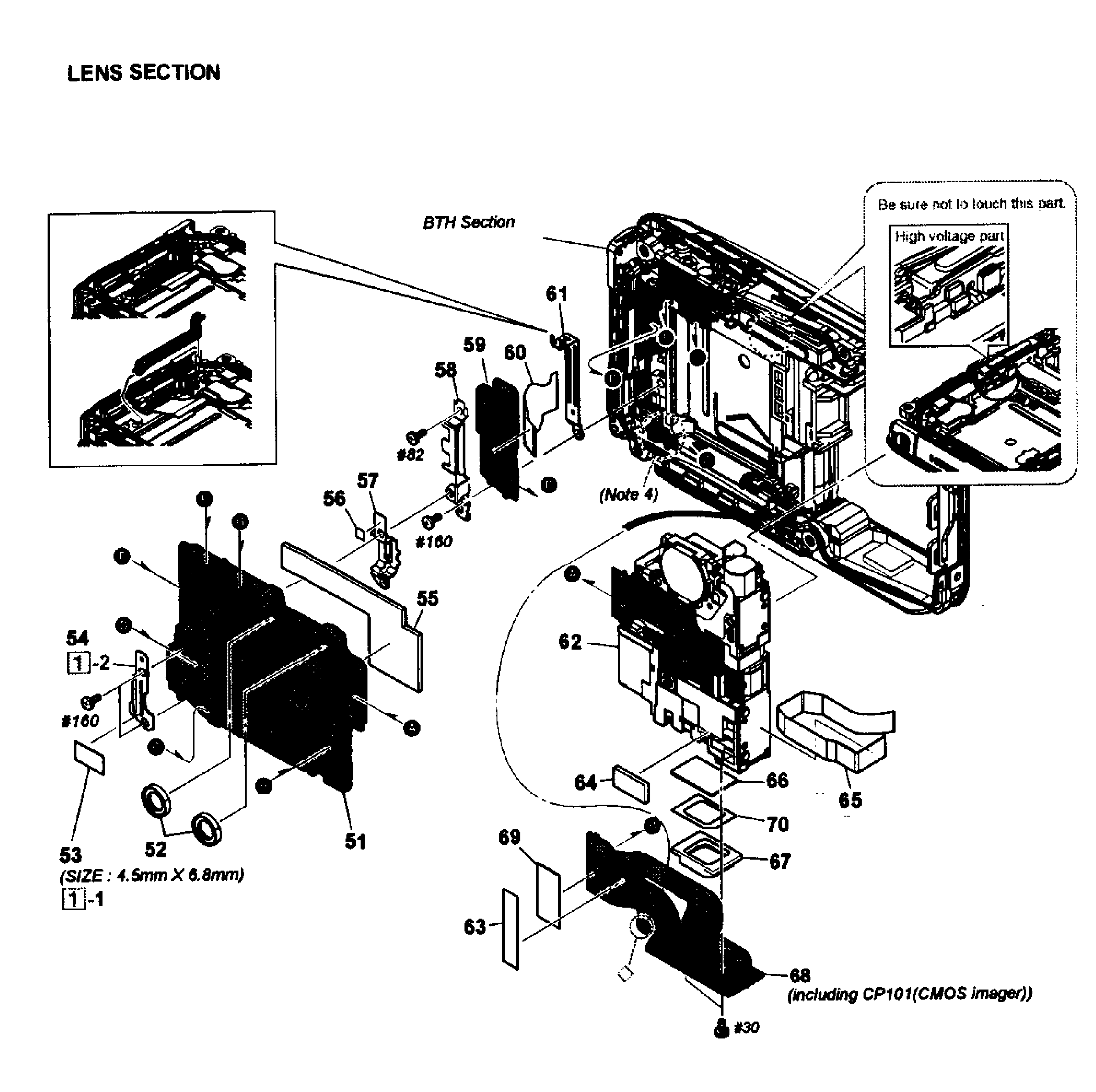

Lens assy diagram

Plate

Part #415053802

This item is not returnable
$2.30
In Stock
Lens 427577801
#10

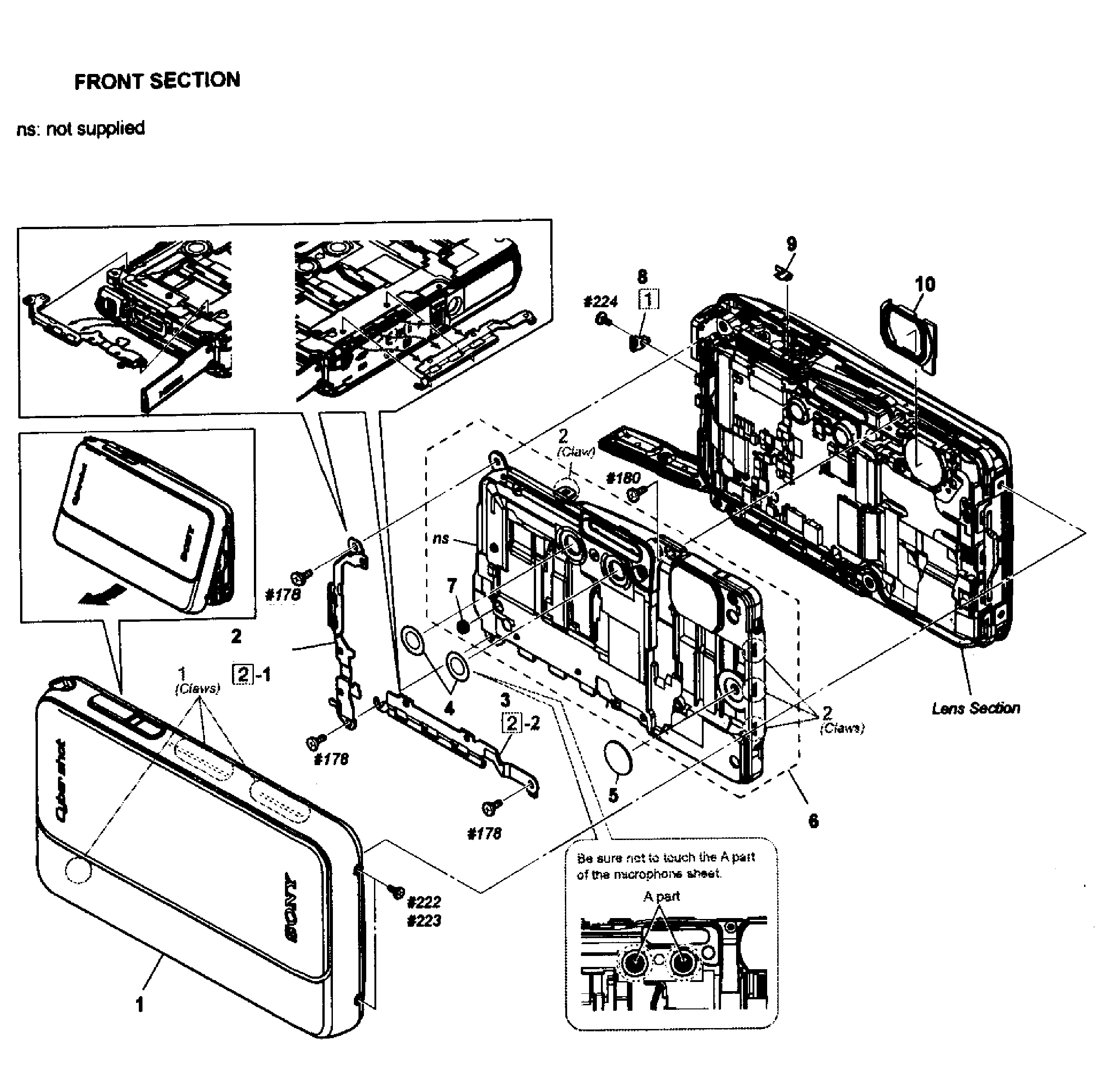

Front assy diagram

Lens

Part #427577801

This item is not returnable
$3.93
In Stock
Sony Play Button 442125201
#161

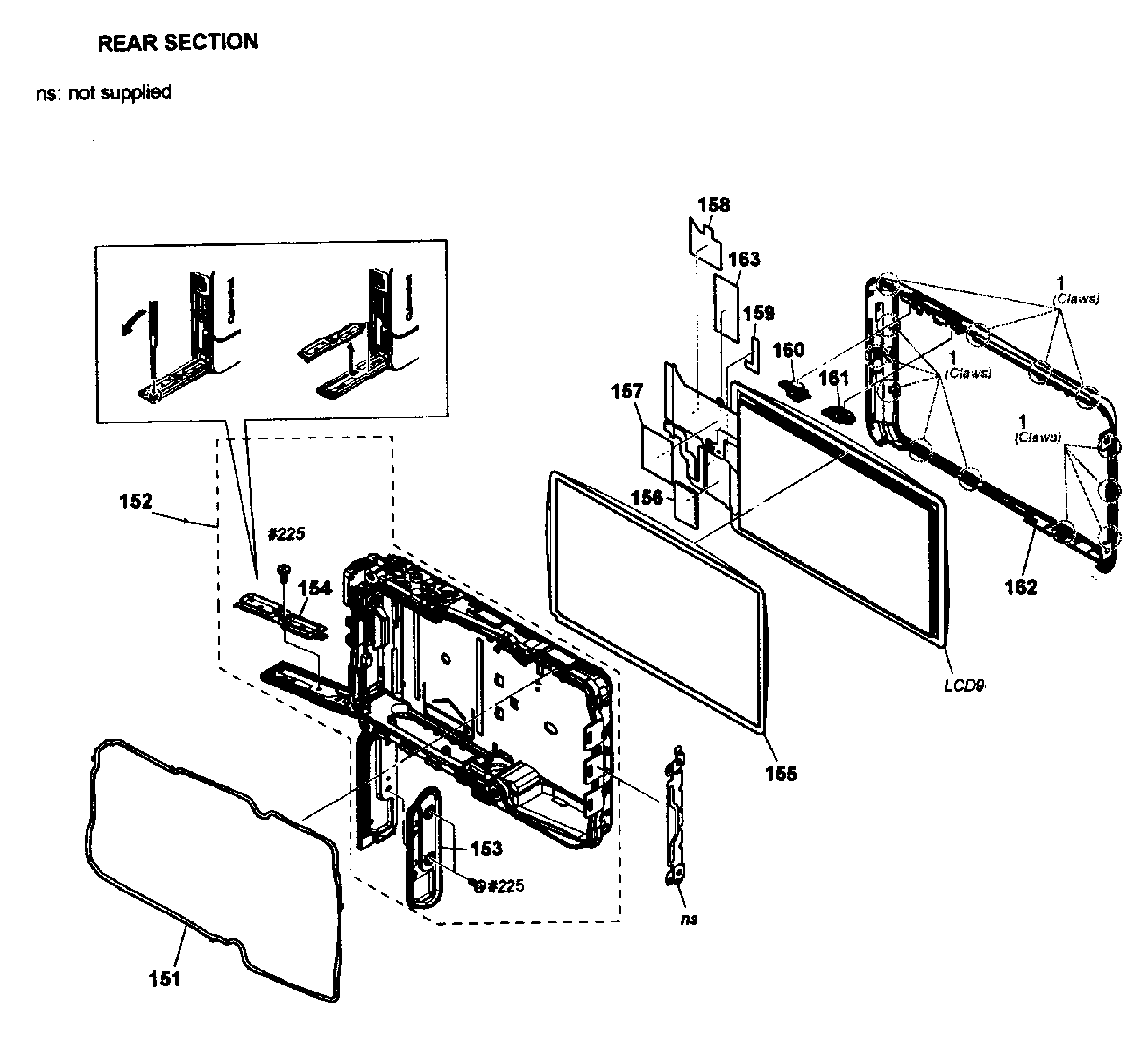

Rear assy diagram

Sony play button

Part #442125201

$23.27
In Stock
Cabinet 427439001
#151

Rear assy diagram

Cabinet

Part #427439001

$15.95
In Stock
Multi Plate 427577201
#54

Lens assy diagram

Multi plate

Part #427577201

This item is not returnable
$2.65
In Stock
Plate 427576801
#8

Front assy diagram

Plate

Part #427576801

This item is not returnable
$2.65
In Stock
St285 Pcb A1871436A
#102

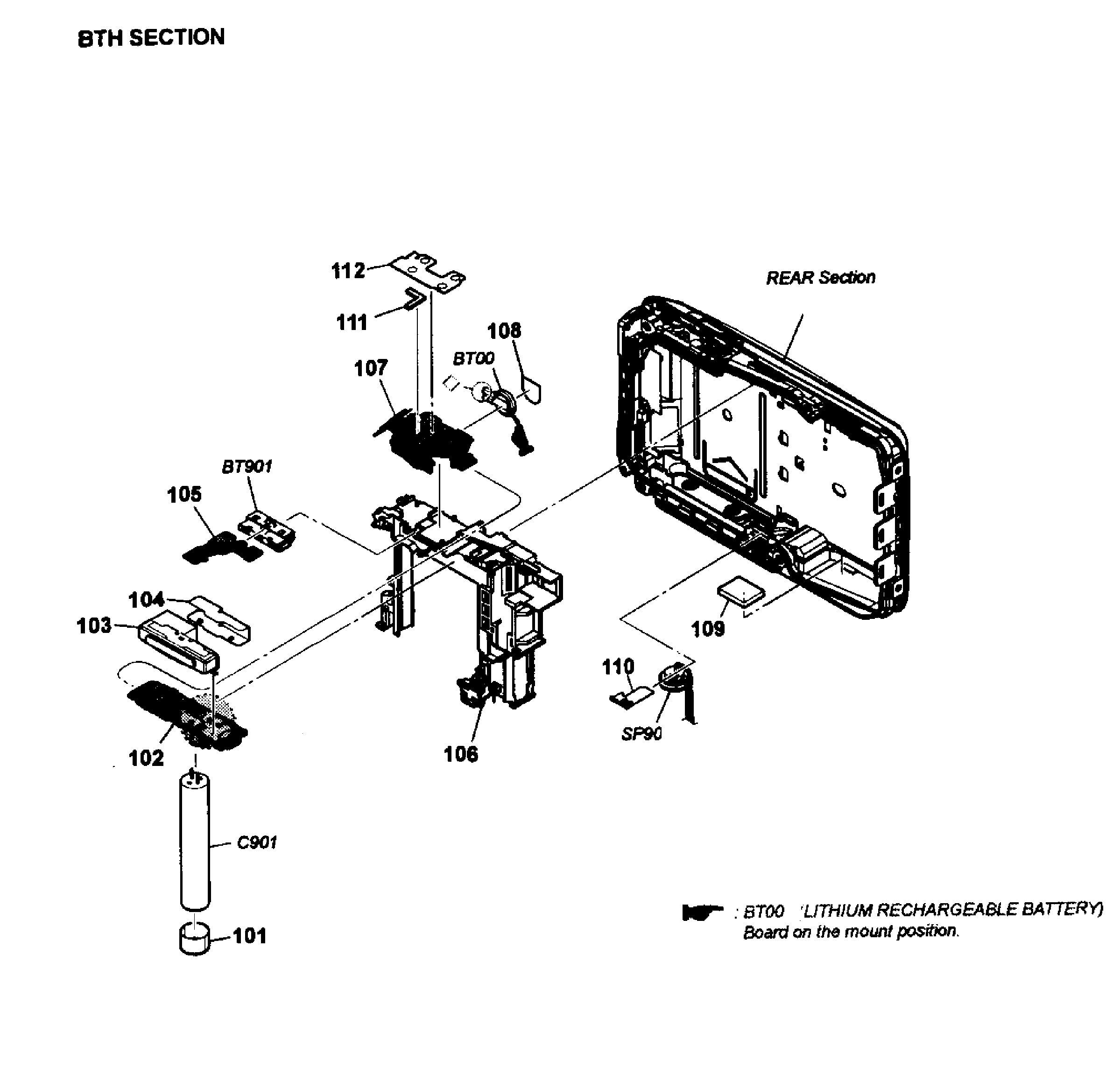

Bth assy diagram

St285 pcb

Part #A1871436A

$45.91
In Stock
Spacer Rl 427569211
#111

Bth assy diagram

Spacer rl

Part #427569211

This item is not returnable
$5.65
In Stock
Sheet Sp 428563611
#63

Lens assy diagram

Sheet sp

Part #428563611

This item is not returnable
$5.26
In Stock
Cabinet Front A1884093A
#6

Front assy diagram

Cabinet front

Part #A1884093A

$43.97
In Stock
