Model # SDR-S50PA Official Panasonic camcorder

Here are the diagrams and repair parts for Official Panasonic SDR-S50PA camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Guide LSKM1991
#44

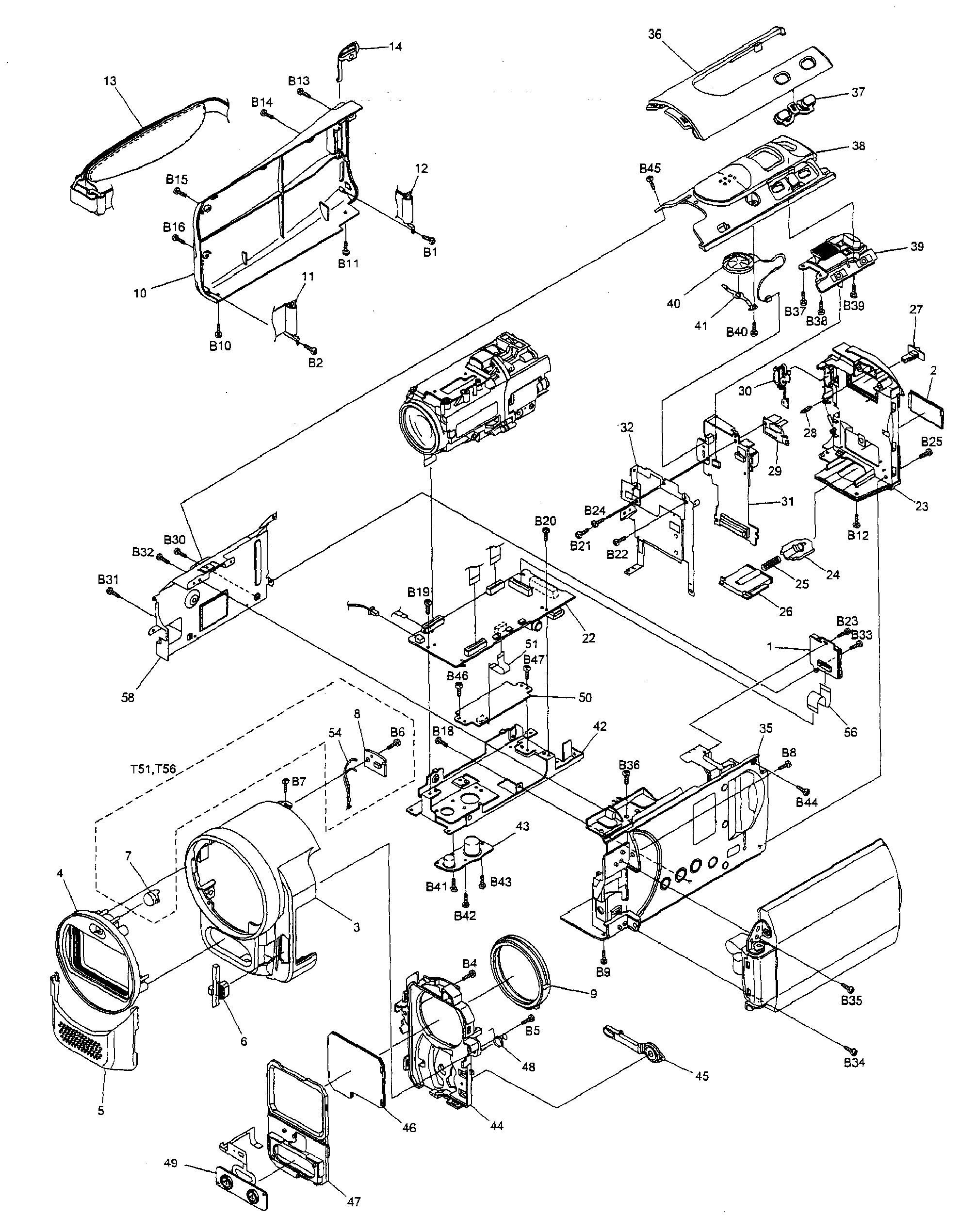

Frame assy diagram

Guide

Part #LSKM1991

The manufacturer no longer makes this part, and there's no substitute part

Lcd Case LSKM1982
#15

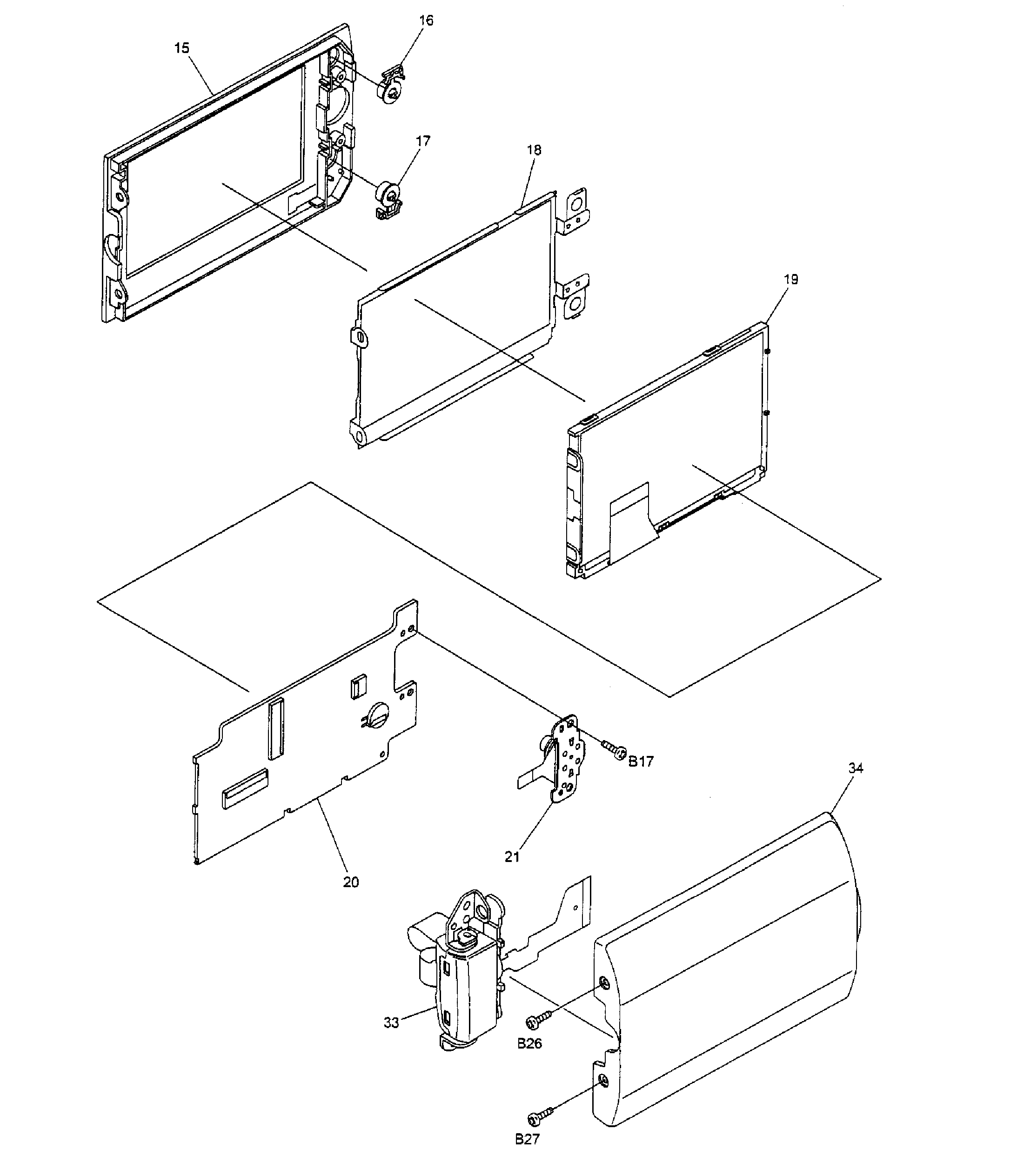

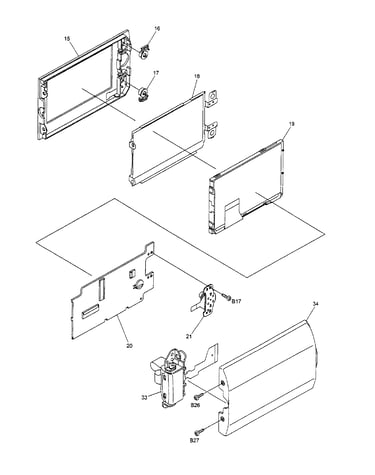

Lcd assy diagram

Lcd case

Part #LSKM1982

The manufacturer no longer makes this part, and there's no substitute part

Focus Motor L6HA66NB0012
#4012

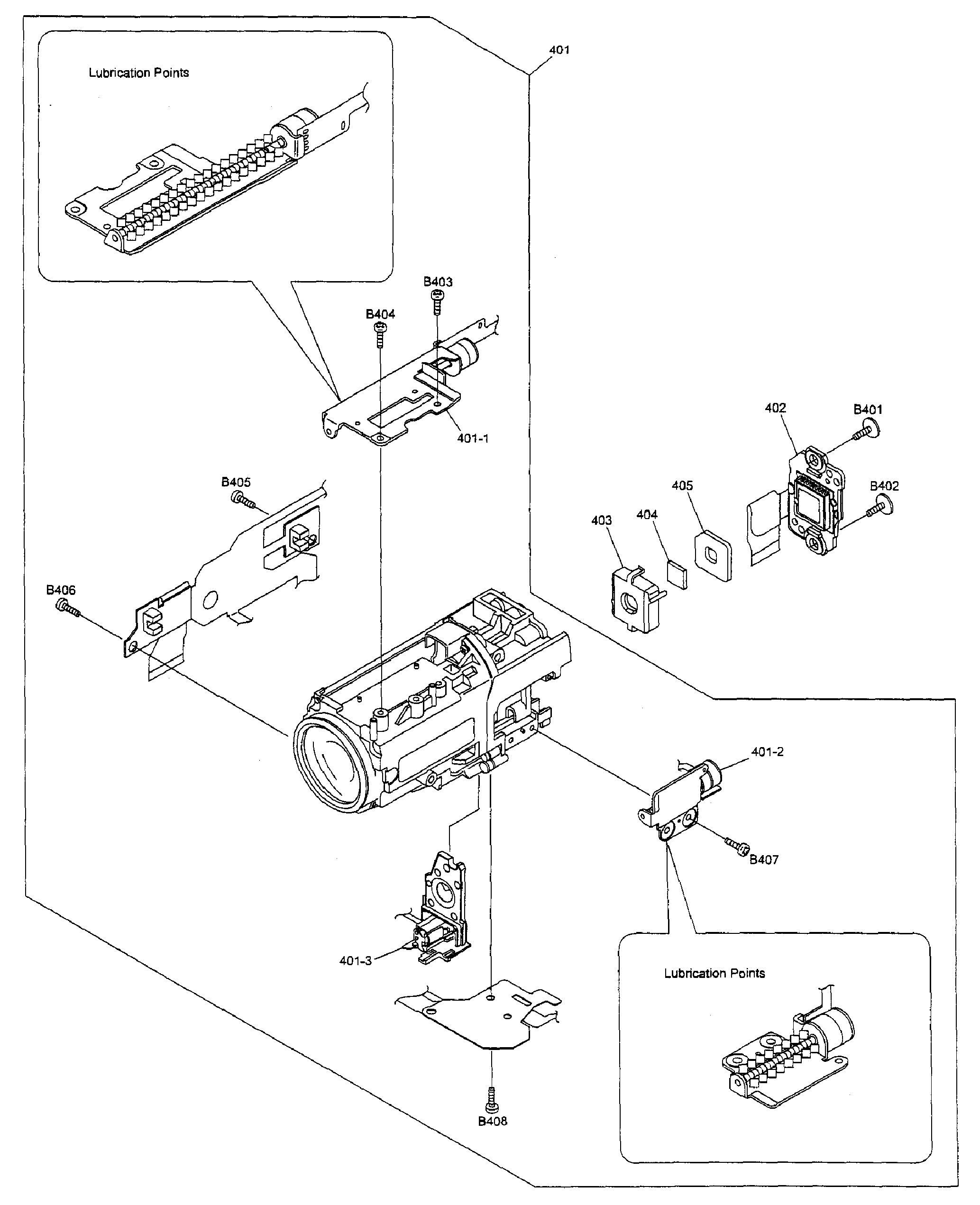

Lens assy diagram

Focus motor

Part #L6HA66NB0012

The manufacturer no longer makes this part, and there's no substitute part

Selector LSYK2869
#21

Lcd assy diagram

Selector

Part #LSYK2869

The manufacturer no longer makes this part, and there's no substitute part

Cover LSGF0561
#47

Frame assy diagram

Cover

Part #LSGF0561

The manufacturer no longer makes this part, and there's no substitute part

Side Case LSYK2833
#35

Frame assy diagram

Side case

Part #LSYK2833

The manufacturer no longer makes this part, and there's no substitute part

Panel LSKF0749
#46

Frame assy diagram

Panel

Part #LSKF0749

The manufacturer no longer makes this part, and there's no substitute part

Microphone LSEQ0874
#49

Frame assy diagram

Microphone

Part #LSEQ0874

The manufacturer no longer makes this part, and there's no substitute part

Panel,fr LSYK2901
#5

Frame assy diagram

Panel,fr

Part #LSYK2901

The manufacturer no longer makes this part, and there's no substitute part

Zoom Motor L6HA66NB0011
#4011

Lens assy diagram

Zoom motor

Part #L6HA66NB0011

The manufacturer no longer makes this part, and there's no substitute part
