Countertop Microwave

Model # 5649928110 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5649928110 microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for5649928110 Microwaves

  • Microwave Fuse, 15-amp 11255
    #25

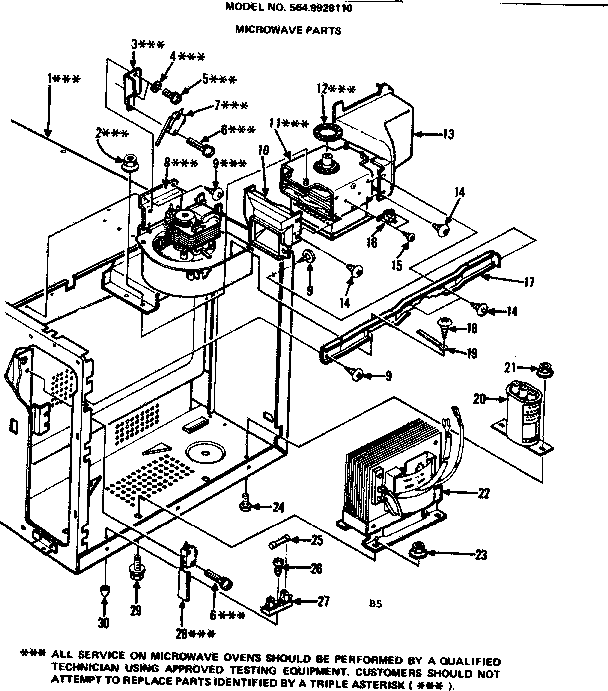

    Microwave parts diagram

    Microwave fuse, 15-amp

    Part #11255

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 10305
    #15

    Microwave parts diagram

    Screw

    Part #10305

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse Holder 11256
    #27

    Microwave parts diagram

    Fuse holder

    Part #11256

    The manufacturer no longer makes this part, and there's no substitute part

  • Transformer 11332
    #22

    Microwave parts diagram

    Transformer

    Part #11332

    The manufacturer no longer makes this part, and there's no substitute part

  • Split Pin 10274
    #28

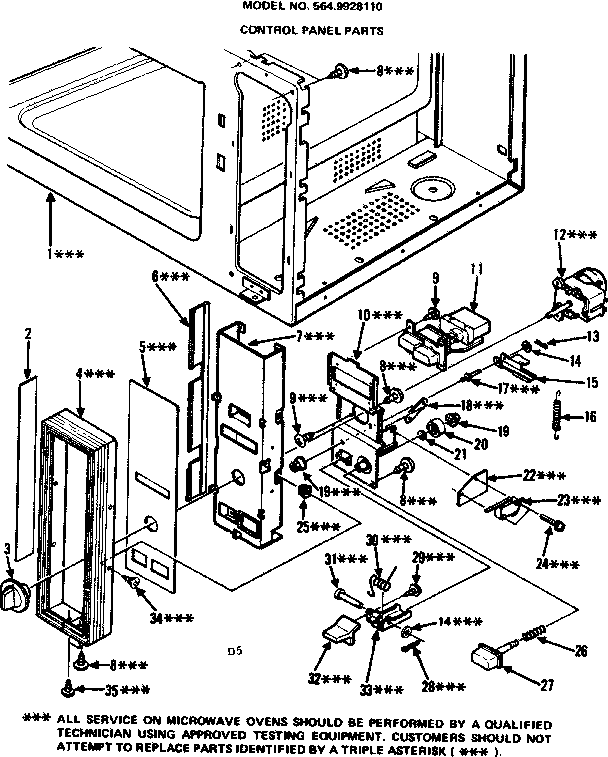

    Control panel parts diagram

    Split pin

    Part #10274

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Frame 10804
    #4

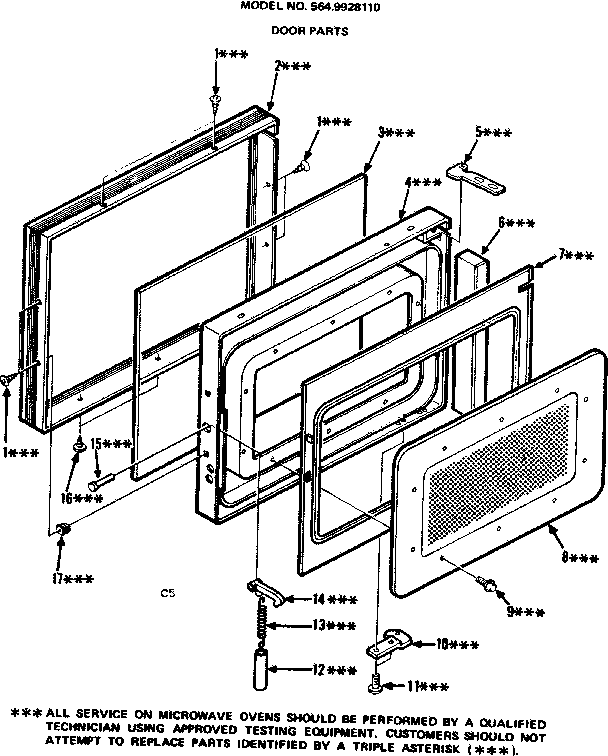

    Door parts diagram

    Door frame

    Part #10804

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 10801
    #1

    Door parts diagram

    Screw

    Part #10801

    The manufacturer no longer makes this part, and there's no substitute part

  • Special Nut 10810
    Special nut

    Part #10810

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer Screw 10318
    Washer screw

    Part #10318

    The manufacturer no longer makes this part, and there's no substitute part

  • Canoe Clip 10378
    #15

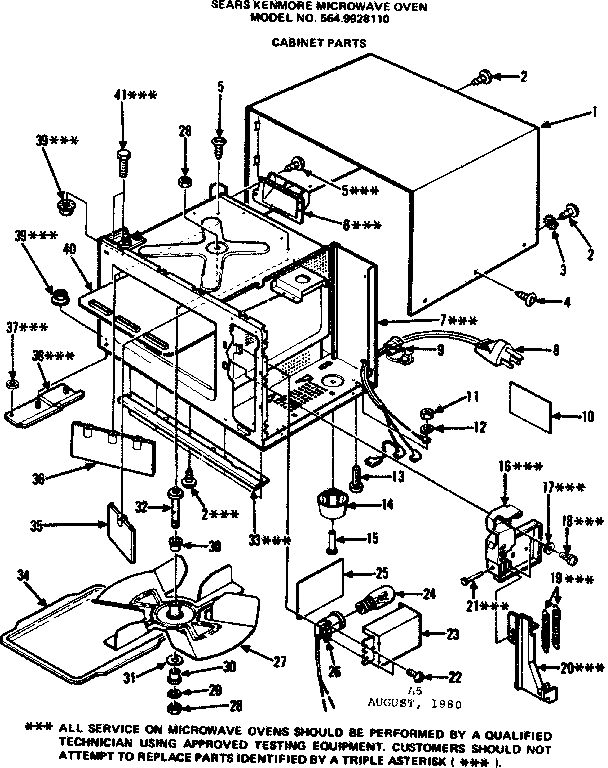

    Cabinet parts diagram

    Canoe clip

    Part #10378

    The manufacturer no longer makes this part, and there's no substitute part
