Model # 143217042 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143217042 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |

Fuel Line 29774
#114

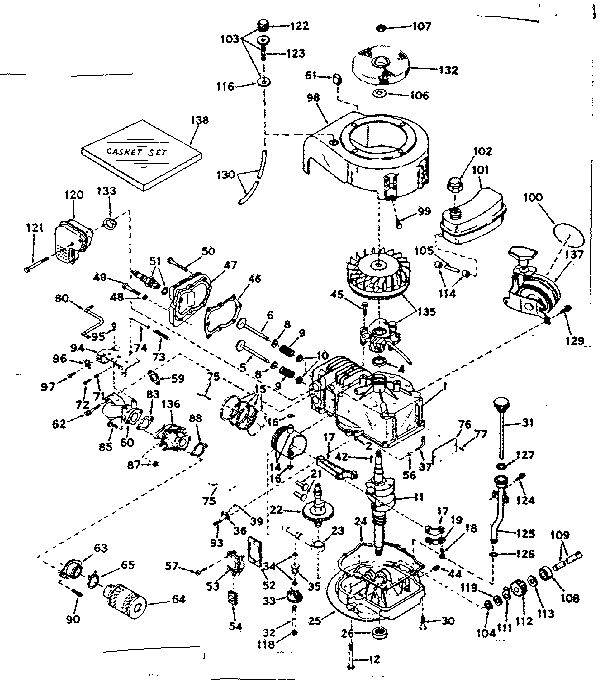

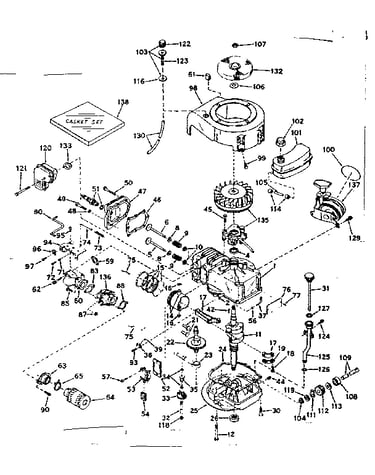

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Primer Bulb 32183
#122

Basic engine diagram

Primer bulb

Part #32183

The manufacturer no longer makes this part, and there's no substitute part

Retainer 32312
#116

Basic engine diagram

Retainer

Part #32312

The manufacturer no longer makes this part, and there's no substitute part

Primer Assembly 32182
#103

Basic engine diagram

Primer assembly

Part #32182

The manufacturer no longer makes this part, and there's no substitute part

Element 31410
#54

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Primer Body 32184
#123

Basic engine diagram

Primer body

Part #32184

The manufacturer no longer makes this part, and there's no substitute part

Spring 31672
#9

Basic engine diagram

Spring

Part #31672

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Shaft 30574
#32

Basic engine diagram

/gvnr shaft

Part #30574

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A
#35

Basic engine diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#33

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part
