Model # 392680520 Official Sears tub door

Here are the diagrams and repair parts for Official Sears 392680520 tub door, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

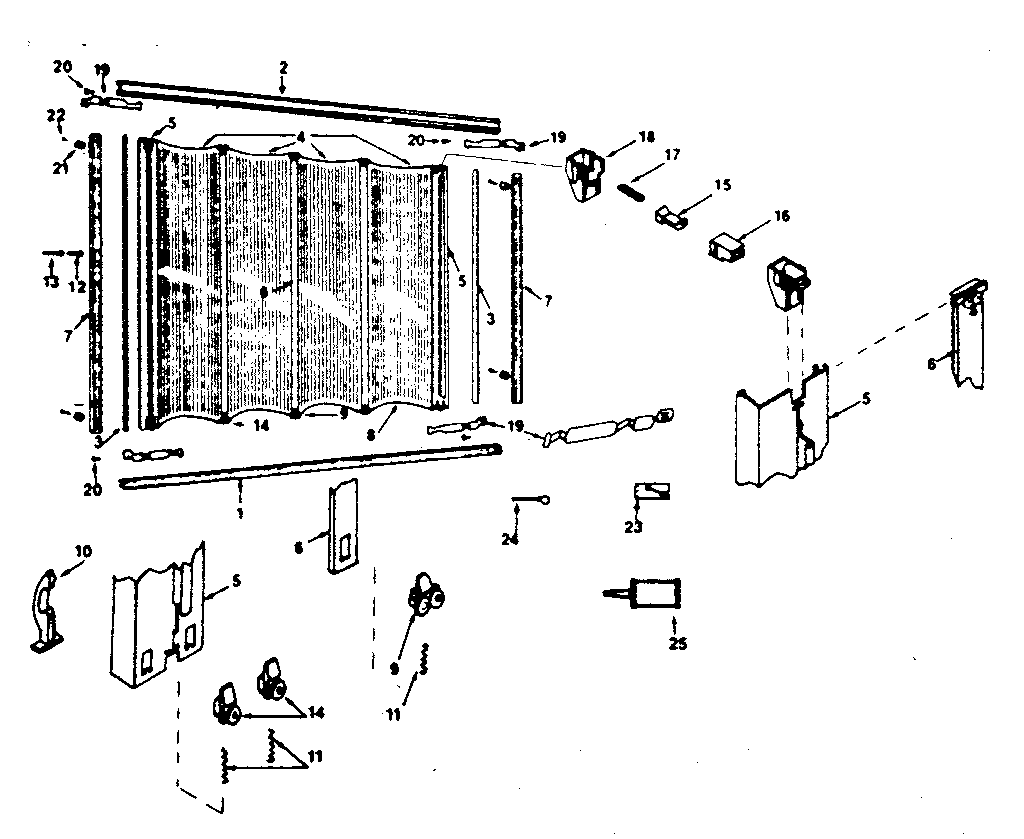

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Package Hardware 421504

#NI

All parts diagram

Package hardware

Part #421504

The manufacturer no longer makes this part, and there's no substitute part

Wall Screw 456301
#12

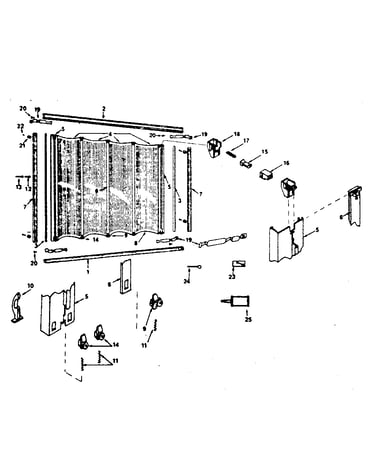

Replacement parts diagram

Wall screw

Part #456301

The manufacturer no longer makes this part, and there's no substitute part

Wall Plug 162217
#13

Replacement parts diagram

Wall plug

Part #162217

The manufacturer no longer makes this part, and there's no substitute part

Track 585711
#1

Replacement parts diagram

Track

Part #585711

The manufacturer no longer makes this part, and there's no substitute part

Complete Door 415009
#4

Replacement parts diagram

Complete door

Part #415009

The manufacturer no longer makes this part, and there's no substitute part

Lock Strip 444513
#19

Replacement parts diagram

Lock strip

Part #444513

The manufacturer no longer makes this part, and there's no substitute part

Swab 162223
#24

Replacement parts diagram

Swab

Part #162223

The manufacturer no longer makes this part, and there's no substitute part

Cover 383000
#18

Replacement parts diagram

Cover

Part #383000

The manufacturer no longer makes this part, and there's no substitute part

Retainer 401700
#10

Replacement parts diagram

Retainer

Part #401700

The manufacturer no longer makes this part, and there's no substitute part

Wall Jam 424333
#7

Replacement parts diagram

Wall jam

Part #424333

The manufacturer no longer makes this part, and there's no substitute part
