Gas Cooktop

Model # JGP940TEK5WW Official GE gas cooktop

Here are the diagrams and repair parts for Official GE JGP940TEK5WW gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Foam Tape WB06K5042
#200

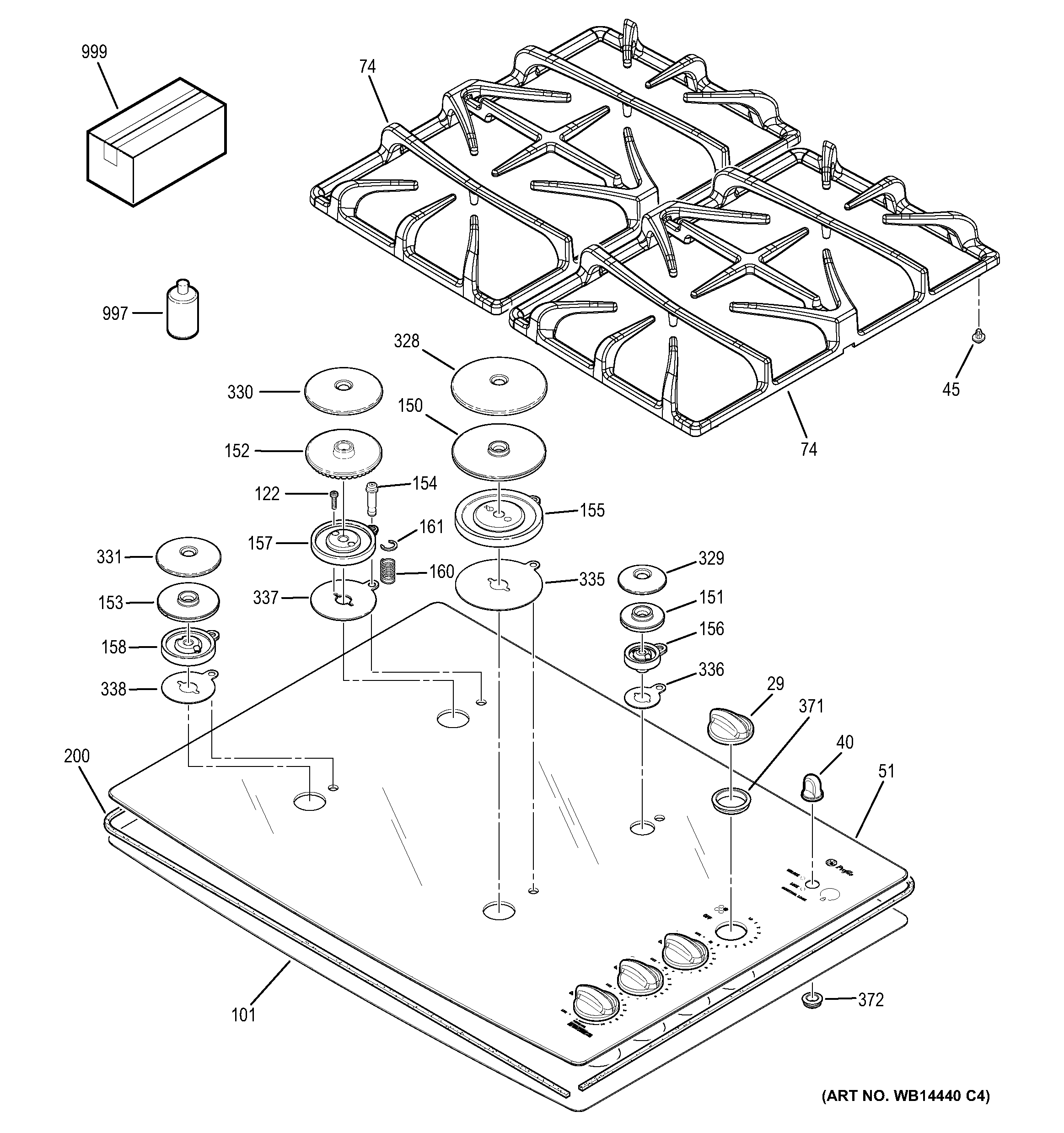

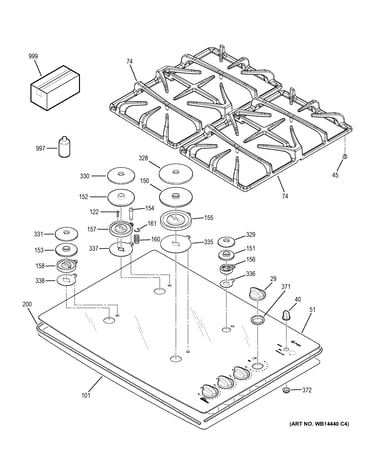

Control panel & cooktop diagram

Foam tape

Part #WB06K5042

Replaced by #WB02X26088

?
Manufacturer substitution
This part replaces WB06K5042. Substitute parts can look different from the original.
$51.24 |
10% OFF Phone Price : $57.24
In Stock
Range Igniter Switch And Harness Assembly WB18T10452
#323

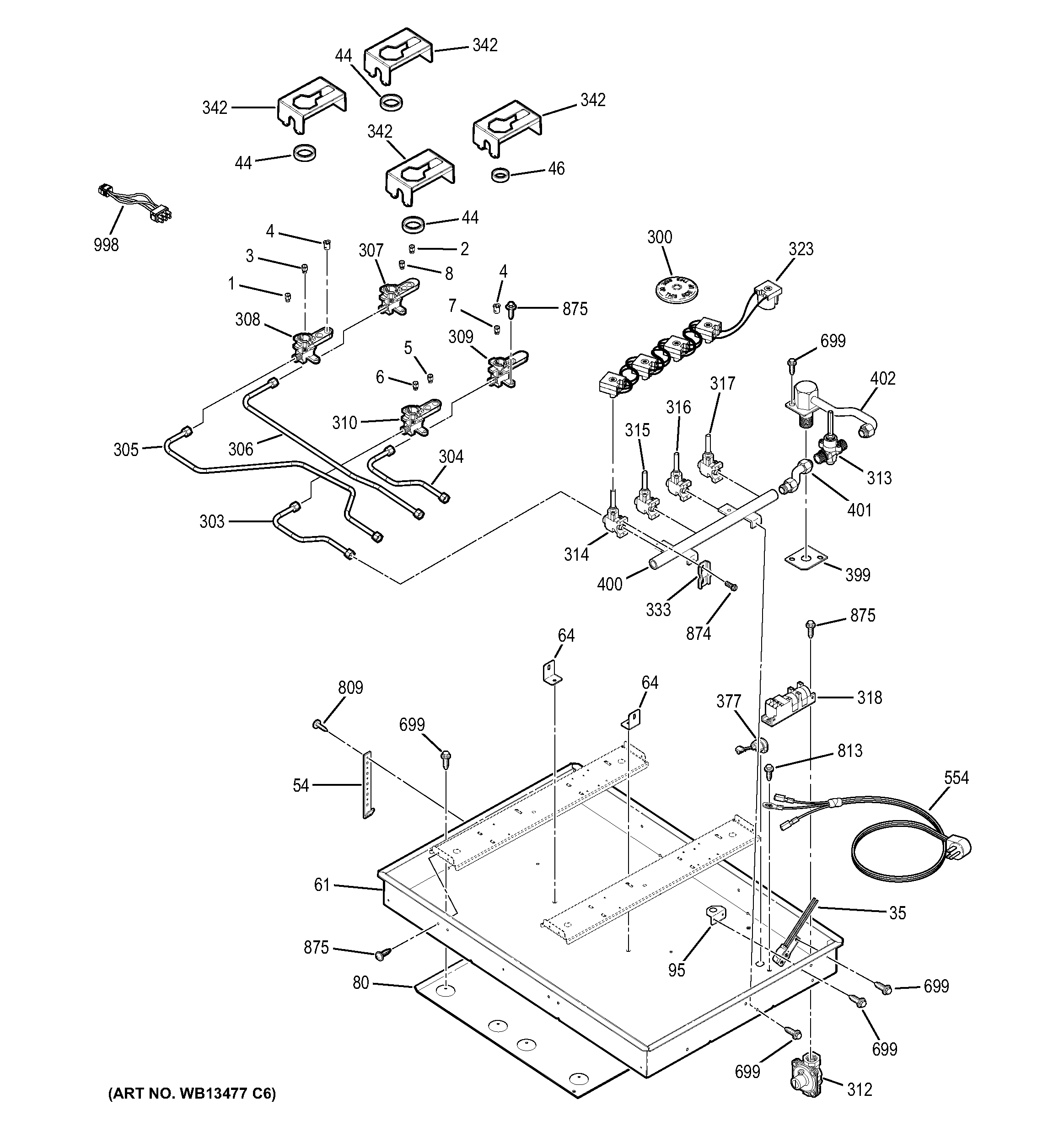

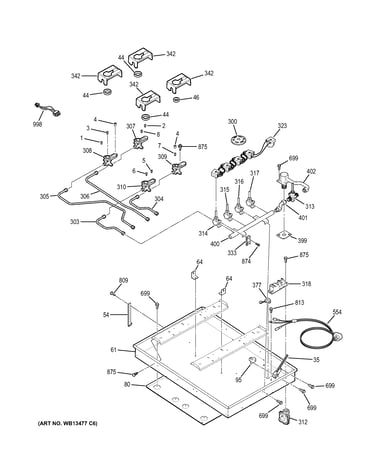

Gas & burner parts diagram

Range igniter switch and harness assembly

Part #WB18T10452

$47.09
In Stock
Range Surface Burner Grate Pad (replaces Wb02t10101) WB02T10461
#45

Control panel & cooktop diagram

Range surface burner grate pad (replaces wb02t10101)

Part #WB02T10461

$9.50 |
10% OFF Phone Price : $10.50
In Stock
Screw WB01K5150
#699

Gas & burner parts diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Range Surface Burner Igniter (replaces Wb13x10015) WB13T10073
#154

Control panel & cooktop diagram

Range surface burner igniter (replaces wb13x10015)

Part #WB13T10073

$50.64 |
11% OFF Phone Price : $56.64
In Stock
Brkt Hold Dn WB02K5328
#54

Gas & burner parts diagram

Brkt hold dn

Part #WB02K5328

Replaced by #WB2K5328

?
Manufacturer substitution
This part replaces WB02K5328. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Range Surface Burner Base WB16T10030
#158

Control panel & cooktop diagram

Range surface burner base

Part #WB16T10030

This item is not returnable
$25.72 |
19% OFF Phone Price : $31.72
In Stock
Cooktop Lockout Buzzer (replaces Wb08t10030) WB08T10039
#35

Gas & burner parts diagram

Cooktop lockout buzzer (replaces wb08t10030)

Part #WB08T10039

$70.41 |
8% OFF Phone Price : $76.41
In Stock
Range Surface Burner Seal WB04T10014
#335

Control panel & cooktop diagram

Range surface burner seal

Part #WB04T10014

This item is not returnable
$11.43
In Stock
Cooktop Burner Grate WB31T10084
#74

Control panel & cooktop diagram

Cooktop burner grate

Part #WB31T10084

$173.60 |
6% OFF Phone Price : $185.60
In Stock
