GE
Wall Oven/Microwave Combo

Model # JTP86CF2CC Official GE wall oven/microwave combo

Here are the diagrams and repair parts for Official GE JTP86CF2CC wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

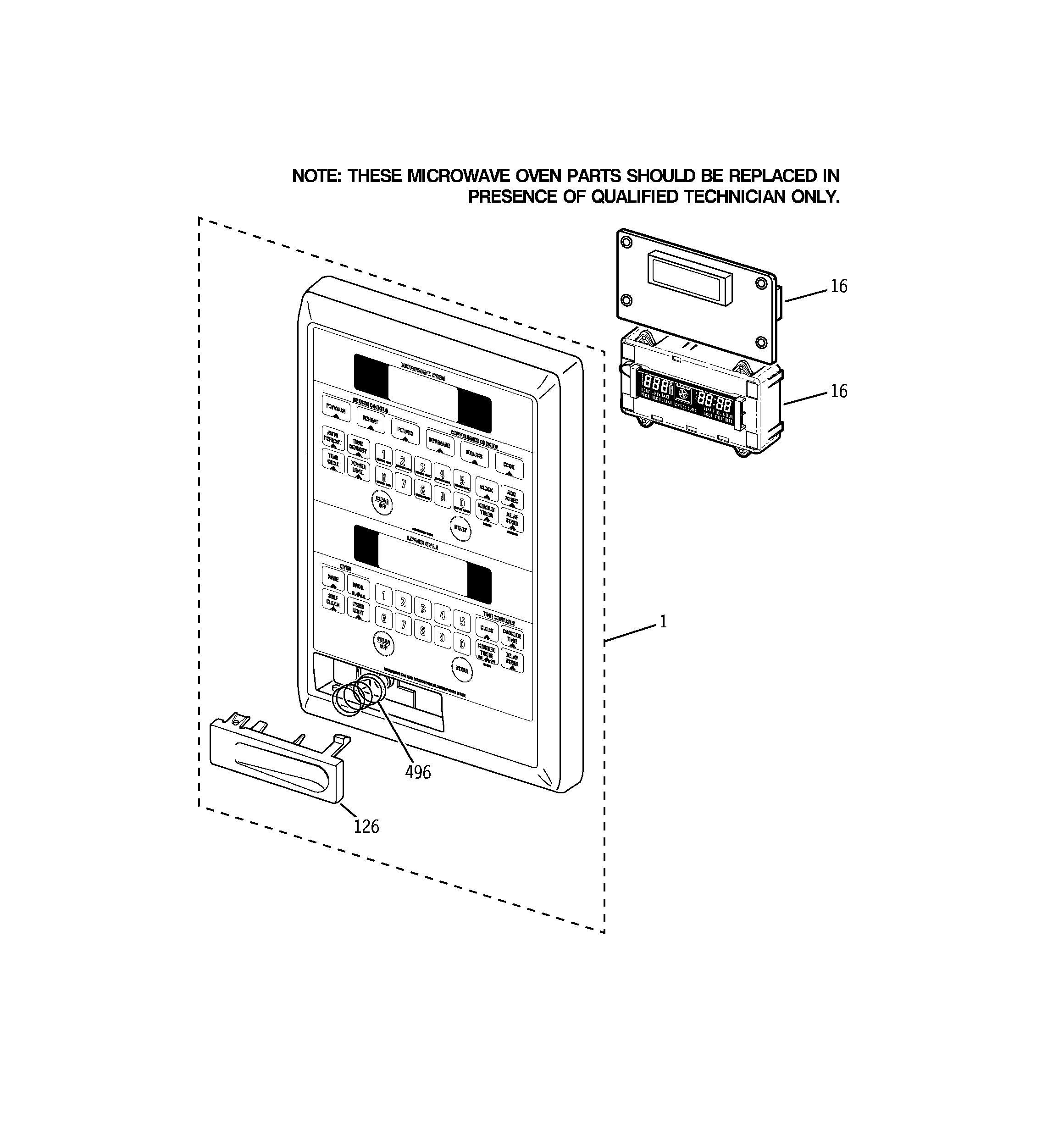

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Oven Lamp WB08T10022
#257

Body with microwave support diagram

Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Switch-micro WB24X0829
#576

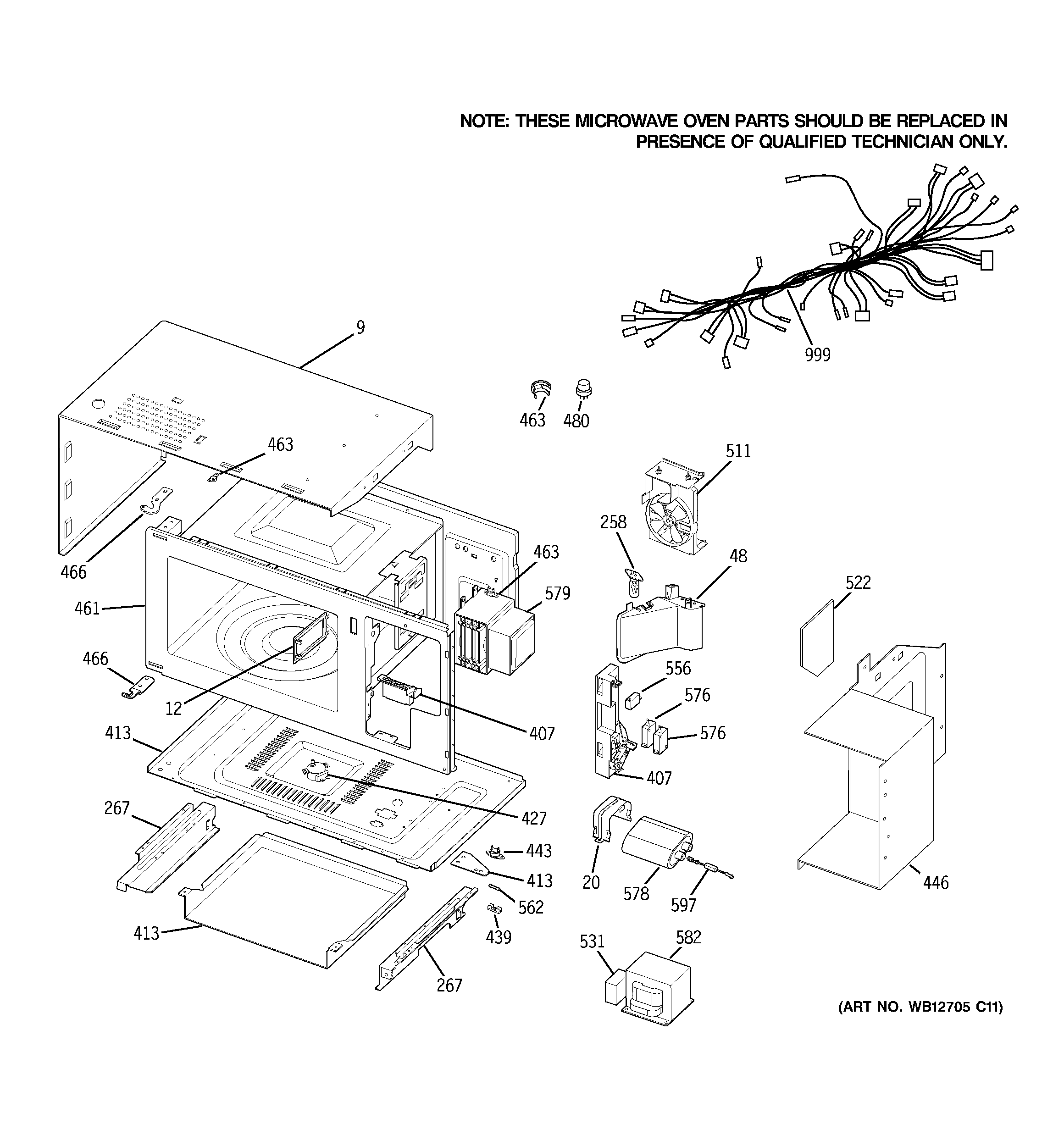

Microwave body parts diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Fuse Cartridge WB27X10474
#562

Microwave body parts diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Monitor Switch WB24X0830
#556

Microwave body parts diagram

Monitor switch

Part #WB24X0830

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
High-voltage Diode WB27X10169
#597

Microwave body parts diagram

High-voltage diode

Part #WB27X10169

Replaced by #WB27X10597

?
Manufacturer substitution
This part replaces WB27X10169. Substitute parts can look different from the original.
BEST SELLER
$40.60 |
13% OFF Phone Price : $46.60
In Stock
Oven Lamp Holder WB08T10002
#256

Body with microwave support diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

Body with microwave support diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Broil Element (replaces Wb44k10007) WB44T10043
#252

Body with microwave support diagram

Range broil element (replaces wb44k10007)

Part #WB44T10043

$70.47 |
8% OFF Phone Price : $76.47
In Stock
Screw, #10-32 X 17/32-in WB01X1253
#810

Body with microwave support diagram

Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
