Model # RCS2002GS1 Official Whirlpool electric counter unit

Here are the diagrams and repair parts for Official Whirlpool RCS2002GS1 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Drip Bowl 3195208
#11

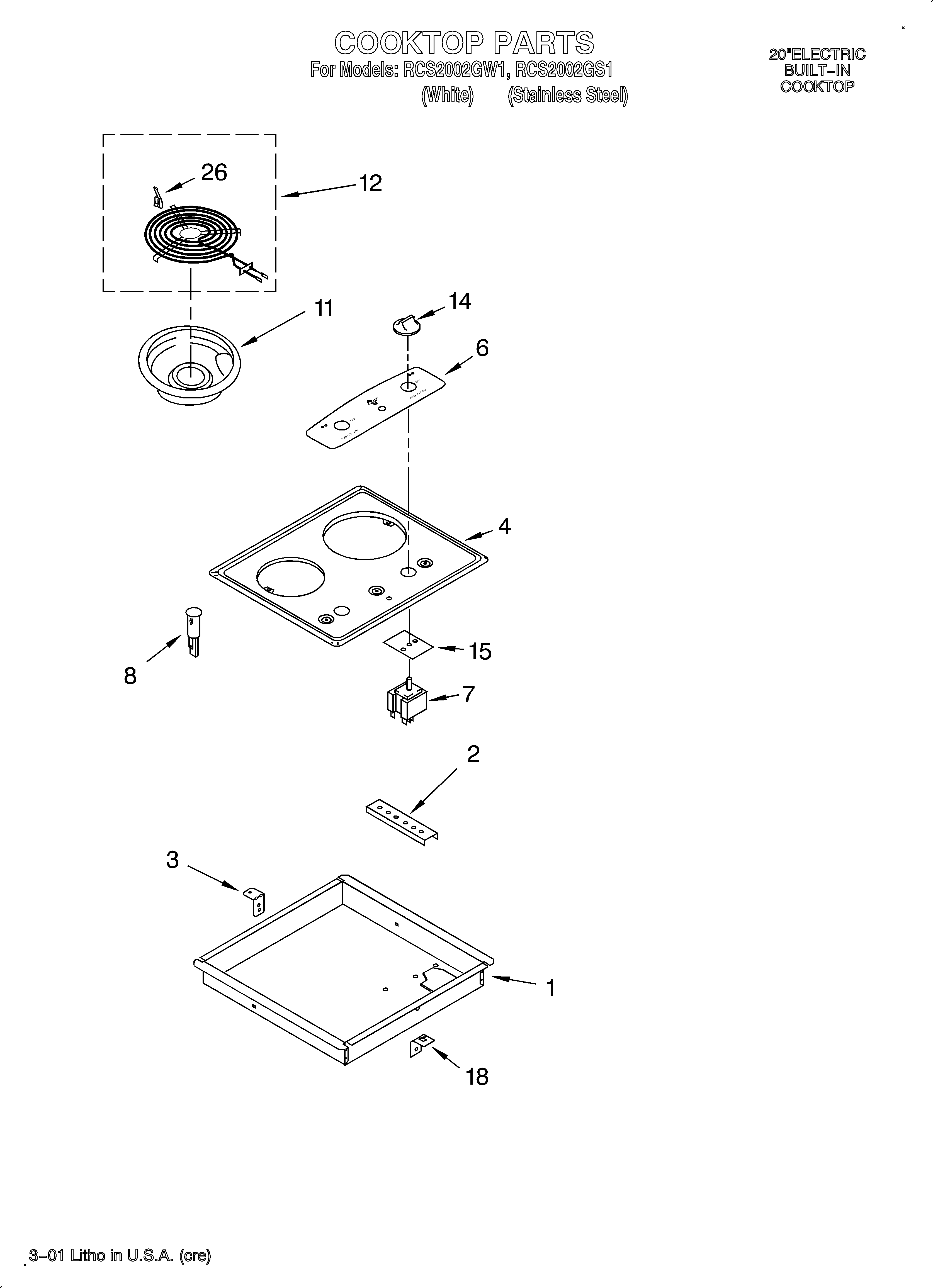

Cooktop diagram

Drip bowl

Part #3195208

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 3195208. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Screw 3196537
#3A

Cooktop diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Screw 3196160
#NI

Cooktop diagram

Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooktop Bracket 3183401
#2

Cooktop diagram

Cooktop bracket

Part #3183401

Replaced by #8186533

?
Manufacturer substitution
This part replaces 3183401. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Cooktop Element Control Switch Seal 3183956
#15

Cooktop diagram

Cooktop element control switch seal

Part #3183956

This item is not returnable
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Cooktop Element Control Switch 3191472
#7A

Cooktop diagram

Cooktop element control switch

Part #3191472

Replaced by #WP3191472

?
Manufacturer substitution
This part replaces 3191472. Substitute parts can look different from the original.
$83.59 |
7% OFF Phone Price : $89.59
In Stock
Wire 4454384
#NI

Cooktop diagram

Wire

Part #4454384

Replaced by #3184020

?
Manufacturer substitution
This part replaces 4454384. Substitute parts can look different from the original.
$32.87
In Stock
Clip 313438
#NI

Cooktop diagram

Clip

Part #313438

Replaced by #16515

?
Manufacturer substitution
This part replaces 313438. Substitute parts can look different from the original.
This item is not returnable
$20.39 |
23% OFF Phone Price : $26.39
In Stock
Cooktop Bracket 3192454
#3

Cooktop diagram

Cooktop bracket

Part #3192454

$34.82
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831
#NI

Cooktop diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
