Jenn-Air
Gas Cooktop

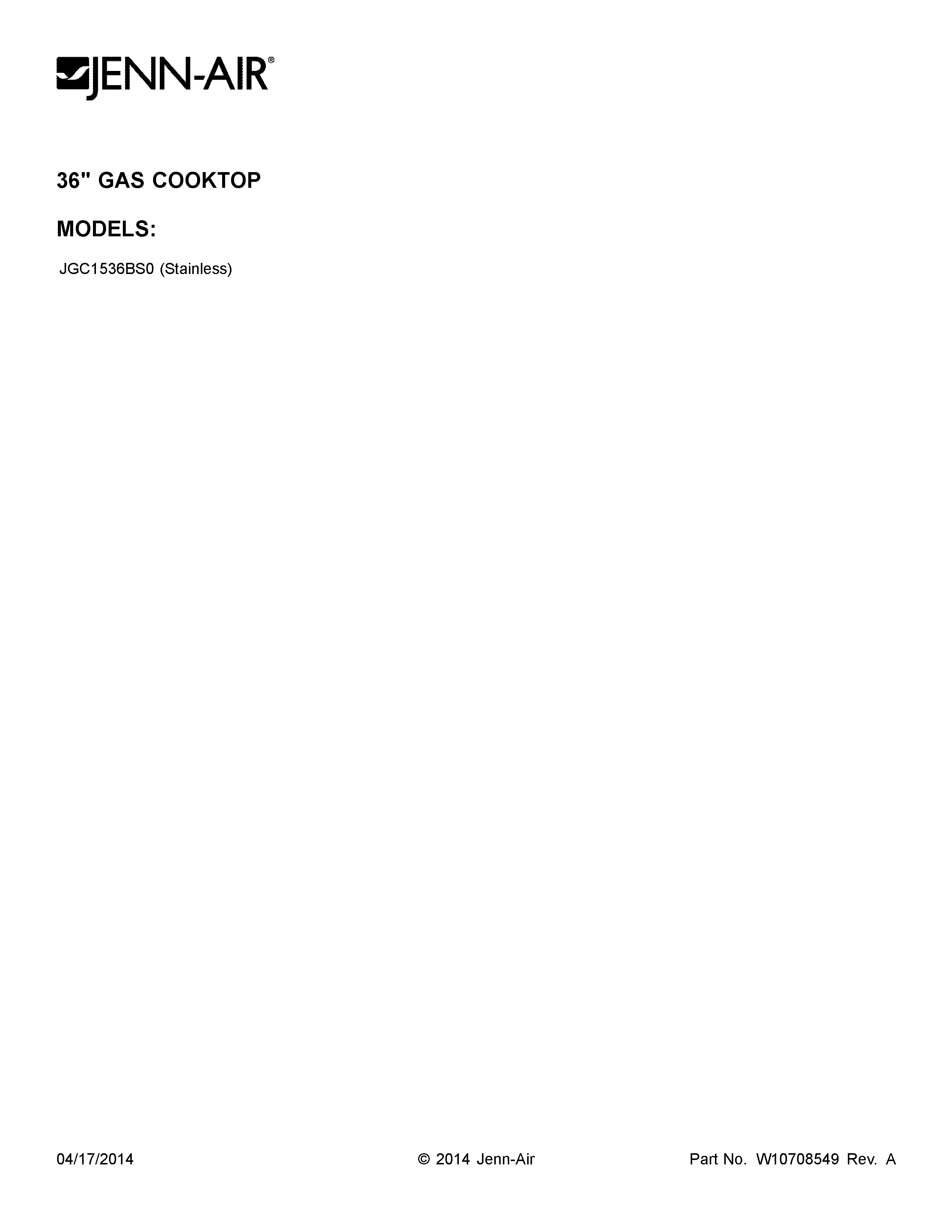

Model # JGC1536BS0 Official Jenn-Air gas cooktop

Here are the diagrams and repair parts for Official Jenn-Air JGC1536BS0 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Cooktop Lp Conversion Kit W10686634
#NI

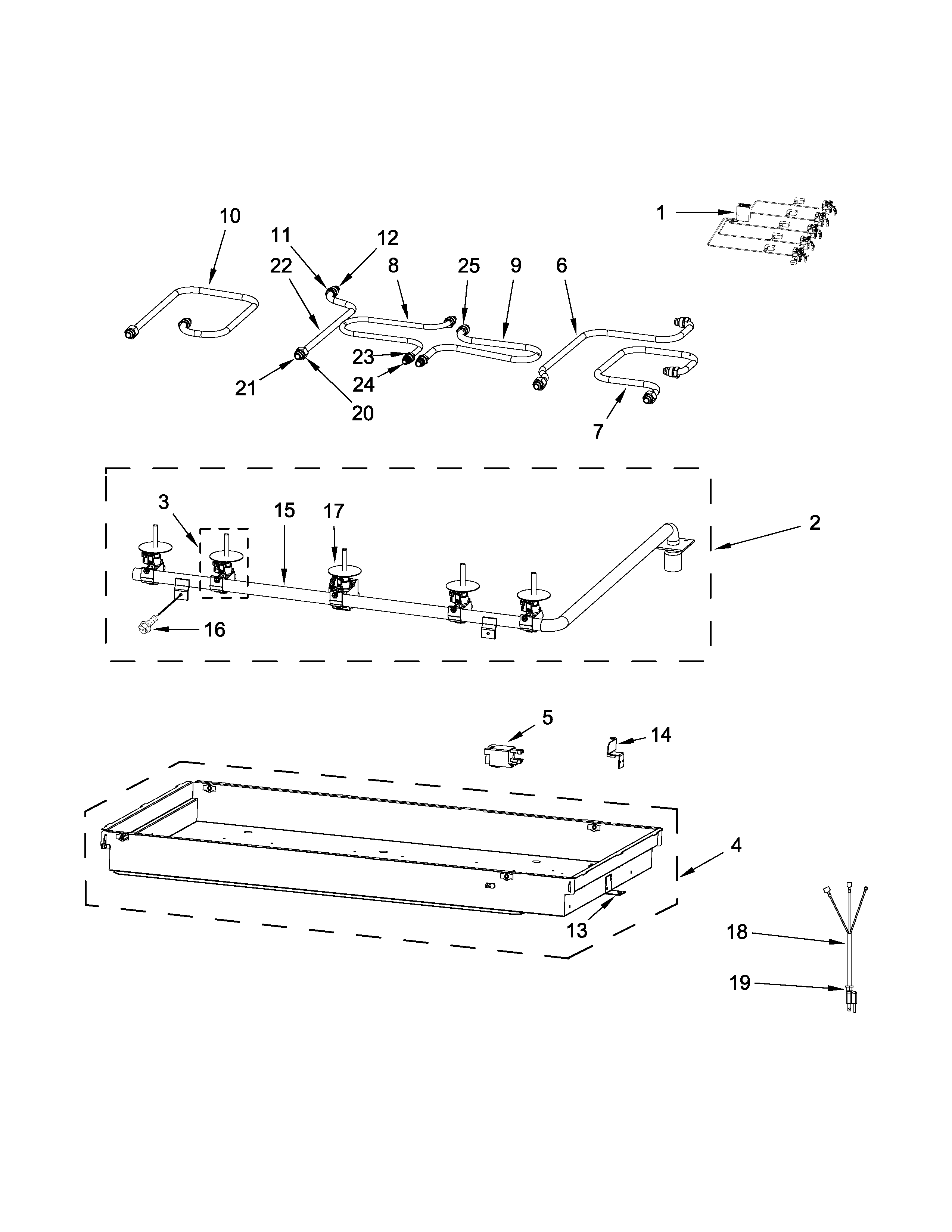

Burner box, gas valves and switch parts diagram

Cooktop lp conversion kit

Part #W10686634

$123.50 |
9% OFF Phone Price : $135.50
In Stock
Surface Igniter W10692361
#9D

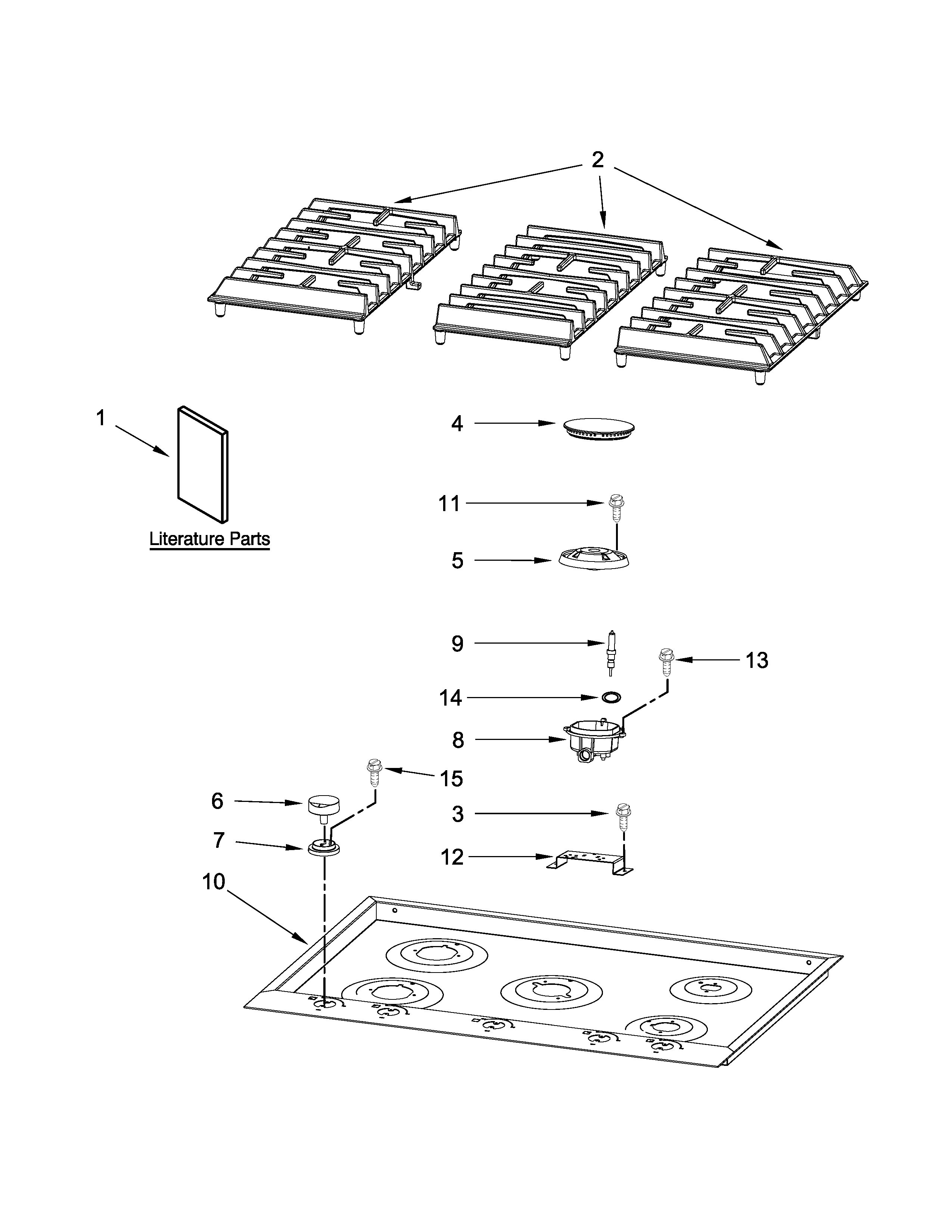

Cooktop, burner and grate parts diagram

Surface igniter

Part #W10692361

Replaced by #WPW10571488

?
Manufacturer substitution
This part replaces W10692361. Substitute parts can look different from the original.
$26.49 |
18% OFF Phone Price : $32.49
In Stock
Sleeve W10692371
#24

Burner box, gas valves and switch parts diagram

Sleeve

Part #W10692371

$23.67
In Stock
Screw W10623148
#NI

Burner box, gas valves and switch parts diagram

Screw

Part #W10623148

$13.28
In Stock
Manifold W10691439
#2

Burner box, gas valves and switch parts diagram

Manifold

Part #W10691439

$330.25 |
$12.00 OFF Phone Price : $342.25
In Stock
Conversion Kit W10686630
#NI

Burner box, gas valves and switch parts diagram

Conversion kit

Part #W10686630

$39.95
In Stock
Screw W10626012
#3

Cooktop, burner and grate parts diagram

Screw

Part #W10626012

$13.11
In Stock
Conversion Kit W10686629
#NI

Burner box, gas valves and switch parts diagram

Conversion kit

Part #W10686629

$43.95
In Stock
Mounting Bracket 8190978
#13

Burner box, gas valves and switch parts diagram

Mounting bracket

Part #8190978

$32.87
In Stock
Burner Valve W10691431
#3

Burner box, gas valves and switch parts diagram

Burner valve

Part #W10691431

$86.80
In Stock
