Model # JP930TC1WW Official GE cooktop

Here are the diagrams and repair parts for Official GE JP930TC1WW cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Control Element WB23M0009
Control element

Part #WB23M0009

Replaced by #WB23M9

?
Manufacturer substitution
This part replaces WB23M0009. Substitute parts can look different from the original.
BEST SELLER
$55.80 |
10% OFF Phone Price : $61.80
In Stock
Range Halogen Surface Element WB30T10044
#58

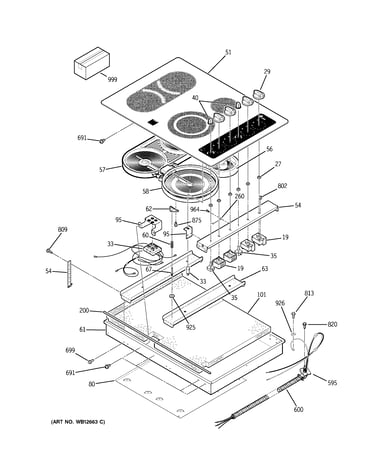

Cooktop diagram

Range halogen surface element

Part #WB30T10044

Replaced by #WB30T10099

?
Manufacturer substitution
This part replaces WB30T10044. Substitute parts can look different from the original.
BEST SELLER
$100.57 |
11% OFF Phone Price : $112.57
In Stock
Cooktop Element Control Switch, 3,000-watt WB23K5052
#19B

Cooktop diagram

Cooktop element control switch, 3,000-watt

Part #WB23K5052

Replaced by #WB24X29364

?
Manufacturer substitution
This part replaces WB23K5052. Substitute parts can look different from the original.
BEST SELLER
$69.51 |
8% OFF Phone Price : $75.51
In Stock
Selector Switch WB24X0449
#35

Cooktop diagram

Selector switch

Part #WB24X0449

Replaced by #WB24X449

?
Manufacturer substitution
This part replaces WB24X0449. Substitute parts can look different from the original.
$71.47 |
8% OFF Phone Price : $77.47
In Stock
Screw WH02X0930
#875

Cooktop diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Radiant Bridge Surface Element (replaces Wb23k5061, Wb30t10036, Wb30t10057, Wb30t10117) WB30T10046
#57

Cooktop diagram

Range radiant bridge surface element (replaces wb23k5061, wb30t10036, wb30t10057, wb30t10117)

Part #WB30T10046

$313.84 |
$12.00 OFF Phone Price : $325.84
In Stock
Cooktop Burner Knob WB03T10025
#29

Cooktop diagram

Cooktop burner knob

Part #WB03T10025

$23.90 |
20% OFF Phone Price : $29.90
In Stock
Screw WB01X1137
#809

Cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw - Black WB01K5162
#691

Cooktop diagram

Screw - black

Part #WB01K5162

Replaced by #WB1K5162

?
Manufacturer substitution
This part replaces WB01K5162. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer WB01K5117
#925

Cooktop diagram

Washer

Part #WB01K5117

Replaced by #WB1K5117

?
Manufacturer substitution
This part replaces WB01K5117. Substitute parts can look different from the original.
$8.11
In Stock
