Model # AHG65LKG1 Official GE dehumidifier

Here are the diagrams and repair parts for Official GE AHG65LKG1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Om Room Air 49-7545
#9999

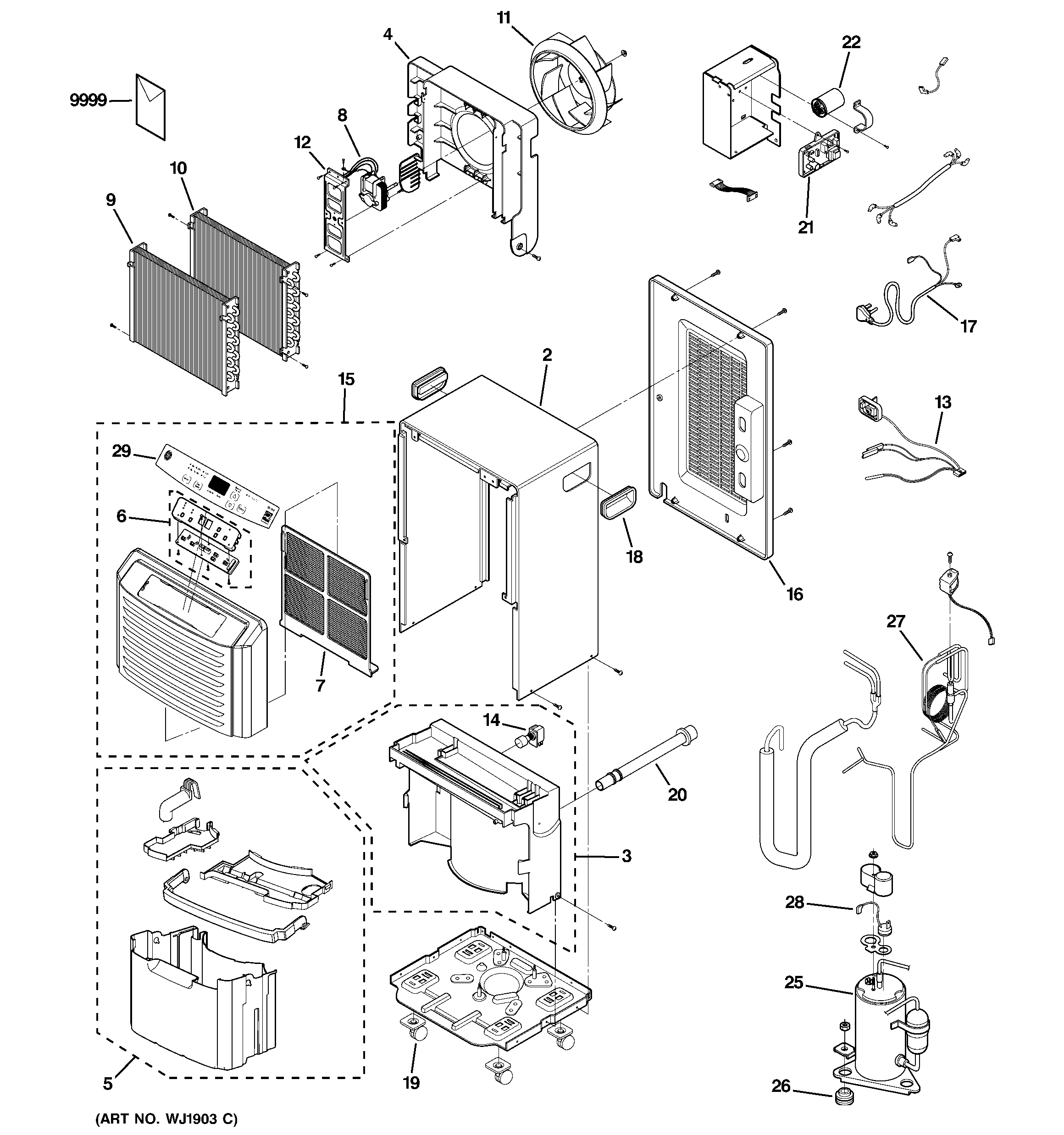

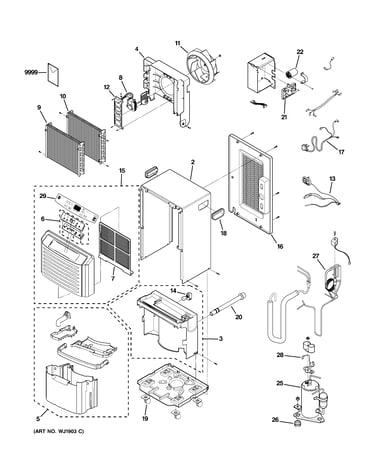

Dehumidifier diagram

Om room air

Part #49-7545

$17.99
In Stock
Mini Manual 31-61319
#9999

Dehumidifier diagram

Mini manual

Part #31-61319

The manufacturer no longer makes this part, and there's no substitute part

Condenser WK88X10016
#10

Dehumidifier diagram

Condenser

Part #WK88X10016

The manufacturer no longer makes this part, and there's no substitute part

Front Grille Assembly WK71X10021
#15

Dehumidifier diagram

Front grille assembly

Part #WK71X10021

The manufacturer no longer makes this part, and there's no substitute part

Overload Protector WJ23X10056
#28

Dehumidifier diagram

Overload protector

Part #WJ23X10056

The manufacturer no longer makes this part, and there's no substitute part

Drain Connec WK09X10005
#20

Dehumidifier diagram

Drain connec

Part #WK09X10005

The manufacturer no longer makes this part, and there's no substitute part

Discharge Tube Assembly WK53X10018
#27

Dehumidifier diagram

Discharge tube assembly

Part #WK53X10018

The manufacturer no longer makes this part, and there's no substitute part

Filter(mech) WK85X10007
#7

Dehumidifier diagram

Filter(mech)

Part #WK85X10007

The manufacturer no longer makes this part, and there's no substitute part

Handle WK05X10004
#18

Dehumidifier diagram

Handle

Part #WK05X10004

The manufacturer no longer makes this part, and there's no substitute part

Tank Assembly Bucket WK10X10008
#5

Dehumidifier diagram

Tank assembly bucket

Part #WK10X10008

The manufacturer no longer makes this part, and there's no substitute part
