KitchenAid
Gas Cooktop

Model # KGCS166GSS10 Official KitchenAid gas counter unit

Here are the diagrams and repair parts for Official KitchenAid KGCS166GSS10 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Burner Head 8286181
#9

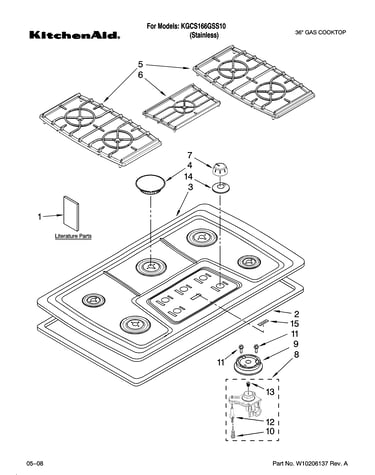

Cooktop, burner and grate parts diagram

Burner head

Part #8286181

Replaced by #WPW10406243

?
Manufacturer substitution
This part replaces 8286181. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Cooktop Igniter Switch And Harness Assembly 4456901
#11

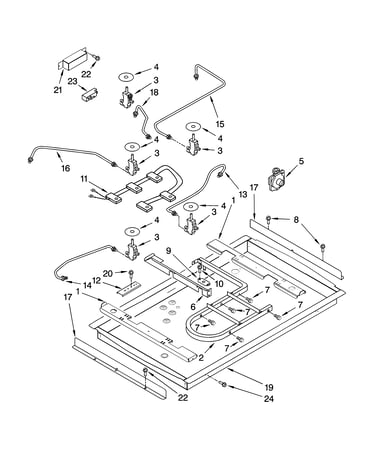

Burner box, gas valves, and switches, optional parts diagram

Cooktop igniter switch and harness assembly

Part #4456901

Replaced by #WP4456901

?
Manufacturer substitution
This part replaces 4456901. Substitute parts can look different from the original.
$108.63 |
10% OFF Phone Price : $120.63
In Stock
Range Screw 3196160
#10

Burner box, gas valves, and switches, optional parts diagram

Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooktop Burner Knob 3191922
#7

Cooktop, burner and grate parts diagram

Cooktop burner knob

Part #3191922

Replaced by #WP3191922

?
Manufacturer substitution
This part replaces 3191922. Substitute parts can look different from the original.
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Cooktop Holder Orifice W10128451
#8B

Cooktop, burner and grate parts diagram

Cooktop holder orifice

Part #W10128451

Replaced by #WPW10128451

?
Manufacturer substitution
This part replaces W10128451. Substitute parts can look different from the original.
$50.93 |
11% OFF Phone Price : $56.93
In Stock
Range Screw 4449809
#24

Burner box, gas valves, and switches, optional parts diagram

Range screw

Part #4449809

Replaced by #WP4449809

?
Manufacturer substitution
This part replaces 4449809. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Gasket Switch 3191387
#4

Burner box, gas valves, and switches, optional parts diagram

Gasket switch

Part #3191387

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 3191387. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Range Screw 3177991
Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Cooktop Burner Cap, Right Front 8286153CB
#4

Cooktop, burner and grate parts diagram

Cooktop burner cap, right front

Part #8286153CB

Replaced by #WP8286153CB

?
Manufacturer substitution
This part replaces 8286153CB. Substitute parts can look different from the original.
$40.15 |
13% OFF Phone Price : $46.15
In Stock
Cooktop Lp Conversion Kit 3192741
#NI

Burner box, gas valves, and switches, optional parts diagram

Cooktop lp conversion kit

Part #3192741

Replaced by #WP3192741

?
Manufacturer substitution
This part replaces 3192741. Substitute parts can look different from the original.
$28.60 |
17% OFF Phone Price : $34.60
In Stock
