Model # 6651741590 Official Kenmore dishwasher

Here are the diagrams and repair parts for Official Kenmore 6651741590 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Gasket 3368994
#10

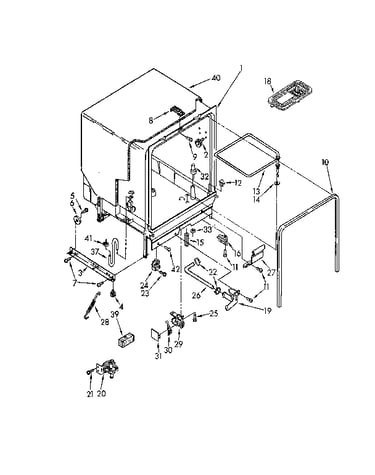

Tub assembly diagram

Gasket

Part #3368994

Replaced by #WPW10509257

?
Manufacturer substitution
This part replaces 3368994. Substitute parts can look different from the original.
BEST SELLER
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Clamp 301958
#41

Tub assembly diagram

Clamp

Part #301958

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 301958. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Torx Screw 3368921
#6

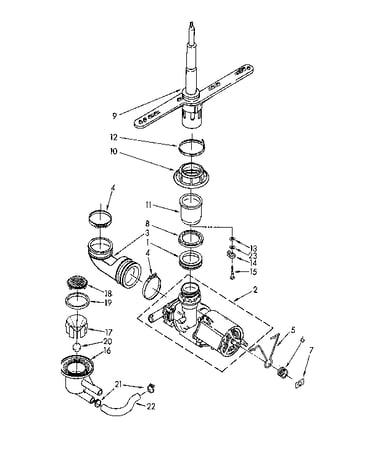

Pump and motor diagram

Torx screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.34 |
14% OFF Phone Price : $7.34
In Stock
Dishrack 3368876
#18

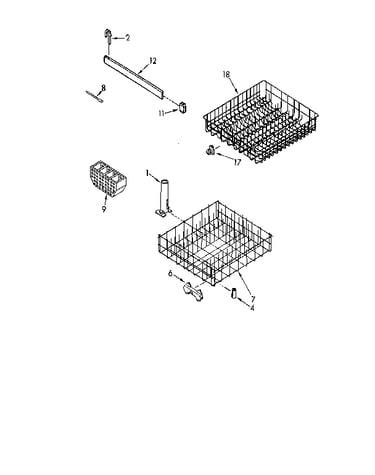

Dishrack diagram

Dishrack

Part #3368876

Replaced by #W11169039

?
Manufacturer substitution
This part replaces 3368876. Substitute parts can look different from the original.
BEST SELLER
$127.70 |
9% OFF Phone Price : $139.70
In Stock
Dishwasher Heating Element Rubber Washer 717273
#14

Tub assembly diagram

Dishwasher heating element rubber washer

Part #717273

Replaced by #WP717273

?
Manufacturer substitution
This part replaces 717273. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Door Latch 3368953
#9

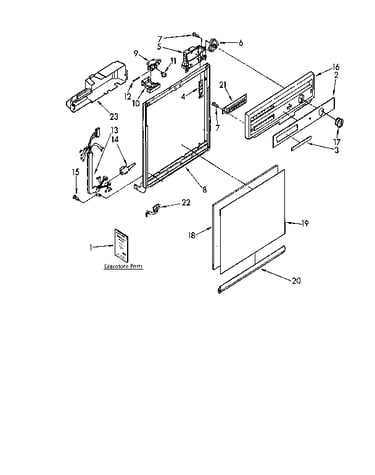

Frame and console diagram

Door latch

Part #3368953

Replaced by #WP3380854

?
Manufacturer substitution
This part replaces 3368953. Substitute parts can look different from the original.
BEST SELLER
$42.12 |
12% OFF Phone Price : $48.12
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Screw 3367670
#11

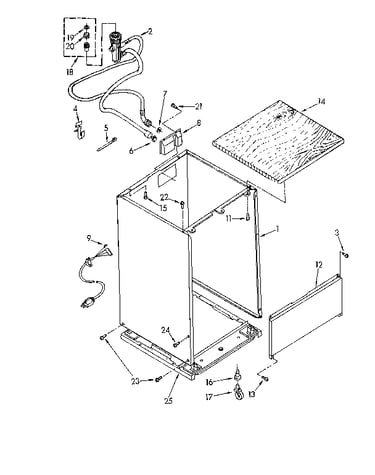

Cabinet diagram

Screw

Part #3367670

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 3367670. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 3390631
#21

Tub assembly diagram

Screw

Part #3390631

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 3390631. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Snap 3369061
#3

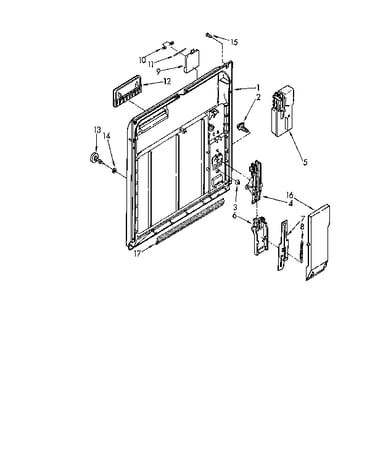

Inner door diagram

Snap

Part #3369061

Replaced by #676413

?
Manufacturer substitution
This part replaces 3369061. Substitute parts can look different from the original.
This item is not returnable
$6.59 |
13% OFF Phone Price : $7.59
In Stock
