Model # GFB1050-02 Official GE garbage disposal

Here are the diagrams and repair parts for Official GE GFB1050-02 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Mounting Plate WC2X354
#14

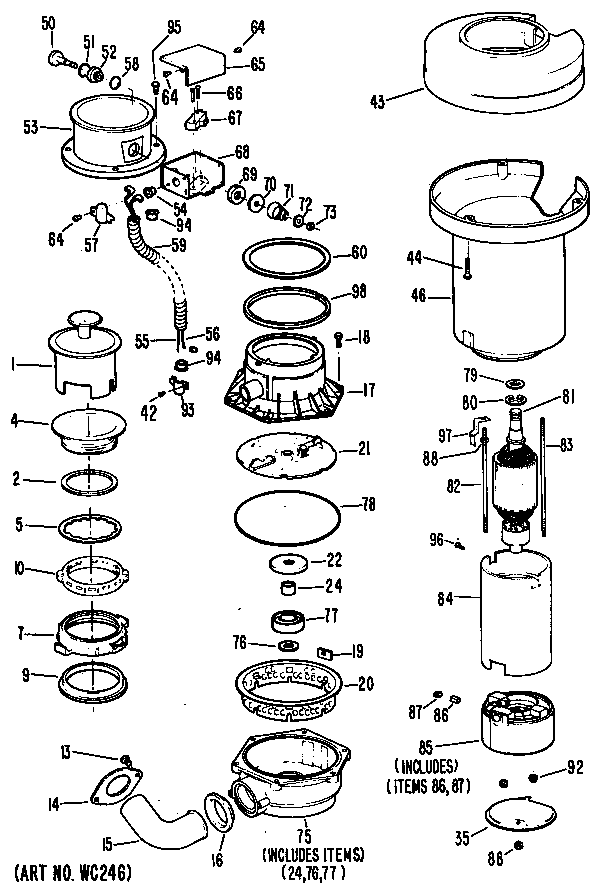

Disposer assembly diagram

Mounting plate

Part #WC2X354

This item is not returnable
$5.49
In Stock
Mounting Ring WC5X104
#7

Disposer assembly diagram

Mounting ring

Part #WC5X104

Replaced by #WC15X20161

?
Manufacturer substitution
This part replaces WC5X104. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
Support Ring WC5X103
#10

Disposer assembly diagram

Support ring

Part #WC5X103

Replaced by #WC05X10002

?
Manufacturer substitution
This part replaces WC5X103. Substitute parts can look different from the original.
This item is not returnable
$11.68 |
15% OFF Phone Price : $13.68
In Stock
Screw WC1X231
#44

Disposer assembly diagram

Screw

Part #WC1X231

The manufacturer no longer makes this part, and there's no substitute part

Slinger WC4X34
#22

Disposer assembly diagram

Slinger

Part #WC4X34

The manufacturer no longer makes this part, and there's no substitute part

Hopper Asm WC24X200
#17

Disposer assembly diagram

Hopper asm

Part #WC24X200

The manufacturer no longer makes this part, and there's no substitute part

Hopper Screw WC1X212
#18

Disposer assembly diagram

Hopper screw

Part #WC1X212

The manufacturer no longer makes this part, and there's no substitute part

Inspection Plate WC2X363
#35

Disposer assembly diagram

Inspection plate

Part #WC2X363

The manufacturer no longer makes this part, and there's no substitute part

Stopper Assembly WC11X54
#1

Disposer assembly diagram

Stopper assembly

Part #WC11X54

The manufacturer no longer makes this part, and there's no substitute part

Retainer Grind Ring WC1X255
#19

Disposer assembly diagram

Retainer grind ring

Part #WC1X255

The manufacturer no longer makes this part, and there's no substitute part
