Craftsman
Reciprocating Saw

Model # 31527721 Official Craftsman multispeed sabre saw

Here are the diagrams and repair parts for Official Craftsman 31527721 multispeed sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Screw 1-620725-01
#56

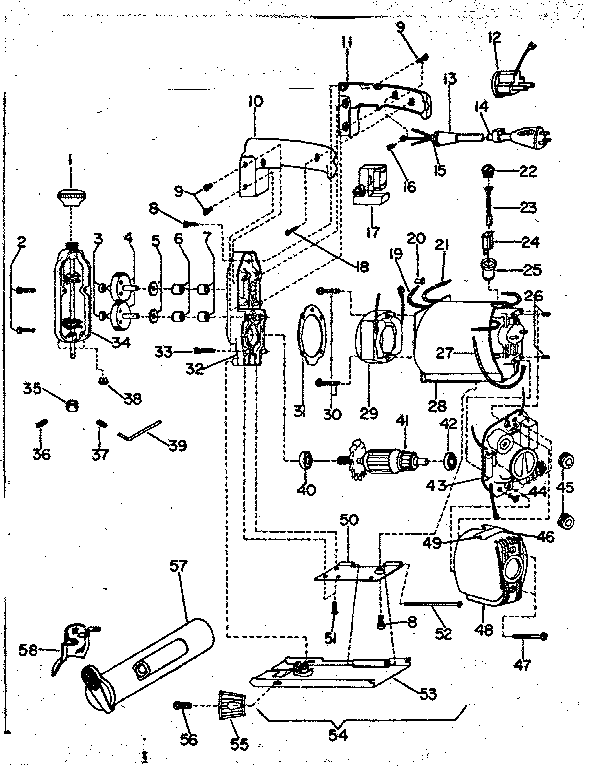

Unit parts diagram

Screw

Part #1-620725-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-930993-01
#16

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 1-700179-19
#52

Unit parts diagram

Hinge pin

Part #1-700179-19

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-940049-15
#18

Unit parts diagram

Screw

Part #1-940049-15

The manufacturer no longer makes this part, and there's no substitute part

Gear Compl 1-620639-00
#4

Unit parts diagram

Gear compl

Part #1-620639-00

The manufacturer no longer makes this part, and there's no substitute part

Lead-wht 1-703562-804
#19

Unit parts diagram

Lead-wht

Part #1-703562-804

The manufacturer no longer makes this part, and there's no substitute part

Brush Lead 1-620624-02
#23

Unit parts diagram

Brush lead

Part #1-620624-02

The manufacturer no longer makes this part, and there's no substitute part

Armature 2-620646-01
#41

Unit parts diagram

Armature

Part #2-620646-01

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 2-620635-00
#24

Unit parts diagram

Brush tube

Part #2-620635-00

The manufacturer no longer makes this part, and there's no substitute part

Field Core 3-620649-01
#29

Unit parts diagram

Field core

Part #3-620649-01

The manufacturer no longer makes this part, and there's no substitute part
