Model # 25348027894 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25348027894 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

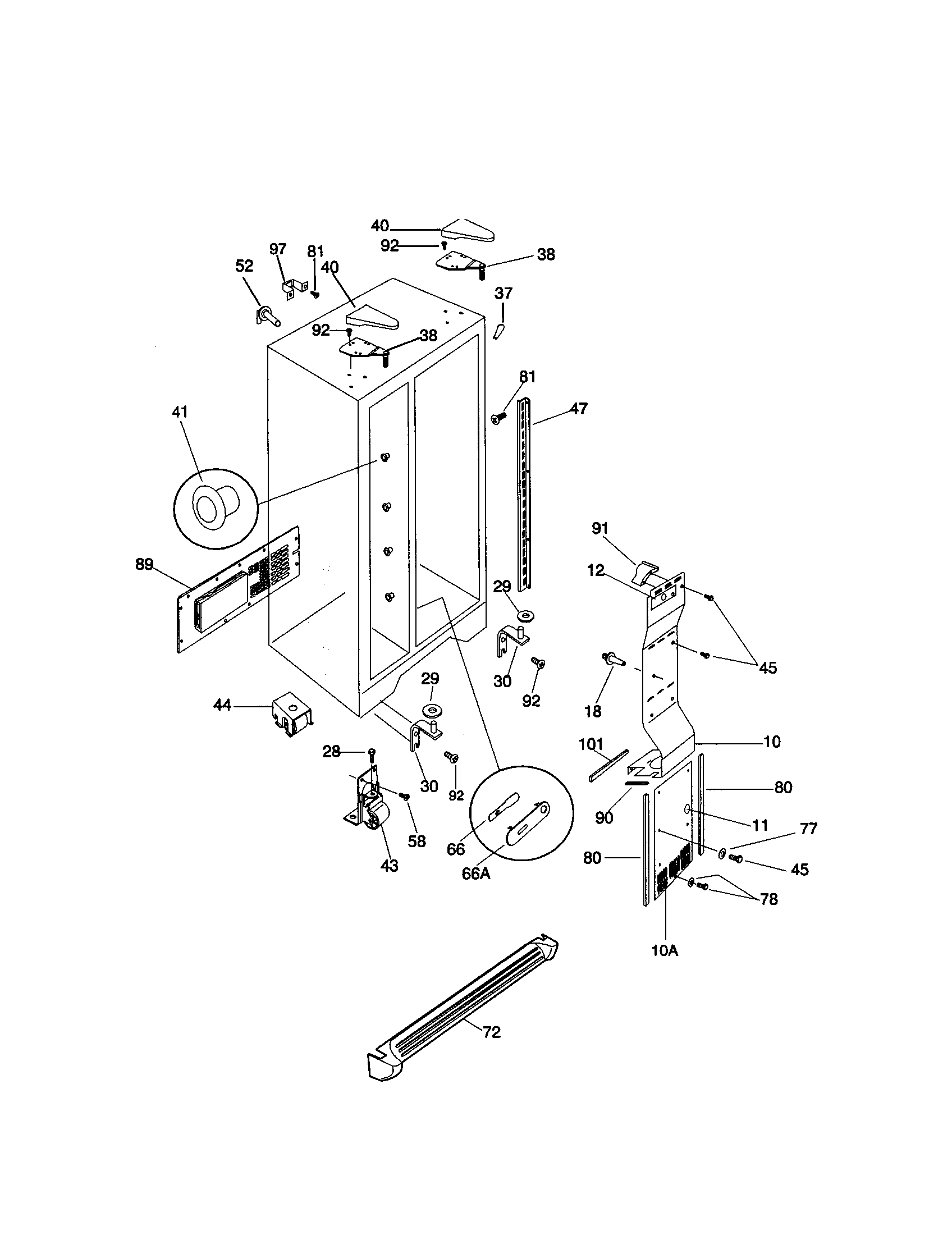

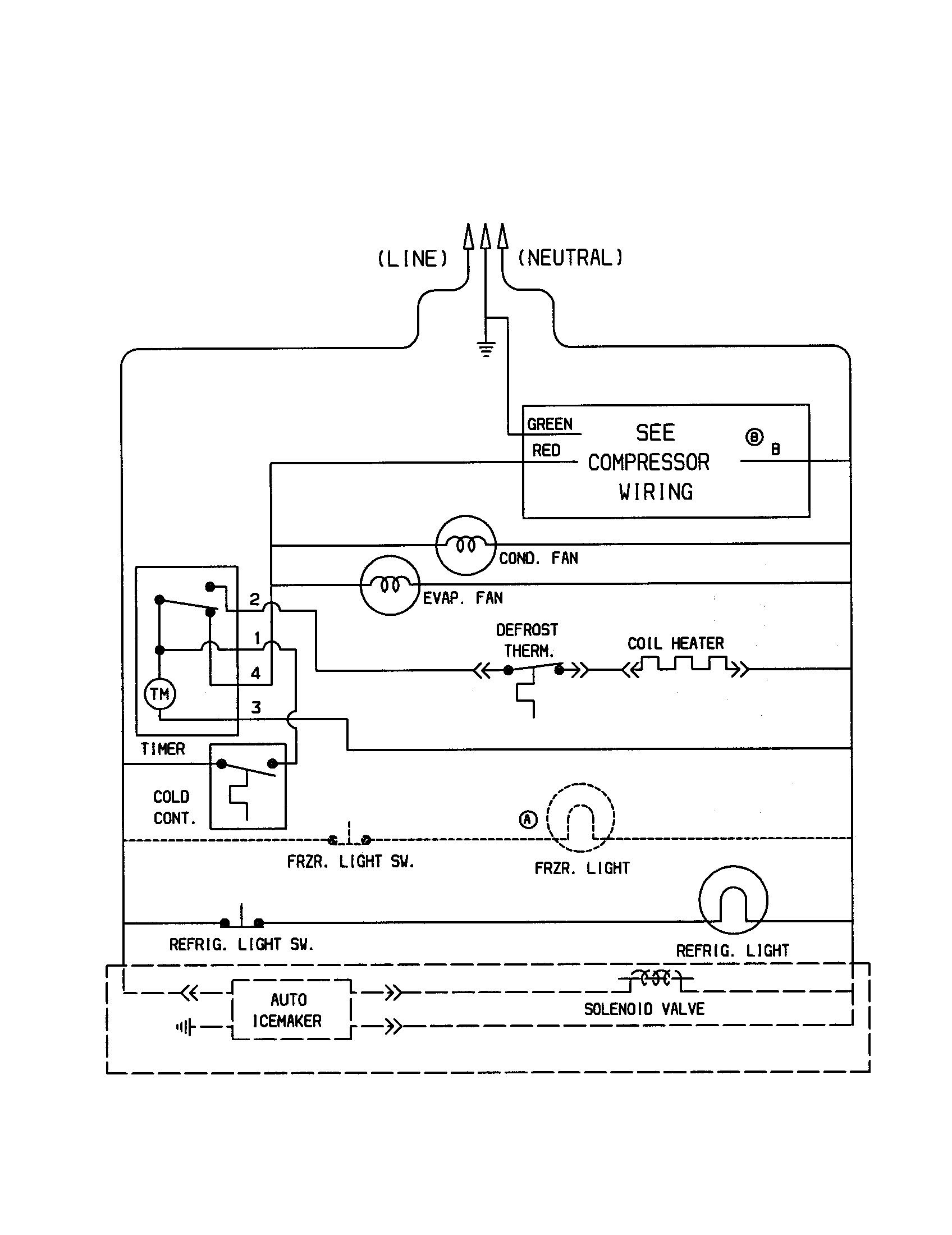

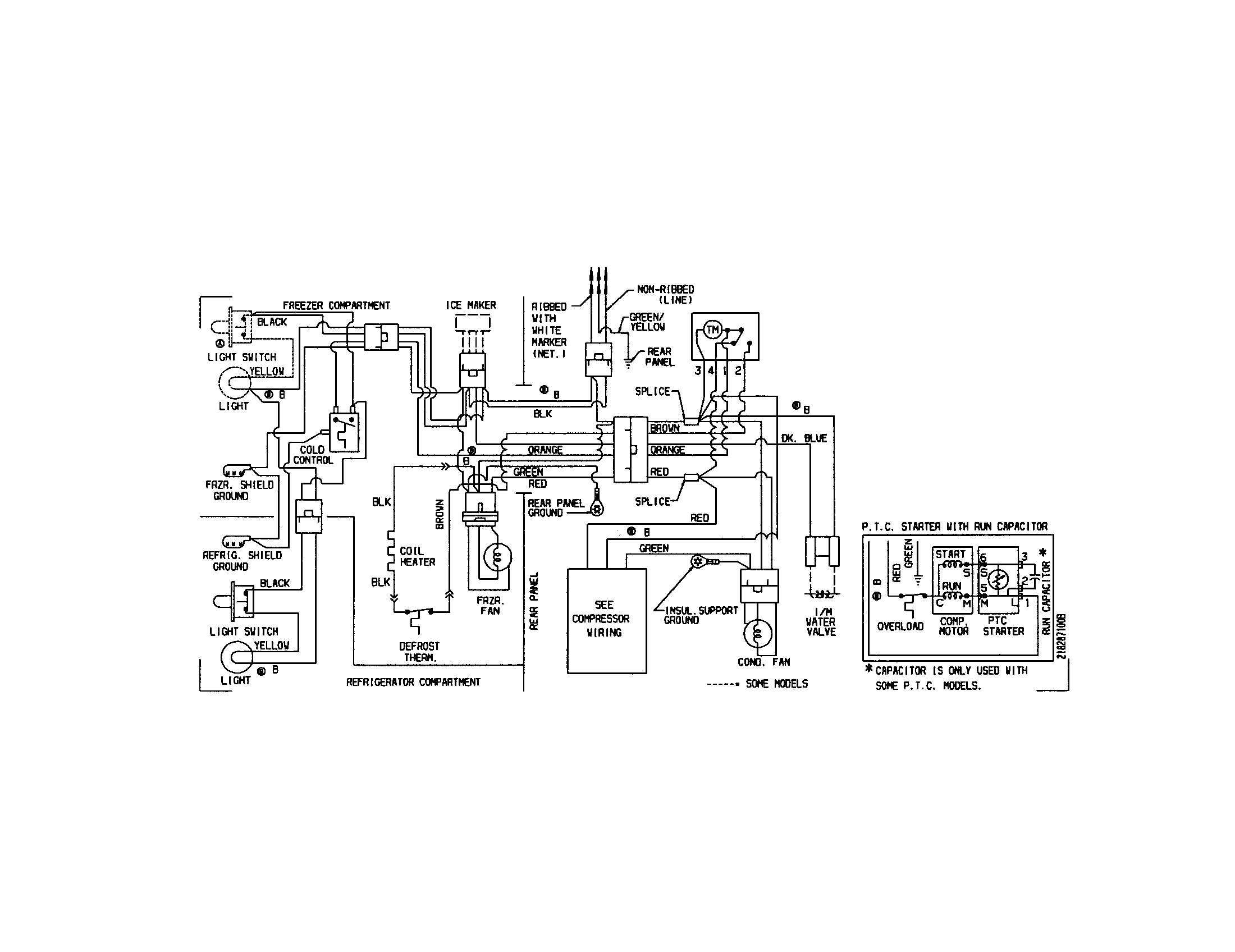

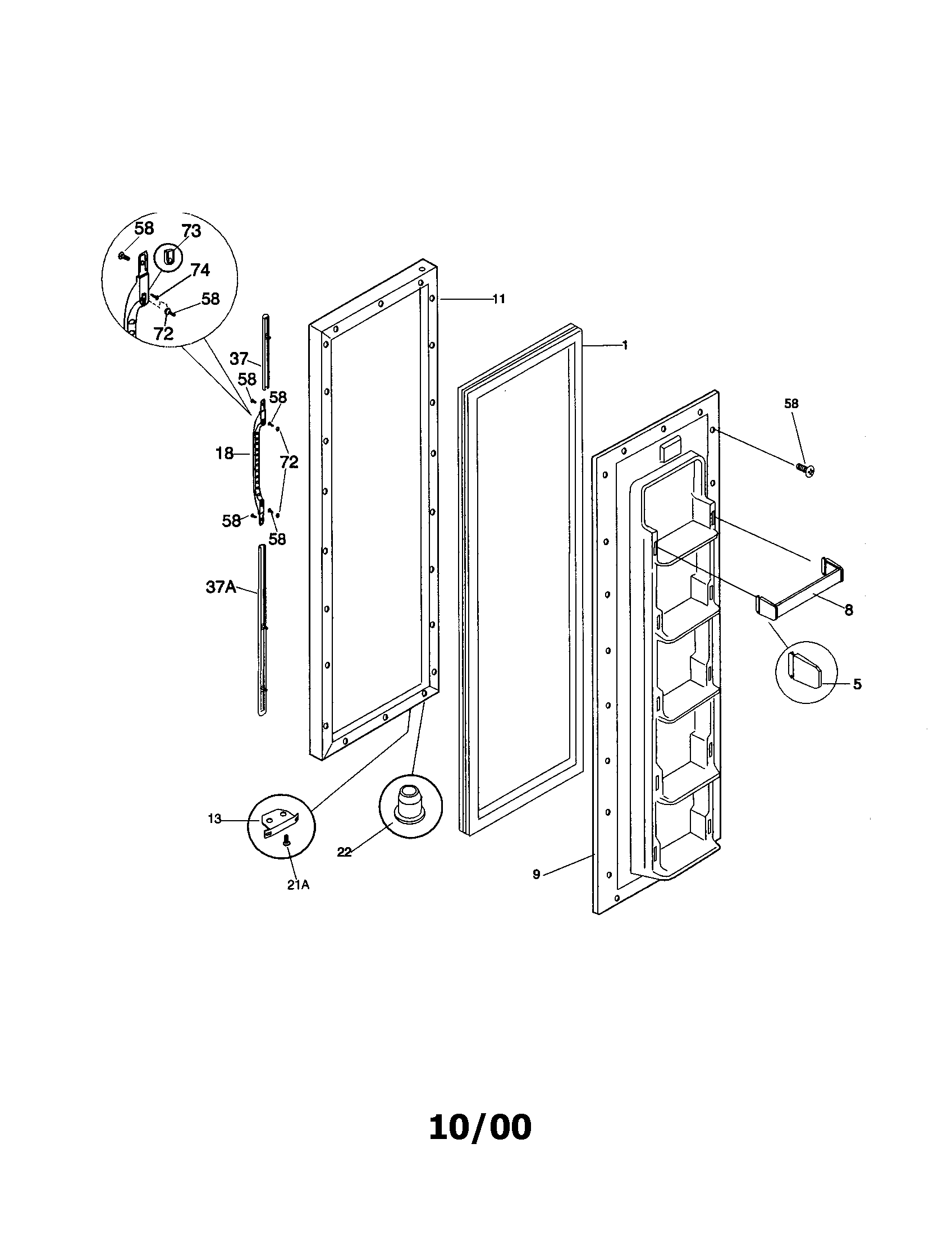

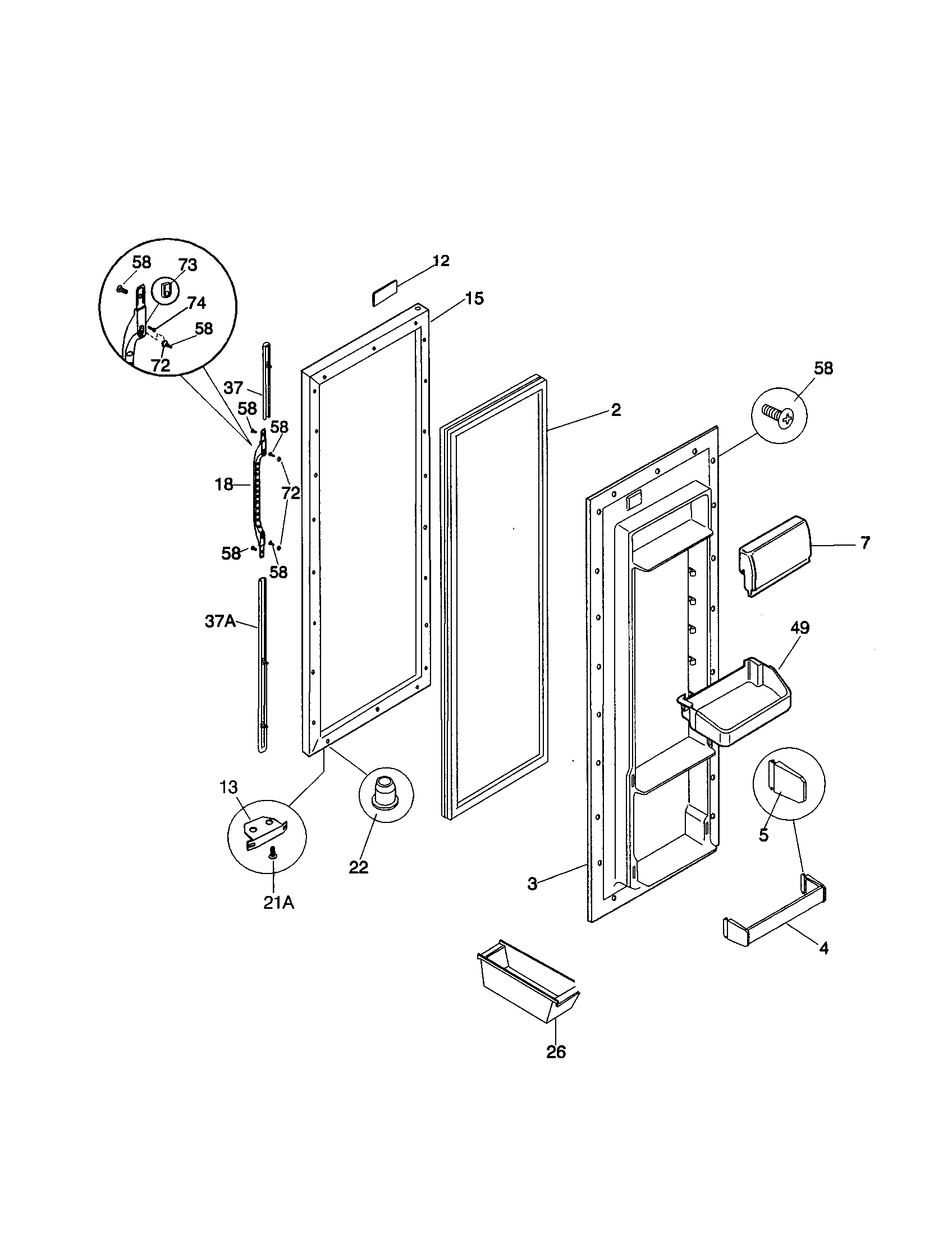

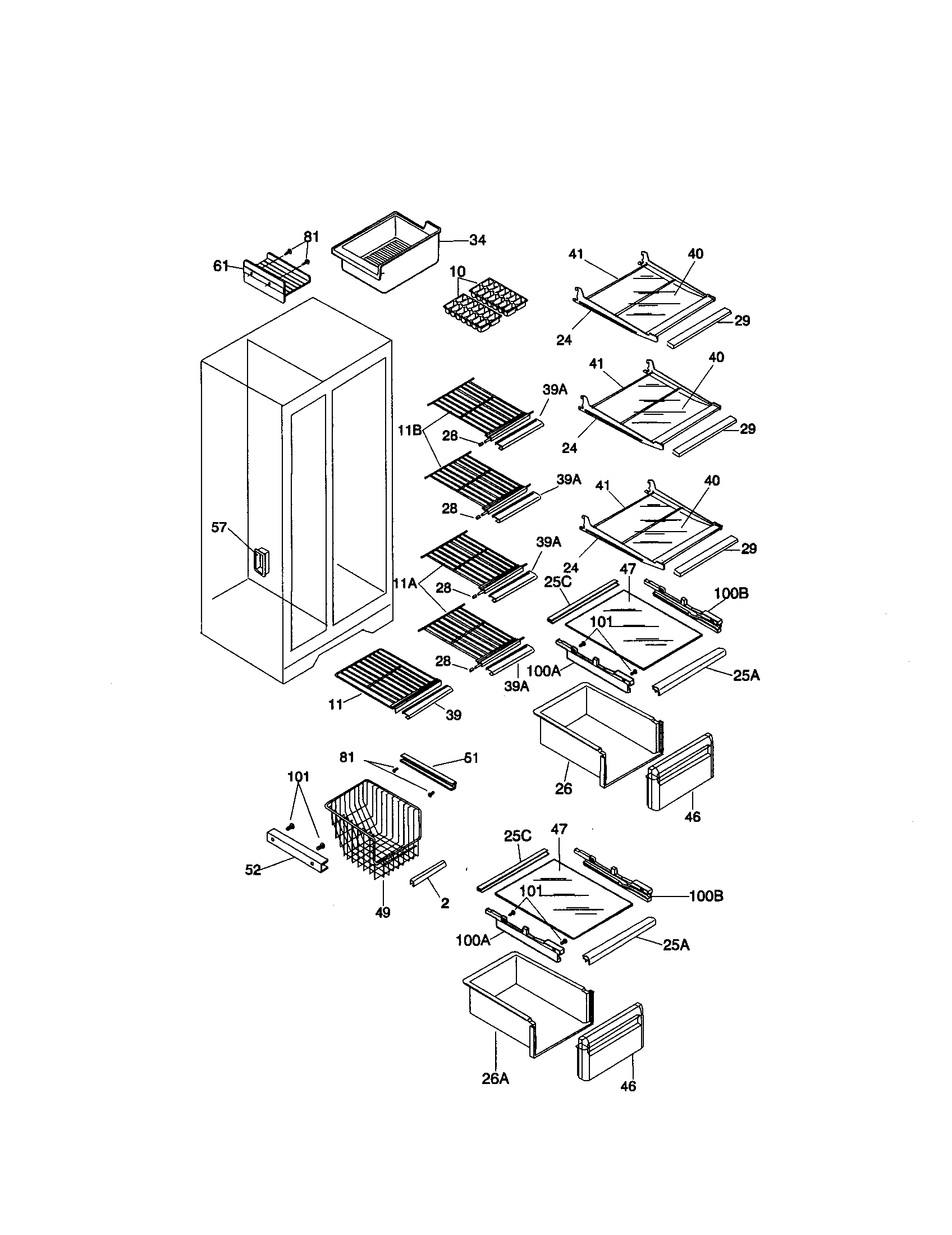

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Refrigerator Filter Drier 218944001
#4

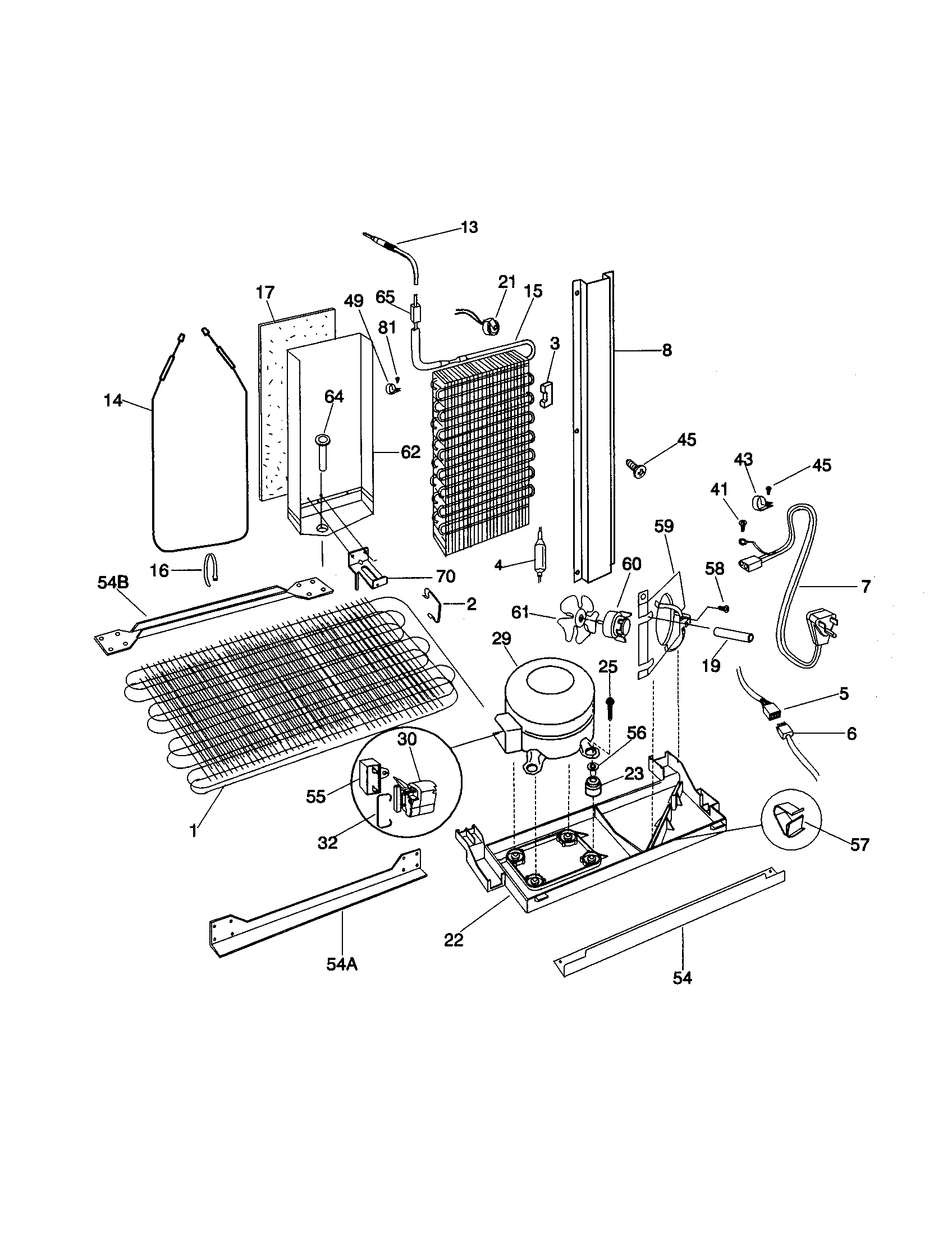

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

Controls diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

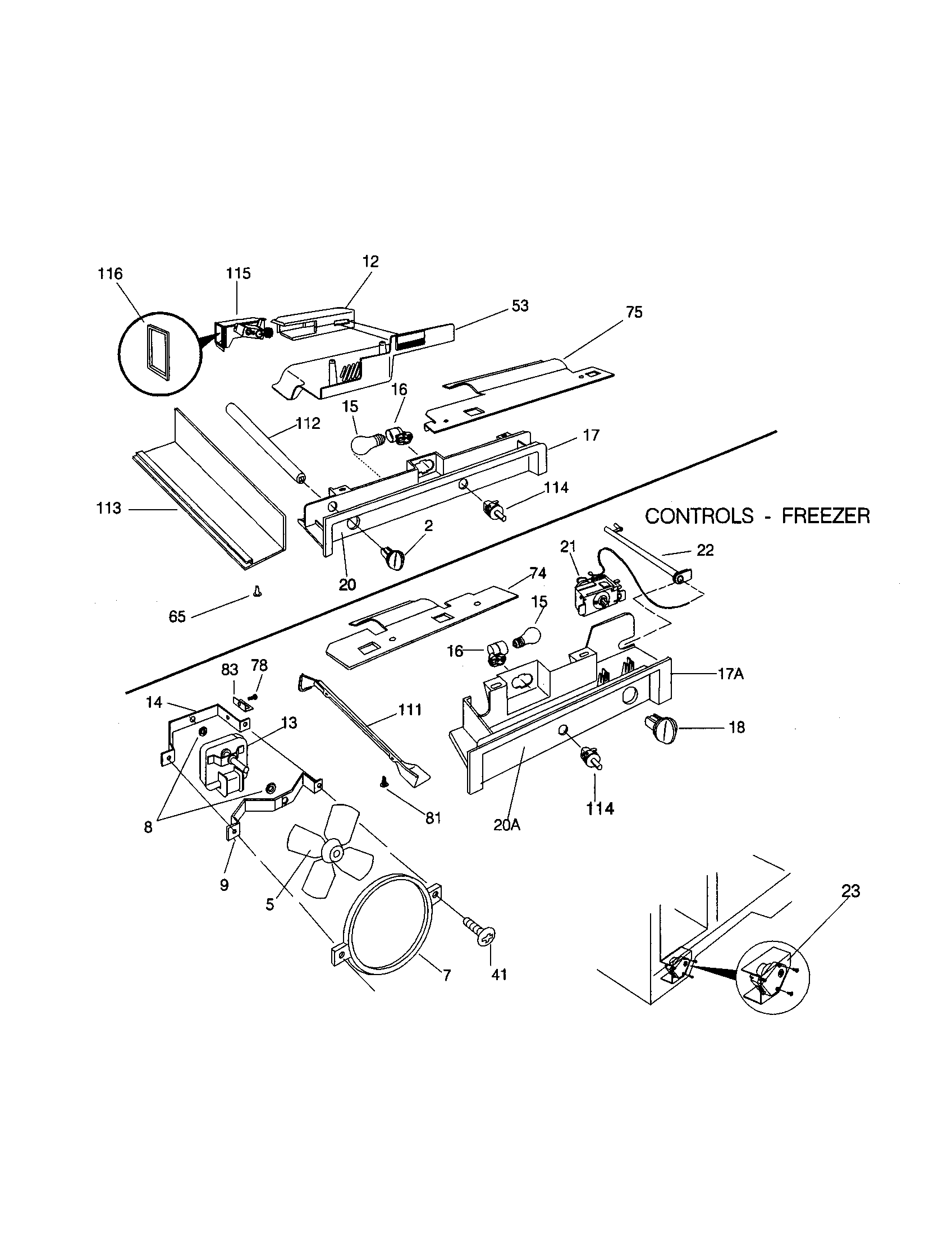

Controls diagram

Refrigerator evaporator fan blade

Part #5308000010

BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Thermostat 218969902
#21

System diagram

Thermostat

Part #218969902

Replaced by #297216600

?
Manufacturer substitution
This part replaces 218969902. Substitute parts can look different from the original.
BEST SELLER
$18.78 |
10% OFF Phone Price : $20.78
In Stock
Refrigerator Timer 215846606
#23

Controls diagram

Refrigerator timer

Part #215846606

Replaced by #215846602

?
Manufacturer substitution
This part replaces 215846606. Substitute parts can look different from the original.
BEST SELLER
$30.20 |
17% OFF Phone Price : $36.20
In Stock
Refrigerator Compressor 218894801
#29

System diagram

Refrigerator compressor

Part #218894801

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 218894801. Substitute parts can look different from the original.
BEST SELLER
$363.07 |
$12.00 OFF Phone Price : $375.07
In Stock
Chest Freezer Run Capacitor 218909901
#55

System diagram

Chest freezer run capacitor

Part #218909901

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218909901. Substitute parts can look different from the original.
BEST SELLER
$45.87 |
12% OFF Phone Price : $51.87
In Stock
Upright Freezer Door Handle (white) 218803901
Upright freezer door handle (white)

Part #218803901

Replaced by #297272500

?
Manufacturer substitution
This part replaces 218803901. Substitute parts can look different from the original.
BEST SELLER
$50.84 |
11% OFF Phone Price : $56.84
In Stock
Refrigerator Strap 5308000110
#16

System diagram

Refrigerator strap

Part #5308000110

BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Kelvinator Freezer Door Handle Mounting Block (replaces 218396701) 218396700
Kelvinator freezer door handle mounting block (replaces 218396701)

Part #218396700

$36.46 |
14% OFF Phone Price : $42.46
In Stock
