Model # EI24MO45IBDY Official Electrolux microwave

Here are the diagrams and repair parts for Official Electrolux EI24MO45IBDY microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

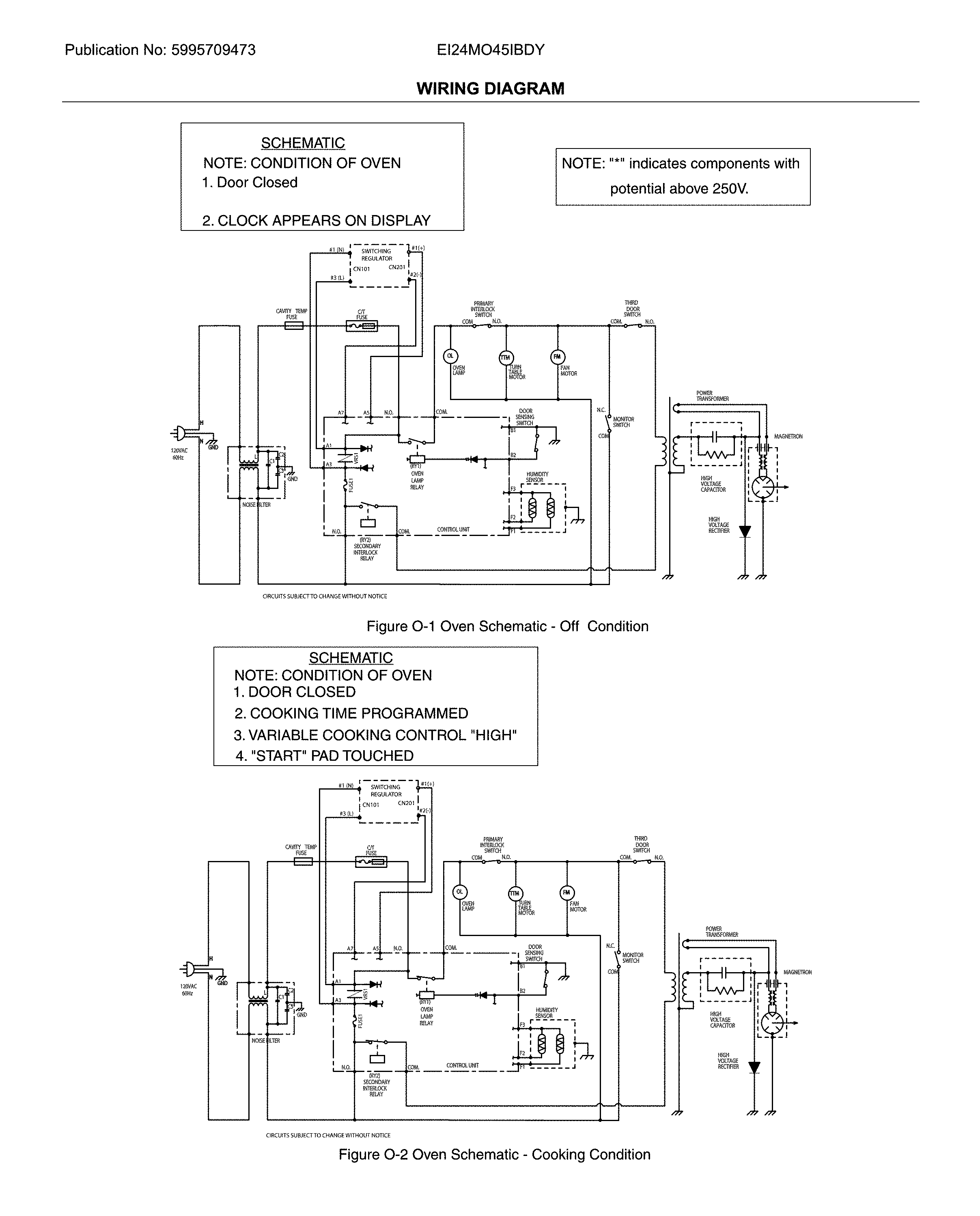

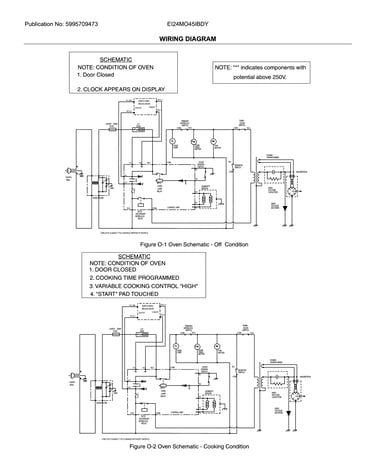

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Microwave Door Interlock Switch (replaces 5304440026) 5304493153
#6

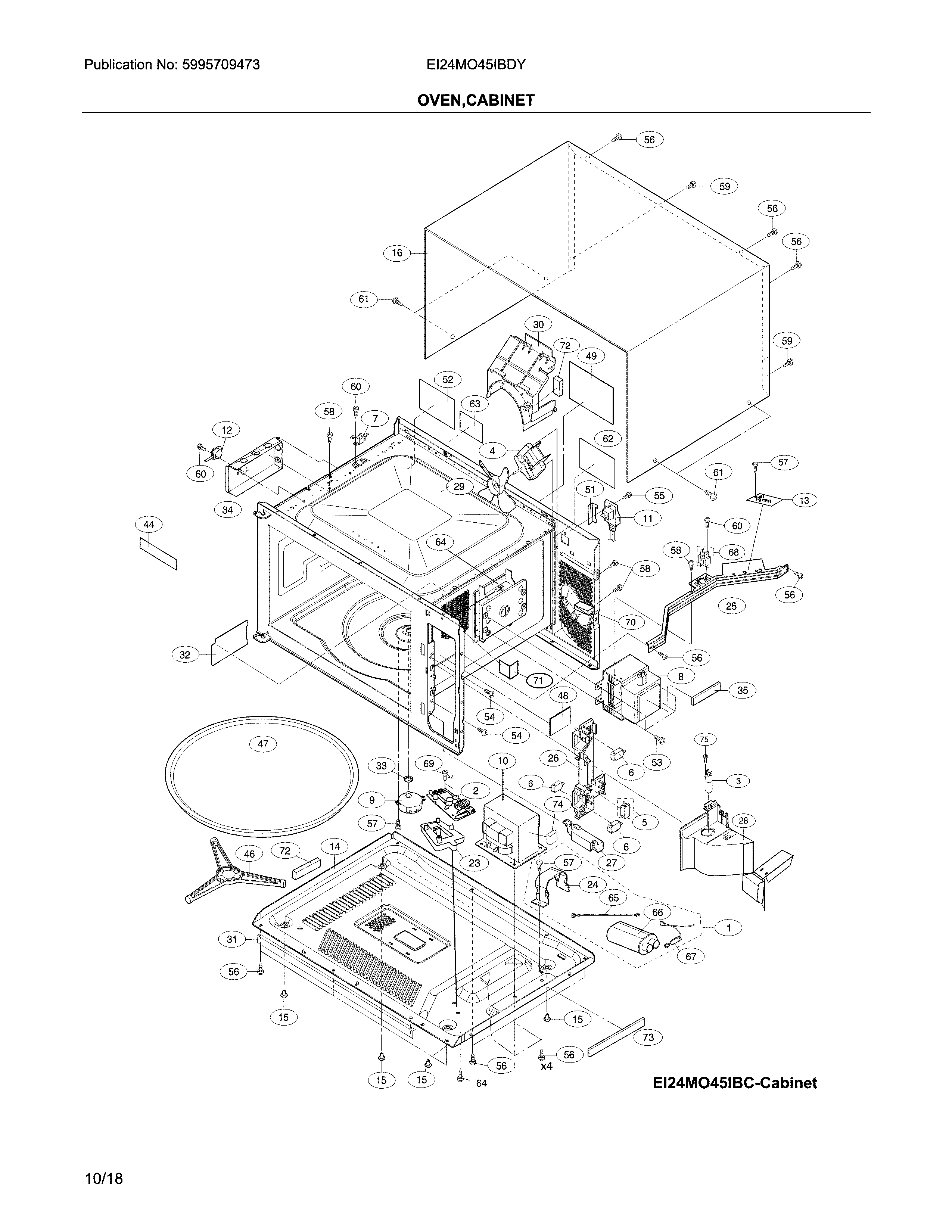

Cabinet,oven diagram

Microwave door interlock switch (replaces 5304440026)

Part #5304493153

BEST SELLER
$28.60 |
17% OFF Phone Price : $34.60
In Stock
Wall Oven Microwave Magnetron 5304472253
#8

Cabinet,oven diagram

Wall oven microwave magnetron

Part #5304472253

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304472253. Substitute parts can look different from the original.
BEST SELLER
$144.88 |
8% OFF Phone Price : $156.88
In Stock
Microwave Latch Body 5304503439
#26

Cabinet,oven diagram

Microwave latch body

Part #5304503439

BEST SELLER
$48.11 |
11% OFF Phone Price : $54.11
In Stock
Microwave High-voltage Capacitor 5304487566
#66

Cabinet,oven diagram

Microwave high-voltage capacitor

Part #5304487566

BEST SELLER
$102.75 |
10% OFF Phone Price : $114.75
In Stock
Microwave High-voltage Capacitor 5304493150
#67

Cabinet,oven diagram

Microwave high-voltage capacitor

Part #5304493150

BEST SELLER
This item is not returnable
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Cover 5304478947
#32

Cabinet,oven diagram

Cover

Part #5304478947

Replaced by #5304462314

?
Manufacturer substitution
This part replaces 5304478947. Substitute parts can look different from the original.
$49.09 |
11% OFF Phone Price : $55.09
In Stock
Microwave Light Bulb 5304464198
#3

Cabinet,oven diagram

Microwave light bulb

Part #5304464198

$31.69 |
16% OFF Phone Price : $37.69
In Stock
Wall Oven Microwave Door Latch 5304441893
#38

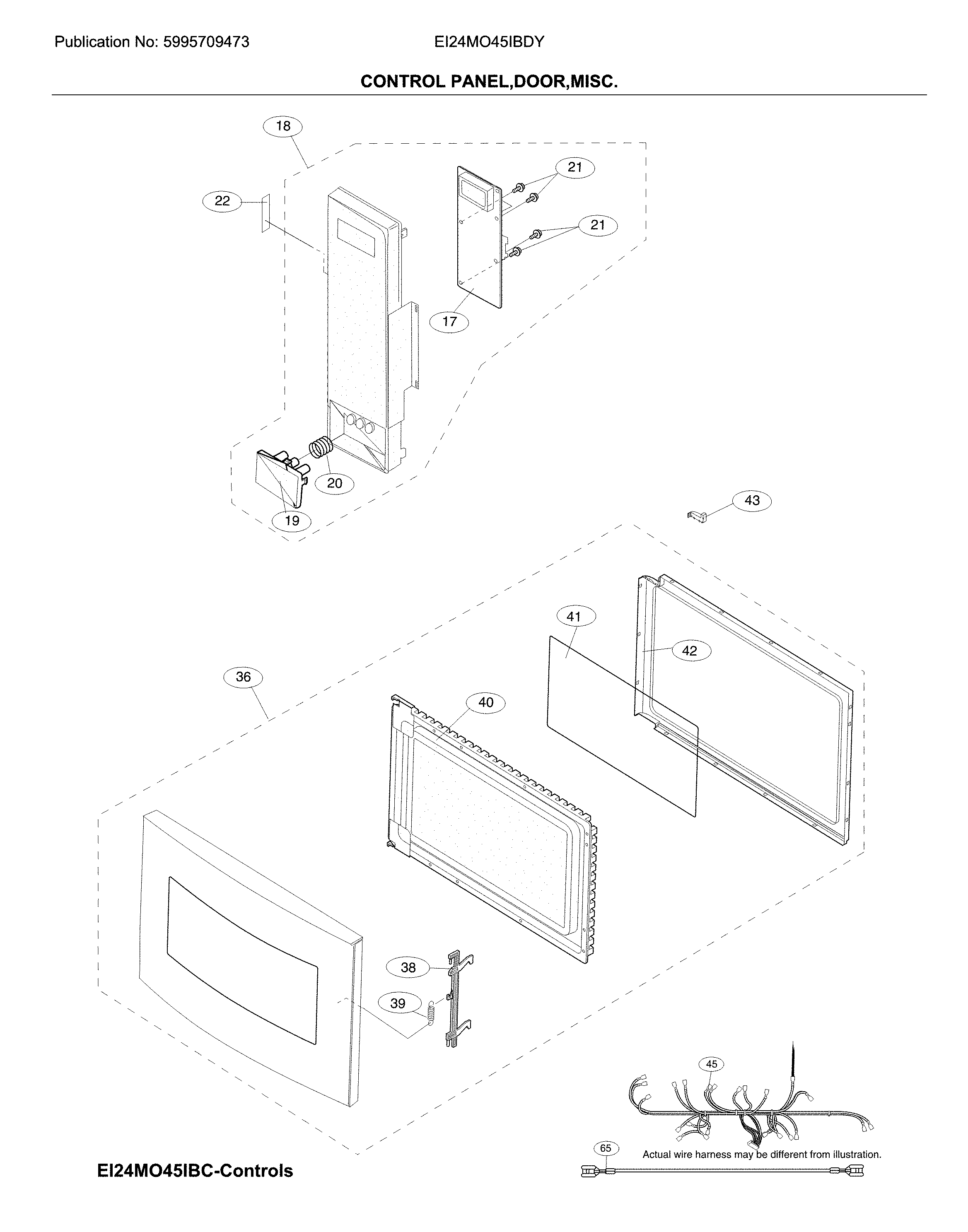

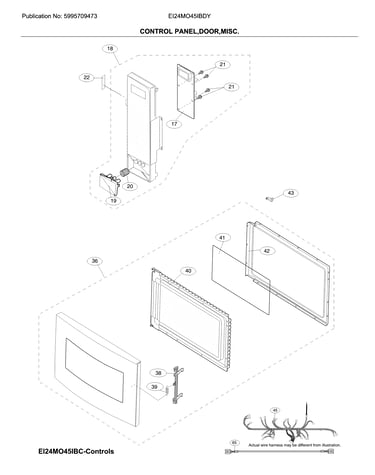

Control panel,door,misc diagram

Wall oven microwave door latch

Part #5304441893

$39.67 |
13% OFF Phone Price : $45.67
In Stock
Electrolux Microwave Electronic Control Board And Panel Assembly 5304516274
#17

Control panel,door,misc diagram

Electrolux microwave electronic control board and panel assembly

Part #5304516274

$190.62
In Stock
Control Panel 5304507615
#18

Control panel,door,misc diagram

Control panel

Part #5304507615

Replaced by #5304516274

?
Manufacturer substitution
This part replaces 5304507615. Substitute parts can look different from the original.
$190.62
In Stock
