Model # 831150742 Official Weider pro 800 weight system

Here are the diagrams and repair parts for Official Weider 831150742 pro 800 weight system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Pad,foam,.75 114798
#22

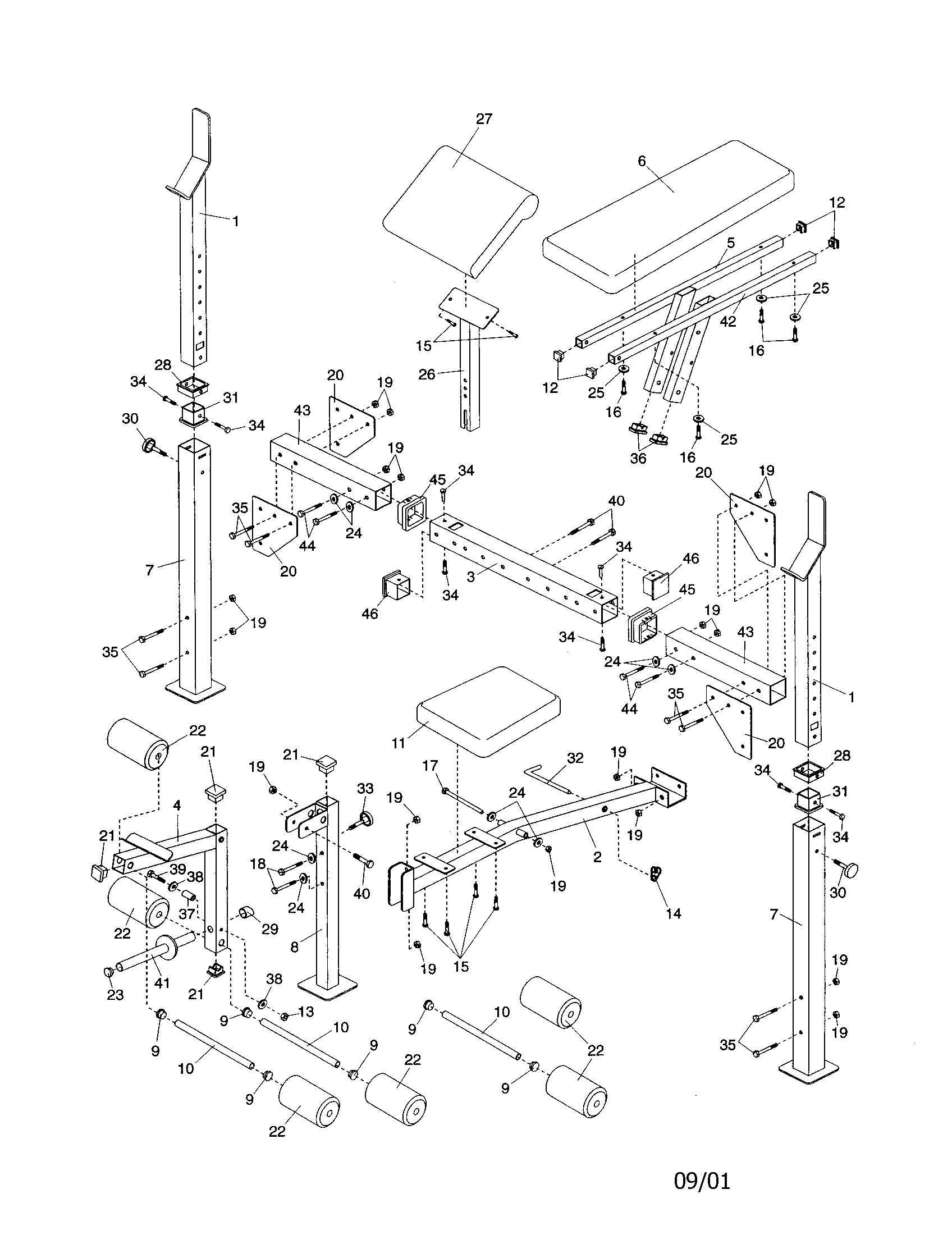

Frame assembly diagram

Pad,foam,.75

Part #114798

Replaced by #208378

?
Manufacturer substitution
This part replaces 114798. Substitute parts can look different from the original.
This item is not returnable
$5.39
16% OFF Phone Price : $6.39
In Stock
Nut,hex Nyl 121050
#19

Frame assembly diagram

Nut,hex nyl

Part #121050

Replaced by #148710

?
Manufacturer substitution
This part replaces 121050. Substitute parts can look different from the original.
This item is not returnable
In Stock
Reebok Internal Round End Cap, 3/4-in 115366
#9

Frame assembly diagram

Reebok internal round end cap, 3/4-in

Part #115366

This item is not returnable
In Stock
Exercise Equipment Flat Washer 014073
#38

Frame assembly diagram

Exercise equipment flat washer

Part #014073

This item is not returnable
In Stock
Weight System Square Outer Cap, 50-mm 162910
Weight system square outer cap, 50-mm

Part #162910

This item is not returnable
In Stock
Internal Round End Cap, 1-in 120733
#23

Frame assembly diagram

Internal round end cap, 1-in

Part #120733

This item is not returnable
In Stock
Image Exercise Equipment Screw 140739
#16

Frame assembly diagram

Image exercise equipment screw

Part #140739

This item is not returnable
In Stock
Spprt,seat,w 168312
#2

Frame assembly diagram

Spprt,seat,w

Part #168312

In Stock
Uprt,bench,p 163098
#7

Frame assembly diagram

Uprt,bench,p

Part #163098

In Stock
Tube,crsmbr, 175972
#3

Frame assembly diagram

Tube,crsmbr,

Part #175972

In Stock
