Model # HSB30BS/01 Official Thermador wall hood

Here are the diagrams and repair parts for Official Thermador HSB30BS-01 wall hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Grease Filter 487410
#4

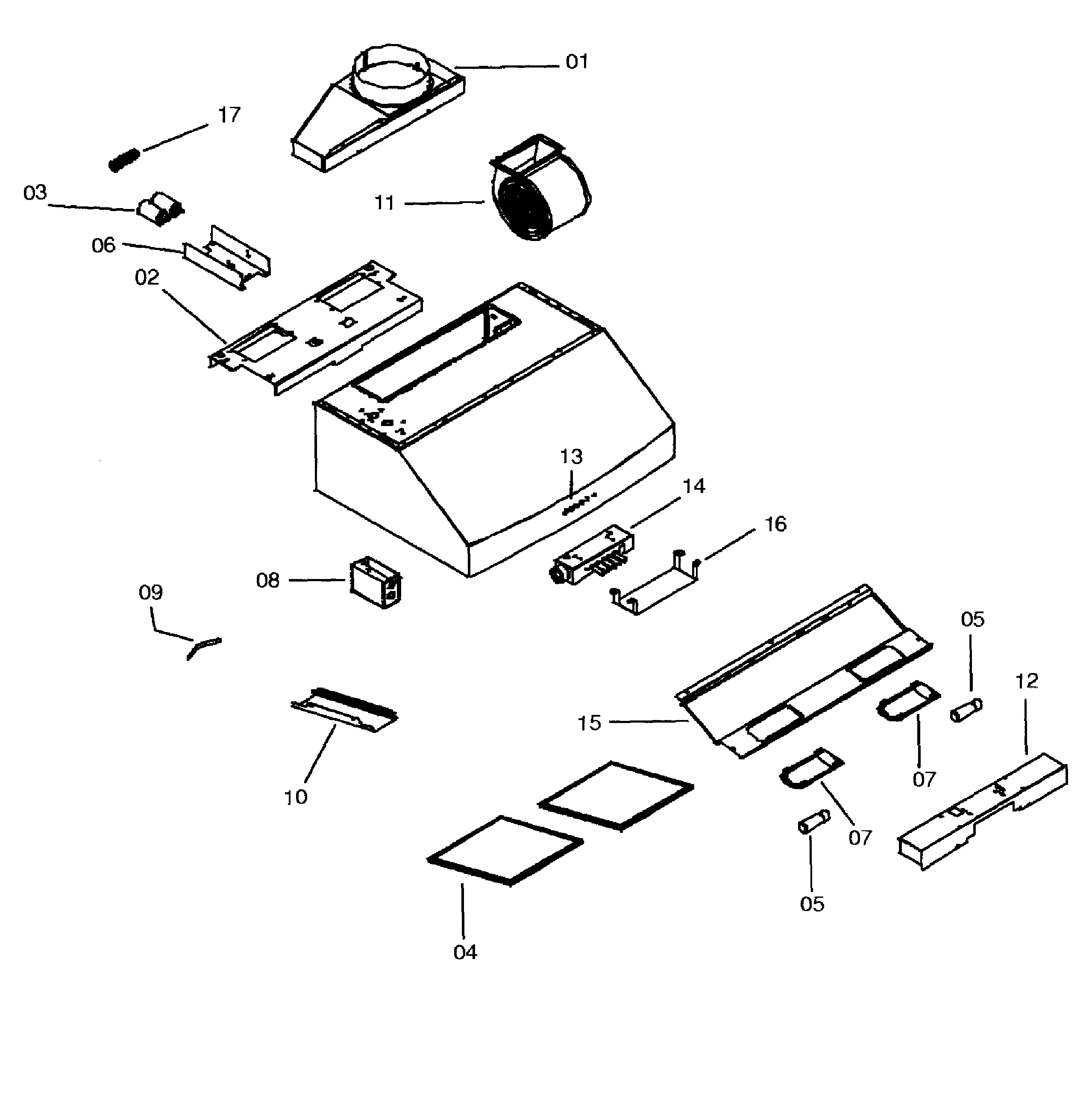

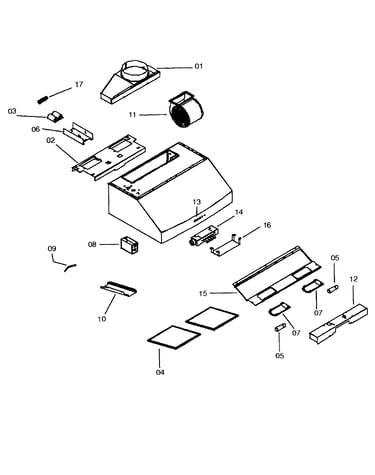

Range hood diagram

Grease filter

Part #487410

Replaced by #00487410

?
Manufacturer substitution
This part replaces 487410. Substitute parts can look different from the original.
$96.25 |
11% OFF Phone Price : $108.25
In Stock
Motor 438121
#11

Range hood diagram

Motor

Part #438121

Replaced by #00438121

?
Manufacturer substitution
This part replaces 438121. Substitute parts can look different from the original.
$321.40 |
$12.00 OFF Phone Price : $333.40
In Stock
Duct 423578
#1

Range hood diagram

Duct

Part #423578

Replaced by #00423578

?
Manufacturer substitution
This part replaces 423578. Substitute parts can look different from the original.
$216.55 |
5% OFF Phone Price : $228.55
In Stock
Capacitor 423744
#3

Range hood diagram

Capacitor

Part #423744

The manufacturer no longer makes this part, and there's no substitute part

Socket 423741
#6

Range hood diagram

Socket

Part #423741

The manufacturer no longer makes this part, and there's no substitute part

Connection 423743
#8

Range hood diagram

Connection

Part #423743

The manufacturer no longer makes this part, and there's no substitute part

Strip 438123
#15

Range hood diagram

Strip

Part #438123

The manufacturer no longer makes this part, and there's no substitute part

Switch Element 492737
#14

Range hood diagram

Switch element

Part #492737

The manufacturer no longer makes this part, and there's no substitute part

Fixing Kit 423581
#NI

Range hood diagram

Fixing kit

Part #423581

The manufacturer no longer makes this part, and there's no substitute part

Decorative Frame 437902
#10

Range hood diagram

Decorative frame

Part #437902

The manufacturer no longer makes this part, and there's no substitute part
