LXI
Compact Stereo System

Model # 52831915300 Official LXI tabletop stereo system

Here are the diagrams and repair parts for Official LXI 52831915300 tabletop stereo system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

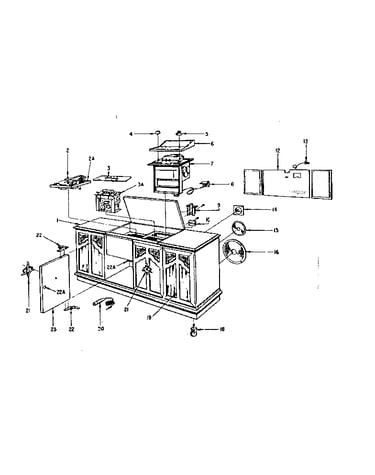

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Kit 90-750
Kit

Part #90-750

The manufacturer no longer makes this part, and there's no substitute part

Nut 56-258
#86

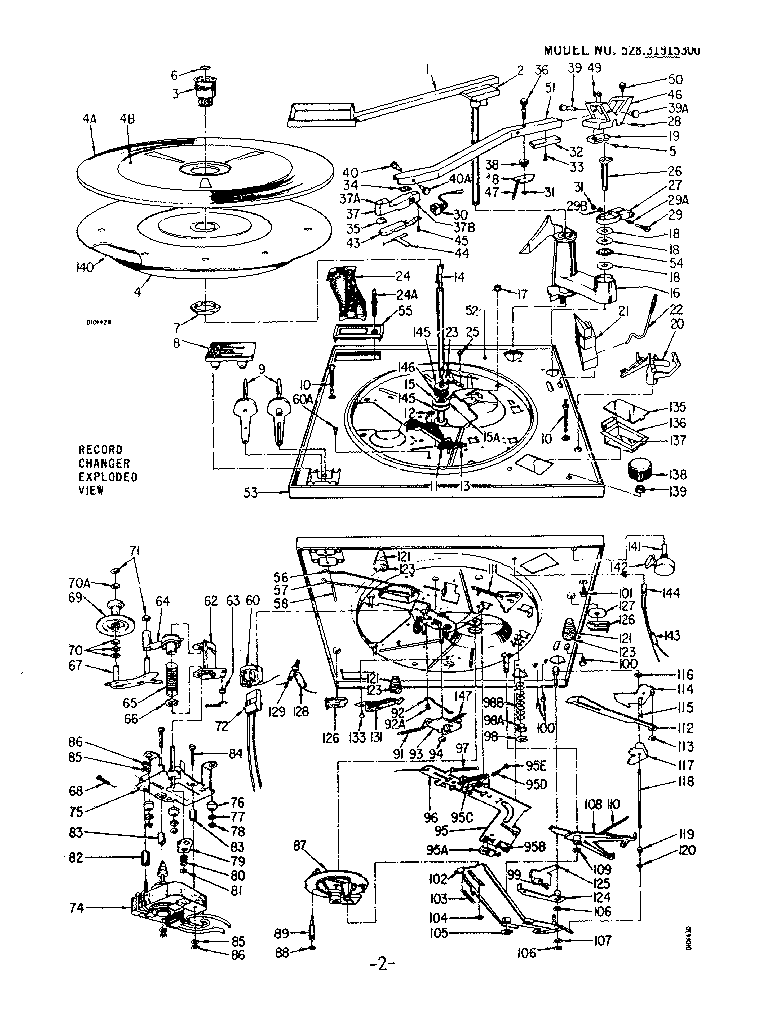

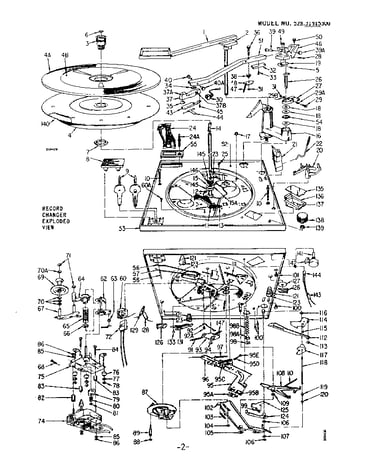

Record changer diagram

Nut

Part #56-258

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Hardware 49-2358
#27

Record changer diagram

Cabinet hardware

Part #49-2358

The manufacturer no longer makes this part, and there's no substitute part

Cook Top Side Trim Kit Contact Kit 45-110-9
#72A

Record changer diagram

Cook top side trim kit contact kit

Part #45-110-9

The manufacturer no longer makes this part, and there's no substitute part

68 Ohm .5w 64-68005
#129

Record changer diagram

68 ohm .5w

Part #64-68005

The manufacturer no longer makes this part, and there's no substitute part

Spring 70-820-0
#147

Record changer diagram

Spring

Part #70-820-0

The manufacturer no longer makes this part, and there's no substitute part

Mtng Spring 70-951-9
Mtng spring

Part #70-951-9

The manufacturer no longer makes this part, and there's no substitute part

Washer 58-763
#116

Record changer diagram

Washer

Part #58-763

The manufacturer no longer makes this part, and there's no substitute part

Spring 70-434-0
#95D

Record changer diagram

Spring

Part #70-434-0

The manufacturer no longer makes this part, and there's no substitute part

Repair Part 83-1807
#140

Record changer diagram

Repair part

Part #83-1807

The manufacturer no longer makes this part, and there's no substitute part
