Model # VPC-FH1BK Official Sanyo digital camcorder

Here are the diagrams and repair parts for Official Sanyo VPC-FH1BK digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Screw 411-178-9403
#109

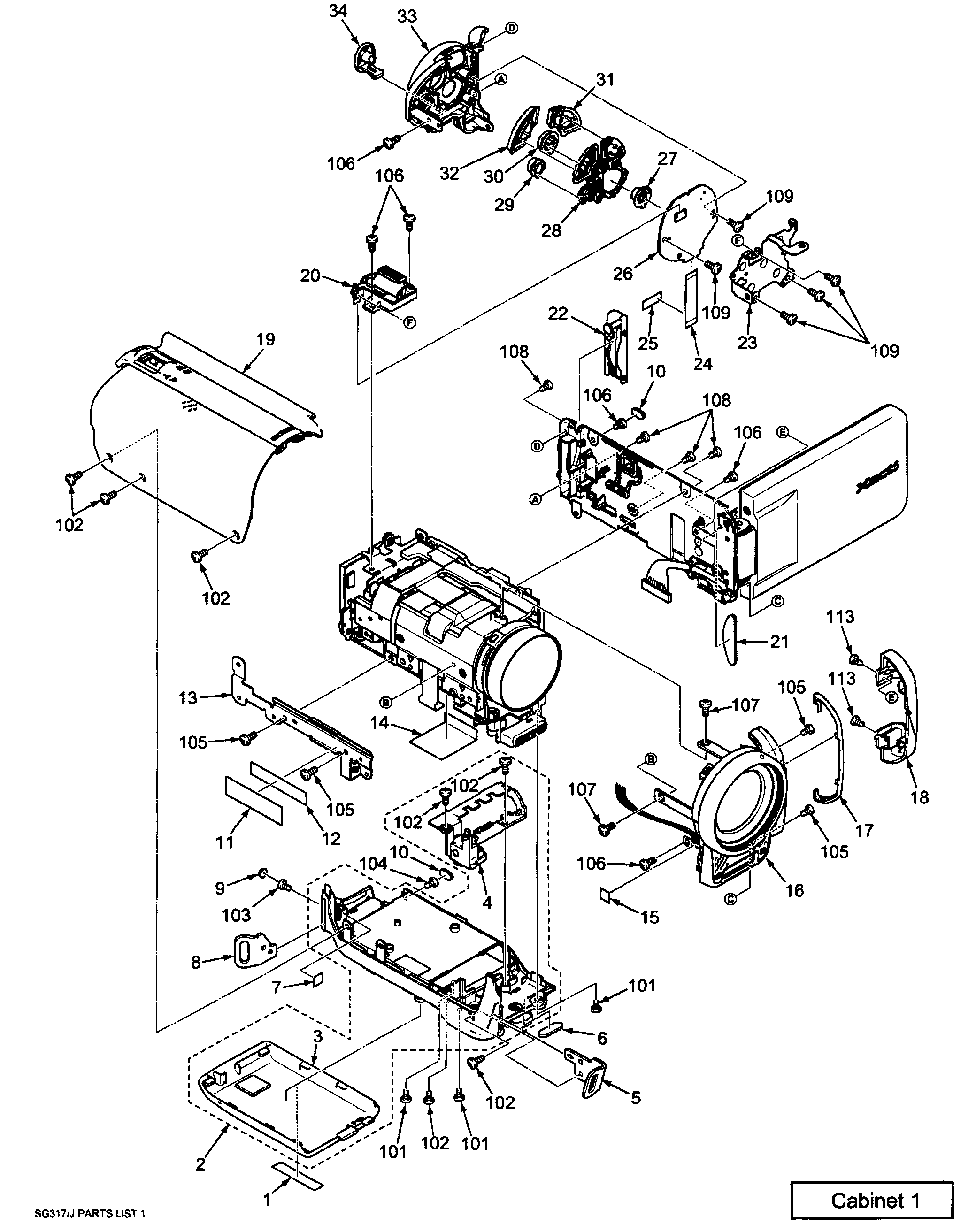

Cabinet 1 diagram

Screw

Part #411-178-9403

The manufacturer no longer makes this part, and there's no substitute part

Screw 411-175-5705
#106

Cabinet 1 diagram

Screw

Part #411-175-5705

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 645-098-8714
#7A

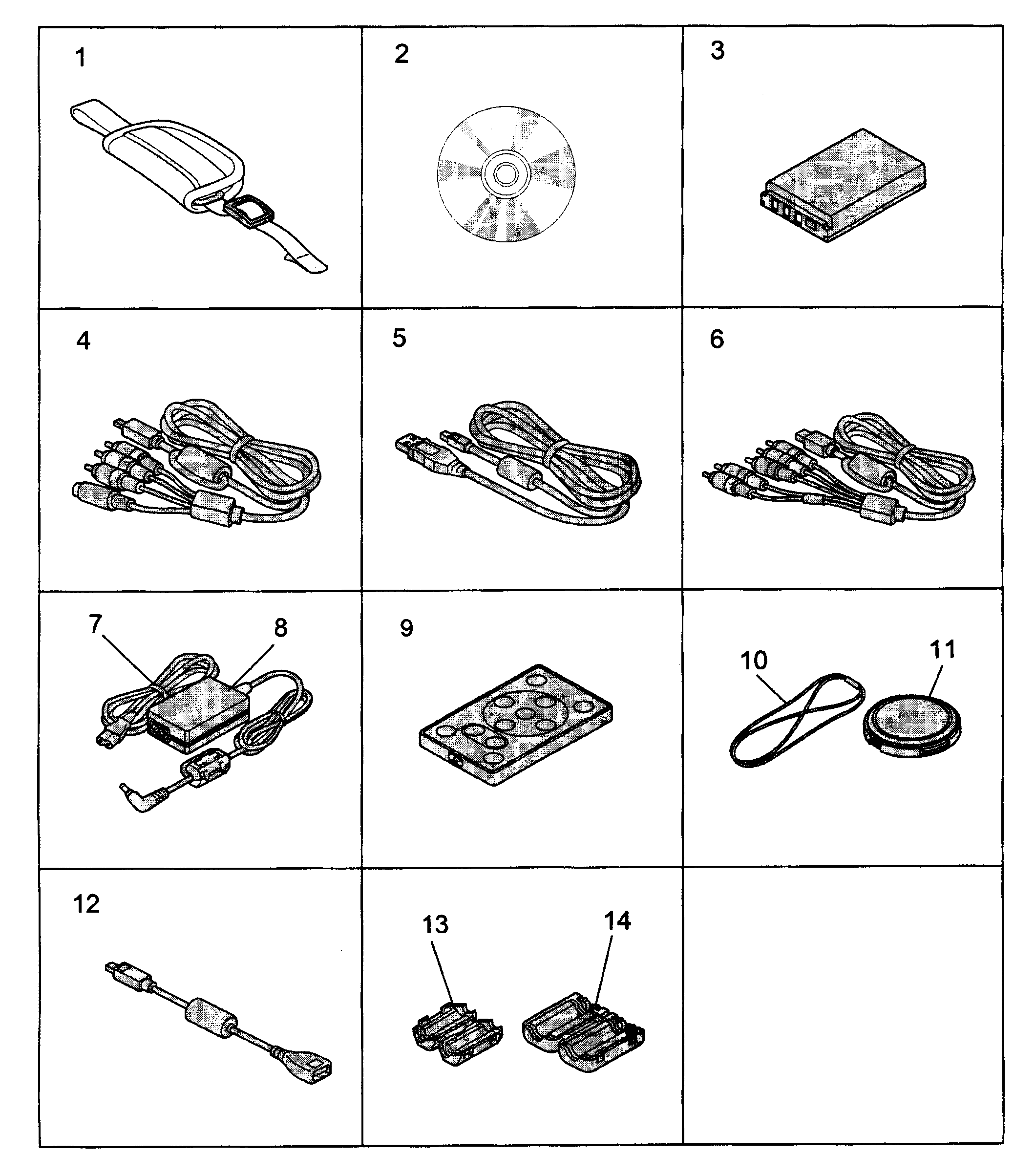

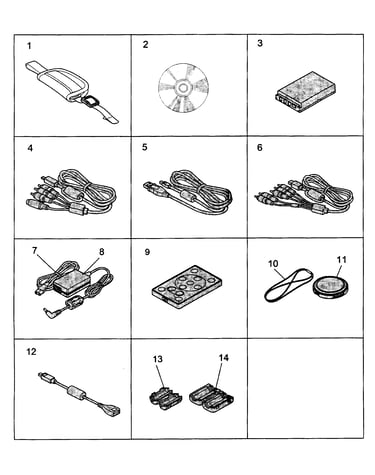

Accessories diagram

Ac cord

Part #645-098-8714

The manufacturer no longer makes this part, and there's no substitute part

Spacer,lcd 636-127-4616
#64

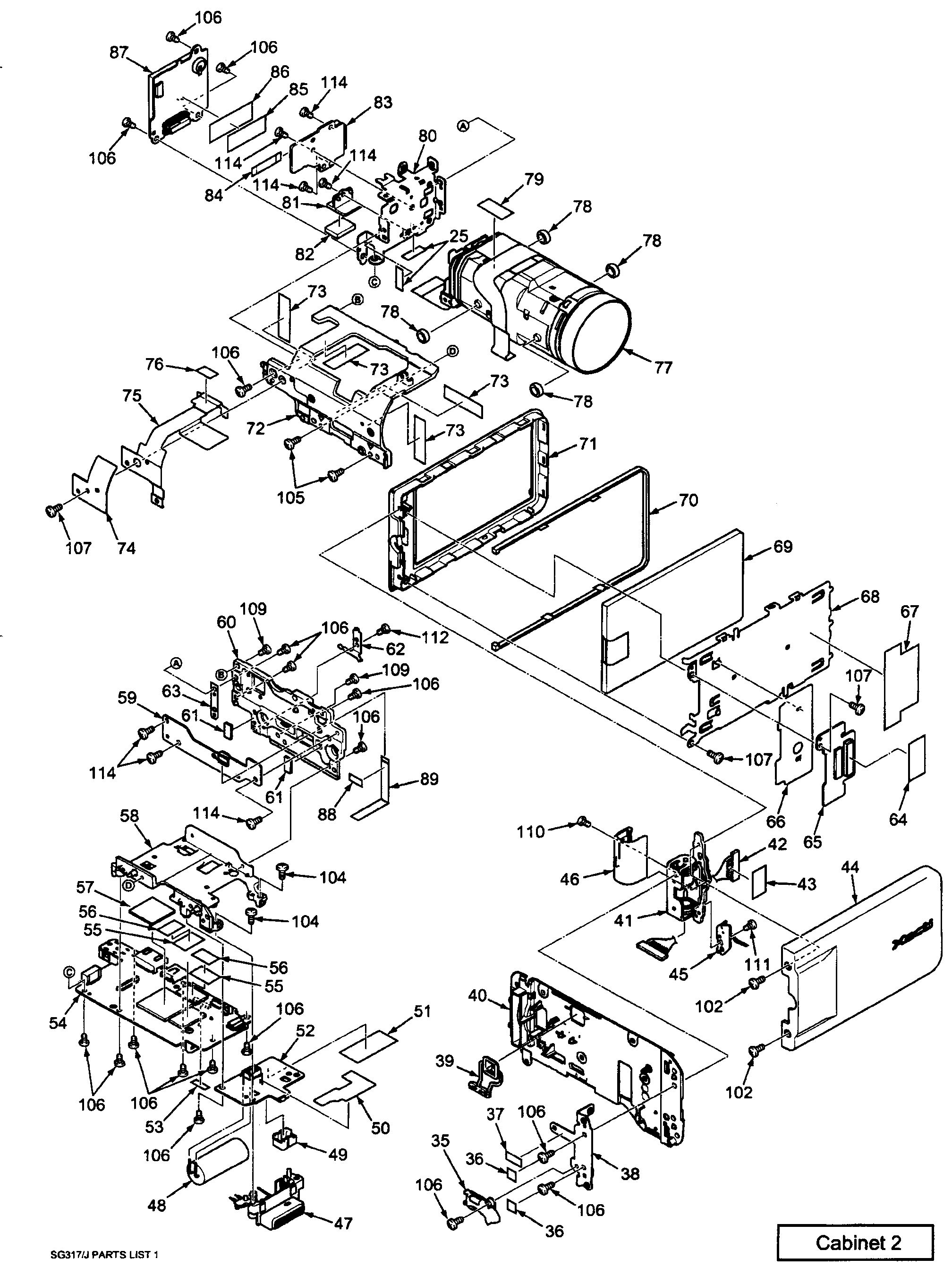

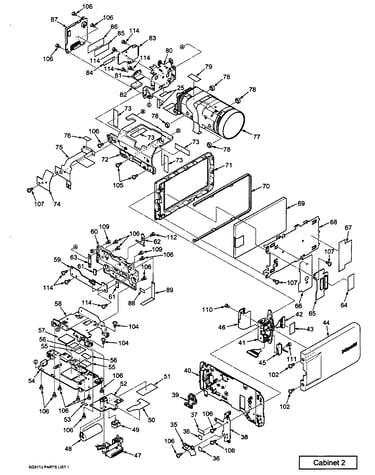

Cabinet 2 diagram

Spacer,lcd

Part #636-127-4616

The manufacturer no longer makes this part, and there's no substitute part

Spacer 636-121-5282
#82

Cabinet 2 diagram

Spacer

Part #636-121-5282

The manufacturer no longer makes this part, and there's no substitute part

Shield Tape 636-127-4647
#88

Cabinet 2 diagram

Shield tape

Part #636-127-4647

The manufacturer no longer makes this part, and there's no substitute part

Cover,trigger 636-068-0265
#49

Cabinet 2 diagram

Cover,trigger

Part #636-068-0265

The manufacturer no longer makes this part, and there's no substitute part

Spacer,lcd Front 636-126-2446
#21

Cabinet 1 diagram

Spacer,lcd front

Part #636-126-2446

The manufacturer no longer makes this part, and there's no substitute part

Pcb,pwb Flex Tb1 636-124-7283
#84

Cabinet 2 diagram

Pcb,pwb flex tb1

Part #636-124-7283

The manufacturer no longer makes this part, and there's no substitute part

Cover,battery Asy 636-124-8297
#3

Cabinet 1 diagram

Cover,battery asy

Part #636-124-8297

The manufacturer no longer makes this part, and there's no substitute part
