Gas Cooktop

Model # ZGU48N4GH5SS Official GE counter unit

Here are the diagrams and repair parts for Official GE ZGU48N4GH5SS counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

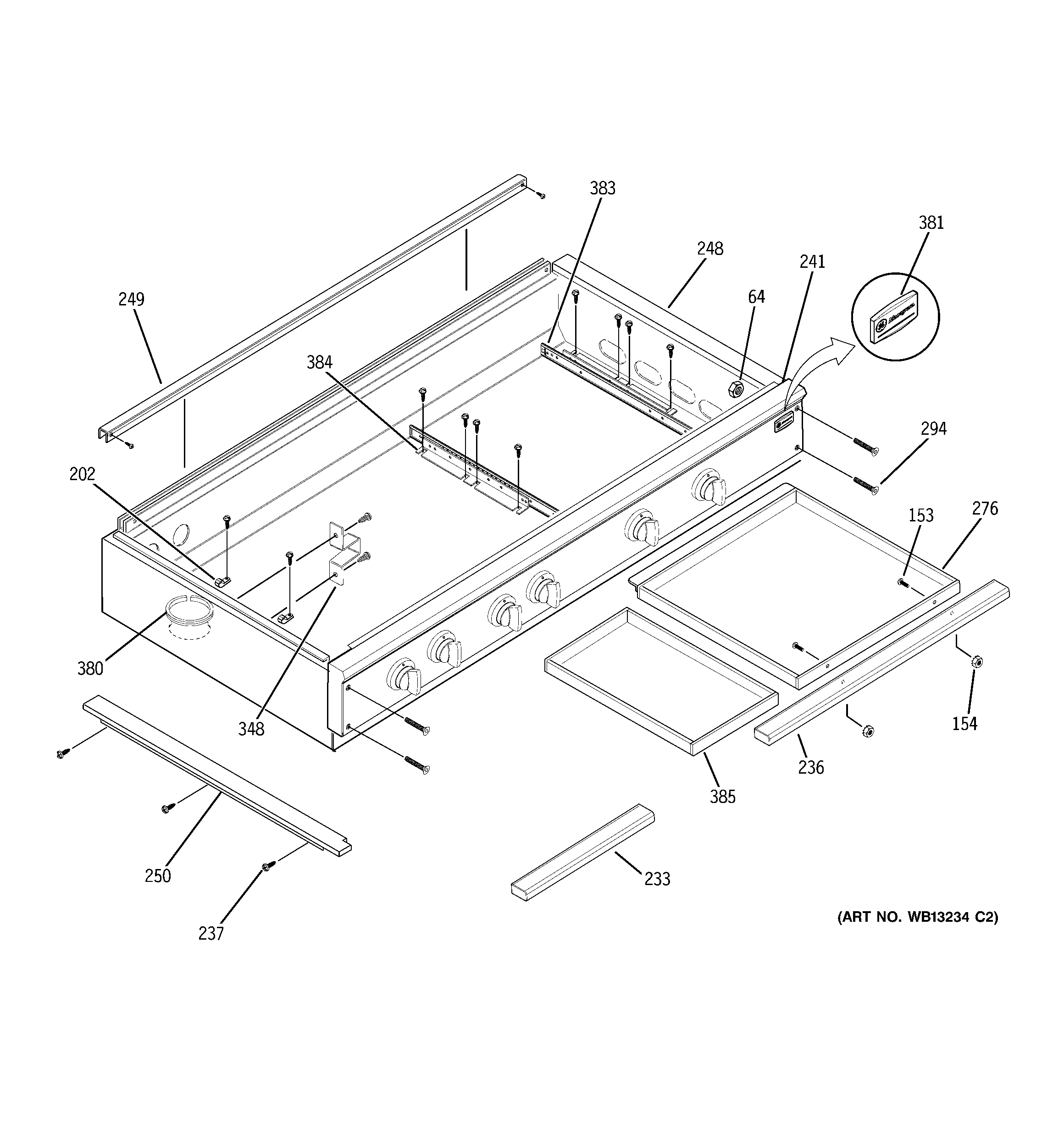

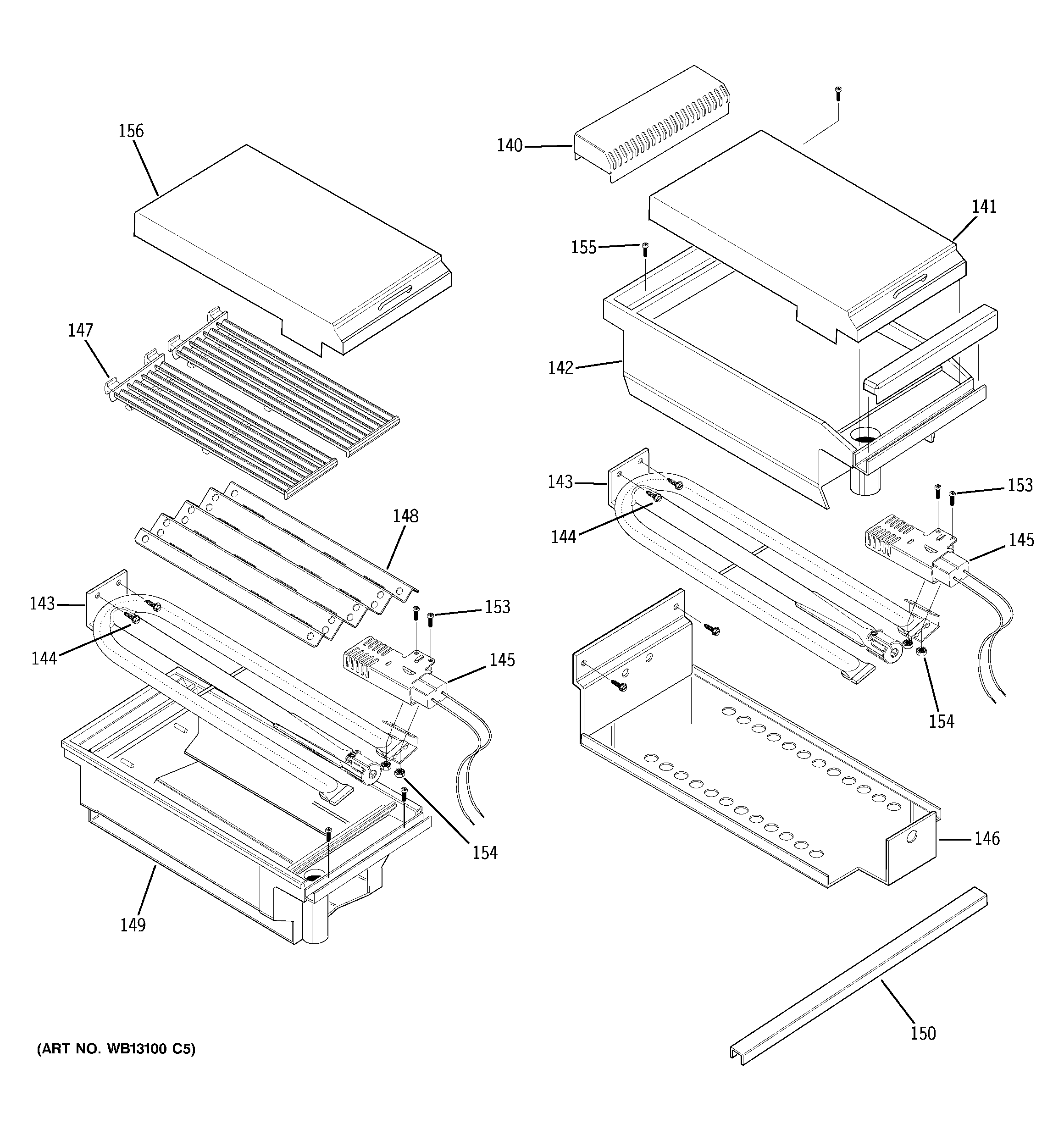

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Igniter Switch WB24X10089
#305

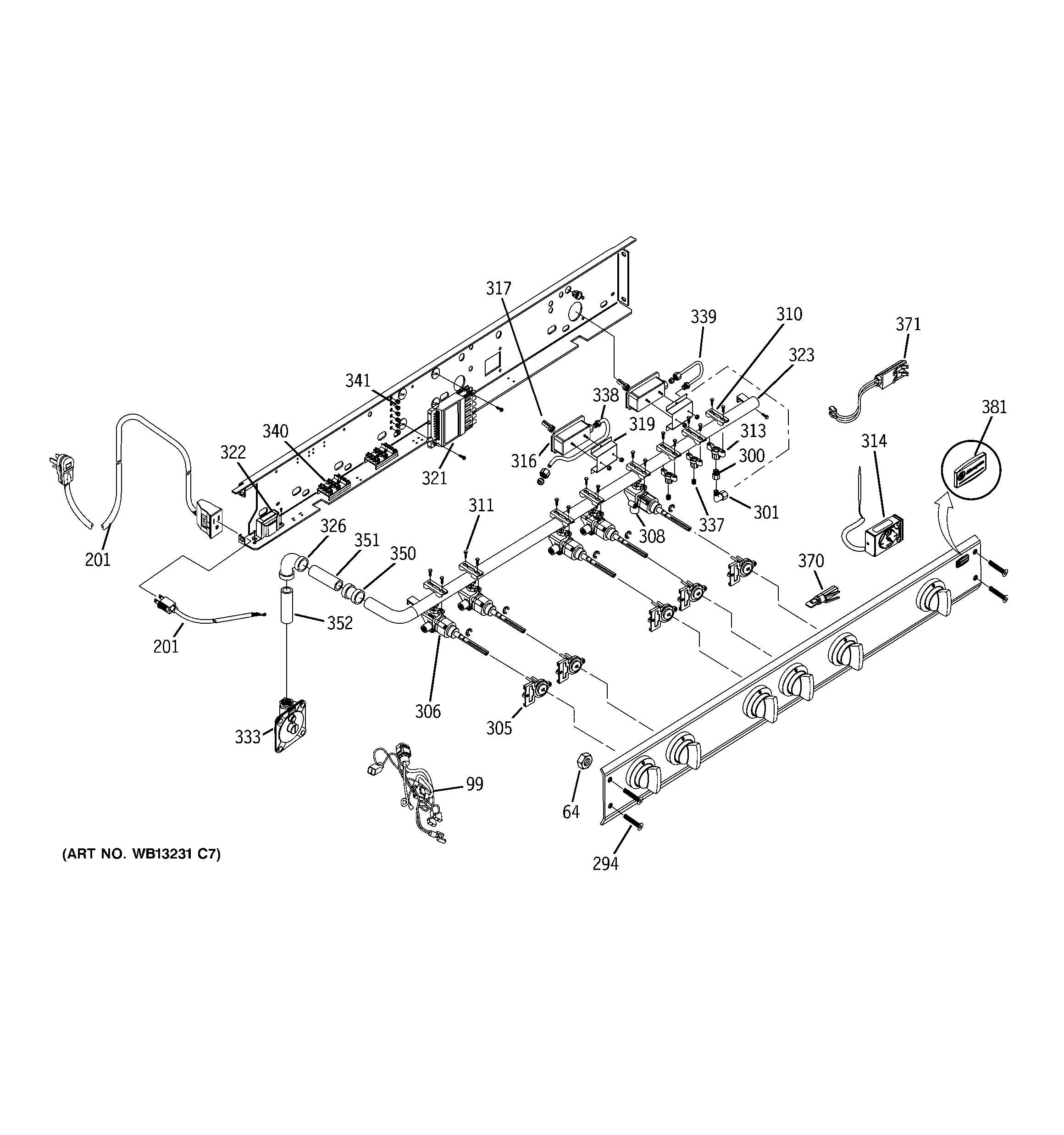

Manifold assembly diagram

Igniter switch

Part #WB24X10089

Replaced by #WB24X10091

?
Manufacturer substitution
This part replaces WB24X10089. Substitute parts can look different from the original.
$32.99 |
15% OFF Phone Price : $38.99
In Stock
Igniter WB02X10780
#259

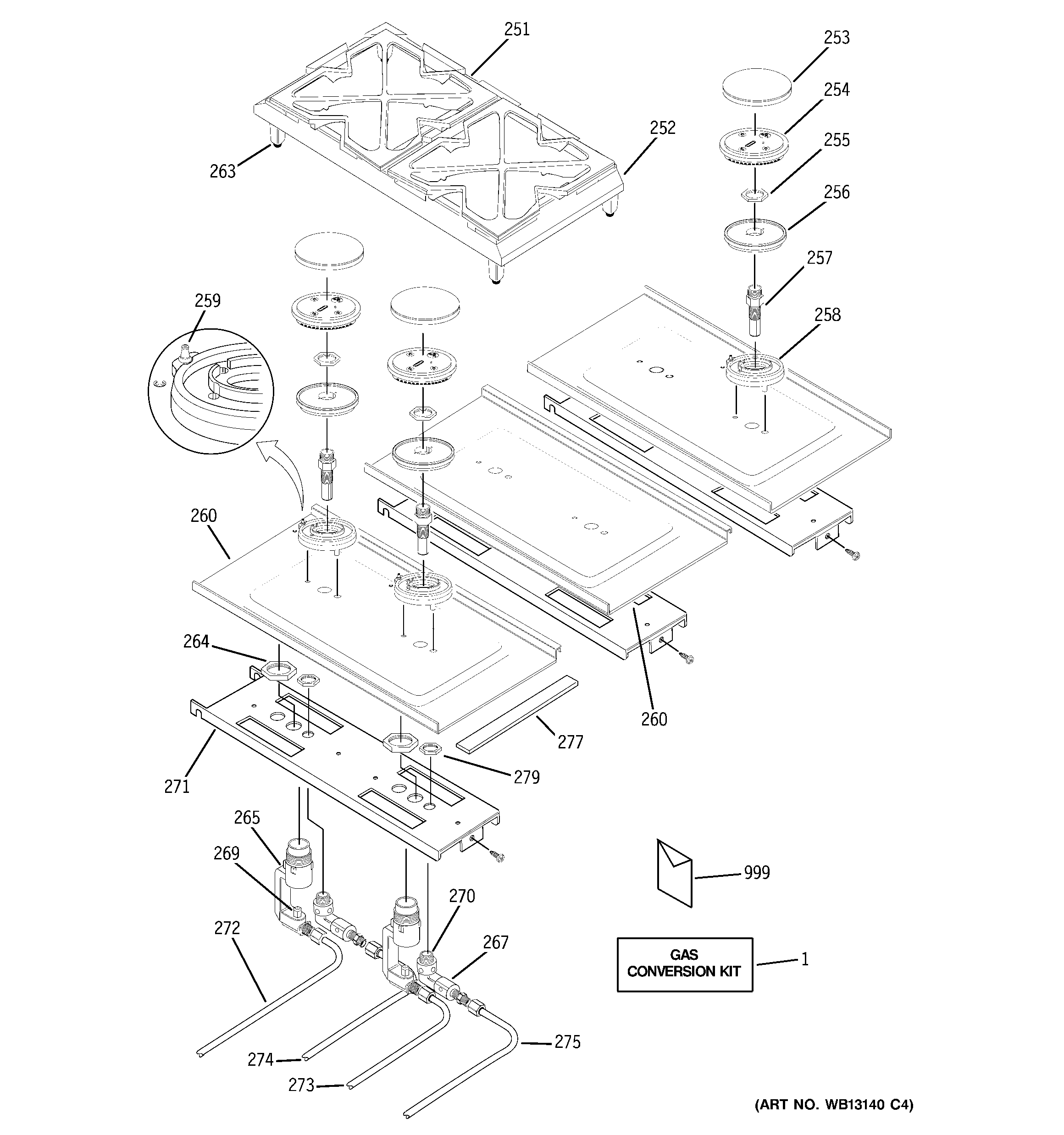

Gas & burner parts diagram

Igniter

Part #WB02X10780

Replaced by #WB02X10822

?
Manufacturer substitution
This part replaces WB02X10780. Substitute parts can look different from the original.
$118.89 |
9% OFF Phone Price : $130.89
In Stock
Range Surface Burner Cap WB32X10047
#254

Gas & burner parts diagram

Range surface burner cap

Part #WB32X10047

Replaced by #WB16X27935

?
Manufacturer substitution
This part replaces WB32X10047. Substitute parts can look different from the original.
$91.96 |
6% OFF Phone Price : $97.96
In Stock
Cooktop Burner Pan, Right WB32X10072
#260

Gas & burner parts diagram

Cooktop burner pan, right

Part #WB32X10072

$202.33 |
6% OFF Phone Price : $214.33
In Stock
Clip Logo WR01X10300
#382

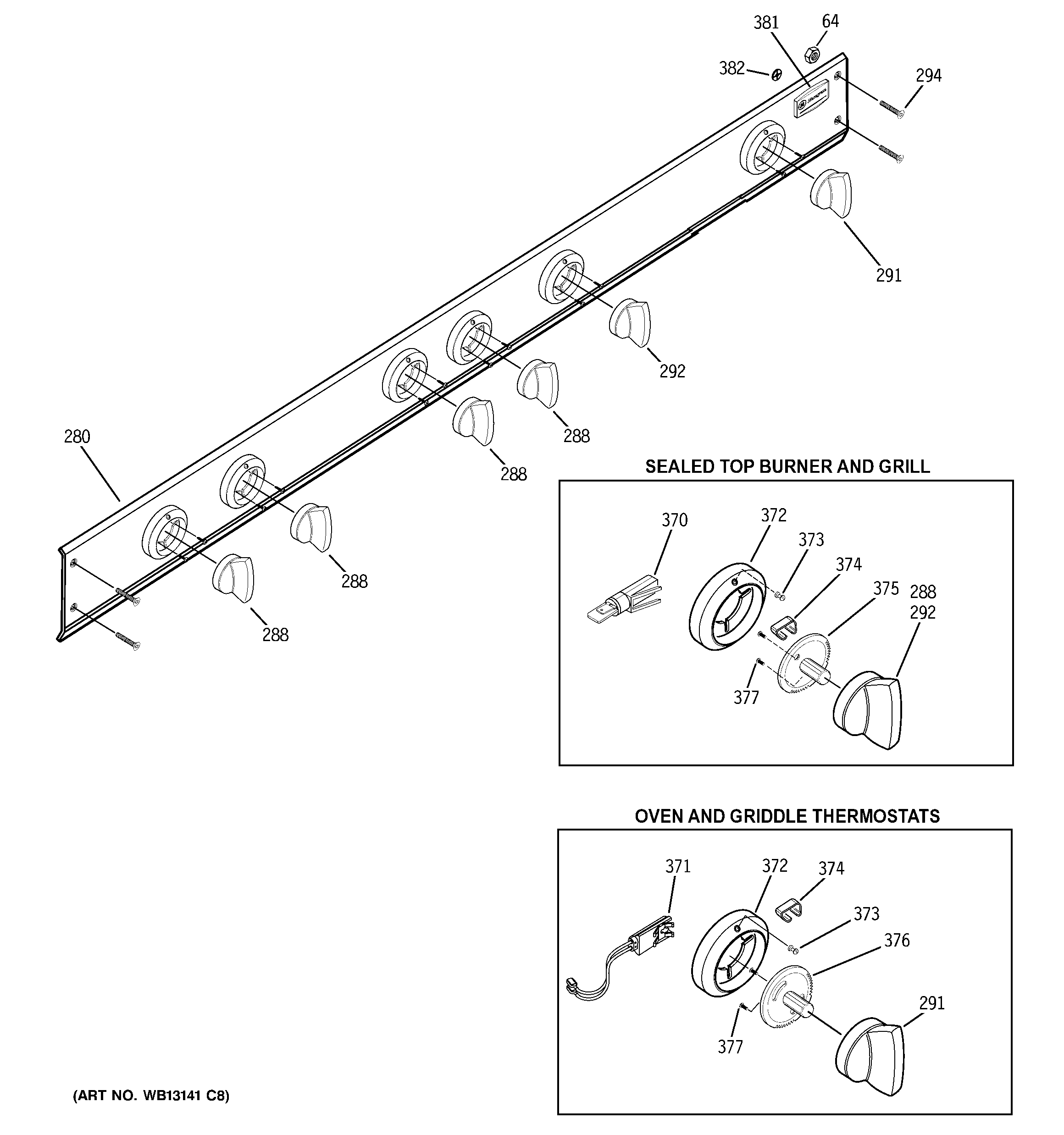

Control panel diagram

Clip logo

Part #WR01X10300

This item is not returnable
$5.00
In Stock
Range Surface Burner Cap WB13X10014
#253

Gas & burner parts diagram

Range surface burner cap

Part #WB13X10014

$99.11 |
11% OFF Phone Price : $111.11
In Stock
Range Oven Control Knob Screw WB01X10322
#377

Control panel diagram

Range oven control knob screw

Part #WB01X10322

This item is not returnable
$5.00
In Stock
Range Surface Burner Transformer WB27X10905
#322

Manifold assembly diagram

Range surface burner transformer

Part #WB27X10905

$103.92 |
10% OFF Phone Price : $115.92
In Stock
Lp/nat Conve WB49X10133
#1

Gas & burner parts diagram

Lp/nat conve

Part #WB49X10133

$294.96
In Stock
Range Surface Burner Supply Tube, Front WB28X10065
#273

Gas & burner parts diagram

Range surface burner supply tube, front

Part #WB28X10065

$46.73 |
11% OFF Phone Price : $52.73
In Stock
