Electrolux
Upright Vacuum

Model # 00066 Official Electrolux discovery ii vacuum cleaner

Here are the diagrams and repair parts for Official Electrolux 00066 discovery ii vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

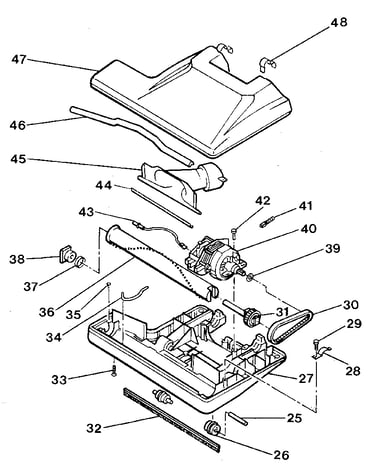

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Electrolux Fan Housing Assembly 43251
#13

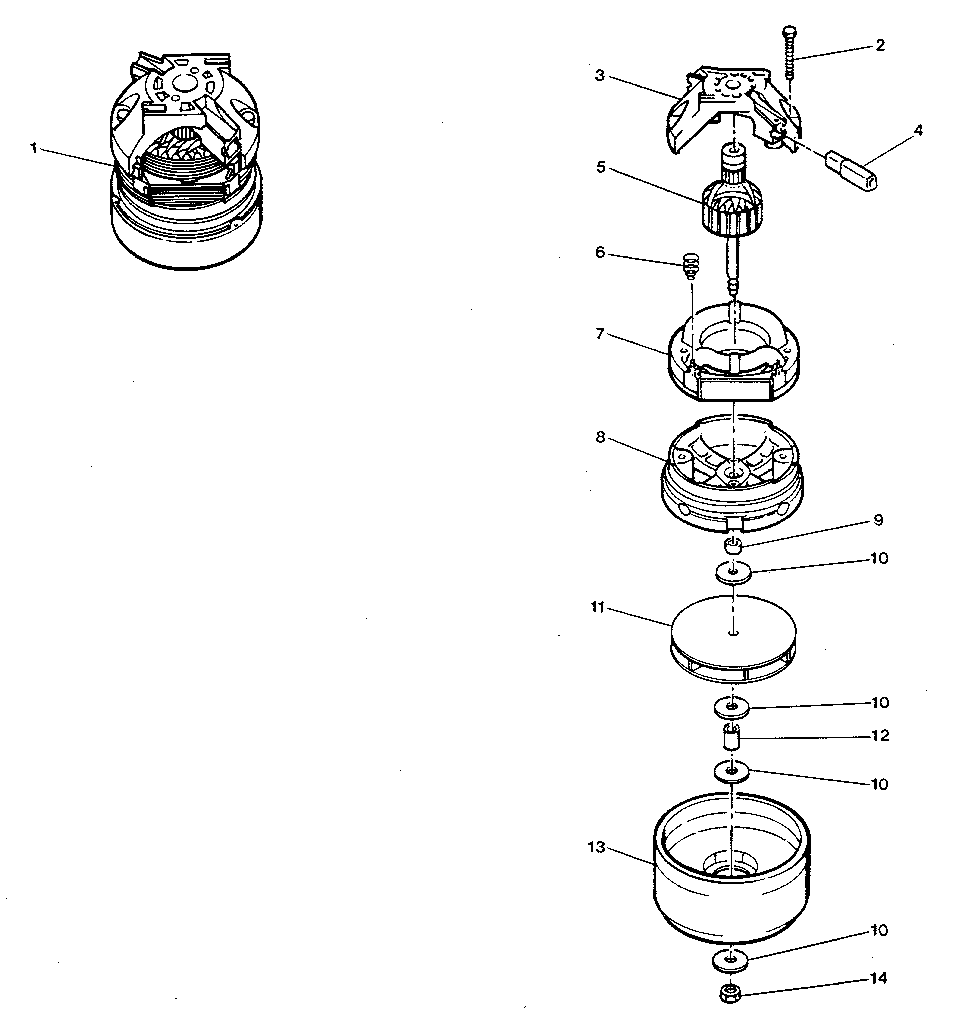

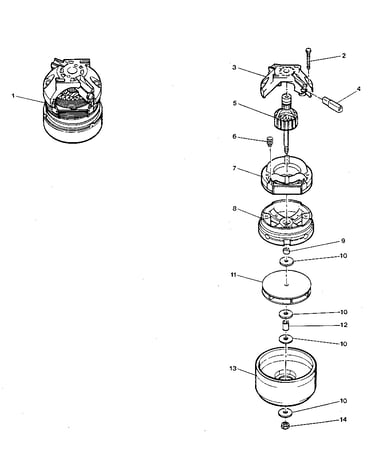

Motor assembly diagram

Electrolux fan housing assembly

Part #43251

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Lockout Lever 43571
#6

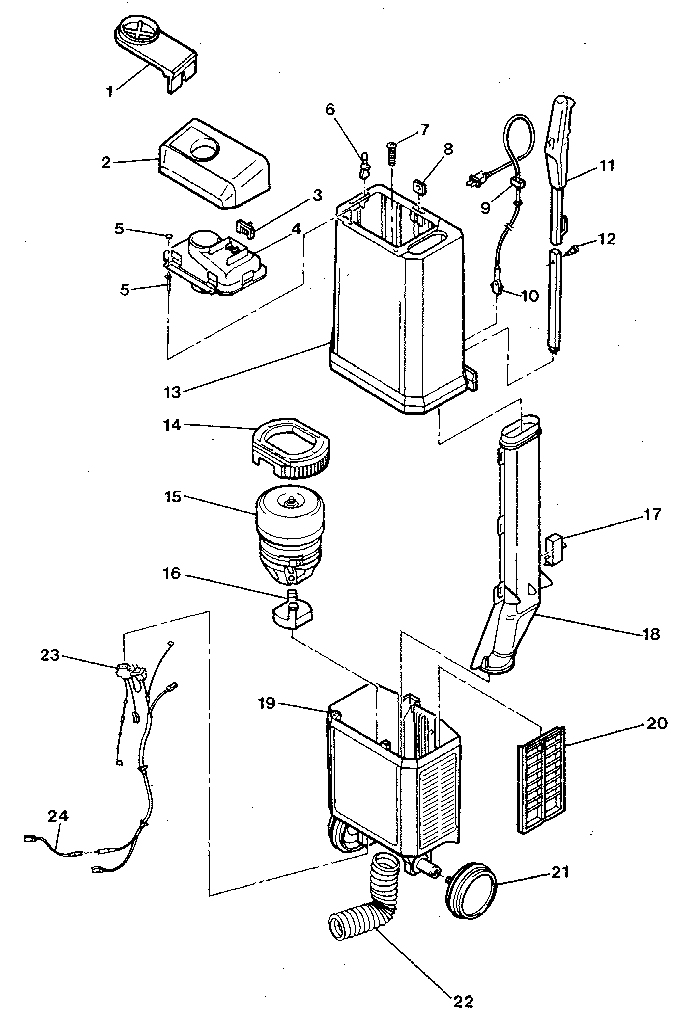

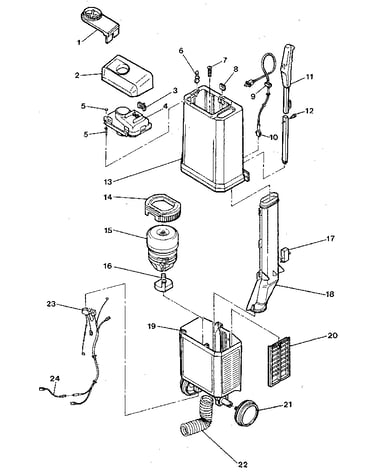

Cleaner housing assembly diagram

Electrolux lockout lever

Part #43571

The manufacturer no longer makes this part, and there's no substitute part

Canister Vacuum Screw 13287
Canister vacuum screw

Part #13287

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Duct Assembly 43637
#18

Cleaner housing assembly diagram

Electrolux duct assembly

Part #43637

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Startor Assy 43254
#7

Motor assembly diagram

Electrolux startor assy

Part #43254

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Spacer Fan 43256
#12

Motor assembly diagram

Electrolux spacer fan

Part #43256

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Washer 13345
#5

Cleaner housing assembly diagram

Electrolux washer

Part #13345

The manufacturer no longer makes this part, and there's no substitute part

Nut 13341
#14

Motor assembly diagram

Nut

Part #13341

The manufacturer no longer makes this part, and there's no substitute part

Washer 13295
#10

Motor assembly diagram

Washer

Part #13295

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Cord Retainer 44026
#9

Cleaner housing assembly diagram

Electrolux cord retainer

Part #44026

The manufacturer no longer makes this part, and there's no substitute part
