Kenmore
Food Processor

Model # 400823601 Official Kenmore 7-speed food processor

Here are the diagrams and repair parts for Official Kenmore 400823601 7-speed food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

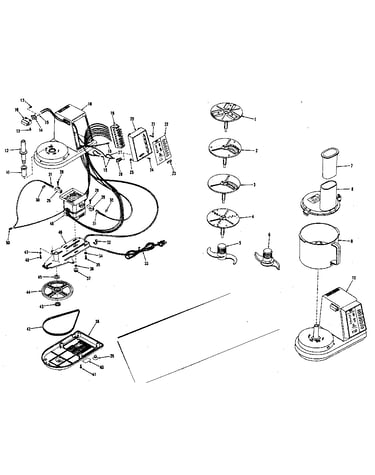

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Cord 6182-704-0100
#33

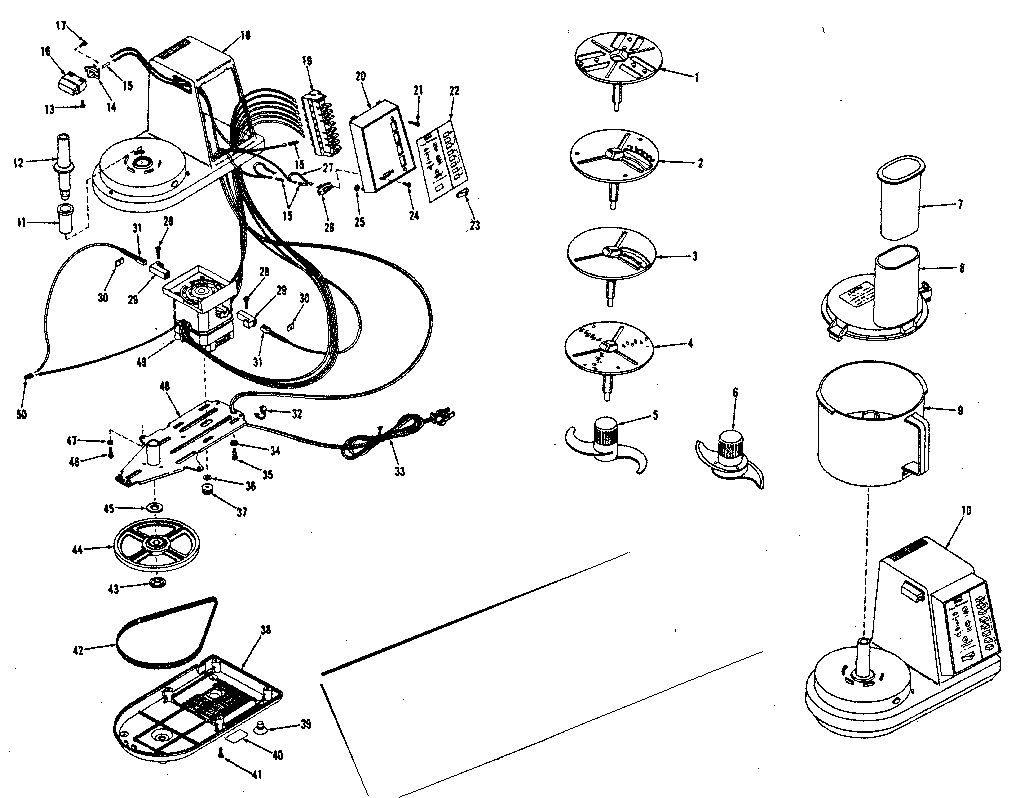

Replacement parts diagram

Cord

Part #6182-704-0100

The manufacturer no longer makes this part, and there's no substitute part

Insulator 3520-654-0000
#30

Replacement parts diagram

Insulator

Part #3520-654-0000

The manufacturer no longer makes this part, and there's no substitute part

Nut 3125-210-0000
#50

Replacement parts diagram

Nut

Part #3125-210-0000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Foot 3229-707-4400
#39

Replacement parts diagram

Vacuum foot

Part #3229-707-4400

The manufacturer no longer makes this part, and there's no substitute part

Bowl Cover 3107-707-7000
#8

Replacement parts diagram

Bowl cover

Part #3107-707-7000

The manufacturer no longer makes this part, and there's no substitute part

Shrd Disc As 6113-707-0000
#4

Replacement parts diagram

Shrd disc as

Part #6113-707-0000

The manufacturer no longer makes this part, and there's no substitute part

Timing Belt 3114-701-0000
#42

Replacement parts diagram

Timing belt

Part #3114-701-0000

The manufacturer no longer makes this part, and there's no substitute part

Top Housing 3024-711-2100
#18

Replacement parts diagram

Top housing

Part #3024-711-2100

The manufacturer no longer makes this part, and there's no substitute part

F.f. Cutter 6116-707-0000
#2

Replacement parts diagram

F.f. cutter

Part #6116-707-0000

The manufacturer no longer makes this part, and there's no substitute part

Bowl 3110-707-7000
#9

Replacement parts diagram

Bowl

Part #3110-707-7000

The manufacturer no longer makes this part, and there's no substitute part
