Model # IMTL99001 Official Image 1250 treadmill

Here are the diagrams and repair parts for Official Image IMTL99001 1250 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038

#82

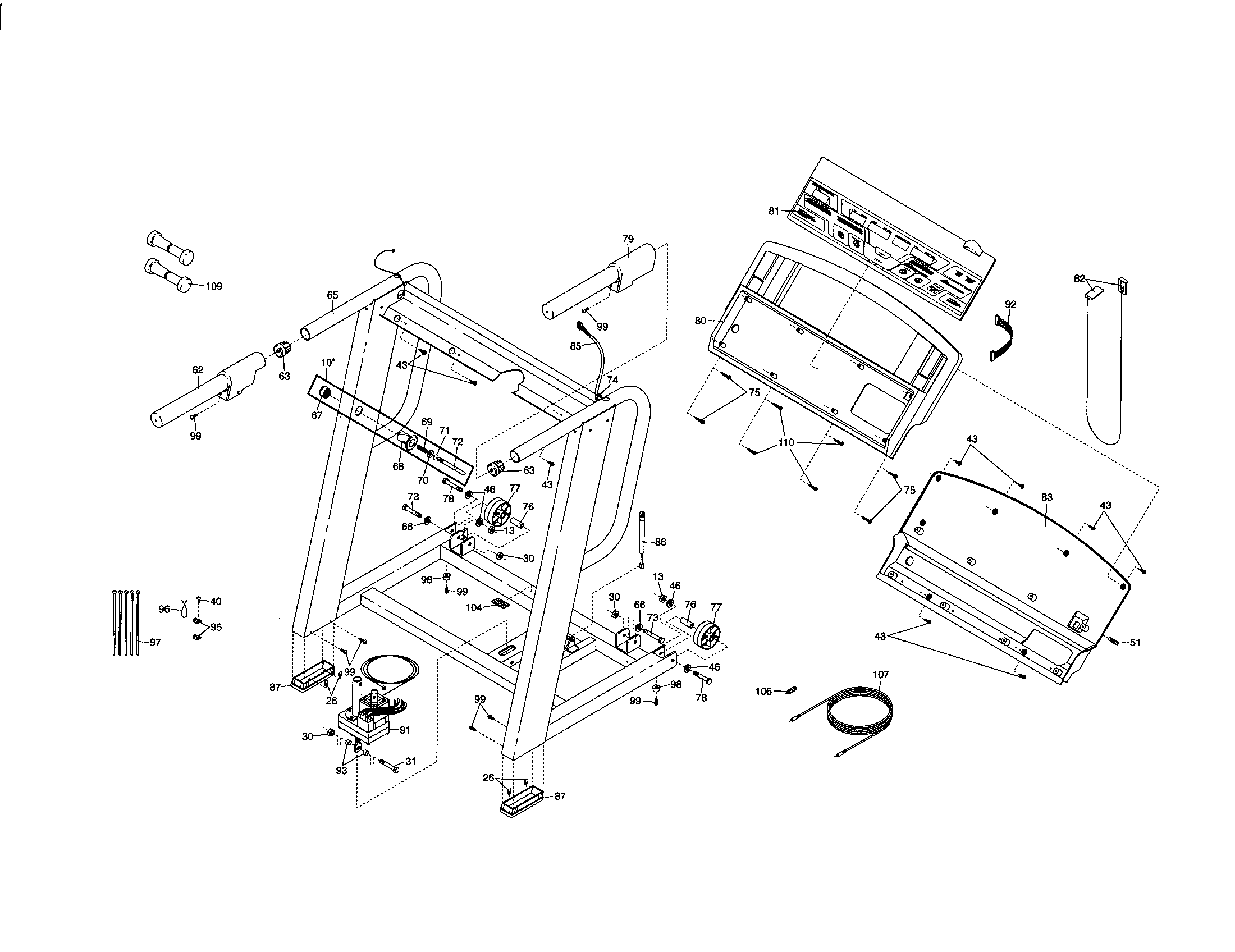

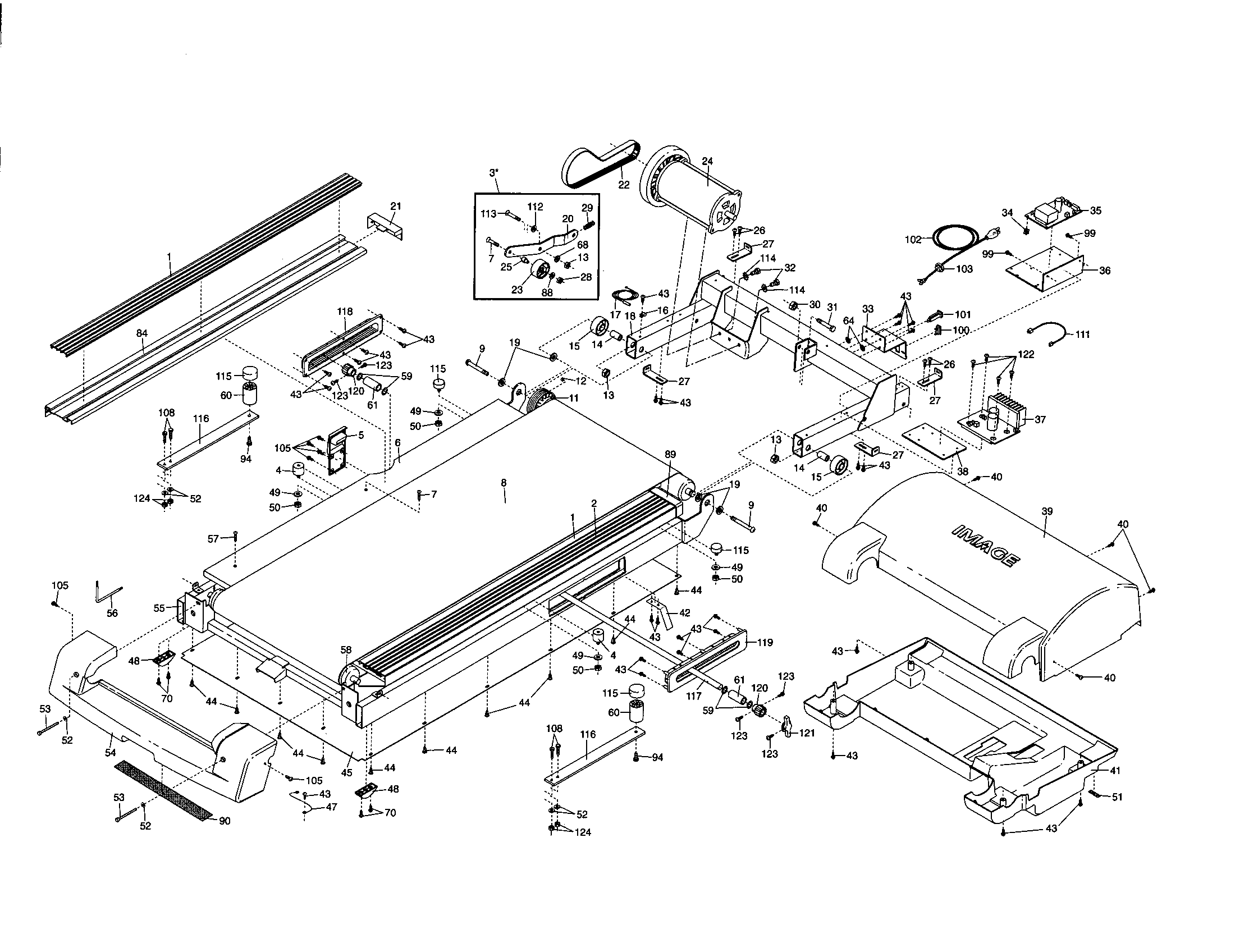

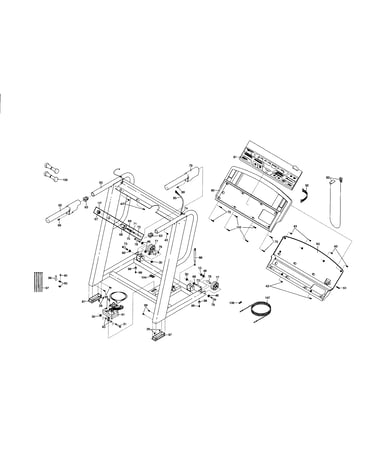

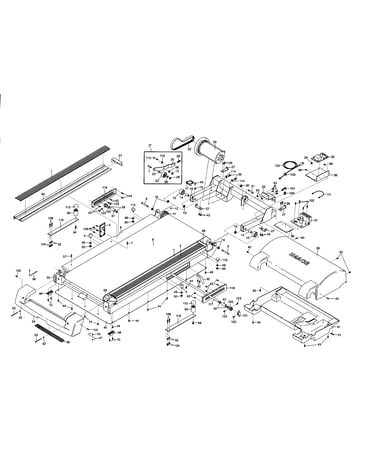

All parts diagram

Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
In Stock
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229

#102

All parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382

#101

All parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Magnet,rnd,m 100498

#12

All parts diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Black & Decker Exercise Equipment Reed Switch 157504
Black & decker exercise equipment reed switch

Part #157504

This item is not returnable
$10.99
In Stock
Lifestyler Exercise Equipment Screw 013607

#105

All parts diagram

Lifestyler exercise equipment screw

Part #013607

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Black & Decker Incline Motor Bolt, 2-in 159986

#113

All parts diagram

Black & decker incline motor bolt, 2-in

Part #159986

This item is not returnable
$2.16
In Stock
Black & Decker Treadmill Nut 133333

#26

All parts diagram

Black & decker treadmill nut

Part #133333

This item is not returnable
$2.16
In Stock
Lifestyler Belt Guide 124318

#42

All parts diagram

Lifestyler belt guide

Part #124318

This item is not returnable
$2.16
In Stock
Lock Pin Collar 100110

#70

All parts diagram

Lock pin collar

Part #100110

This item is not returnable
$4.99
In Stock
