Model # 917794038 Official Craftsman drive assembly

Here are the diagrams and repair parts for Official Craftsman 917794038 drive assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Pin 786026
#37

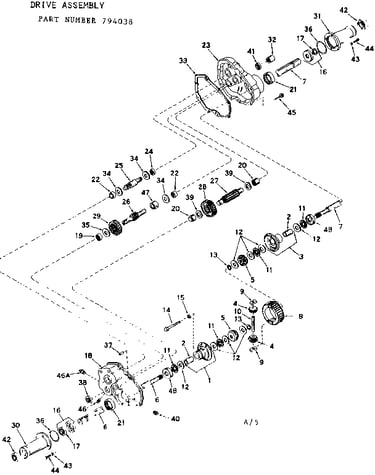

Replacement parts diagram

Pin

Part #786026

Replaced by #786026B

?
Manufacturer substitution
This part replaces 786026. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Gasket 788023
#33

Replacement parts diagram

Gasket

Part #788023

Replaced by #788023

?
Manufacturer substitution
This part replaces 788023. Substitute parts can look different from the original.
This item is not returnable
$4.60
In Stock
Washer 780042
Washer

Part #780042

Replaced by #780042

?
Manufacturer substitution
This part replaces 780042. Substitute parts can look different from the original.
This item is not returnable
$4.60
In Stock
Pin 786019
#10

Replacement parts diagram

Pin

Part #786019

Replaced by #786019

?
Manufacturer substitution
This part replaces 786019. Substitute parts can look different from the original.
This item is not returnable
$15.17
In Stock
Screw 792007
#45

Replacement parts diagram

Screw

Part #792007

Replaced by #792007

?
Manufacturer substitution
This part replaces 792007. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
Gear 778066
#5

Replacement parts diagram

Gear

Part #778066

Replaced by #778147

?
Manufacturer substitution
This part replaces 778066. Substitute parts can look different from the original.
$118.88
In Stock
Coupling 786038
#32

Replacement parts diagram

Coupling

Part #786038

Replaced by #786038

?
Manufacturer substitution
This part replaces 786038. Substitute parts can look different from the original.
$24.31
In Stock
Gear 778036
#28

Replacement parts diagram

Gear

Part #778036

Replaced by #778036

?
Manufacturer substitution
This part replaces 778036. Substitute parts can look different from the original.
$70.64
In Stock
Gear 778037
#29

Replacement parts diagram

Gear

Part #778037

Replaced by #778037

?
Manufacturer substitution
This part replaces 778037. Substitute parts can look different from the original.
$53.09
In Stock
Pinion 778065
#4

Replacement parts diagram

Pinion

Part #778065

Replaced by #778147

?
Manufacturer substitution
This part replaces 778065. Substitute parts can look different from the original.
$118.88
In Stock
