Model # 831298780 Official NordicTrack summit 2500 ark treadmill

Here are the diagrams and repair parts for Official NordicTrack 831298780 summit 2500 ark treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

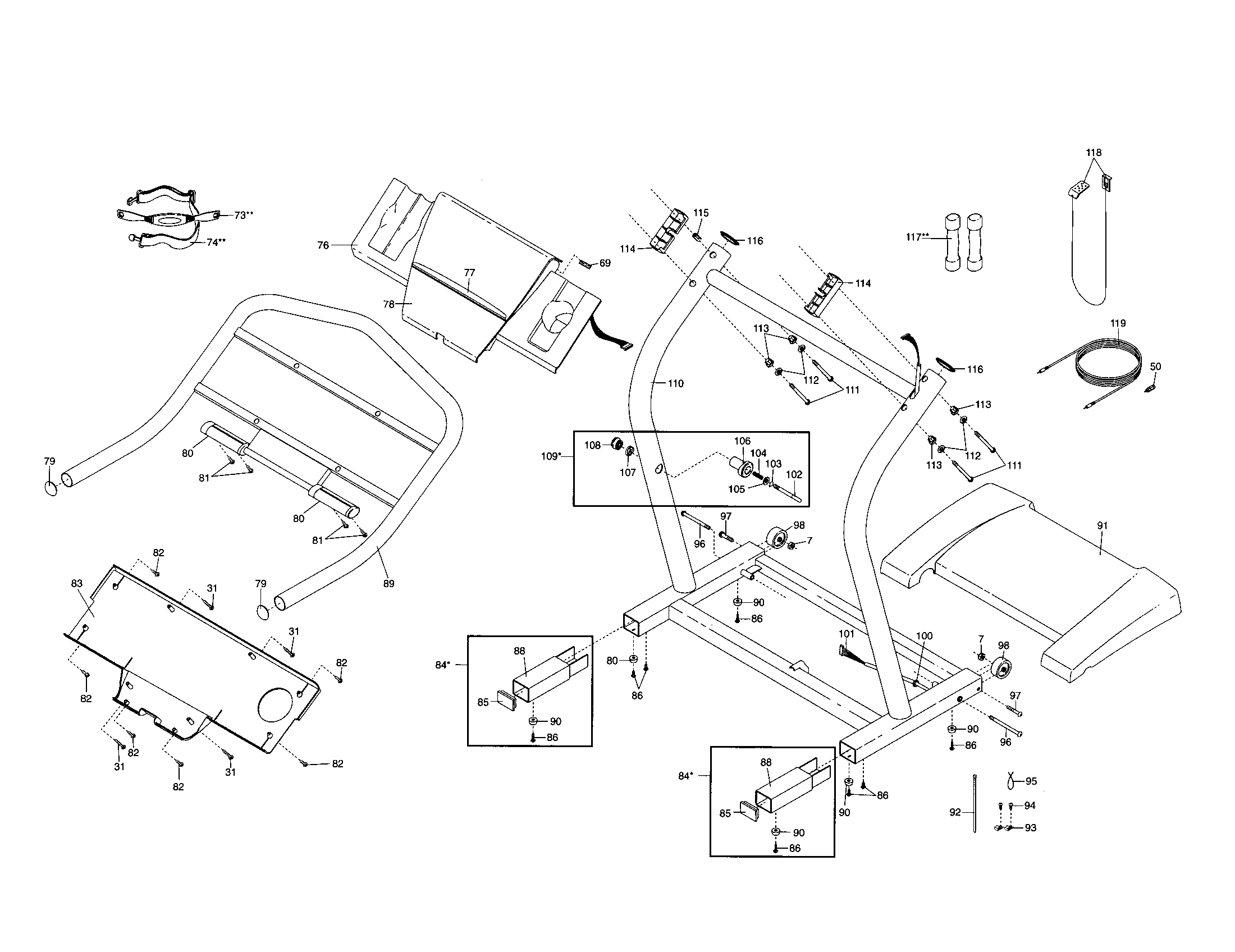

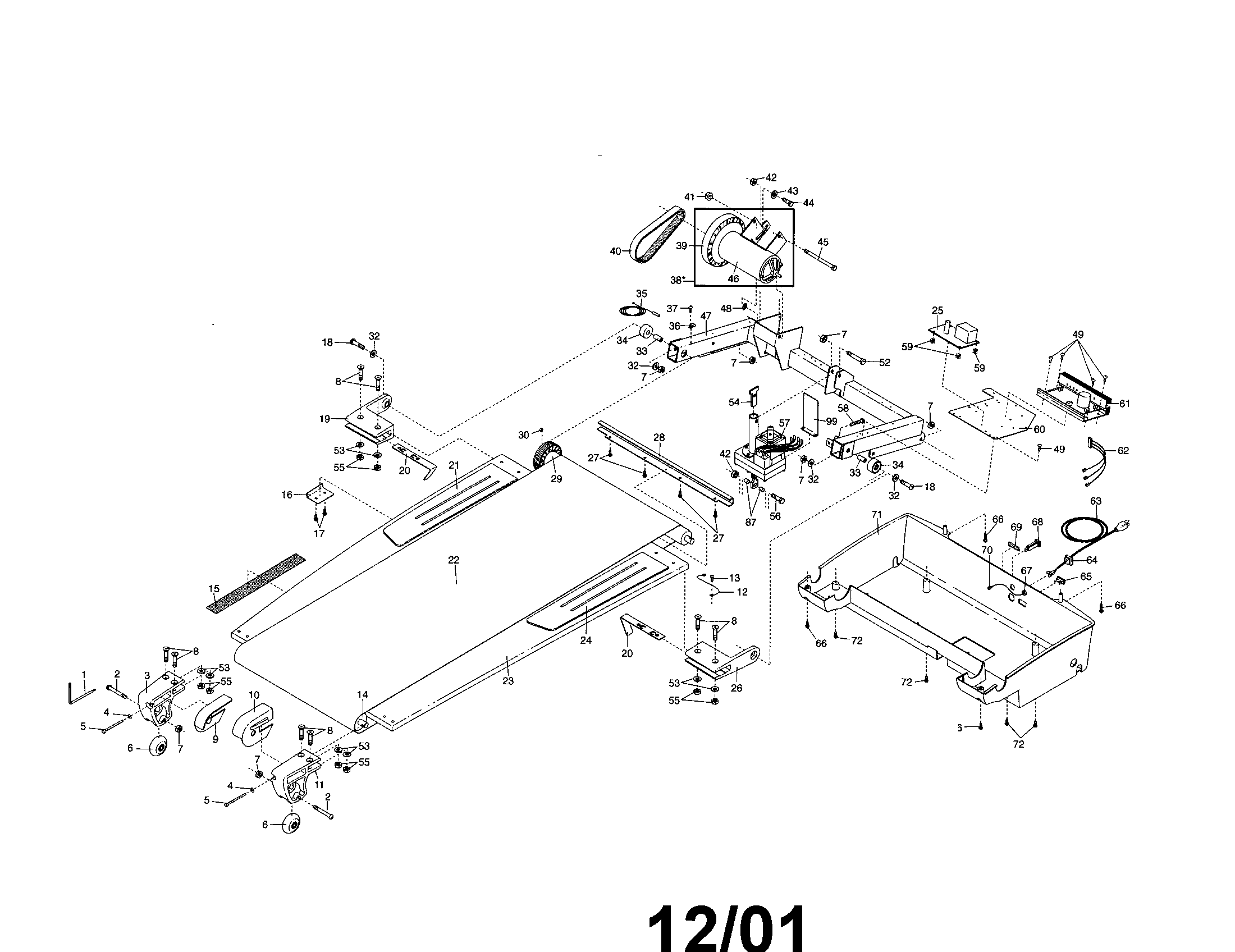

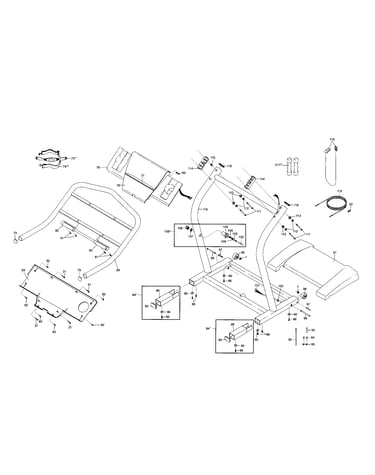

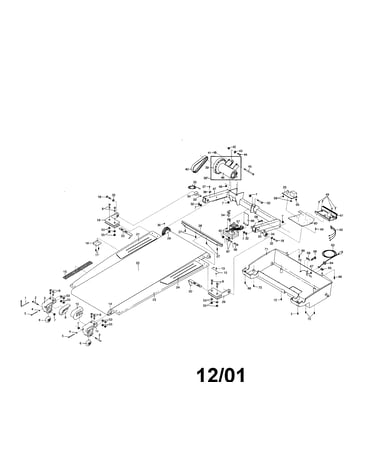

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Treadmill Walking Belt Alignment Tool (replaces 161927) 128457
Treadmill walking belt alignment tool (replaces 161927)

Part #128457

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382

#68

All parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229

#63

All parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Black & Decker Exercise Equipment Screw 105444

#5

All parts diagram

Black & decker exercise equipment screw

Part #105444

This item is not returnable
$2.16
Back Order
Belt 118017

#40

All parts diagram

Belt

Part #118017

Replaced by #220769

?
Manufacturer substitution
This part replaces 118017. Substitute parts can look different from the original.
This item is not returnable
$15.29 |
12% OFF Phone Price : $17.29
In Stock
Toyostove Exercise Equipment Rubber Pad 157600
Toyostove exercise equipment rubber pad

Part #157600

This item is not returnable
$2.16
In Stock
Treadmill Reed Switch And Wire 160068

#35

All parts diagram

Treadmill reed switch and wire

Part #160068

Replaced by #165798

?
Manufacturer substitution
This part replaces 160068. Substitute parts can look different from the original.
This item is not returnable
$10.19 |
16% OFF Phone Price : $12.19
In Stock
Exercise Equipment Rubber Pad 126650

#90B

All parts diagram

Exercise equipment rubber pad

Part #126650

This item is not returnable
$2.16
In Stock
Black & Decker Exercise Equipment Screw 154848

#82

All parts diagram

Black & decker exercise equipment screw

Part #154848

This item is not returnable
$2.16
In Stock
Black & Decker Power Cord Grommet 173169

#64

All parts diagram

Black & decker power cord grommet

Part #173169

This item is not returnable
$2.16
In Stock
