Kenmore
Bottom-Mount Refrigerator

Model # 11175032020 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 11175032020 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

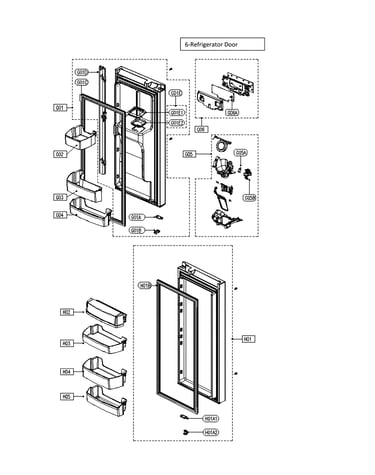

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Kenmore Refrigerator Water Filter 9130 (replaces 60199-0006802-00, 46-1173152-3) 9130
#NI

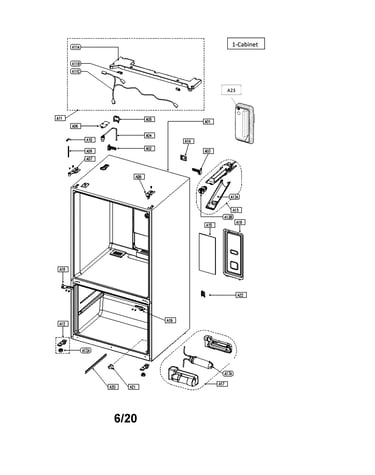

Cabinet diagram

Kenmore refrigerator water filter 9130 (replaces 60199-0006802-00, 46-1173152-3)

Part #9130

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Refrigerator Defrost Sensor (replaces 3014808900) 60148-0003400-01
#C02D

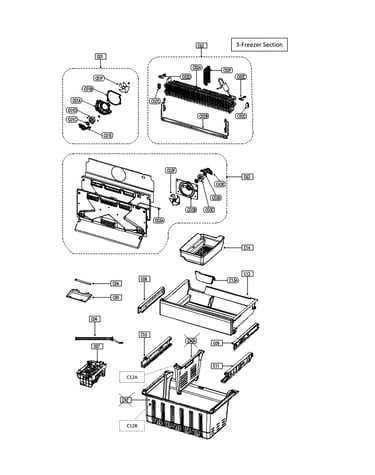

Freezer section diagram

Kenmore refrigerator defrost sensor (replaces 3014808900)

Part #60148-0003400-01

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Refrigerator Valve Water 60154-0002501-01
#B09A

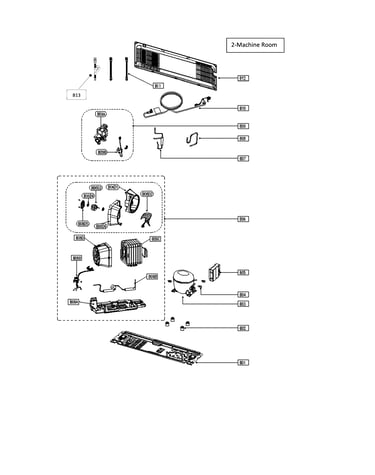

Machine room diagram

Kenmore refrigerator valve water

Part #60154-0002501-01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Temperature Sensor 3014808400
#D04C

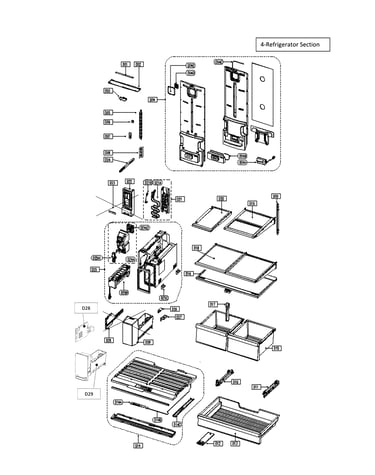

Refrigerator section diagram

Refrigerator temperature sensor

Part #3014808400

The manufacturer no longer makes this part, and there's no substitute part

Genuine Kenmore Refrigerator Water Filter 60199-0006802-00
#D04D

Refrigerator section diagram

Genuine kenmore refrigerator water filter

Part #60199-0006802-00

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Maker 30122-0043600-00
#D25B

Refrigerator section diagram

Refrigerator ice maker

Part #30122-0043600-00

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Defrost Sensor 60148-0001401-00
#D21B

Refrigerator section diagram

Refrigerator defrost sensor

Part #60148-0001401-00

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Condenser Fan Motor 3015920000
#B06D3

Machine room diagram

Refrigerator condenser fan motor

Part #3015920000

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Freezer Door Slide Rail Assembly, Left 30122-0041200-01
#E01B

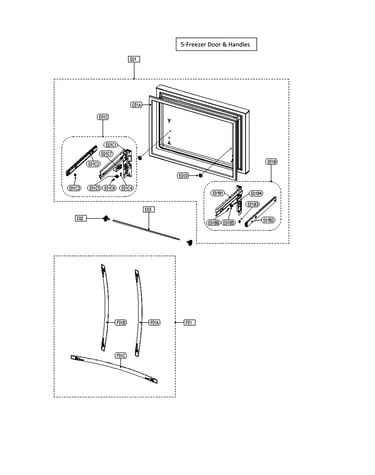

Freezer door & handles diagram

Refrigerator freezer door slide rail assembly, left

Part #30122-0041200-01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Freezer Temperature Sensor 3014809800
#C03A

Freezer section diagram

Refrigerator freezer temperature sensor

Part #3014809800

The manufacturer no longer makes this part, and there's no substitute part
