DeWalt
Power Sander

Model # D430-04 Official DeWalt sander

Here are the diagrams and repair parts for Official DeWalt D430-04 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Black & Decker Spring 720986-00
#61

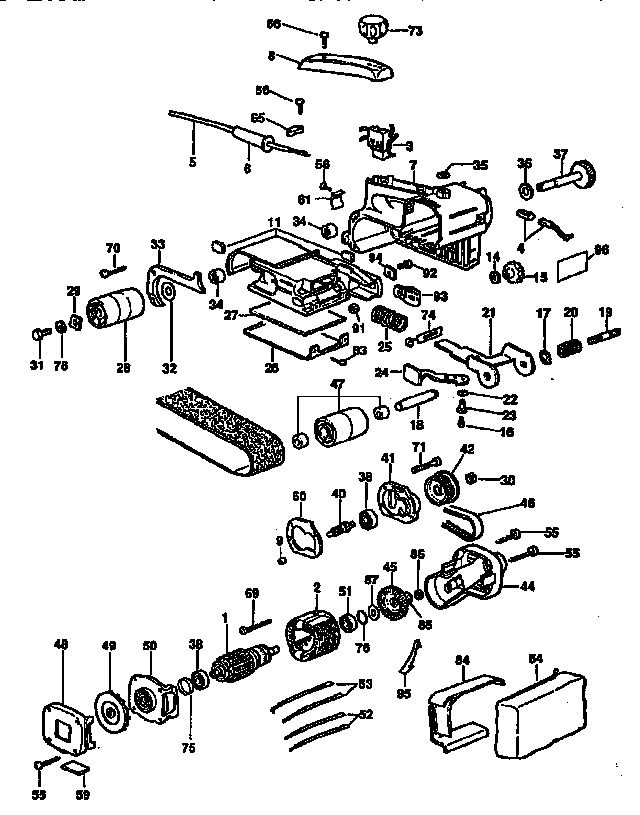

Unit parts diagram

Black & decker spring

Part #720986-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Spring 720954-00
#25

Unit parts diagram

Black & decker spring

Part #720954-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Pinion 325021-00
#40

Unit parts diagram

Black & decker pinion

Part #325021-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Washer 760261-00
#22

Unit parts diagram

Black & decker washer

Part #760261-00

The manufacturer no longer makes this part, and there's no substitute part

Brinley Stop 248396-00
#95

Unit parts diagram

Brinley stop

Part #248396-00

The manufacturer no longer makes this part, and there's no substitute part

Brinley Housing 248479-01
#11

Unit parts diagram

Brinley housing

Part #248479-01

The manufacturer no longer makes this part, and there's no substitute part

Brinley Spacer 720952-00
#23

Unit parts diagram

Brinley spacer

Part #720952-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Field Case 324595-02
#7A

Unit parts diagram

Black & decker field case

Part #324595-02

The manufacturer no longer makes this part, and there's no substitute part

Brinley Stone 720984-00
#59

Unit parts diagram

Brinley stone

Part #720984-00

The manufacturer no longer makes this part, and there's no substitute part

Brinley Armature 248420-01
#1

Unit parts diagram

Brinley armature

Part #248420-01

The manufacturer no longer makes this part, and there's no substitute part
