Model # DSC-TX66/V Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-TX66-V digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Flash Unit 148992711
#103

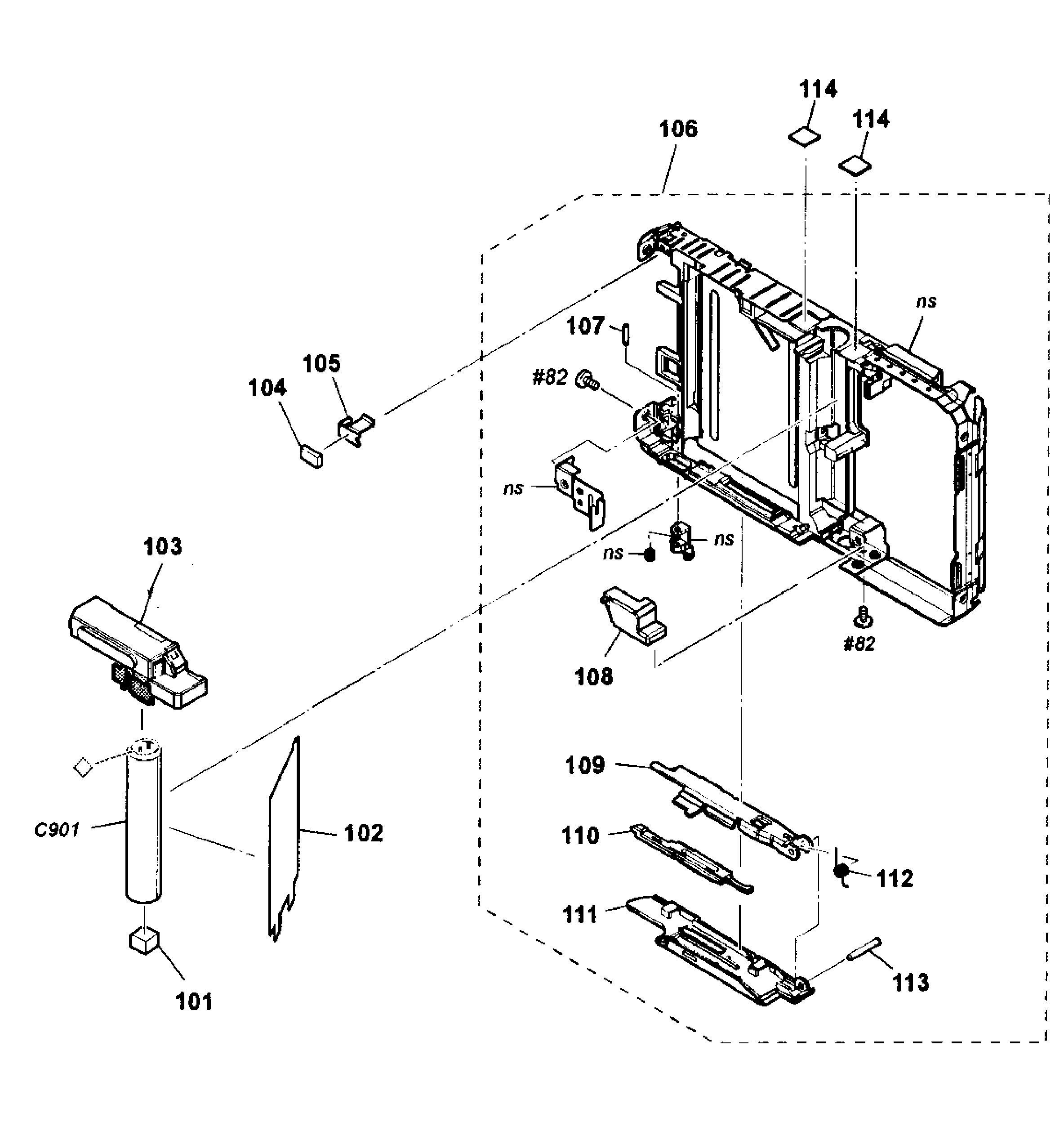

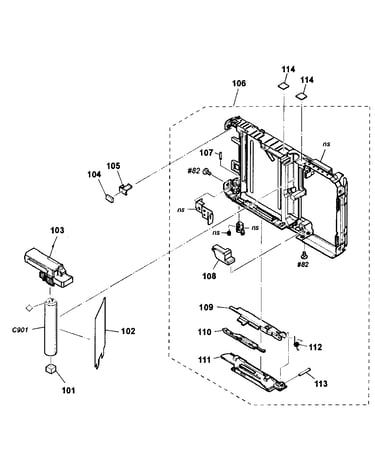

Battery section diagram

Flash unit

Part #148992711

$59.67
In Stock
Battery,li 185313011
#BT9

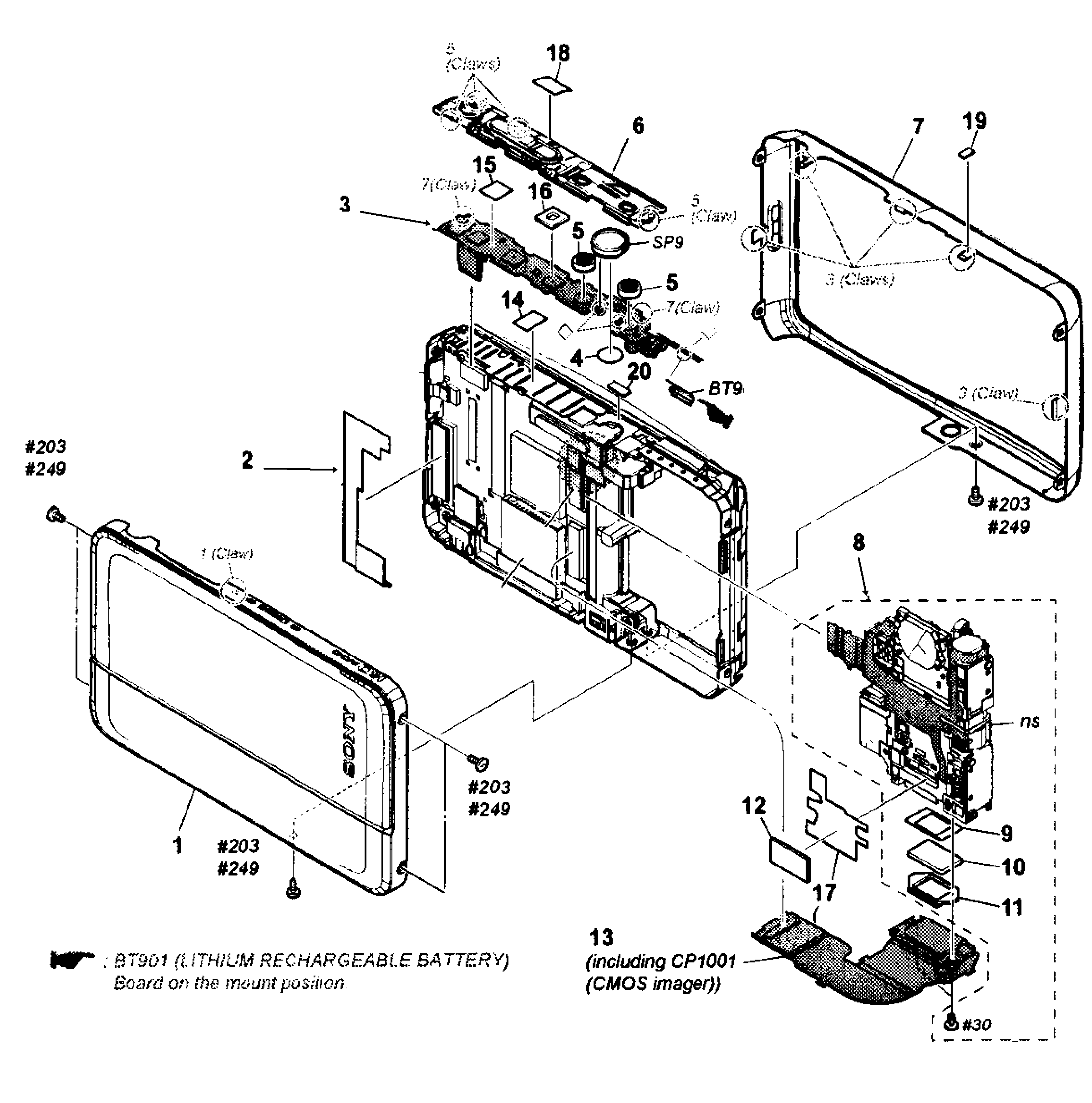

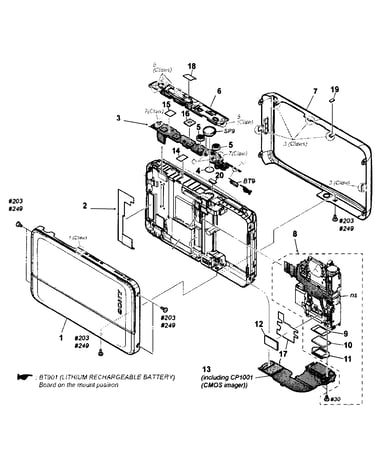

Front section diagram

Battery,li

Part #185313011

$16.17
In Stock
Insulation Sheet 428785701
#53

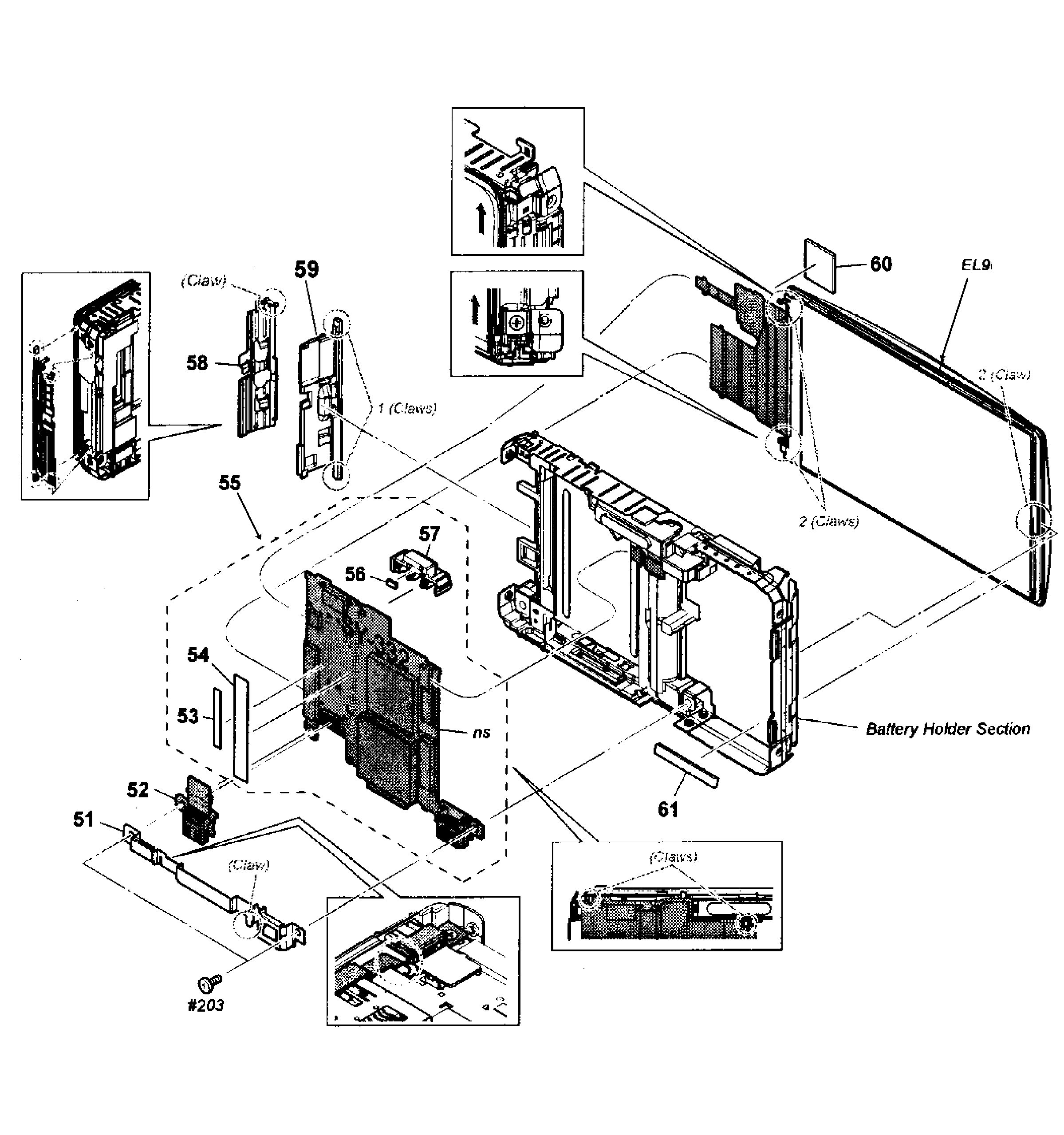

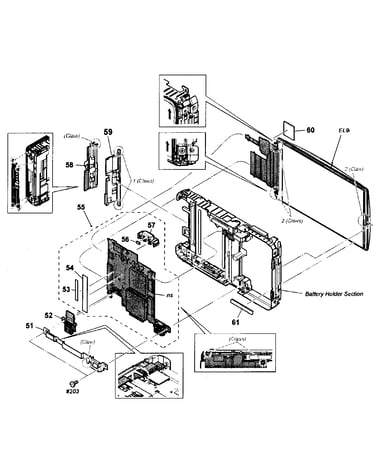

Main section diagram

Insulation sheet

Part #428785701

This item is not returnable
$2.65
In Stock
Shaft,bt 428783401
#107

Battery section diagram

Shaft,bt

Part #428783401

This item is not returnable
$2.65
In Stock
Insulation Sheet 441146401
#15

Front section diagram

Insulation sheet

Part #441146401

This item is not returnable
$2.65
In Stock
Plate 427449901
#9

Front section diagram

Plate

Part #427449901

This item is not returnable
$2.65
In Stock
Shaft,bt 428783201
#113

Battery section diagram

Shaft,bt

Part #428783201

This item is not returnable
$3.51
In Stock
Cushion,mi 428782702
#5

Front section diagram

Cushion,mi

Part #428782702

This item is not returnable
$7.22
In Stock
Sony Fr Block A1869635A
#1

Front section diagram

Sony fr block

Part #A1869635A

$141.77
In Stock
Pcb Rl-114 A1845326A
#3

Front section diagram

Pcb rl-114

Part #A1845326A

$30.16
In Stock
