Husqvarna
Front-Engine Lawn Tractor

Model # 96045006000 Official Husqvarna lawn tractor

Here are the diagrams and repair parts for Official Husqvarna 96045006000 lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

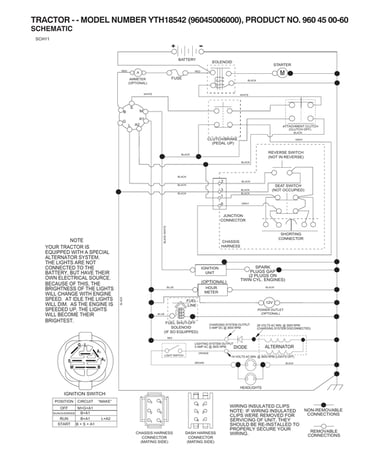

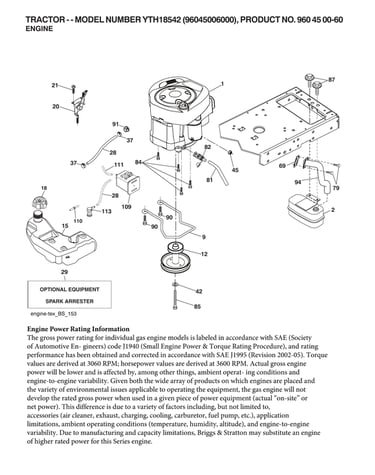

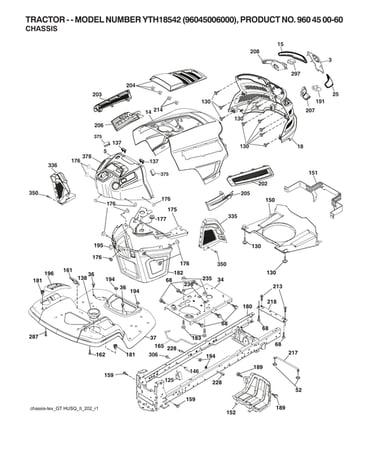

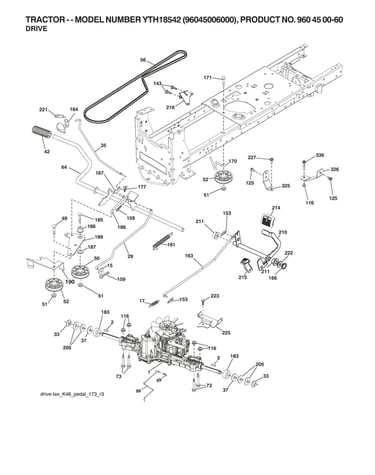

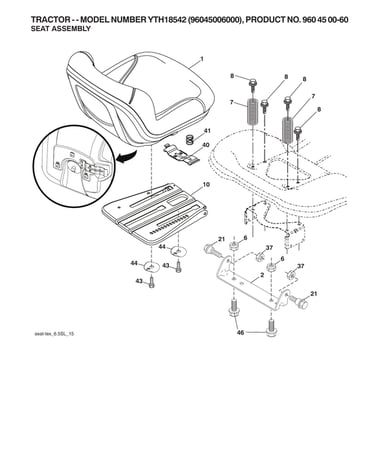

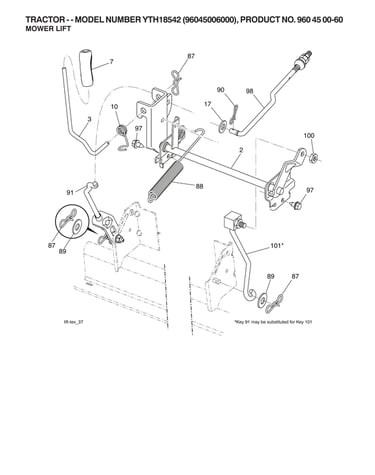

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 331 parts  |
Lawn Tractor Mandrel Assembly (587819701) (replaces 187281, 192872, 587253301) 587819701 587819701
#14

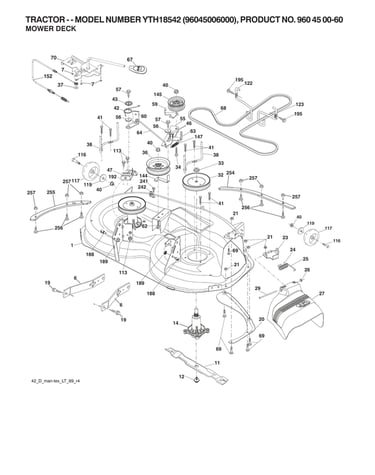

Mower deck diagram

Lawn tractor mandrel assembly (587819701) (replaces 187281, 192872, 587253301) 587819701

Part #587819701

BEST SELLER
$46.13 |
12% OFF Phone Price : $52.13
In Stock
Lawn Tractor 42-in Deck High-lift Blade (replaces 138971) 532138971
#11

Mower deck diagram

Lawn tractor 42-in deck high-lift blade (replaces 138971)

Part #532138971

BEST SELLER

Get free shipping with Automatic Reorder

$22.14 |
21% OFF Phone Price : $28.14
In Stock
Hub Cap 532175039
#8

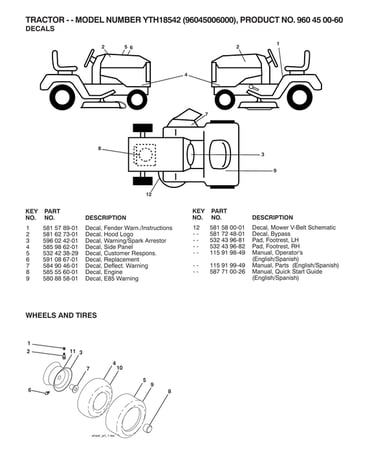

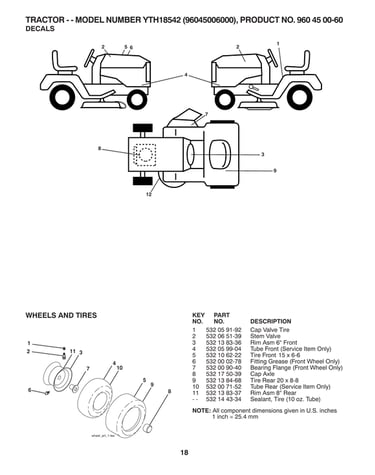

Wheels diagram

Hub cap

Part #532175039

Replaced by #532104757

?
Manufacturer substitution
This part replaces 532175039. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Self-tapping Bolt (replaces 173984) 584953901
#41

Mower deck diagram

Lawn tractor self-tapping bolt (replaces 173984)

Part #584953901

BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Ignition Switch (replaces 193350) 532193350
#30

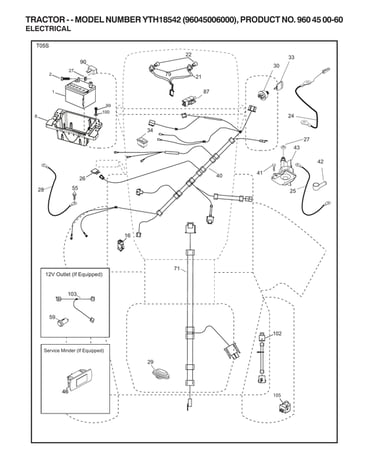

Electrical diagram

Lawn tractor ignition switch (replaces 193350)

Part #532193350

BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Lawn Tractor Deflector Shield Hinge Rod (replaces 131491) 595297001
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod (replaces 131491)

Part #595297001

BEST SELLER
$7.05 |
12% OFF Phone Price : $8.05
In Stock
Lawn Tractor Flange Nut, 9/16-in (replaces 400234) 596134801
#33

Mower deck diagram

Lawn tractor flange nut, 9/16-in (replaces 400234)

Part #596134801

BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Drag Link, Right (replaces 597047901) 597047902
#62

Steering assy diagram

Lawn tractor drag link, right (replaces 597047901)

Part #597047902

BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Lawn Tractor Steering Shaft 587016002
#16

Steering assy diagram

Lawn tractor steering shaft

Part #587016002

Replaced by #587738904

?
Manufacturer substitution
This part replaces 587016002. Substitute parts can look different from the original.
BEST SELLER
$35.14 |
15% OFF Phone Price : $41.14
In Stock
Lawn Tractor Gauge Wheel (replaces 188606) 589527401
#117

Mower deck diagram

Lawn tractor gauge wheel (replaces 188606)

Part #589527401

BEST SELLER
$13.31 |
13% OFF Phone Price : $15.31
In Stock
