Dacor
Electric Wall Oven

Model # EORS227SCH Official Dacor wall oven

Here are the diagrams and repair parts for Official Dacor EORS227SCH wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Nut 83308
#5

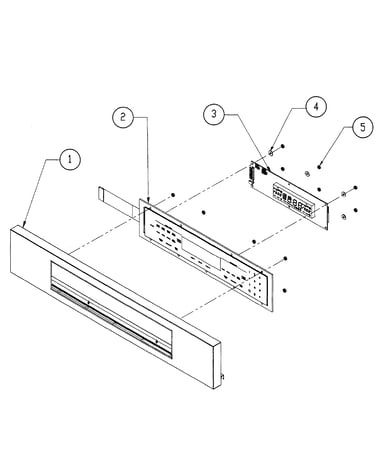

Bezel assy diagram

Nut

Part #83308

This item is not returnable
$2.16
In Stock
Door Latch 100090
#13

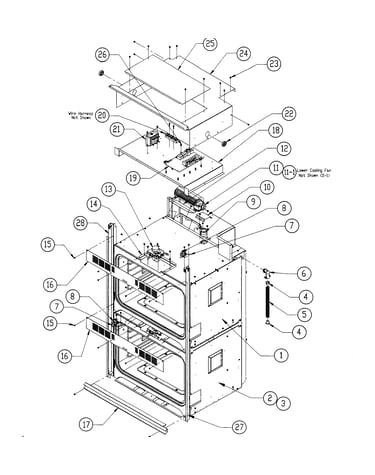

Oven assy diagram

Door latch

Part #100090

Replaced by #101339

?
Manufacturer substitution
This part replaces 100090. Substitute parts can look different from the original.
$82.99
In Stock
Bake Glass 101723
Bake glass

Part #101723

$133.99
In Stock
Exhaust Grille 82990S
#17

Oven assy diagram

Exhaust grille

Part #82990S

$118.49
In Stock
Cool Fan 102334
#111

Oven assy diagram

Cool fan

Part #102334

$137.49
In Stock
Oven Panel 701044-03
#2

Bezel assy diagram

Oven panel

Part #701044-03

$193.49
In Stock
Screw 83023
#23

Oven assy diagram

Screw

Part #83023

This item is not returnable
$2.16
In Stock
Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
Back Order
Pack Window 100073
#11

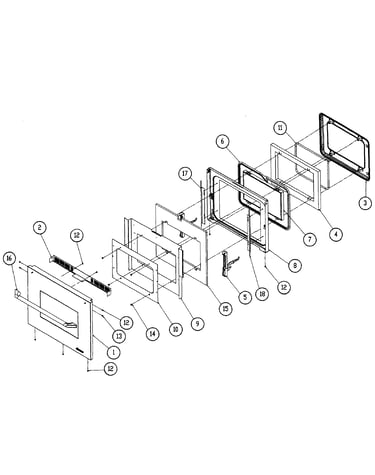

Door assy diagram

Pack window

Part #100073

$22.99
Back Order
Appliance Screw 83534
Appliance screw

Part #83534

This item is not returnable
$2.16
Back Order
