Jenn-Air
Electric Wall Oven

Model # W206W Official Jenn-Air electric wall oven

Here are the diagrams and repair parts for Official Jenn-Air W206W electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

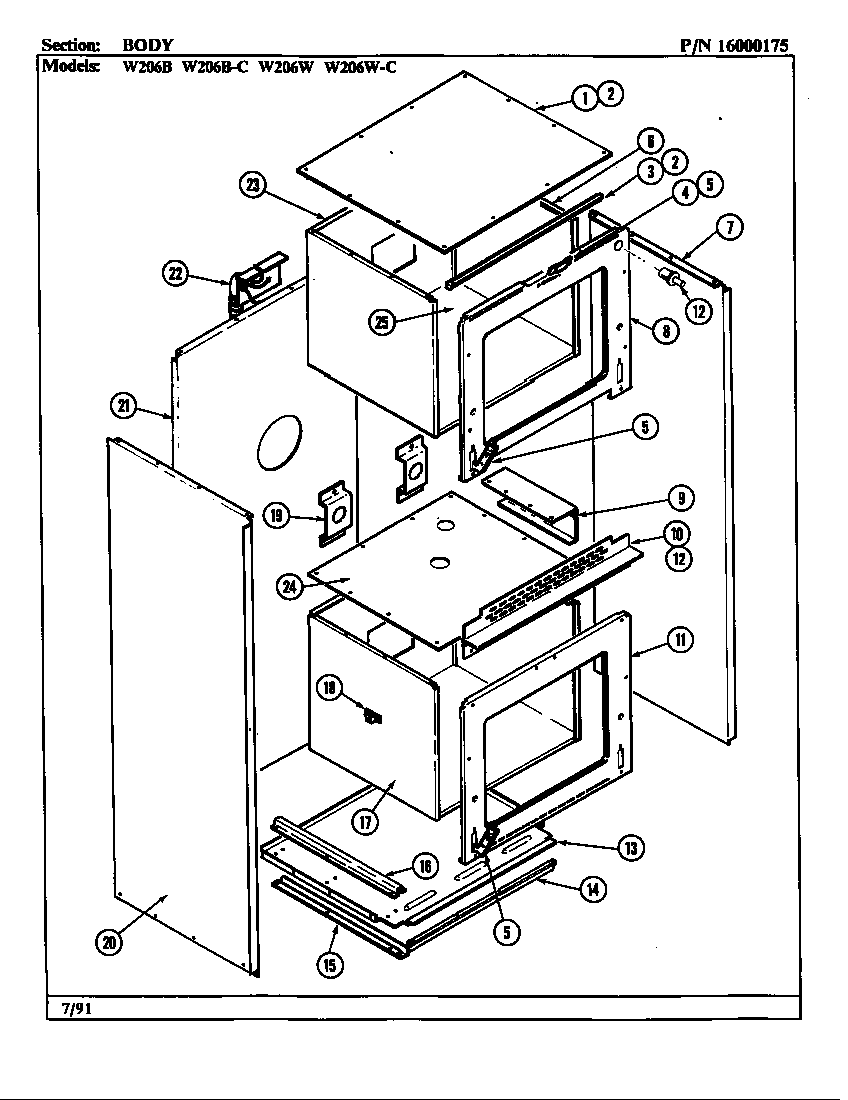

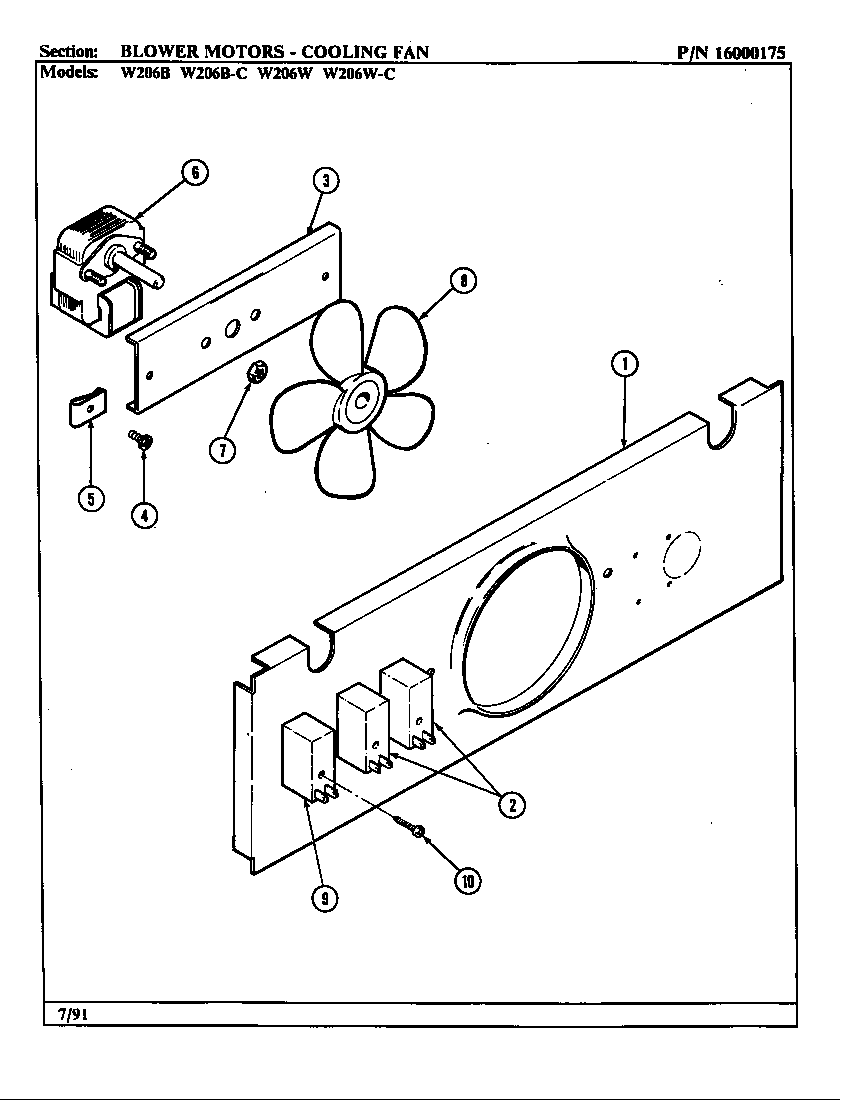

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Screw 708733
Screw

Part #708733

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 708733. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 707347
#11

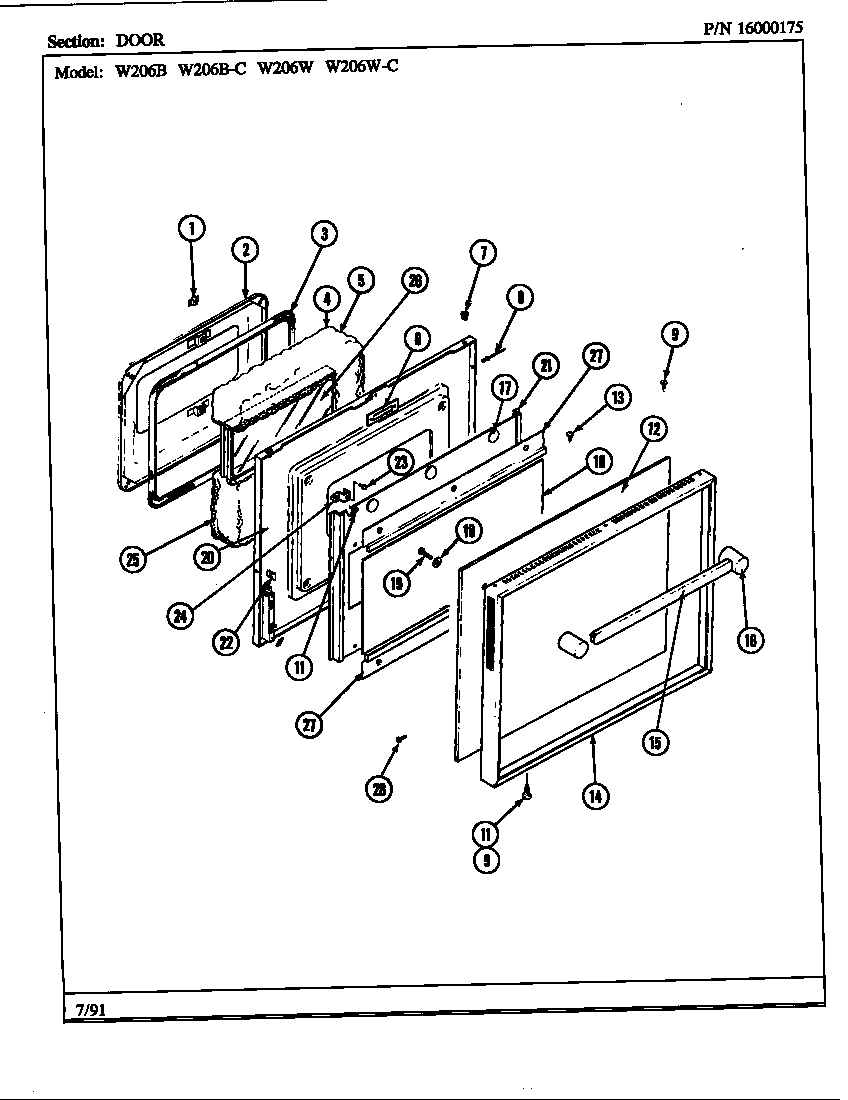

Door diagram

Screw

Part #707347

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 707347. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw (blk) 704237
#9

Door diagram

Screw (blk)

Part #704237

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 704237. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Broiler Element 704667
#2

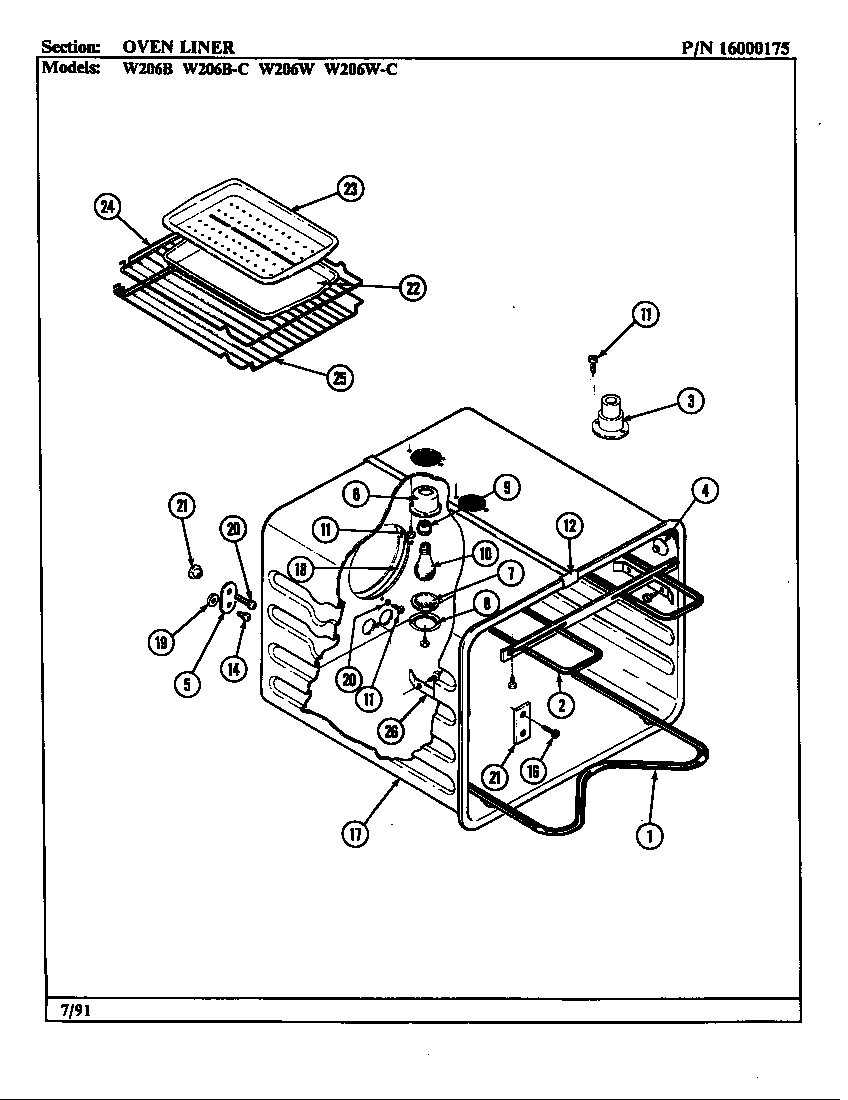

Oven diagram

Broiler element

Part #704667

Replaced by #WPY04100514

?
Manufacturer substitution
This part replaces 704667. Substitute parts can look different from the original.
$74.59 |
7% OFF Phone Price : $80.59
In Stock
Lower Seal 703611
#3A

Door diagram

Lower seal

Part #703611

Replaced by #WPY702338

?
Manufacturer substitution
This part replaces 703611. Substitute parts can look different from the original.
$89.92 |
6% OFF Phone Price : $95.92
In Stock
Pack Window 701648
#26

Door diagram

Pack window

Part #701648

Replaced by #WP5700M600-60

?
Manufacturer substitution
This part replaces 701648. Substitute parts can look different from the original.
$313.68 |
$12.00 OFF Phone Price : $325.68
In Stock
Kenmore Range Screw 708861
#5

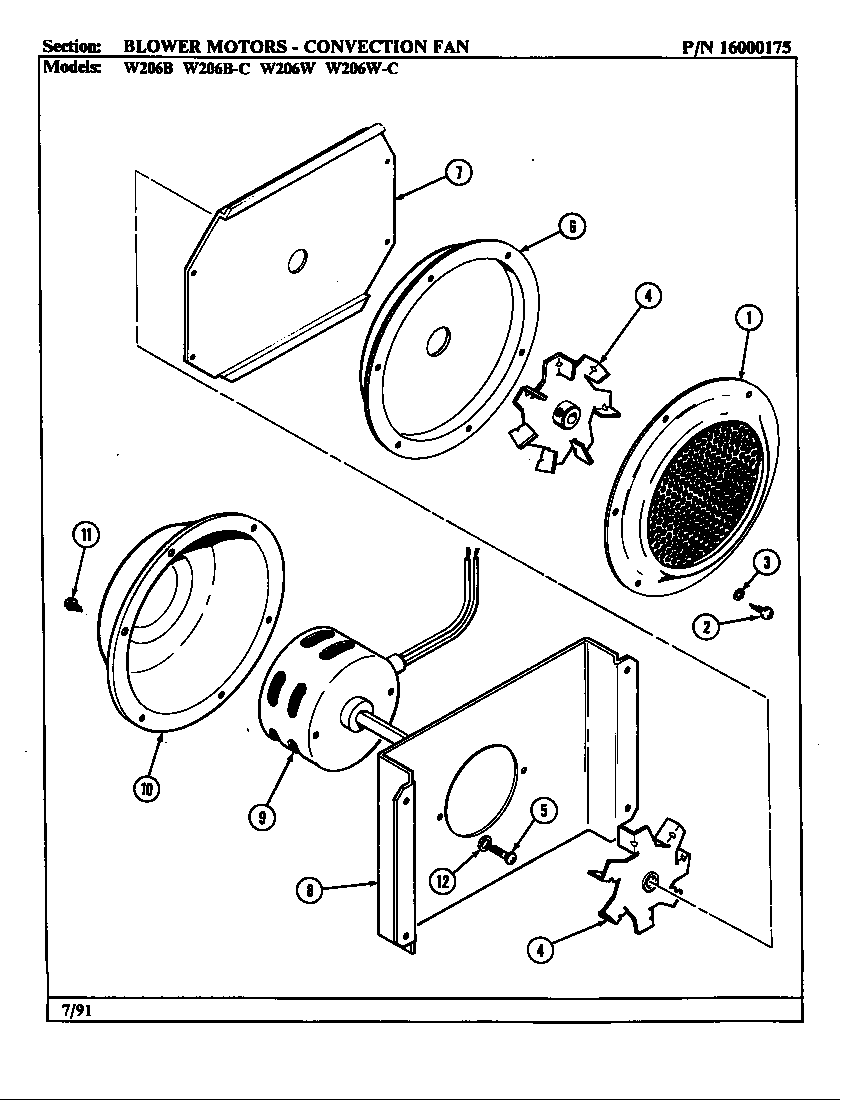

Blower motor (convection fan) diagram

Kenmore range screw

Part #708861

This item is not returnable
$4.22
In Stock
Motor Cover 701713
#7

Blower motor (convection fan) diagram

Motor cover

Part #701713

This item is not returnable
$4.09 |
20% OFF Phone Price : $5.09
In Stock
Magic Chef Range Screw 707407
#10

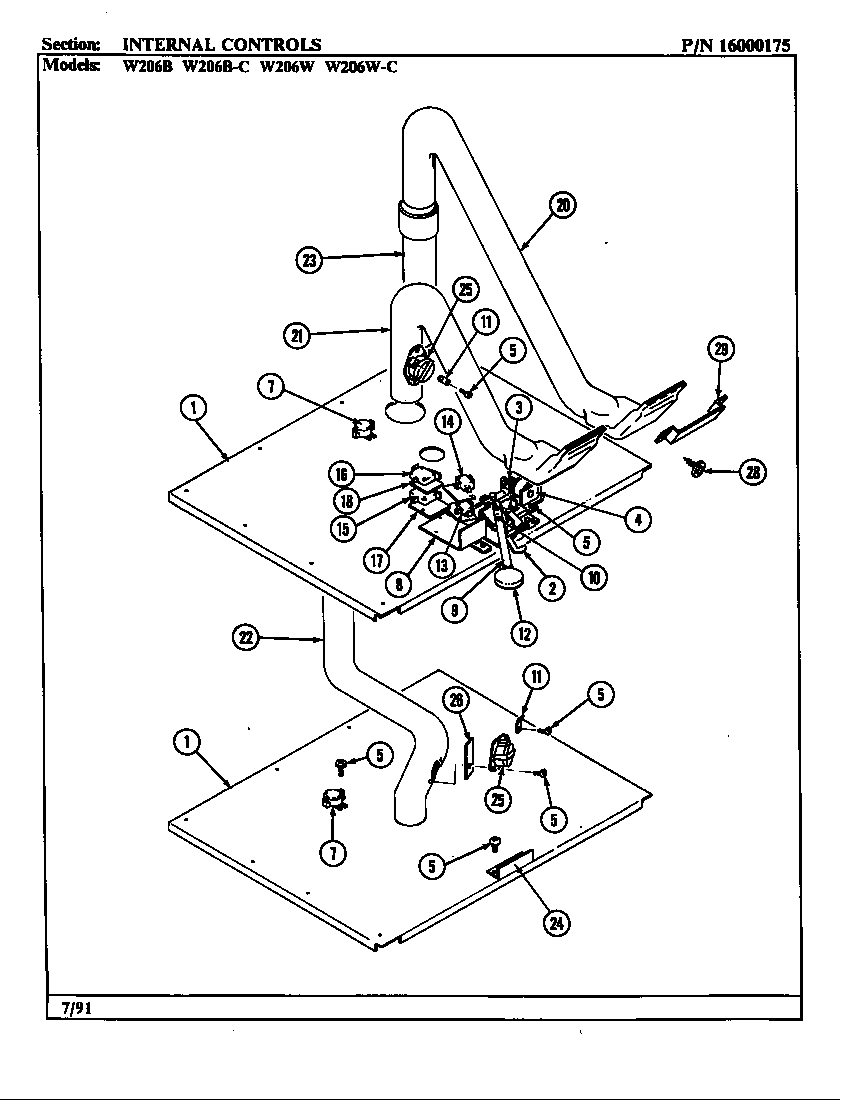

Internal controls diagram

Magic chef range screw

Part #707407

This item is not returnable
$5.09
In Stock
Screw 708764
#14

Oven diagram

Screw

Part #708764

Replaced by #WP179051

?
Manufacturer substitution
This part replaces 708764. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
