Craftsman
Gas Walk-Behind Mower

Model # 917380430 Official Craftsman 20" side-discharge rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917380430 20" side-discharge rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

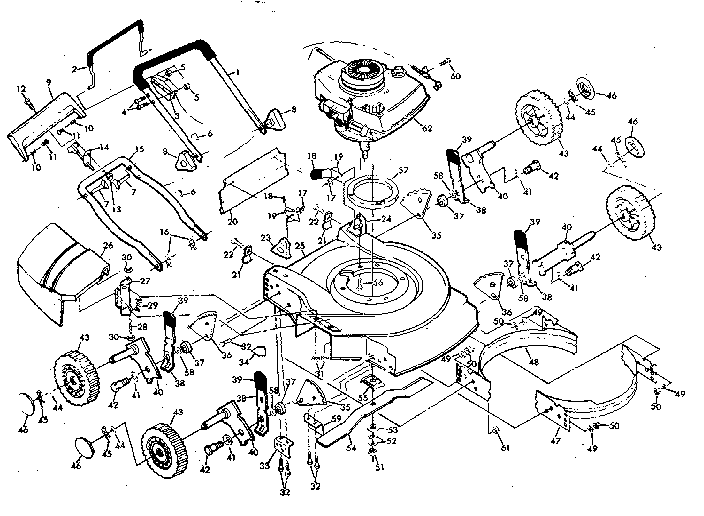

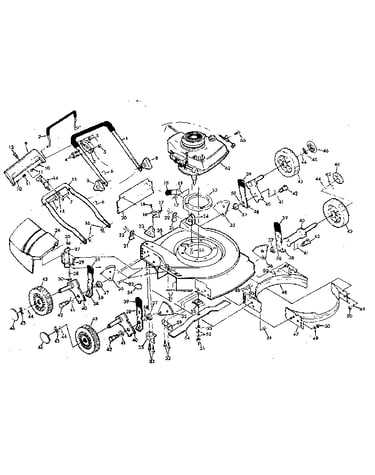

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Selector Knob 77865
#39

Replacement parts diagram

Selector knob

Part #77865

Replaced by #532701037

?
Manufacturer substitution
This part replaces 77865. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Nut 63124
#61

Replacement parts diagram

Nut

Part #63124

The manufacturer no longer makes this part, and there's no substitute part

Bolt 58714
#7

Replacement parts diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
American Yard Products Lawn & Garden Equipment Washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384) 88348
#58

Replacement parts diagram

American yard products lawn & garden equipment washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384)

Part #88348

Replaced by #532088348

?
Manufacturer substitution
This part replaces 88348. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Axle Arm 87887
#40

Replacement parts diagram

Axle arm

Part #87887

Replaced by #583168501

?
Manufacturer substitution
This part replaces 87887. Substitute parts can look different from the original.
$13.69
In Stock
Walk-behind Lawn Mower Handle Knob 87692
#8

Replacement parts diagram

Walk-behind lawn mower handle knob

Part #87692

Replaced by #532087692

?
Manufacturer substitution
This part replaces 87692. Substitute parts can look different from the original.
$15.40
In Stock
Retainer Clip 85179
#45

Replacement parts diagram

Retainer clip

Part #85179

Replaced by #532085179

?
Manufacturer substitution
This part replaces 85179. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Screw 55187
#32

Replacement parts diagram

Screw

Part #55187

Replaced by #532428867

?
Manufacturer substitution
This part replaces 55187. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Adj Brkt Lh 86931
#35

Replacement parts diagram

Adj brkt lh

Part #86931

Replaced by #582968701

?
Manufacturer substitution
This part replaces 86931. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Hairpin 51793
#16

Replacement parts diagram

Hairpin

Part #51793

Replaced by #532051793

?
Manufacturer substitution
This part replaces 51793. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
