Model # 143756072 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143756072 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
Lawn Mower O-ring 631028
#25

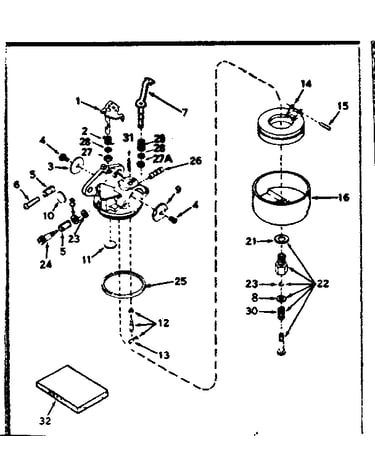

Carburetor no. 632272 diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Rope 590451A
#9

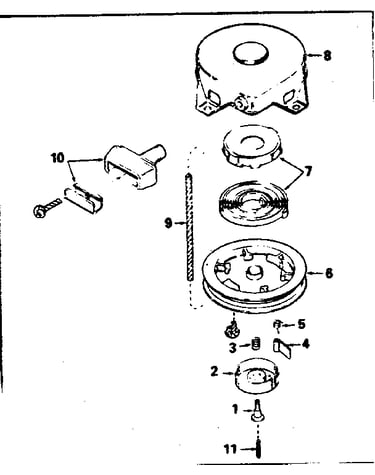

Rewind starter no. 590420 diagram

Rope

Part #590451A

Replaced by #590535

?
Manufacturer substitution
This part replaces 590451A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#21

Carburetor no. 632272 diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#107

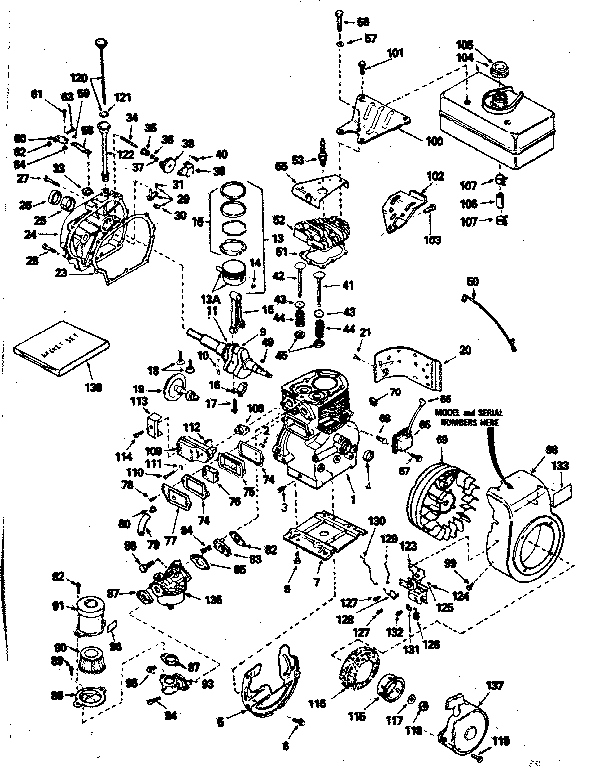

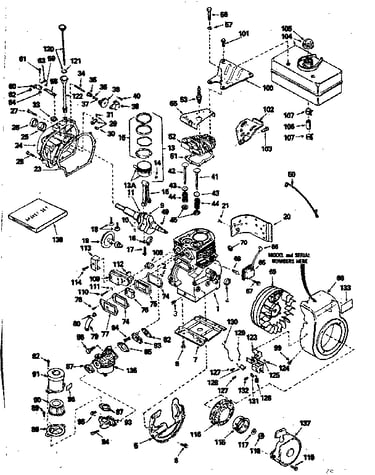

Engine diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Generac Lawn & Garden Equipment Engine Stop Wire Terminal 610973
#126

Engine diagram

Generac lawn & garden equipment engine stop wire terminal

Part #610973

This item is not returnable
$4.11 |
20% OFF Phone Price : $5.11
Back Order
Lauson Lawn & Garden Equipment Engine Fuel Line (replaces 30241, 430217, 503-1199, 503-1577, Tc-30962) 30962
#106

Engine diagram

Lauson lawn & garden equipment engine fuel line (replaces 30241, 430217, 503-1199, 503-1577, tc-30962)

Part #30962

This item is not returnable
$6.76 |
13% OFF Phone Price : $7.76
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 631025, 632808) 631867
#16

Carburetor no. 632272 diagram

Troybilt lawn & garden equipment engine carburetor float bowl (replaces 631025, 632808)

Part #631867

This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
Back Order
Generac Lawn & Garden Equipment Engine Service Manual (replaces 692509, 730546, 740048) 740049

#NI

All parts diagram

Generac lawn & garden equipment engine service manual (replaces 692509, 730546, 740048)

Part #740049

This item is not returnable
$12.19 |
14% OFF Phone Price : $14.19
In Stock
Fuel Tank 34186
#104

Engine diagram

Fuel tank

Part #34186

Replaced by #34186A

?
Manufacturer substitution
This part replaces 34186. Substitute parts can look different from the original.
$45.98 |
12% OFF Phone Price : $51.98
In Stock
Lawn & Garden Equipment Throttle Shaft Return Spring (replaces 630731, 631279, 631279a, 631279l, 632016) 631767
#2

Carburetor no. 632272 diagram

Lawn & garden equipment throttle shaft return spring (replaces 630731, 631279, 631279a, 631279l, 632016)

Part #631767

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
