Model # BH5542SKA1 Official ICP blower coil

Here are the diagrams and repair parts for Official ICP BH5542SKA1 blower coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Cap Rnrd 1094956
#1

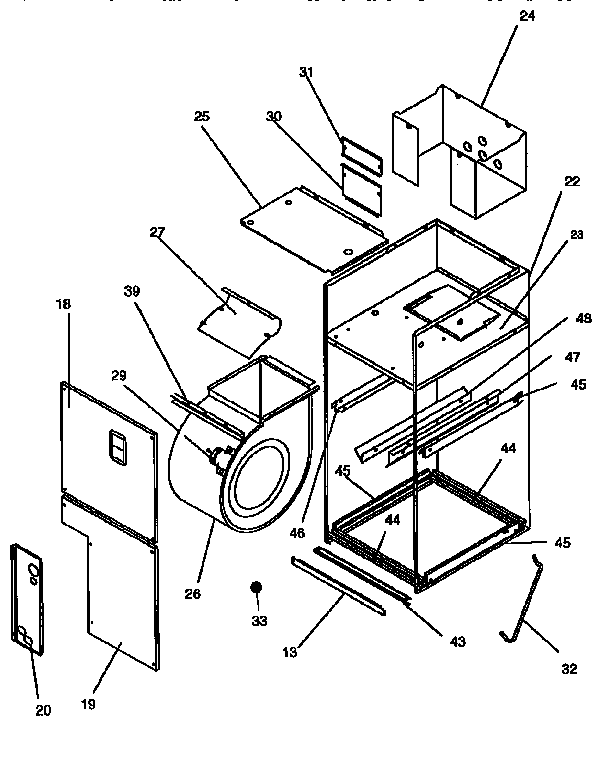

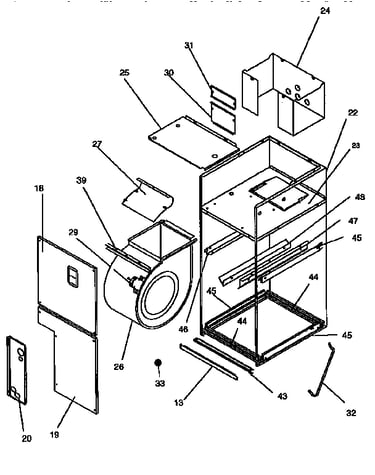

Blower coil 3 1/2 ton diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
Back Order
Central Air Conditioner Air Handler Blower Wheel 96839
#2

Blower coil 3 1/2 ton diagram

Central air conditioner air handler blower wheel

Part #96839

$148.95 |
7% OFF Phone Price : $160.95
In Stock
Housing Blr 1096066
#26

Blower coil 3 1/2 ton diagram

Housing blr

Part #1096066

$209.82
In Stock
Terminal Board 1055193
#16

Blower coil 3 1/2 ton diagram

Terminal board

Part #1055193

$29.09
In Stock
Clamp Capctr 1095020
#29

Blower coil 3 1/2 ton diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Mtr Blr / / 1096015
#3

Blower coil 3 1/2 ton diagram

Mtr blr / /

Part #1096015

$223.84
In Stock
Control Housing 1057787
#9

Blower coil 3 1/2 ton diagram

Control housing

Part #1057787

$31.31
In Stock
Furnace Air Filter 602859
#12

Blower coil 3 1/2 ton diagram

Furnace air filter

Part #602859

$94.00
In Stock
Plug 711996
#28

Blower coil 3 1/2 ton diagram

Plug

Part #711996

Replaced by #1162328

?
Manufacturer substitution
This part replaces 711996. Substitute parts can look different from the original.
$22.77
In Stock
Grommet 609194
#4

Blower coil 3 1/2 ton diagram

Grommet

Part #609194

Replaced by #1149537

?
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
$34.96
In Stock
