Model # V1201RW3 Official WC Wood upright freezer

Here are the diagrams and repair parts for Official WC Wood V1201RW3 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Drier 3-34960-001
#12

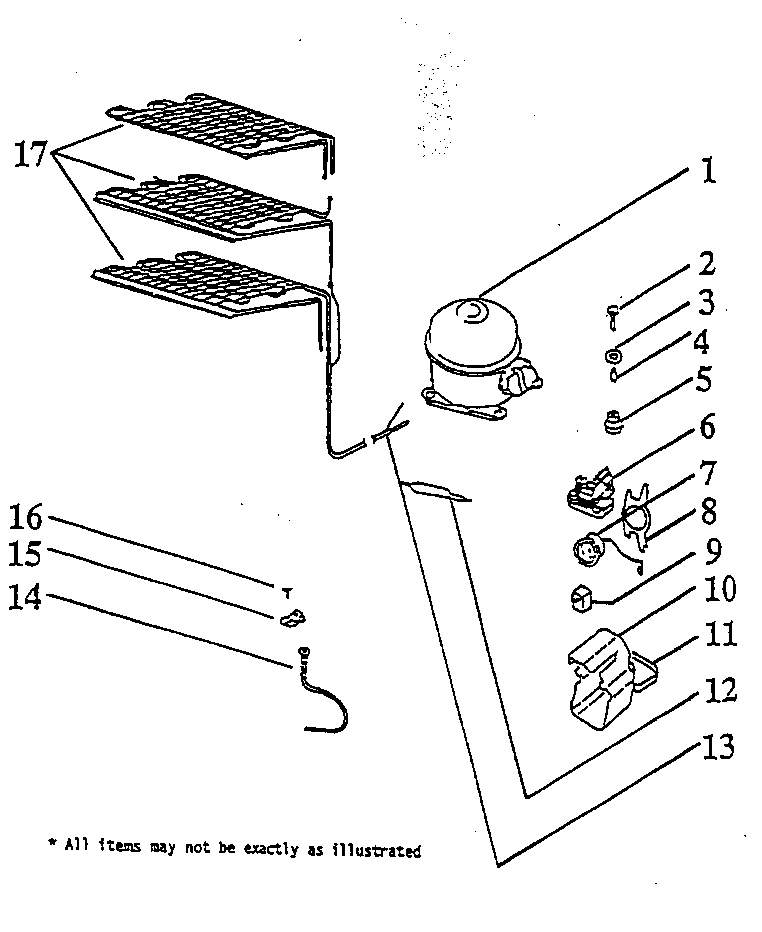

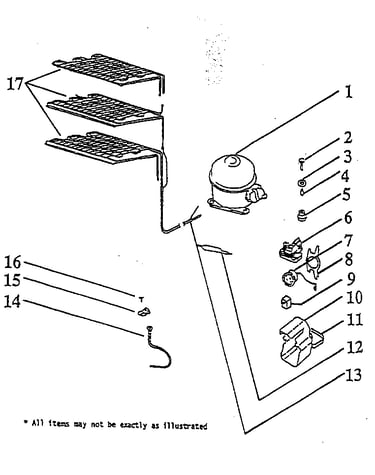

Unit compartment/system diagram

Drier

Part #3-34960-001

The manufacturer no longer makes this part, and there's no substitute part

Compressor 0-90006-133
#1

Unit compartment/system diagram

Compressor

Part #0-90006-133

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-20152
#7

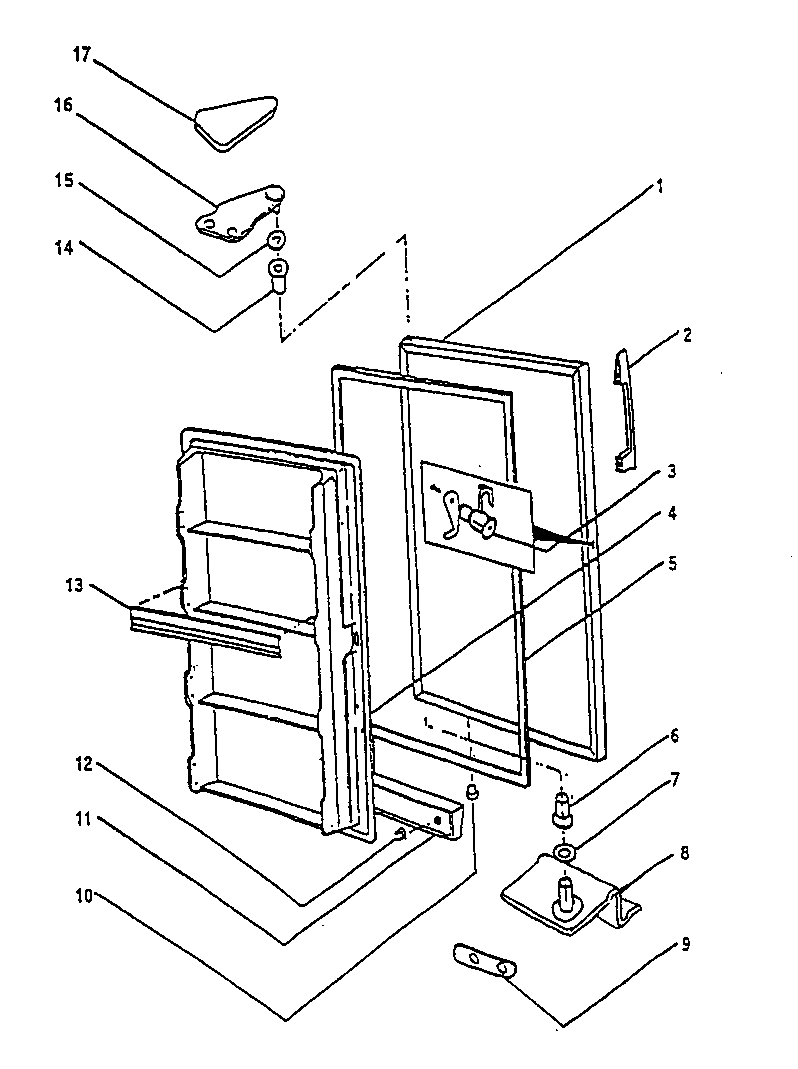

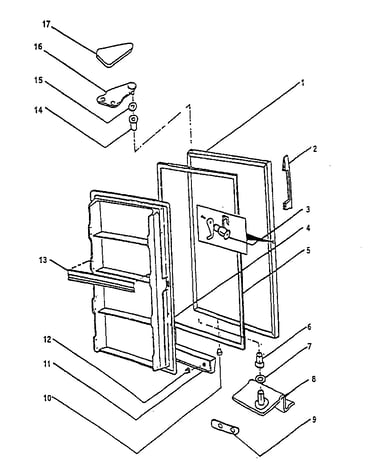

Door/components diagram

Washer

Part #1-20152

The manufacturer no longer makes this part, and there's no substitute part

Mounting Clip 1-80247-101
#12

Door/components diagram

Mounting clip

Part #1-80247-101

The manufacturer no longer makes this part, and there's no substitute part

Screw 3-24004-109
#17E

Unit compartment/system diagram

Screw

Part #3-24004-109

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly 0-90008-075
#16

Door/components diagram

Hinge assembly

Part #0-90008-075

The manufacturer no longer makes this part, and there's no substitute part

Temperature Knob 3-82390-001
#5

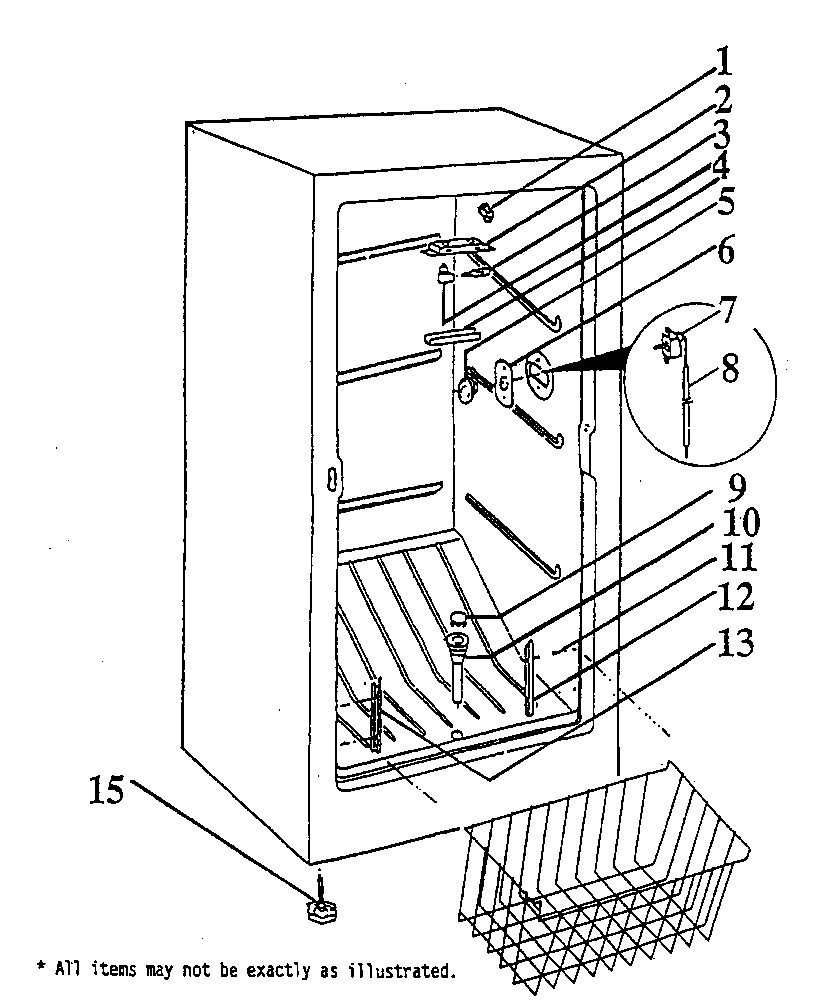

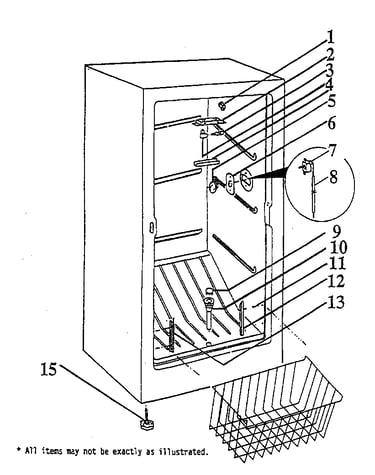

Freezer compartment diagram

Temperature knob

Part #3-82390-001

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 4-82397-001
#7

Freezer compartment diagram

Thermostat

Part #4-82397-001

The manufacturer no longer makes this part, and there's no substitute part

Levell Leg 0-90028-005
#15

Freezer compartment diagram

Levell leg

Part #0-90028-005

The manufacturer no longer makes this part, and there's no substitute part

Hinge Kit 0-90008-082
#8

Door/components diagram

Hinge kit

Part #0-90008-082

The manufacturer no longer makes this part, and there's no substitute part
