Model # 24085640 Official Craftsman cordless electric hedge trimmer
Here are the diagrams and repair parts for Official Craftsman 24085640 cordless electric hedge trimmer, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for24085640 Line Trimmers
- #3

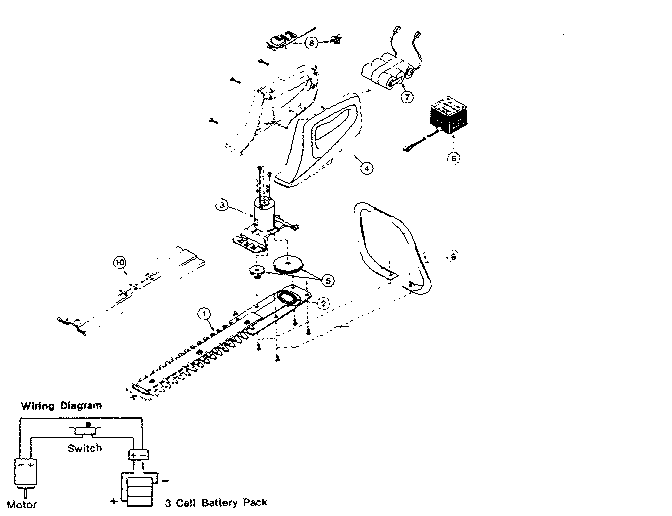

Unit parts diagram
Motor basePart #3904
The manufacturer no longer makes this part, and there's no substitute part
- #8
Unit parts diagram
Swtch/termPart #3906
The manufacturer no longer makes this part, and there's no substitute part
- #10
Unit parts diagram
Blade guardPart #3916
The manufacturer no longer makes this part, and there's no substitute part
- #5
Unit parts diagram
Gear trainPart #3905
The manufacturer no longer makes this part, and there's no substitute part
- #2
Unit parts diagram
Blade insertPart #3919
The manufacturer no longer makes this part, and there's no substitute part
- #6
Unit parts diagram
ChargerPart #3963
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
ScrewPart #3610
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
ScrewPart #4819
The manufacturer no longer makes this part, and there's no substitute part
- #4
Unit parts diagram
Housing assemblyPart #3907
The manufacturer no longer makes this part, and there's no substitute part
- #1
Unit parts diagram
Blade assemblyPart #3915
The manufacturer no longer makes this part, and there's no substitute part
