Kenmore
Space Heater

Model # 583409940 Official Kenmore 85000-btu portable heater

Here are the diagrams and repair parts for Official Kenmore 583409940 85000-btu portable heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Remington Space Heater Pump Rotor Insert M22009
#12

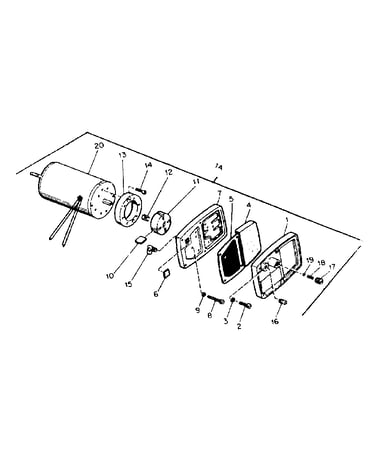

Motor package assembly diagram

Remington space heater pump rotor insert

Part #M22009

The manufacturer no longer makes this part, and there's no substitute part

Remington Space Heater Pump Hole Plug M22997
#16

Motor package assembly diagram

Remington space heater pump hole plug

Part #M22997

The manufacturer no longer makes this part, and there's no substitute part

Reddy Space Heater Pump Rotor Blade M8643
#10

Motor package assembly diagram

Reddy space heater pump rotor blade

Part #M8643

The manufacturer no longer makes this part, and there's no substitute part

Pack Motor M23149-7
#19

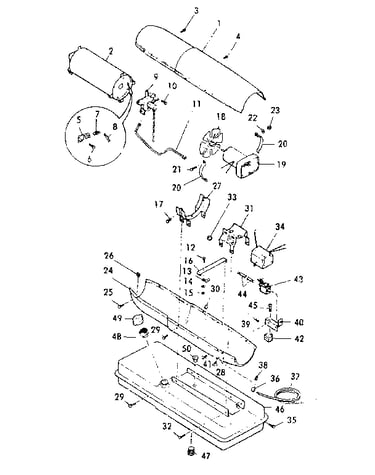

Heater assembly diagram

Pack motor

Part #M23149-7

The manufacturer no longer makes this part, and there's no substitute part

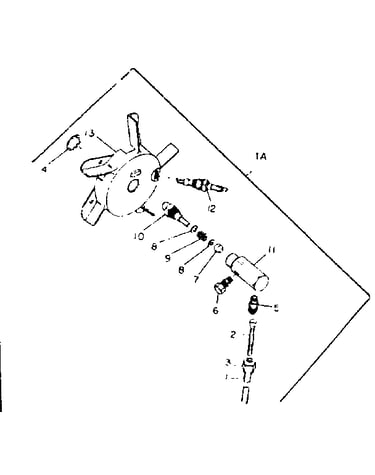

Burner Head M23150-1
Burner head

Part #M23150-1

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Adapt M23151-1

#NI

All parts diagram

Nozzle adapt

Part #M23151-1

The manufacturer no longer makes this part, and there's no substitute part

Wheel M19294
#14

Non-functional replacement parts diagram

Wheel

Part #M19294

The manufacturer no longer makes this part, and there's no substitute part

Screw M27964
#17

Motor package assembly diagram

Screw

Part #M27964

The manufacturer no longer makes this part, and there's no substitute part

Bracket M25296-1
#40

Heater assembly diagram

Bracket

Part #M25296-1

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer STD551110
#14

Heater assembly diagram

Lock washer

Part #STD551110

The manufacturer no longer makes this part, and there's no substitute part
