Hardwick
Gas Range

Model # CPF9823A539A Official Hardwick gas range

Here are the diagrams and repair parts for Official Hardwick CPF9823A539A gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Broiler Tray 9G06700453
#17

Top assy. diagram

Broiler tray

Part #9G06700453

Replaced by #4396923

?
Manufacturer substitution
This part replaces 9G06700453. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Broiler Pan 9G06400453
#7

Top assy. diagram

Broiler pan

Part #9G06400453

Replaced by #4396923

?
Manufacturer substitution
This part replaces 9G06400453. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Screw 0S11002822
#21

Door (-3 models) diagram

Screw

Part #0S11002822

Replaced by #WP7101P072-60

?
Manufacturer substitution
This part replaces 0S11002822. Substitute parts can look different from the original.
This item is not returnable
$2.78
In Stock
Nut, 8-32 0N83200499
#15

Door (-3 models) diagram

Nut, 8-32

Part #0N83200499

Replaced by #WP486255

?
Manufacturer substitution
This part replaces 0N83200499. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Switch 0S03007999
#28

Control system diagram

Switch

Part #0S03007999

The manufacturer no longer makes this part, and there's no substitute part

Rim End Panel 0T01800211
#18

Top assy. diagram

Rim end panel

Part #0T01800211

Replaced by #Y0T01800211

?
Manufacturer substitution
This part replaces 0T01800211. Substitute parts can look different from the original.
$8.47
In Stock
Spacer 0T25000199
#19A

Door (-2 models) diagram

Spacer

Part #0T25000199

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 0H01600599
#16

Control system diagram

Fuse holder

Part #0H01600599

The manufacturer no longer makes this part, and there's no substitute part

Clock Knob 0K00201343
#6

Control panel (-539 model) diagram

Clock knob

Part #0K00201343

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Gasket 0G01301699
#26A

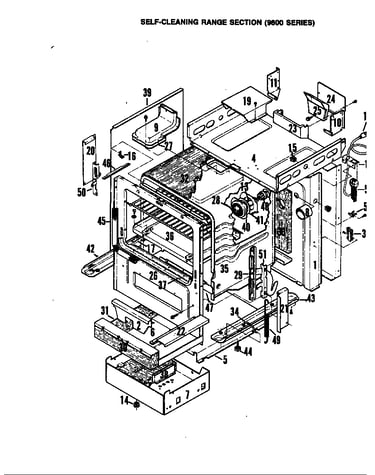

Body diagram

Oven door gasket

Part #0G01301699

The manufacturer no longer makes this part, and there's no substitute part
