Model # ZSA1202P1SS Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE ZSA1202P1SS microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

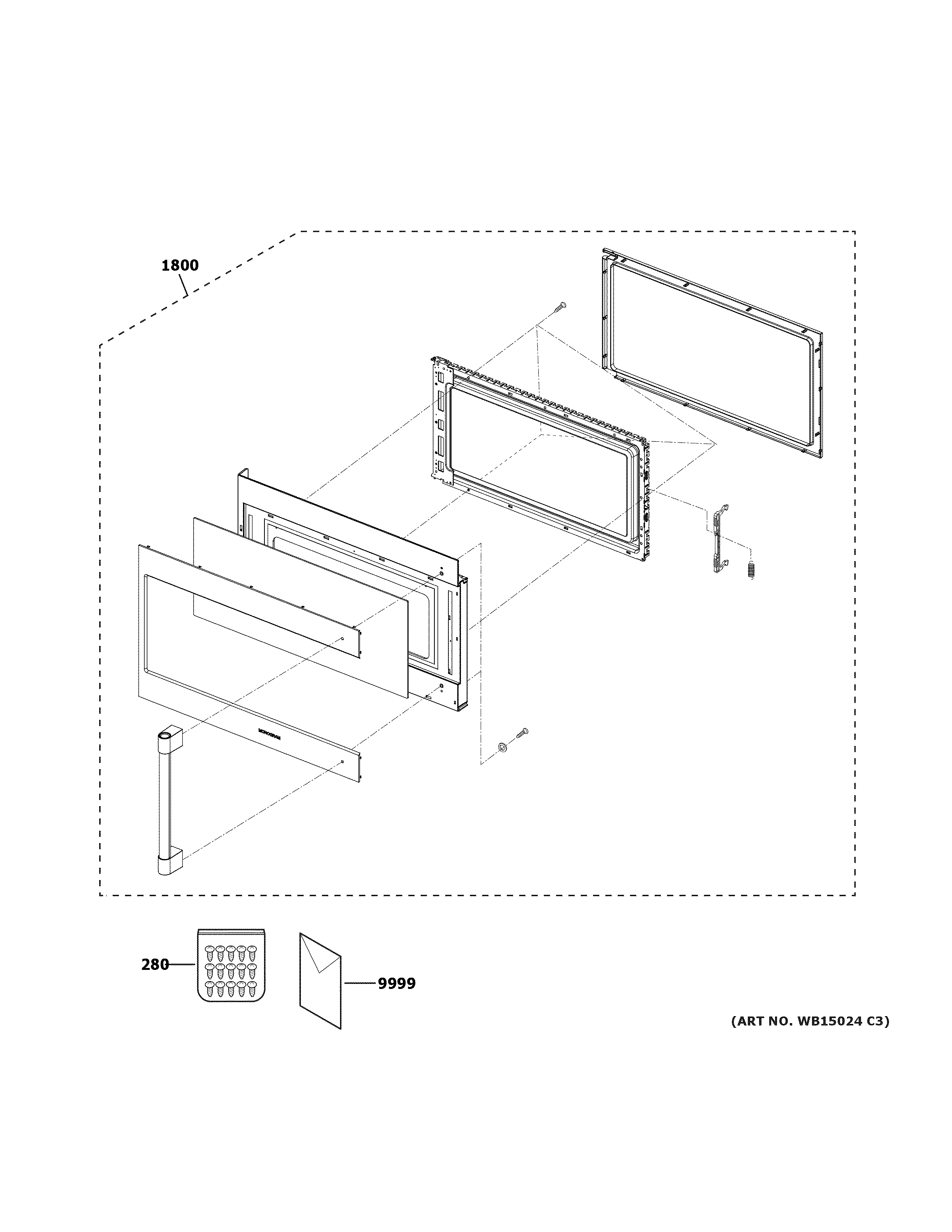

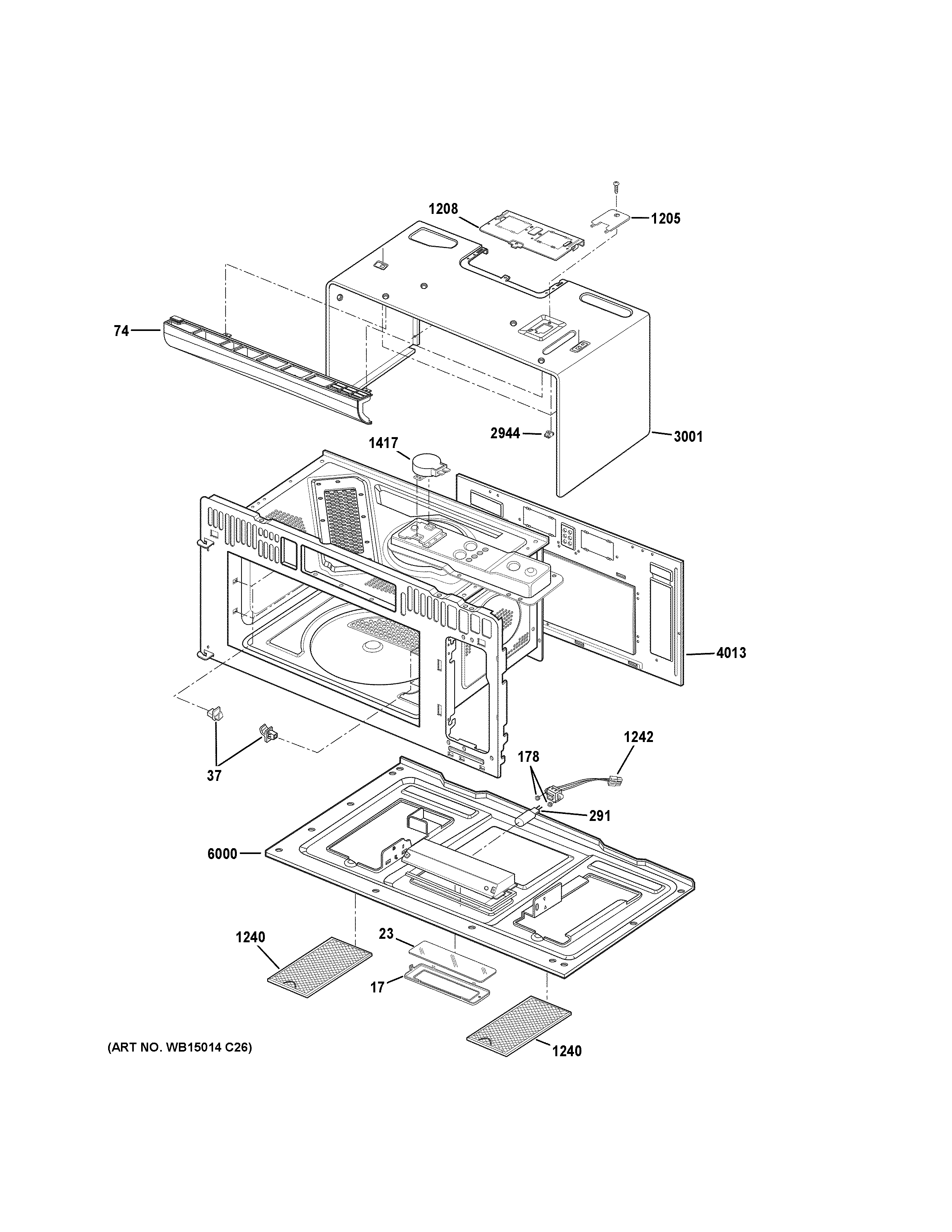

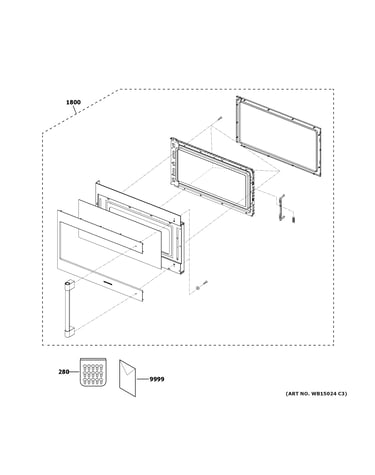

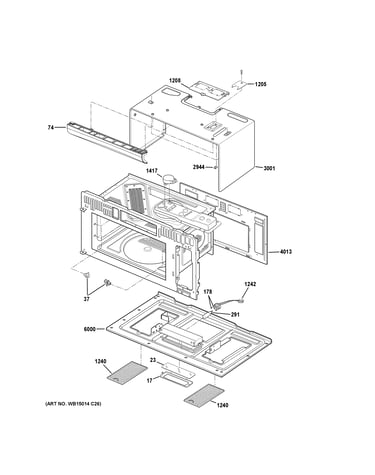

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Microwave Fuse (replaces Wb27x10388) WB27X10928
#47

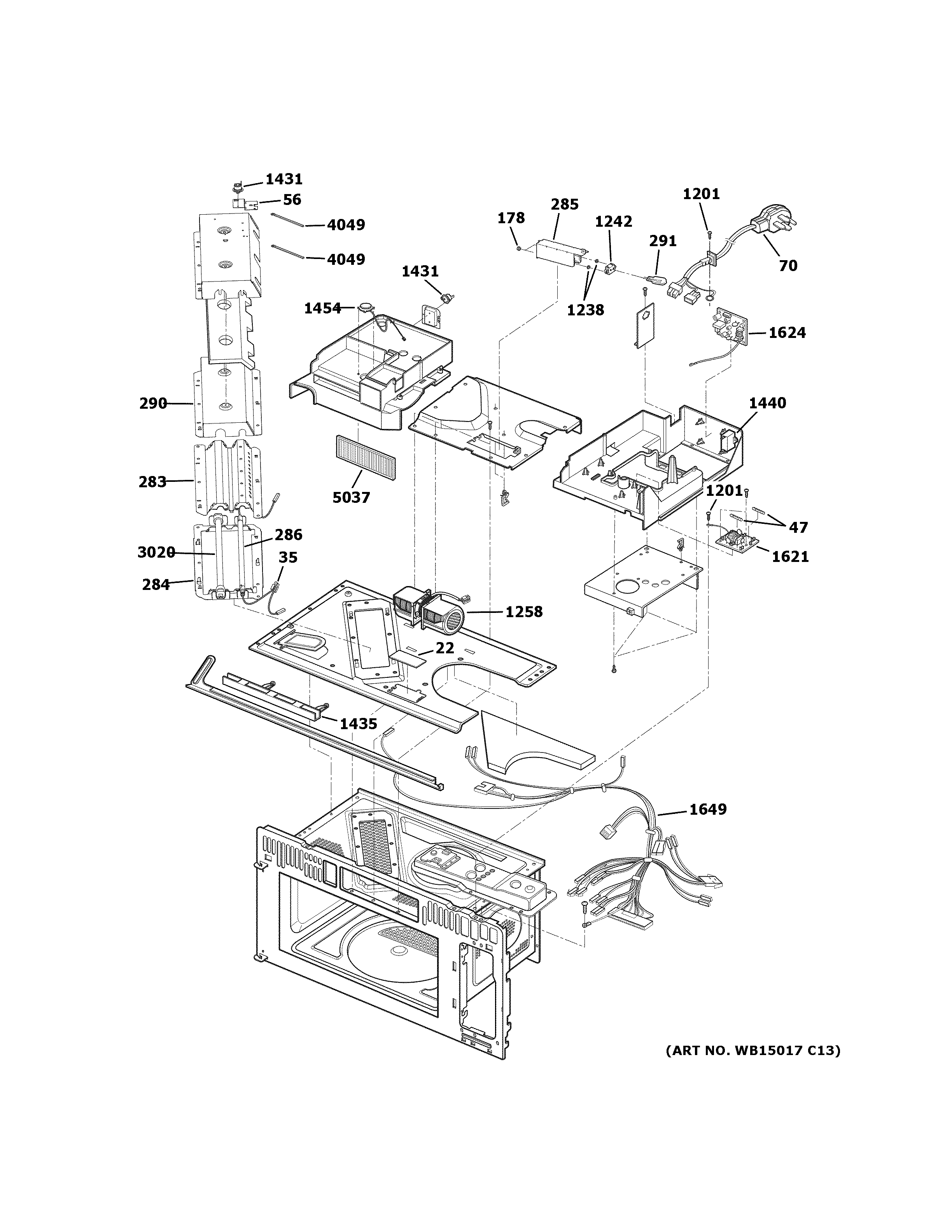

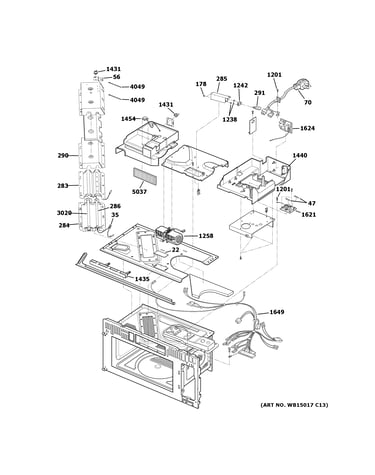

Interior parts (2) diagram

Microwave fuse (replaces wb27x10388)

Part #WB27X10928

BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Primary Interlock Switch (replaces Wb24x10029, Wb24x10113) WB24X10047
#604

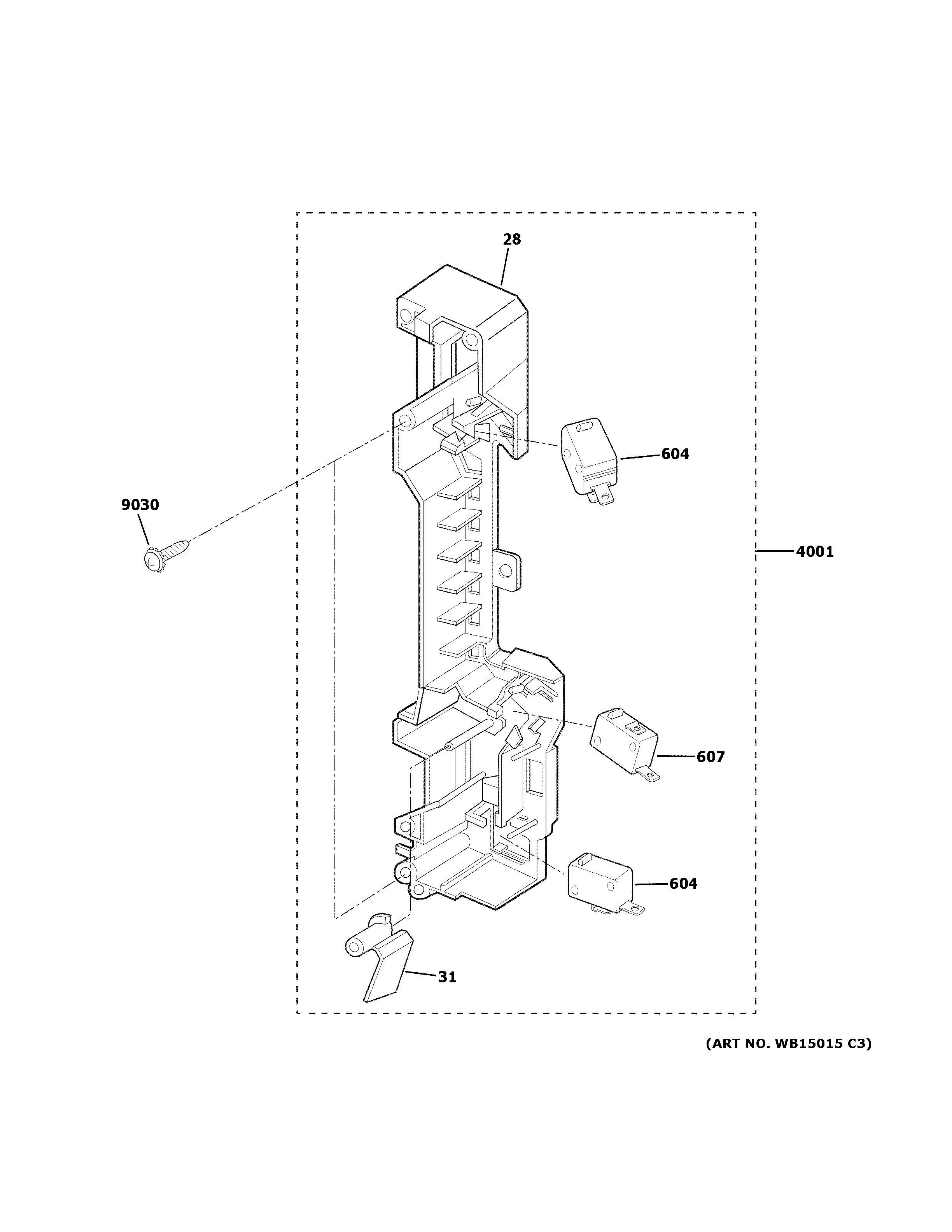

Latch board parts diagram

Microwave primary interlock switch (replaces wb24x10029, wb24x10113)

Part #WB24X10047

BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Microwave Thermostat WB20X10048
Microwave thermostat

Part #WB20X10048

BEST SELLER
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Microwave Magnetron WB27X32766
#73

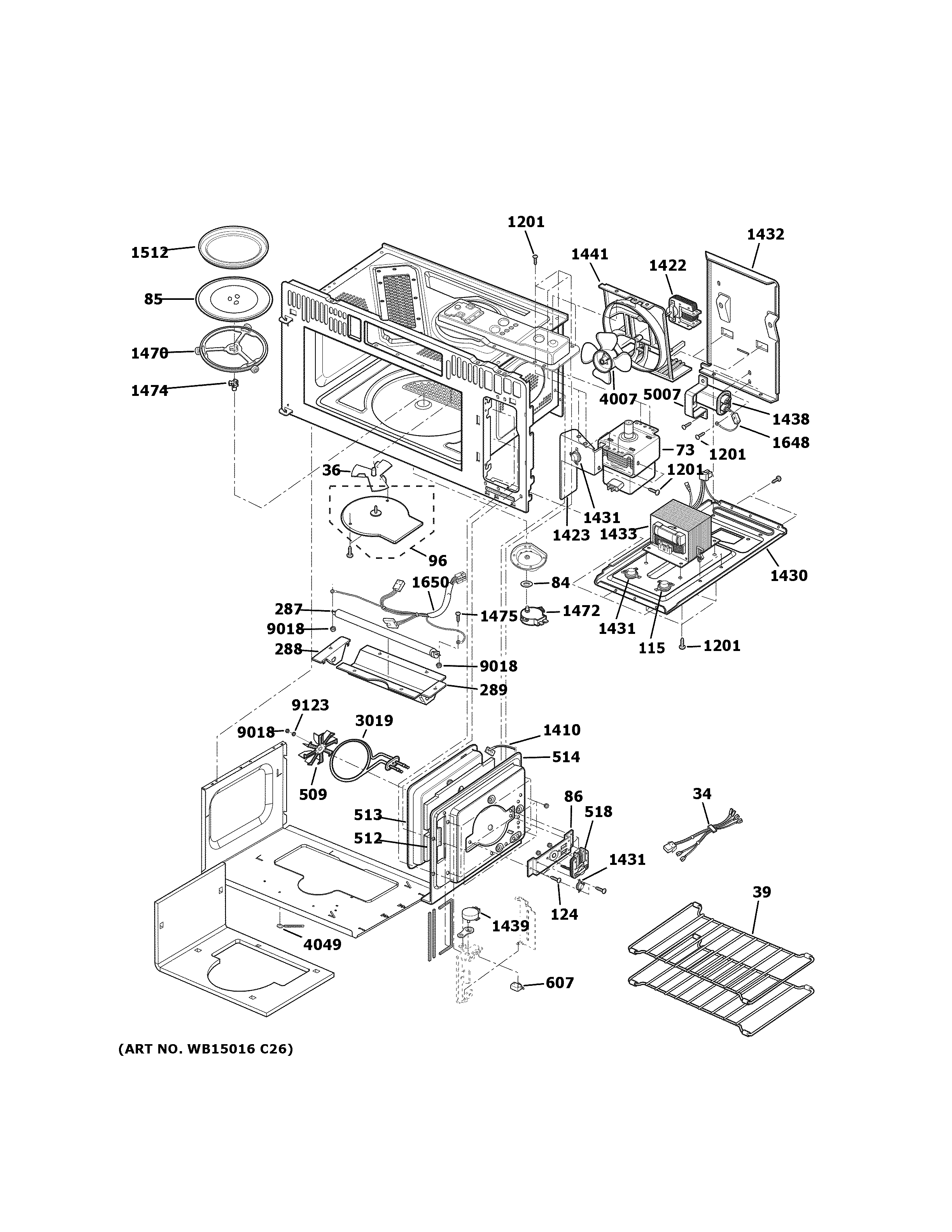

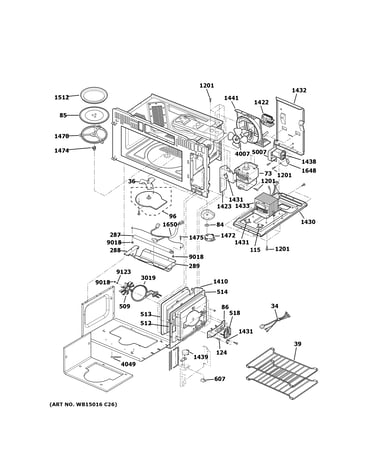

Interior parts (1) diagram

Microwave magnetron

Part #WB27X32766

Replaced by #WB27X44106

?
Manufacturer substitution
This part replaces WB27X32766. Substitute parts can look different from the original.
BEST SELLER
$99.73
In Stock
Halogen Lamp WB25X25393
Halogen lamp

Part #WB25X25393

Replaced by #WB08X10057

?
Manufacturer substitution
This part replaces WB25X25393. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
Microwave High-voltage Capacitor WB27X11031
#1438

Interior parts (1) diagram

Microwave high-voltage capacitor

Part #WB27X11031

$39.54 |
13% OFF Phone Price : $45.54
In Stock
Encoder Boar (replaces Wb27x11022) WB27X32632
#1610

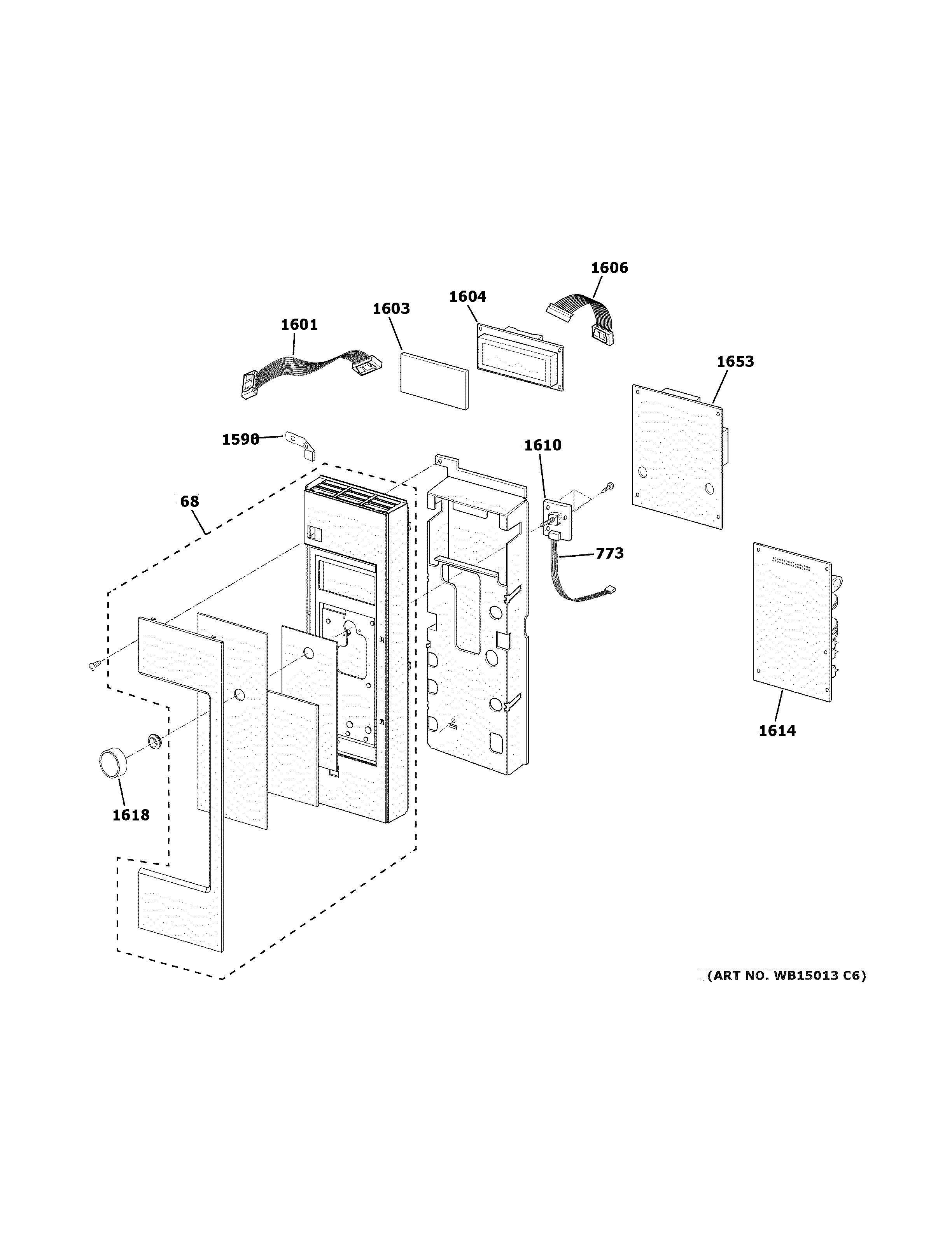

Control parts diagram

Encoder boar (replaces wb27x11022)

Part #WB27X32632

$53.29 |
10% OFF Phone Price : $59.29
In Stock
Microwave Door Latch Housing WB02X32720
#28

Latch board parts diagram

Microwave door latch housing

Part #WB02X32720

This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Microwave Mounting Plate (replaces Wb56x10204) WB56X10669
#9001

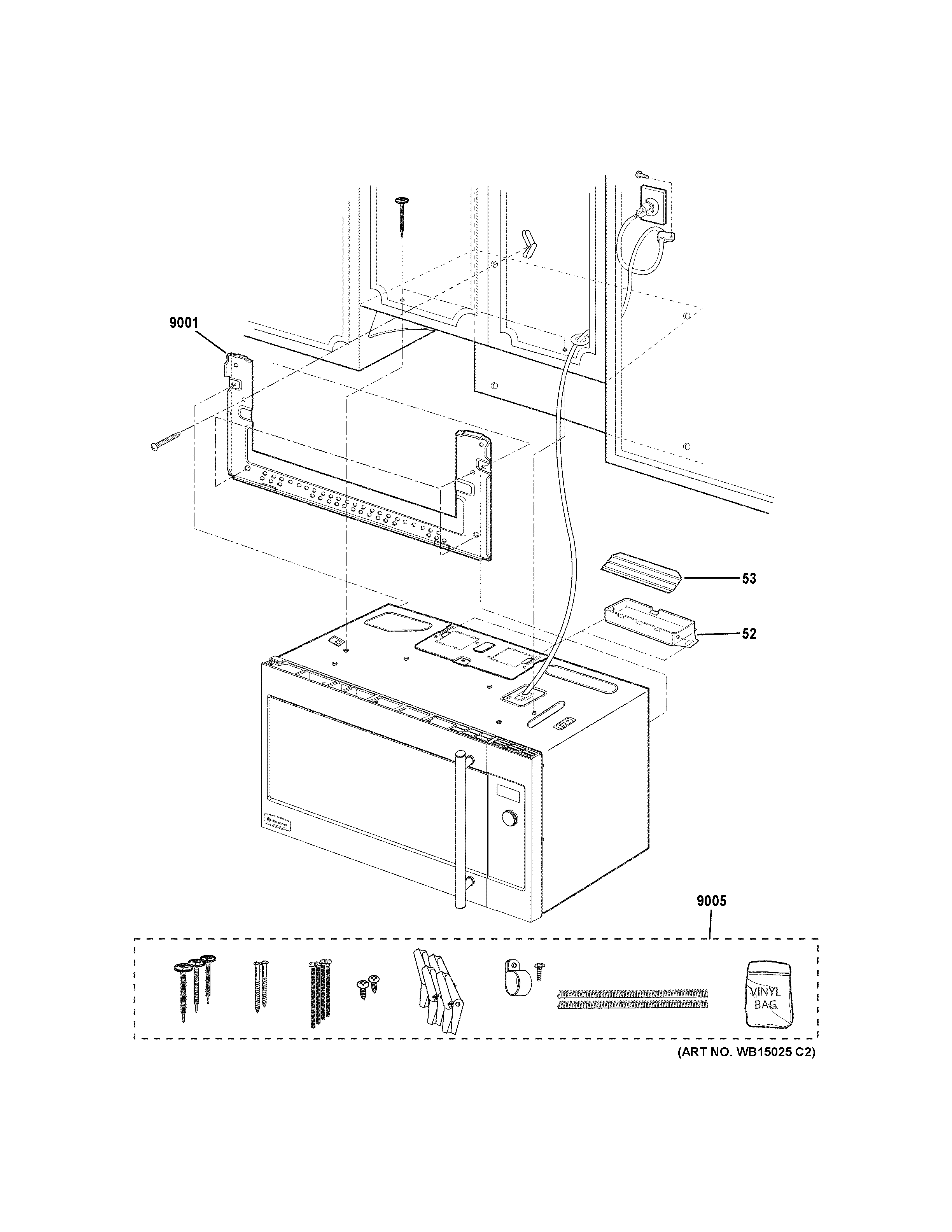

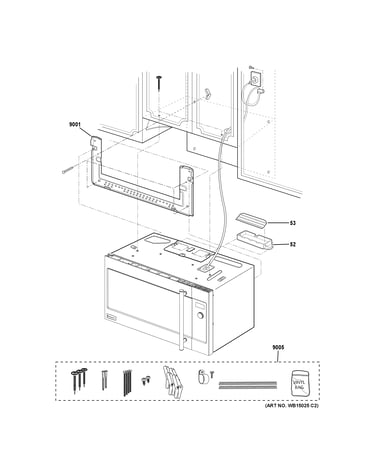

Installation parts diagram

Microwave mounting plate (replaces wb56x10204)

Part #WB56X10669

Replaced by #WB56X35363

?
Manufacturer substitution
This part replaces WB56X10669. Substitute parts can look different from the original.
This item is not returnable
$20.80 |
22% OFF Phone Price : $26.80
In Stock
Main Board WB27X35345
#1653

Control parts diagram

Main board

Part #WB27X35345

This item is not returnable
$88.98 |
6% OFF Phone Price : $94.98
In Stock
