GE
Built-In Microwave

Model # ZWL1126S3JSS Official GE microwave

Here are the diagrams and repair parts for Official GE ZWL1126S3JSS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

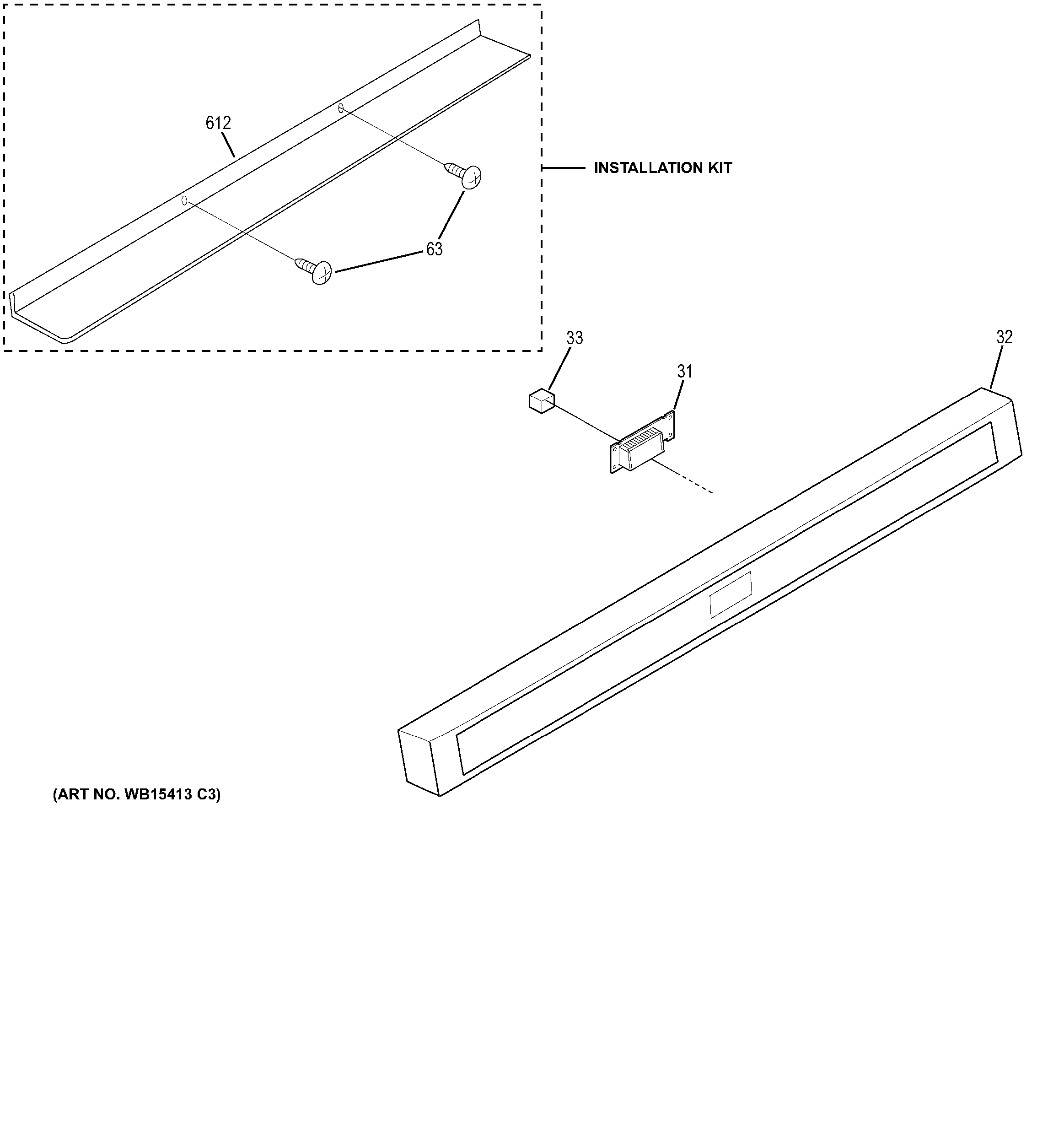

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Latch Hook WB10X25191
#432

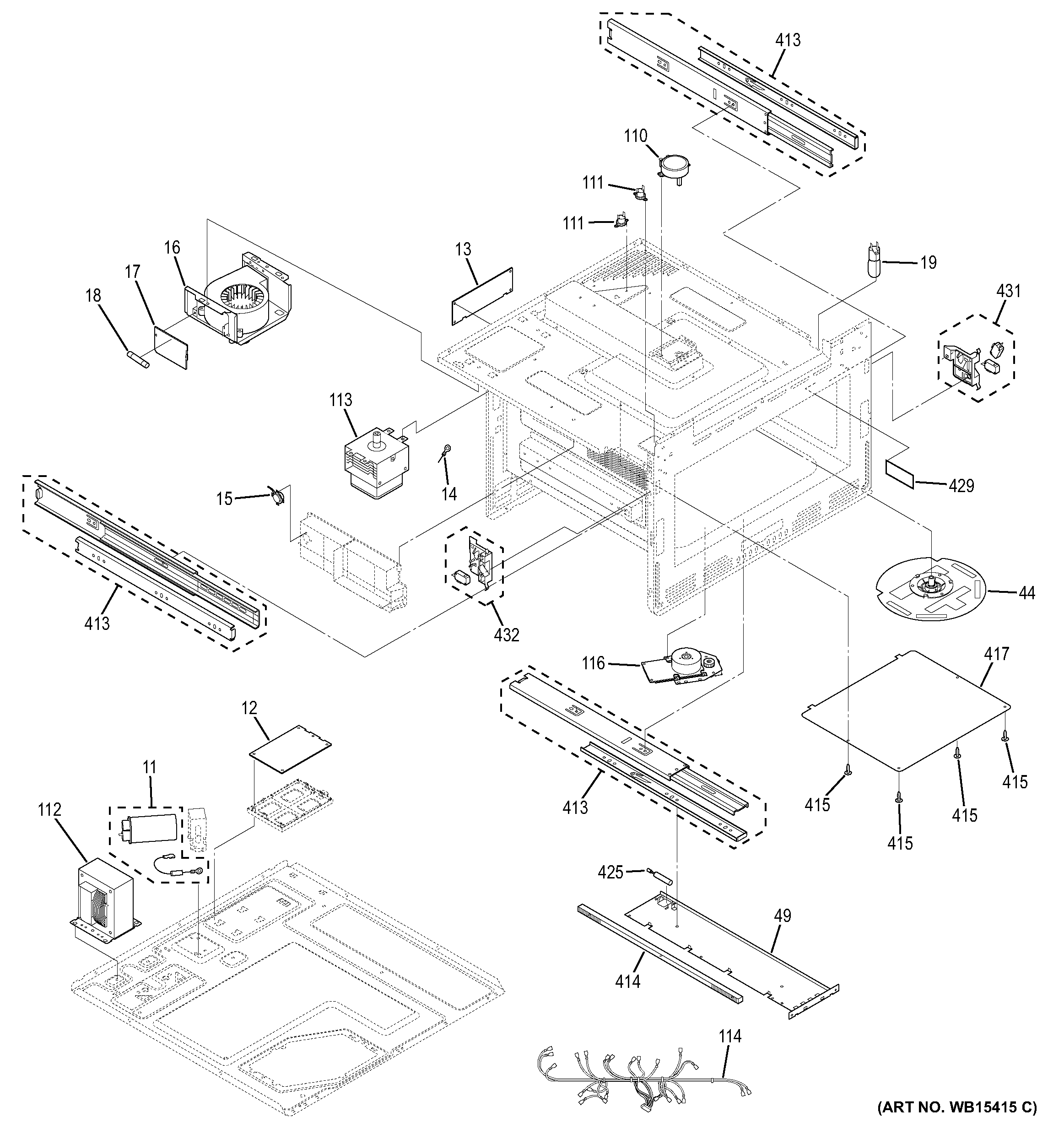

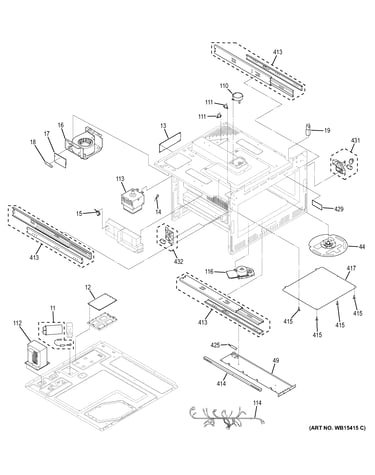

Oven cavity parts diagram

Latch hook

Part #WB10X25191

$75.13
In Stock
Microwave Magnetron WB27X24683
#113

Oven cavity parts diagram

Microwave magnetron

Part #WB27X24683

$128.86 |
9% OFF Phone Price : $140.86
In Stock
Microwave Lamp WB25X24661
#19

Oven cavity parts diagram

Microwave lamp

Part #WB25X24661

$12.29 |
14% OFF Phone Price : $14.29
Back Order
Stirrer Cover WB34X24654
#417

Oven cavity parts diagram

Stirrer cover

Part #WB34X24654

$27.07 |
18% OFF Phone Price : $33.07
Back Order
Monitor Switch WB24X24682
#18

Oven cavity parts diagram

Monitor switch

Part #WB24X24682

$22.87
In Stock
Drawer Power Supply Boar WB27X27466
#12

Oven cavity parts diagram

Drawer power supply boar

Part #WB27X27466

$194.35
In Stock
Lamp Overlay WB02X24684
#429

Oven cavity parts diagram

Lamp overlay

Part #WB02X24684

This item is not returnable
$4.35
In Stock
Door Frame Assembly WB56X25195
#51

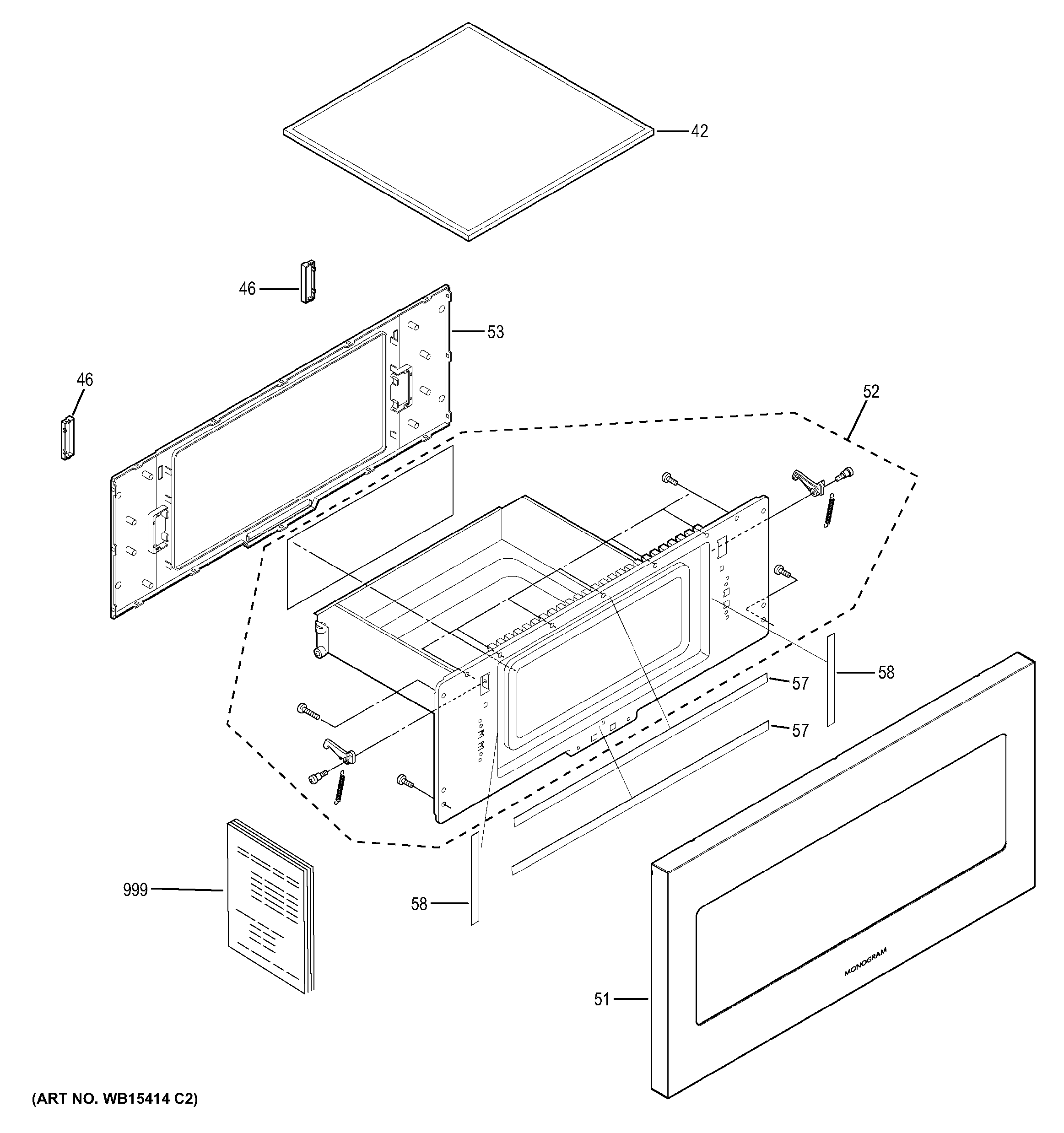

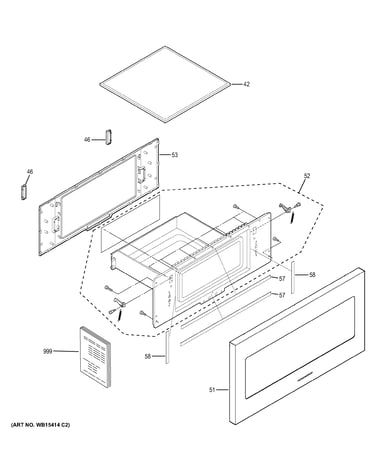

Door parts diagram

Door frame assembly

Part #WB56X25195

$507.68
In Stock
Drawer WB34X25203
#53

Door parts diagram

Drawer

Part #WB34X25203

$33.33
In Stock
Noise Filter Unit WB02X27467
#17

Oven cavity parts diagram

Noise filter unit

Part #WB02X27467

$46.67
In Stock
