Toro
Rear-Engine Riding Mower

Model # 74327 (260020000-260999999) Official Toro riding lawn mower

Here are the diagrams and repair parts for Official Toro 74327-260020000-260999999 riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

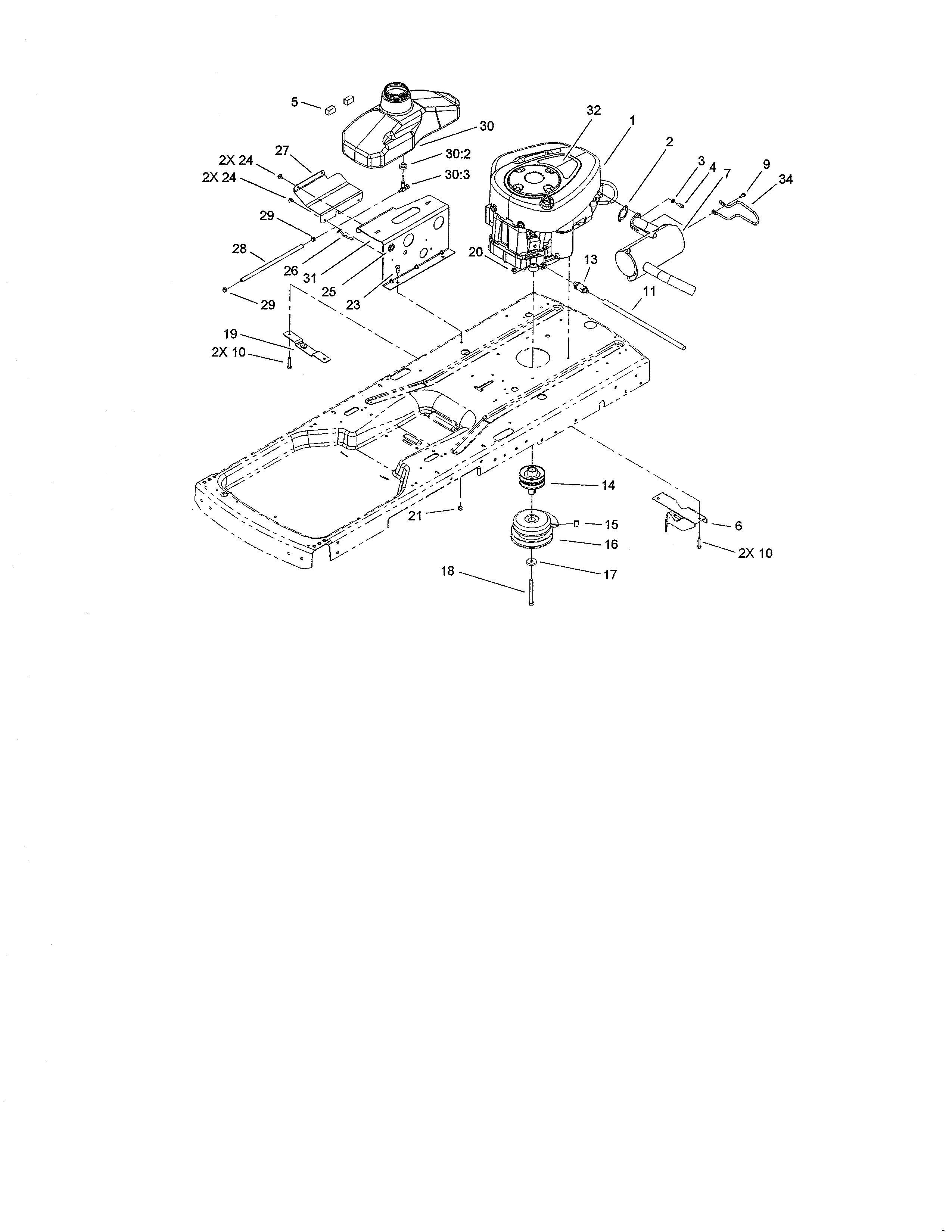

  View engine

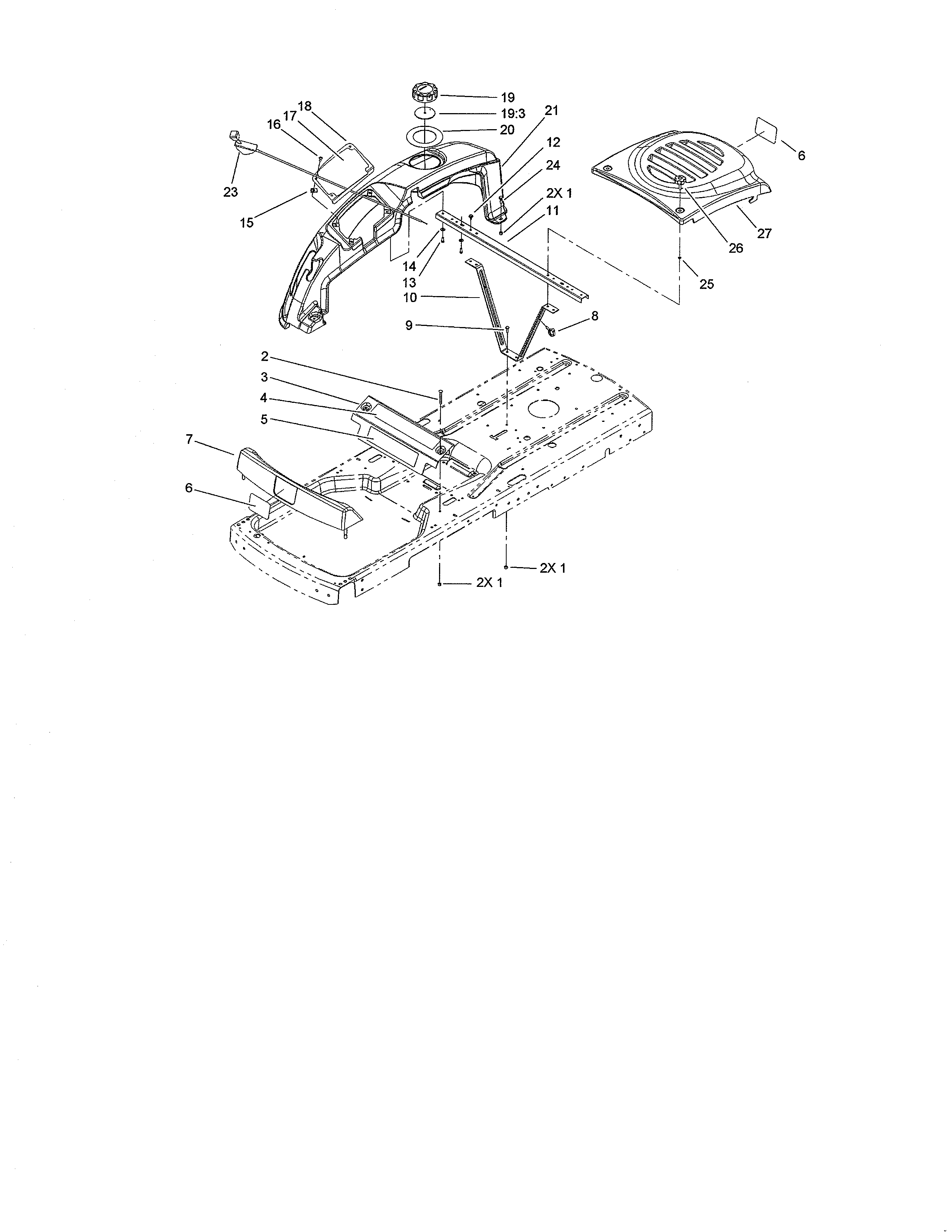

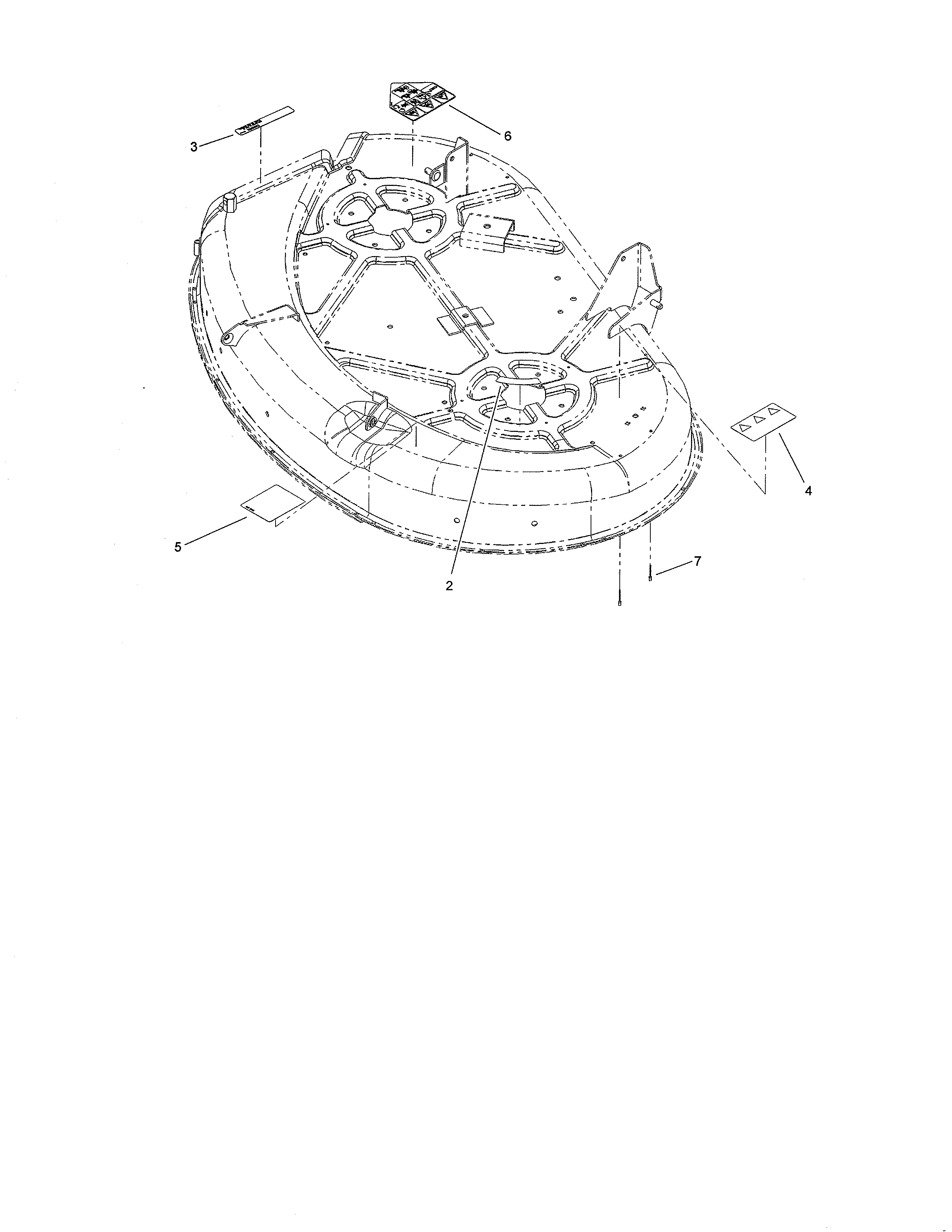

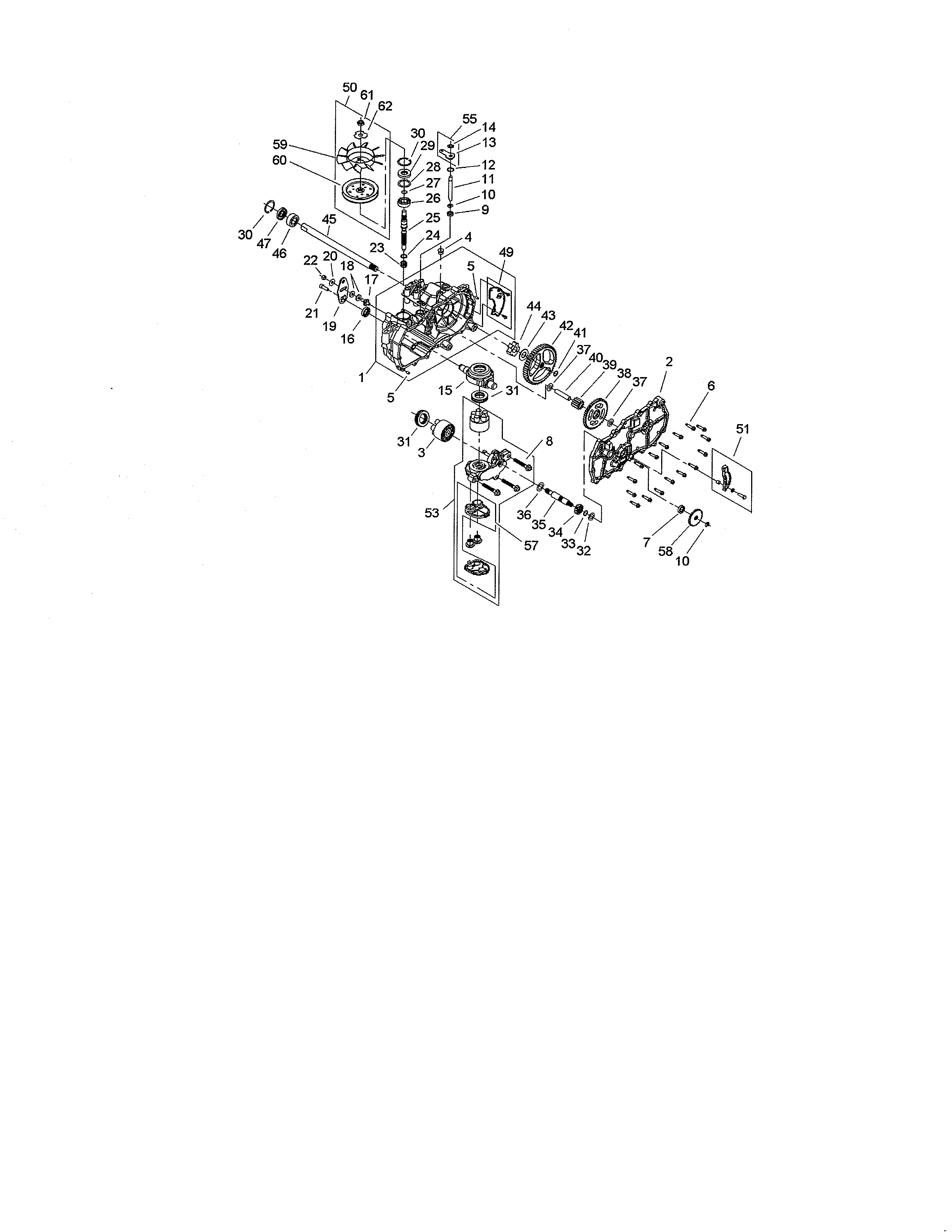

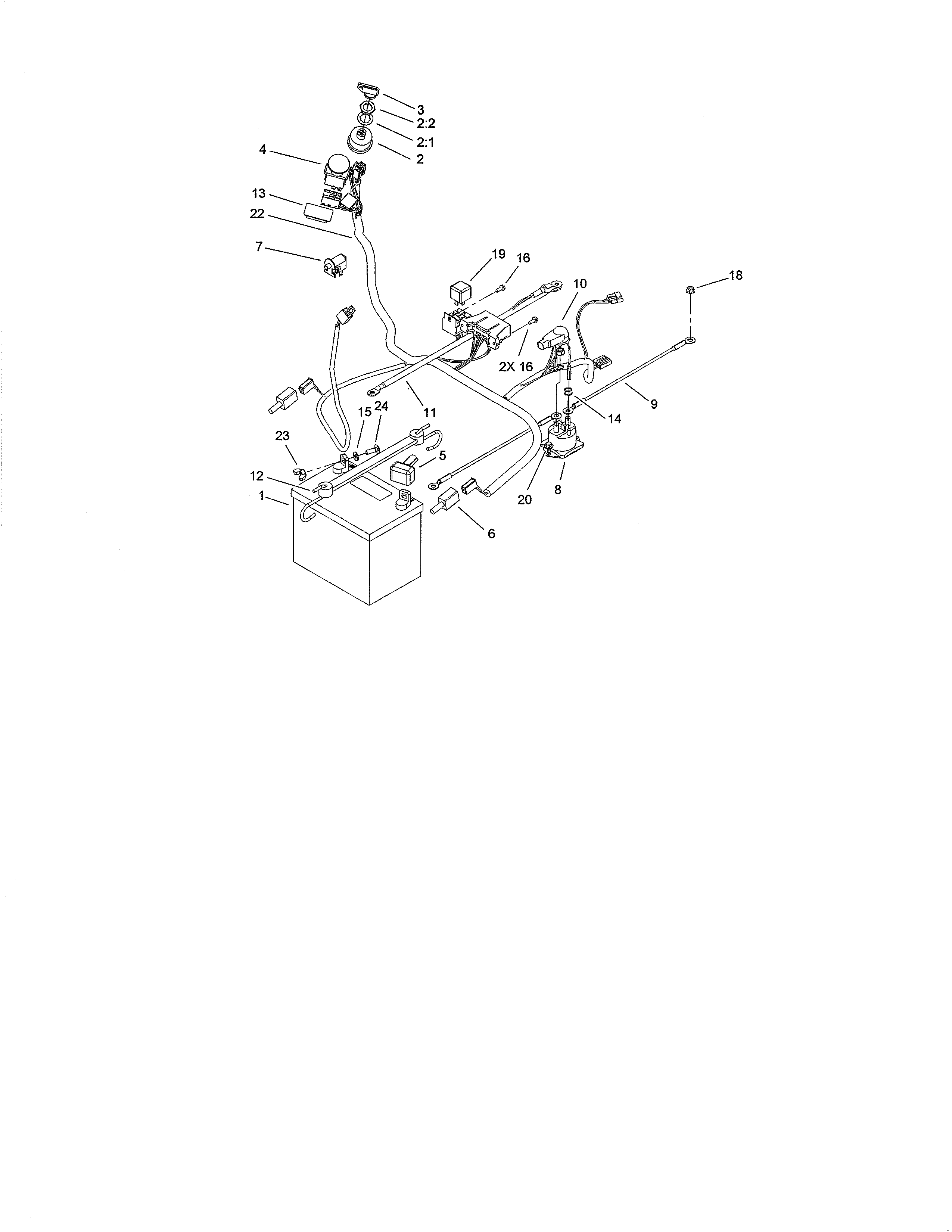

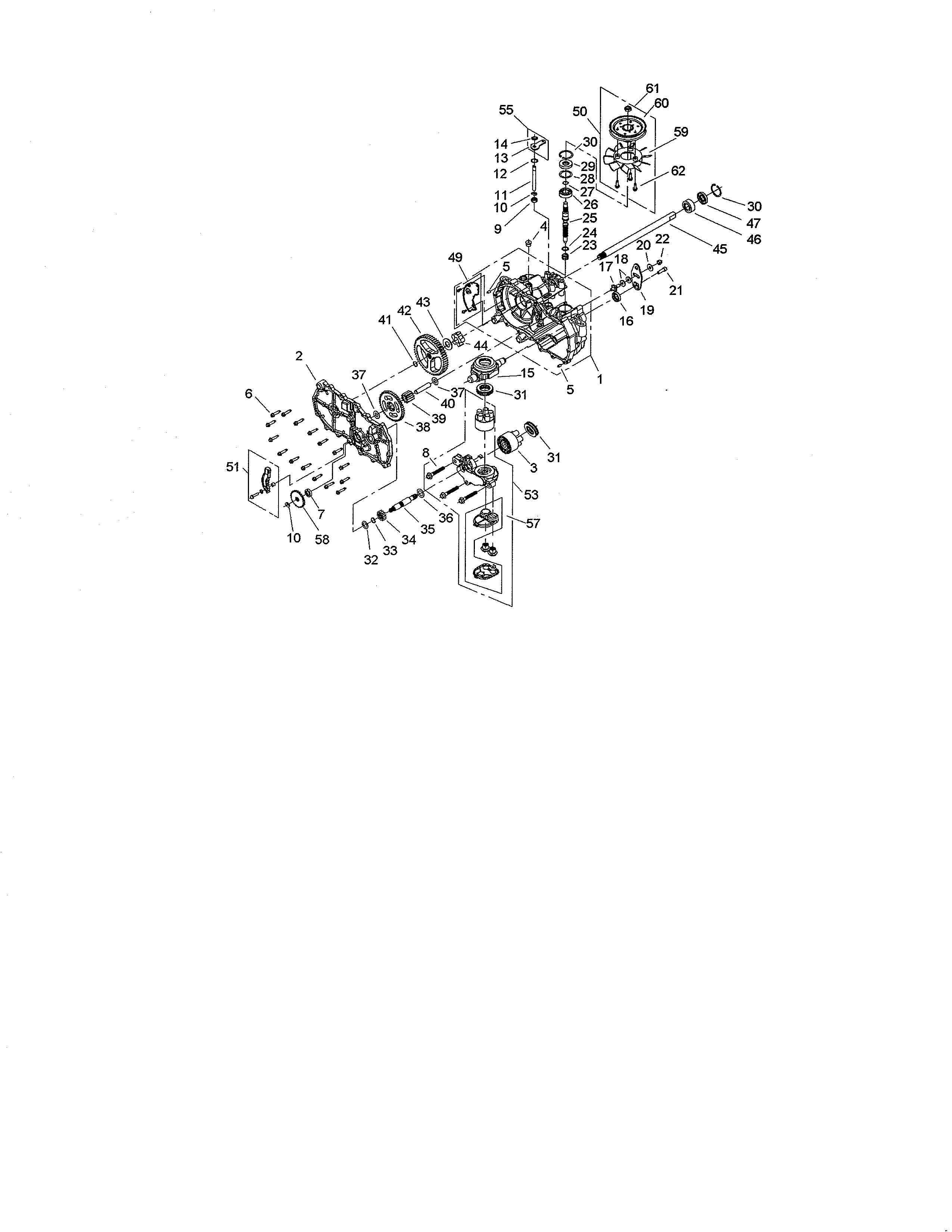

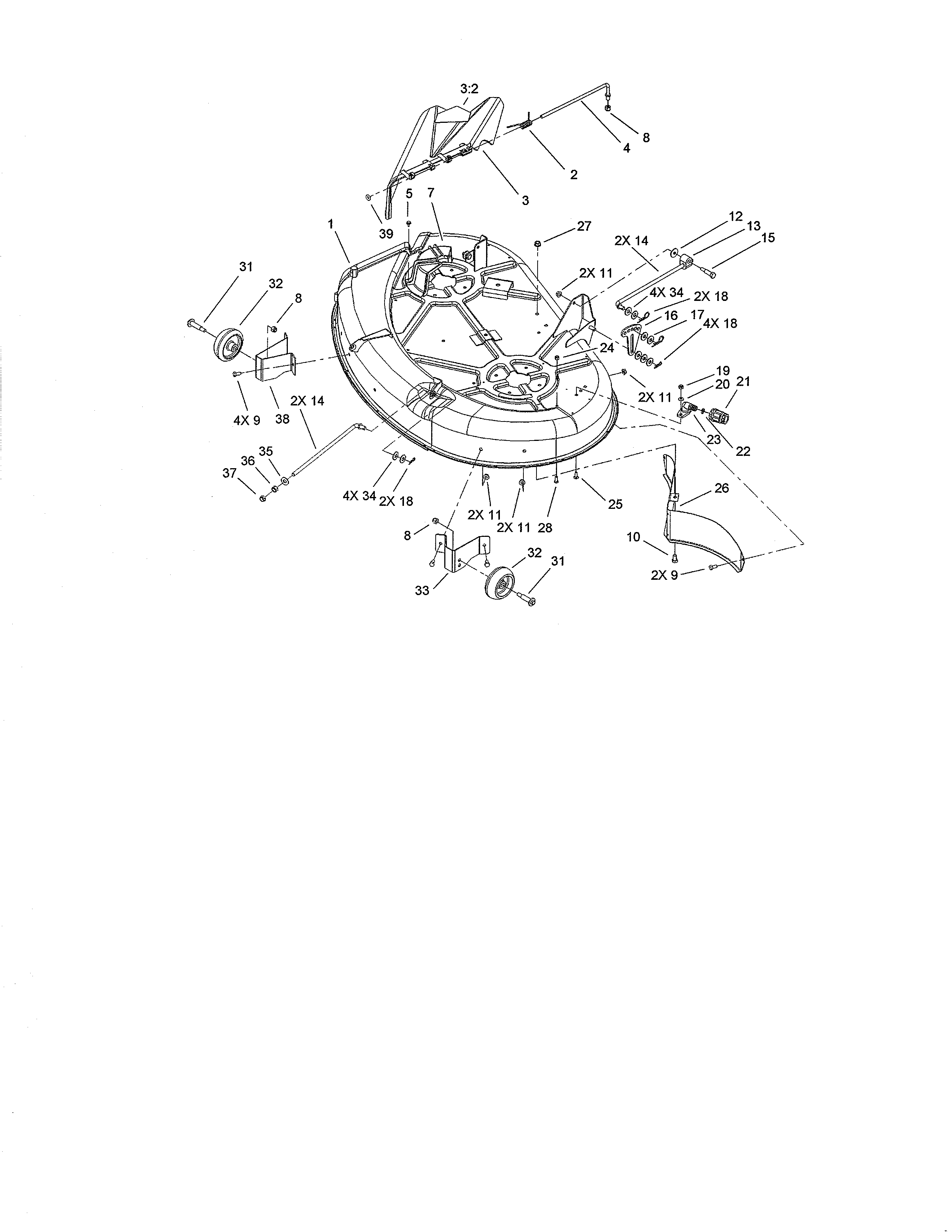

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 509 parts  |
Stop Nut 3296-29
Stop nut

Part #3296-29

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Wheel Hub 108-9533
#32

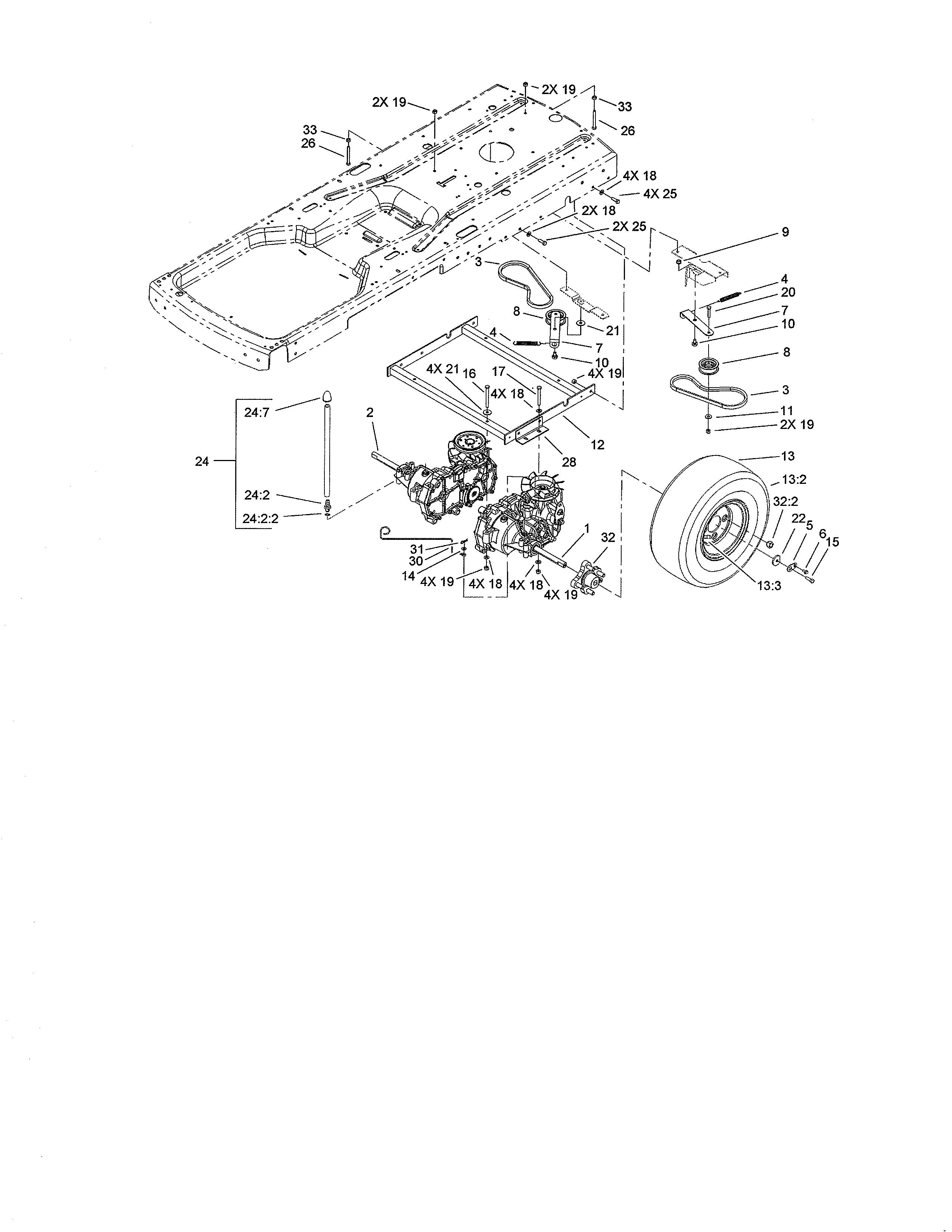

Hydro & drive belt assembly diagram

Lawn tractor wheel hub

Part #108-9533

$202.96
In Stock
Cap Screw 323-18
#26

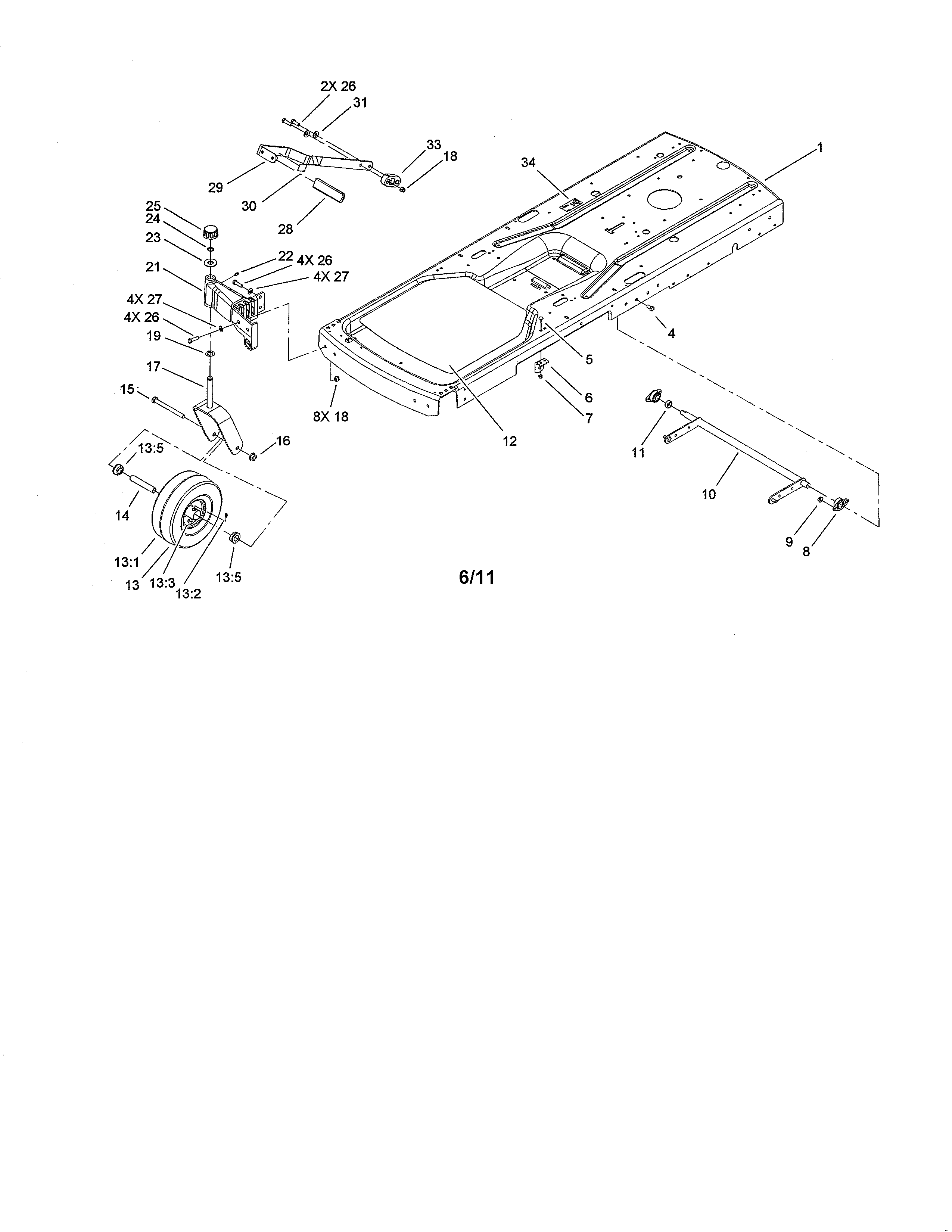

Frame assembly diagram

Cap screw

Part #323-18

This item is not returnable
$2.29
In Stock
Extension Spring 106-2177
#25

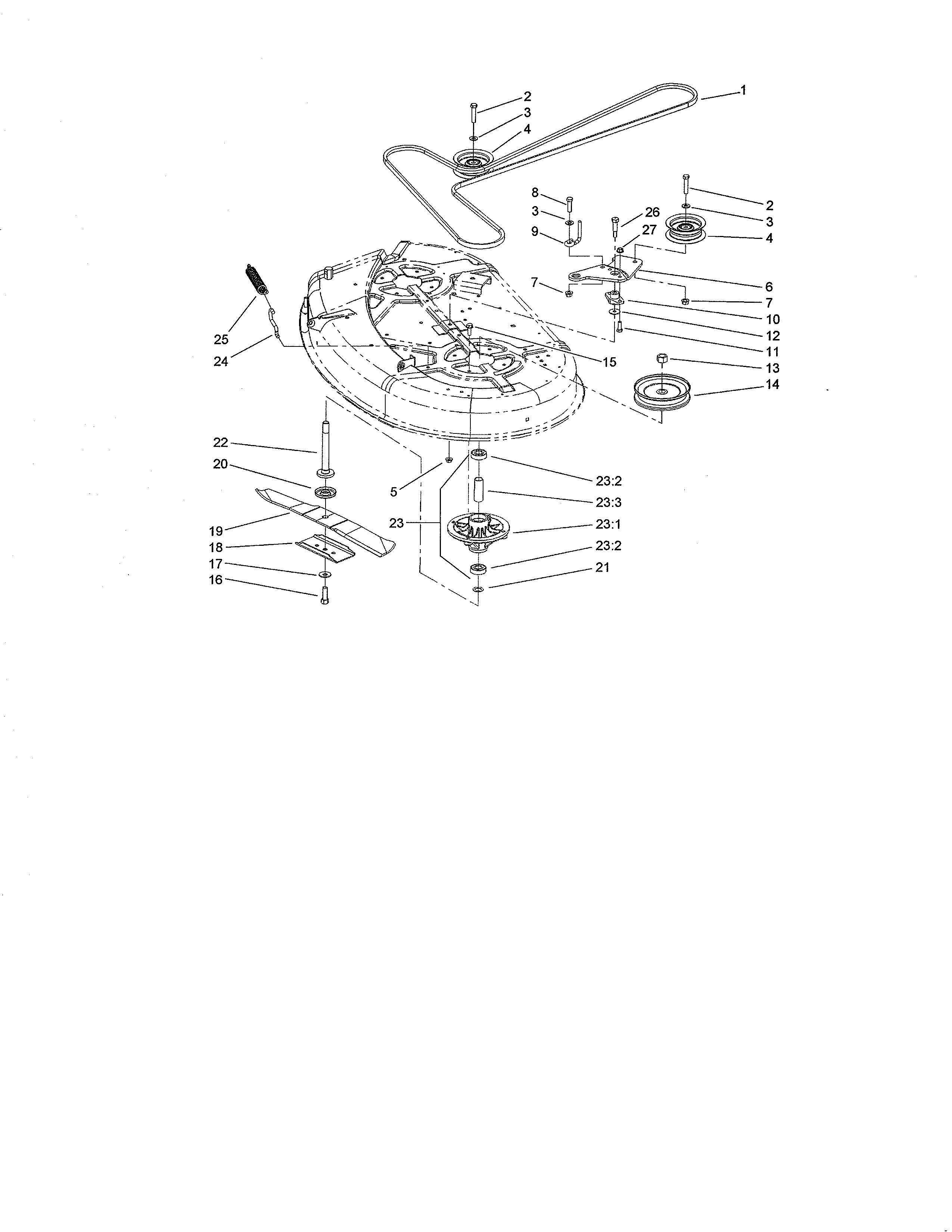

Spindle & belt drive assembly diagram

Extension spring

Part #106-2177

$22.36
In Stock
Lawn Tractor Transaxle Jackshaft Gear 104-5318
Lawn tractor transaxle jackshaft gear

Part #104-5318

$116.12
In Stock
Knob 106-2240
#11

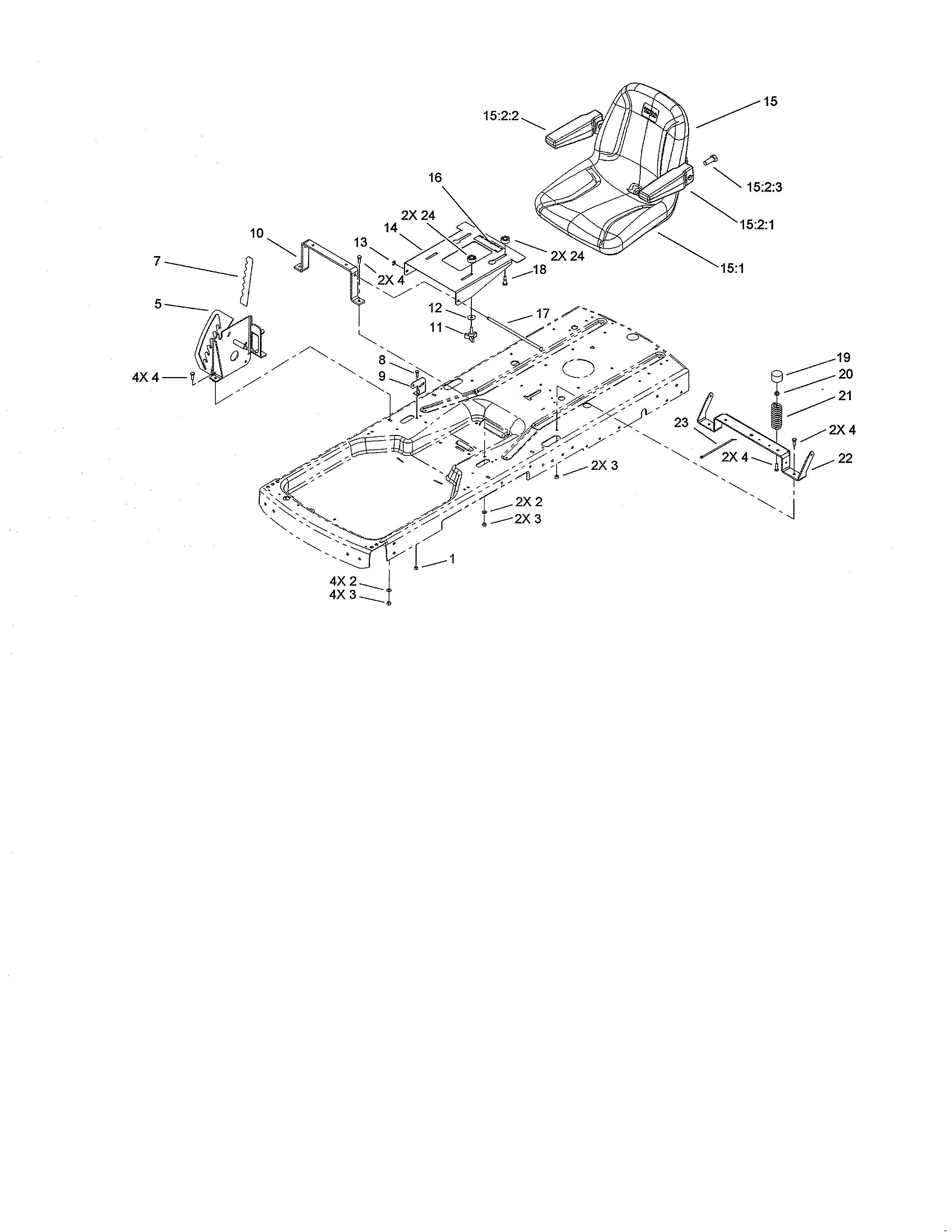

Seat assembly diagram

Knob

Part #106-2240

$26.54
In Stock
Handle / Grip Assembly (2) 110-6508
#30

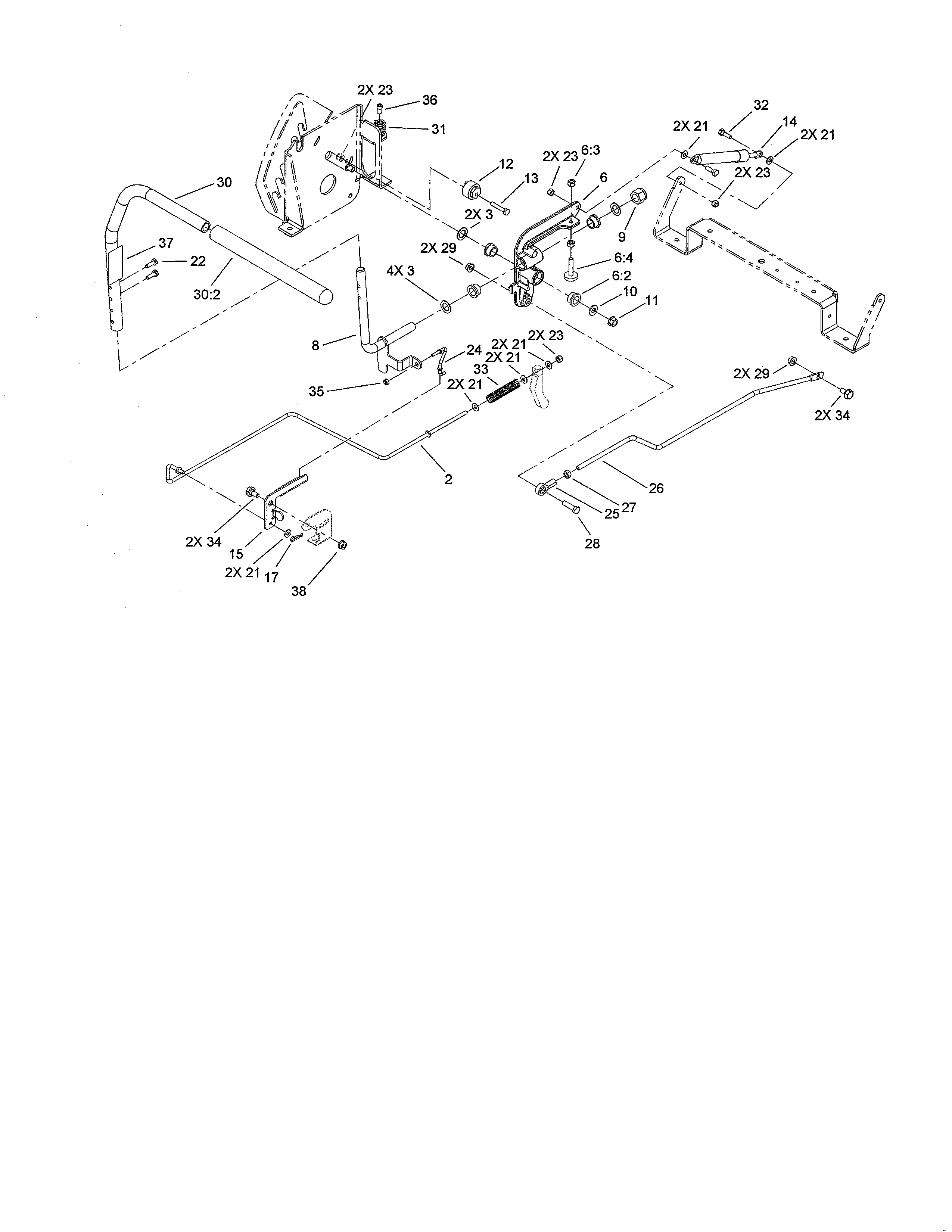

Control assembly diagram

Handle / grip assembly (2)

Part #110-6508

$158.98
In Stock
Cap Vent A 107-1701
#24:7

Hydro & drive belt assembly diagram

Cap vent a

Part #107-1701

$28.71
In Stock
Lawn Tractor Brake Friction Wedge 105-1873
Lawn tractor brake friction wedge

Part #105-1873

$16.51
In Stock
Lawn-boy Nut 3219-2
#27

Control assembly diagram

Lawn-boy nut

Part #3219-2

This item is not returnable
$2.16
In Stock
