Model # D1EH042A46 Official York air conditioner

Here are the diagrams and repair parts for Official York D1EH042A46 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

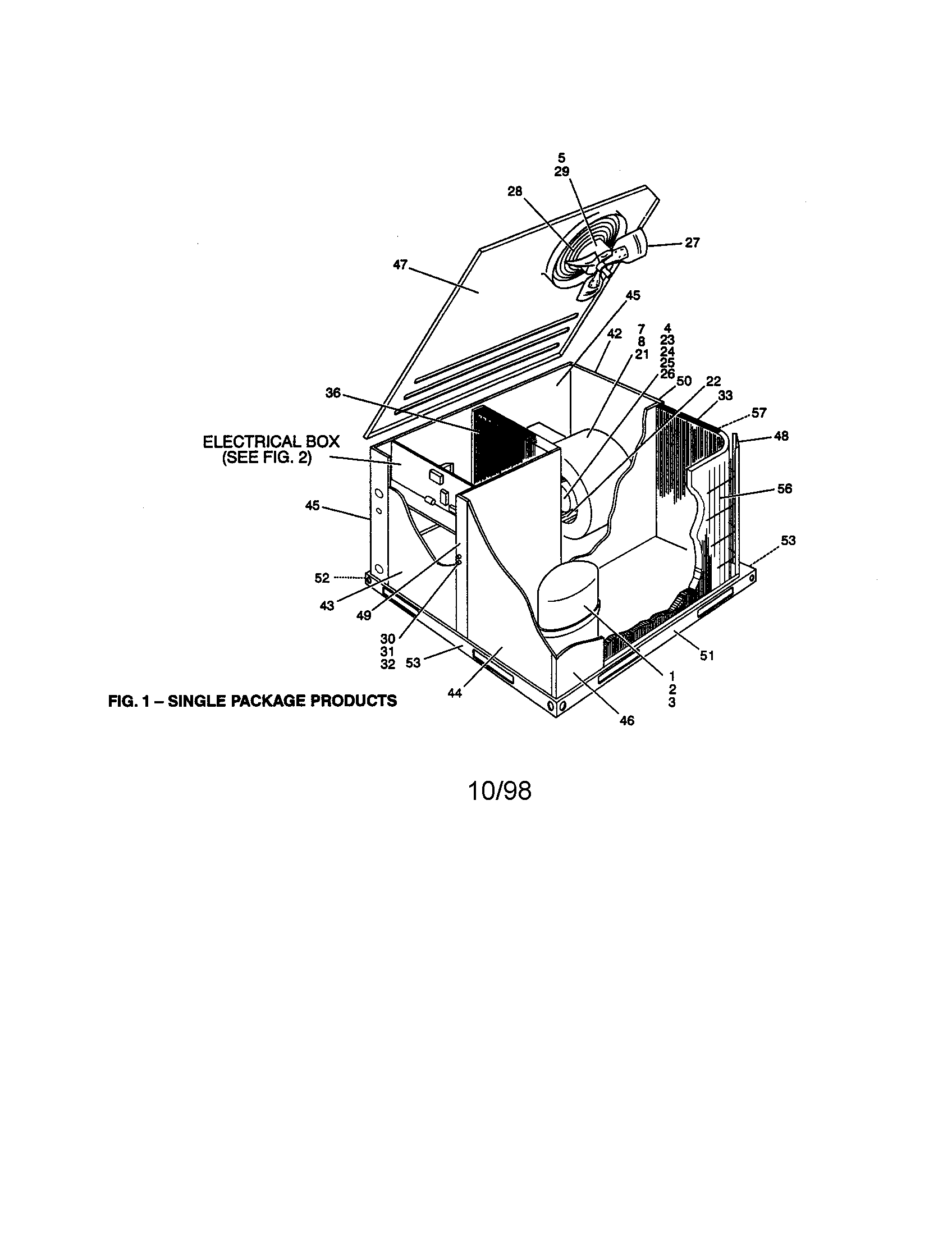

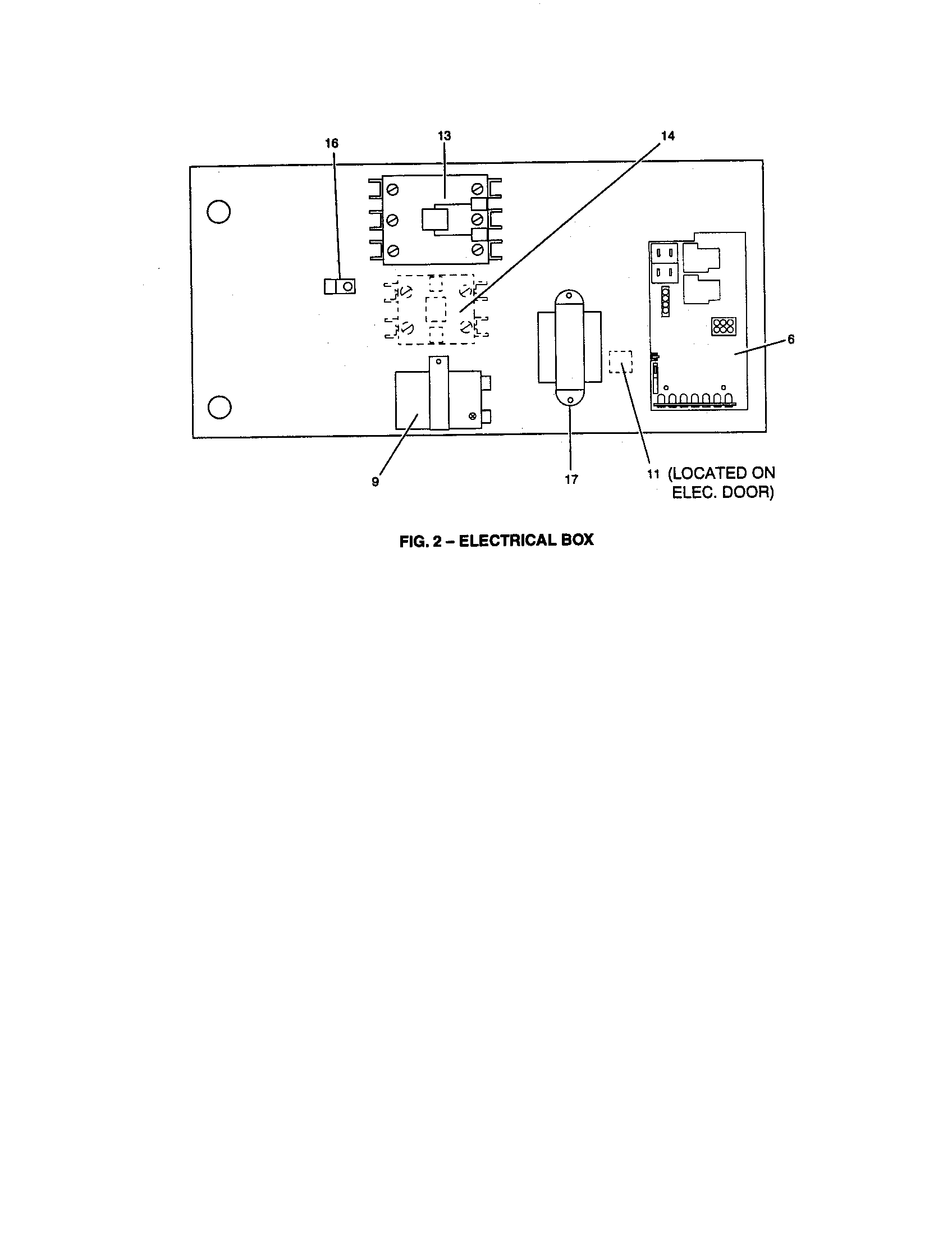

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Central Air Conditioner Electronic Control Board 031-01264-002

#6

All parts diagram

Central air conditioner electronic control board

Part #031-01264-002

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel 026-32088-003

#22

All parts diagram

Blower wheel

Part #026-32088-003

The manufacturer no longer makes this part, and there's no substitute part

Panel Access (blower) 373-18640-001

#42

All parts diagram

Panel access (blower)

Part #373-18640-001

The manufacturer no longer makes this part, and there's no substitute part

Header, Condenser (incl Distr Body) 373-15133-050

#34

All parts diagram

Header, condenser (incl distr body)

Part #373-15133-050

The manufacturer no longer makes this part, and there's no substitute part

Accessories--electrical: Low Ambient Kit (see Note 3) 2LA04700824

#NI

All parts diagram

Accessories--electrical: low ambient kit (see note 3)

Part #2LA04700824

The manufacturer no longer makes this part, and there's no substitute part

Isolator 028-07772-000

#2

All parts diagram

Isolator

Part #028-07772-000

The manufacturer no longer makes this part, and there's no substitute part

Steel Sleeve 028-09412-003

#26

All parts diagram

Steel sleeve

Part #028-09412-003

The manufacturer no longer makes this part, and there's no substitute part

Rail, Base (front) 073-19414-000

#52

All parts diagram

Rail, base (front)

Part #073-19414-000

The manufacturer no longer makes this part, and there's no substitute part

Accessories--electrical: Fresh Air Damper 2FA08700124

#NI

All parts diagram

Accessories--electrical: fresh air damper

Part #2FA08700124

The manufacturer no longer makes this part, and there's no substitute part

Rail, Base (sides (2-req'd) 073-19415-000

#53

All parts diagram

Rail, base (sides (2-req'd)

Part #073-19415-000

The manufacturer no longer makes this part, and there's no substitute part
