Jenn-Air
Gas Cooktop

Model # JGC7636BS0 Official Jenn-Air gas cooktop

Here are the diagrams and repair parts for Official Jenn-Air JGC7636BS0 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Spark Module 8190929
#5

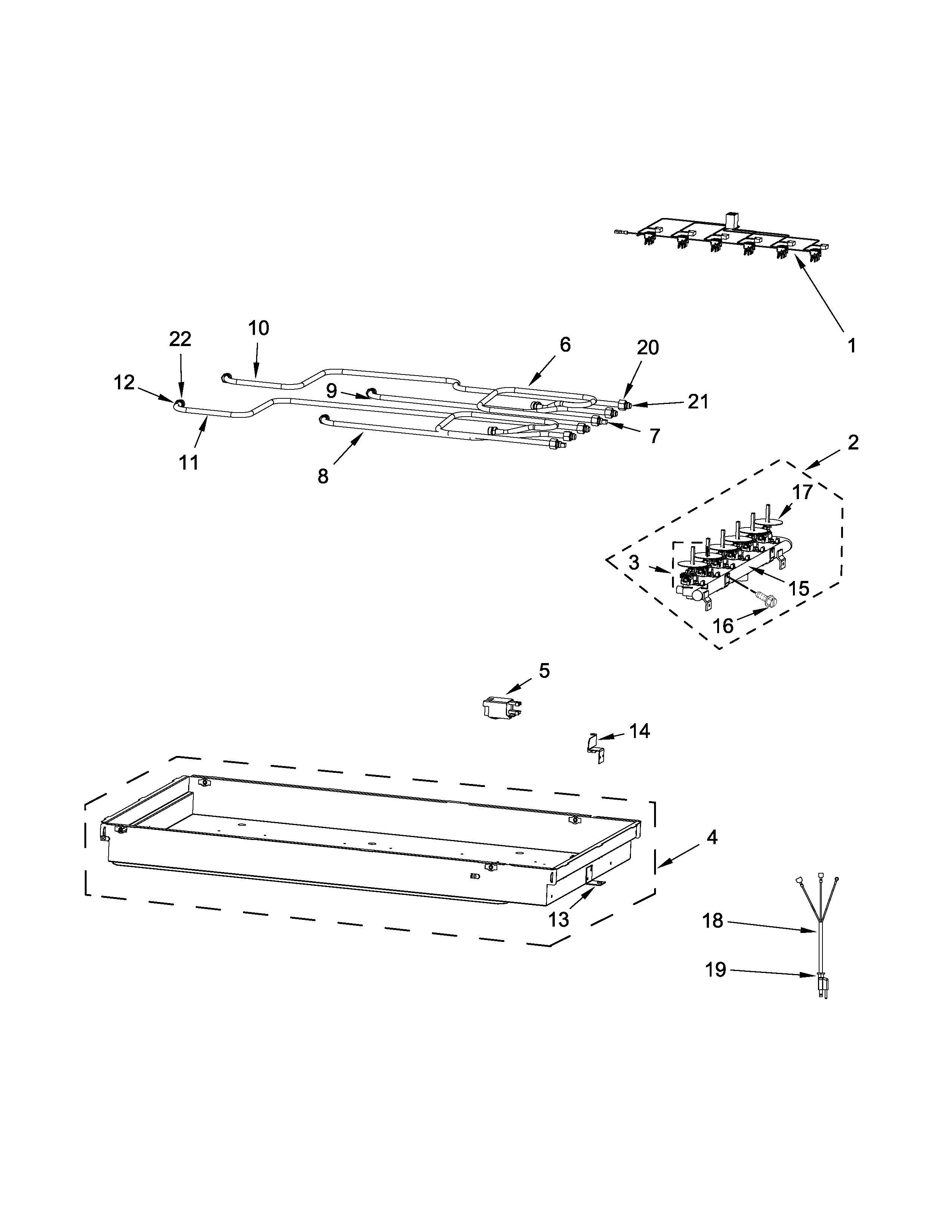

Burner box, gas valves and switch parts diagram

Spark module

Part #8190929

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Lp Conversion Kit W10590568
#NI

Burner box, gas valves and switch parts diagram

Cooktop lp conversion kit

Part #W10590568

$92.60 |
10% OFF Was : $102.89
In Stock
Burner Head W10617818
#5

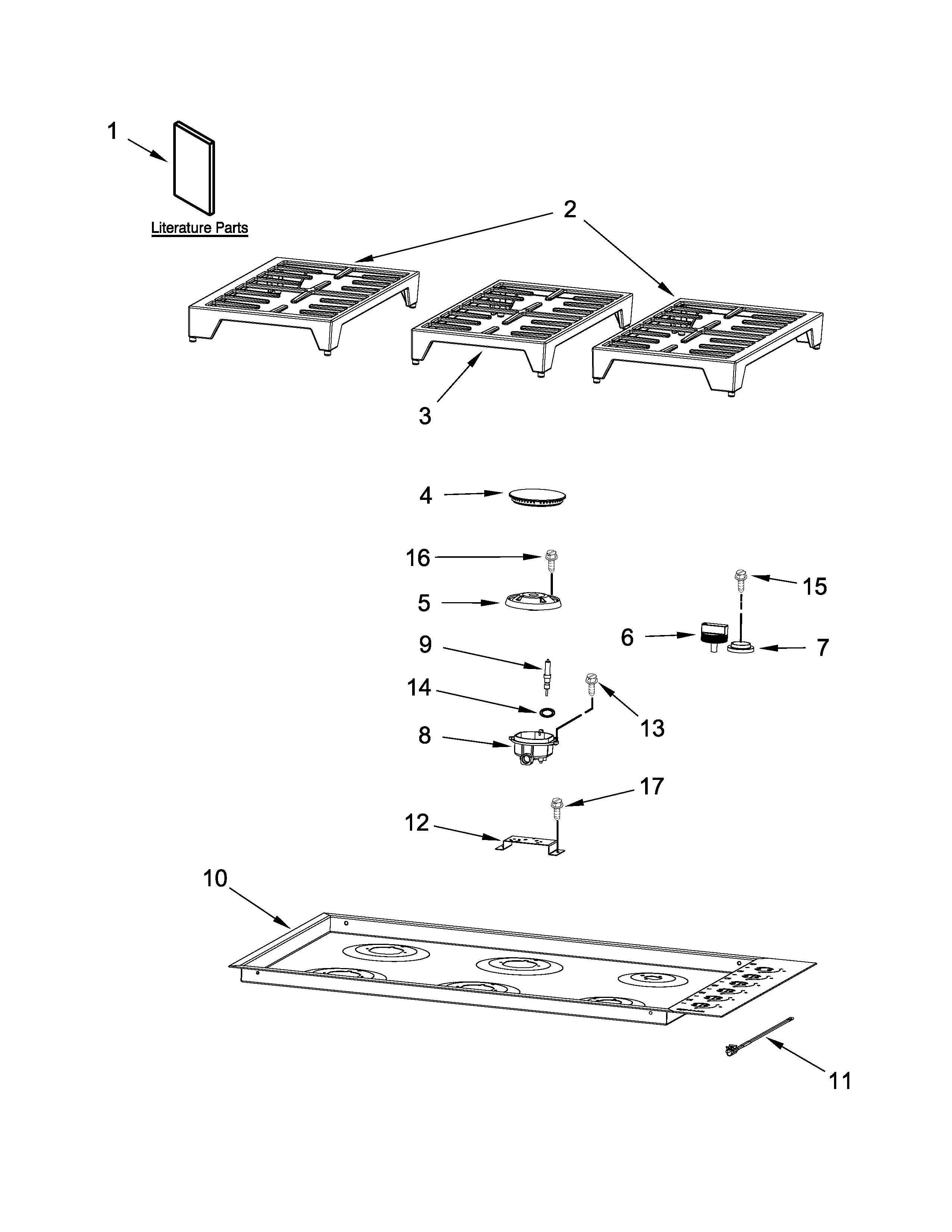

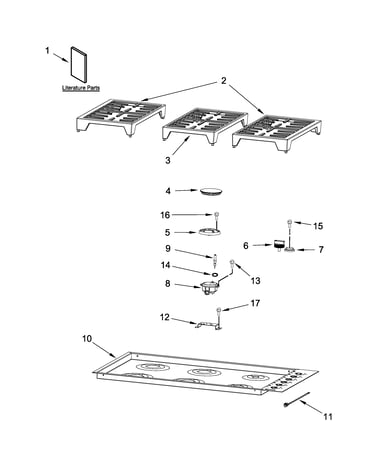

Cooktop, burner and grate parts diagram

Burner head

Part #W10617818

Replaced by #W11197492

?
Manufacturer substitution
This part replaces W10617818. Substitute parts can look different from the original.
$54.93
In Stock
Bushing W10618504
#19

Burner box, gas valves and switch parts diagram

Bushing

Part #W10618504

$18.31
In Stock
Surface Igniter W10617809
#9A

Cooktop, burner and grate parts diagram

Surface igniter

Part #W10617809

$57.62
In Stock
Screw W10626017
#16A

Cooktop, burner and grate parts diagram

Screw

Part #W10626017

$9.55
In Stock
Cooktop Burner Cap W10617817
#4B

Cooktop, burner and grate parts diagram

Cooktop burner cap

Part #W10617817

$133.78
In Stock
Mounting Bracket 8190978
#13

Burner box, gas valves and switch parts diagram

Mounting bracket

Part #8190978

$32.87
In Stock
Screw W10625905
#NI

Burner box, gas valves and switch parts diagram

Screw

Part #W10625905

$13.11
In Stock
Burner Tube W10617807
#11

Burner box, gas valves and switch parts diagram

Burner tube

Part #W10617807

$46.00
In Stock
