Model # FV4000XM1 Official Whirlpool upright vacuum

Here are the diagrams and repair parts for Official Whirlpool FV4000XM1 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Hose 744788
#7

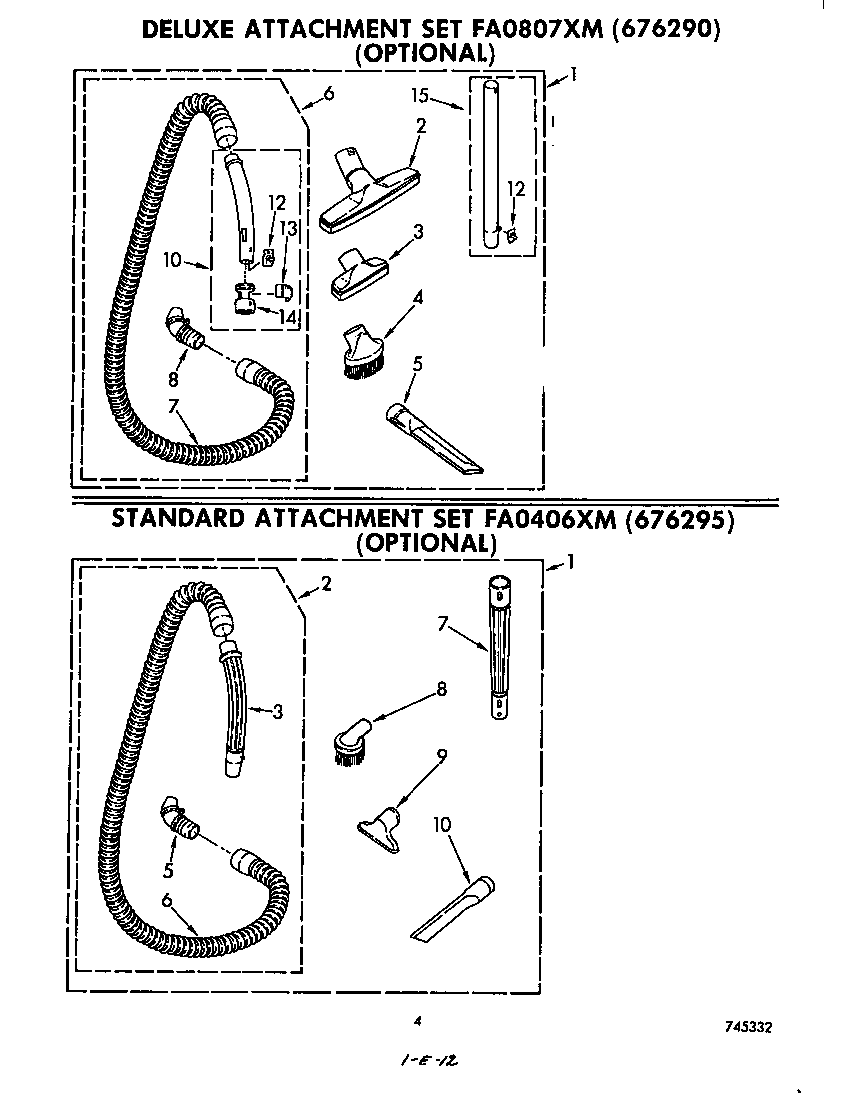

Deluxe and standard attachments diagram

Hose

Part #744788

The manufacturer no longer makes this part, and there's no substitute part

Brush, Beater Set Of (1) 2" And (1) 10-1/4" 676307
#66

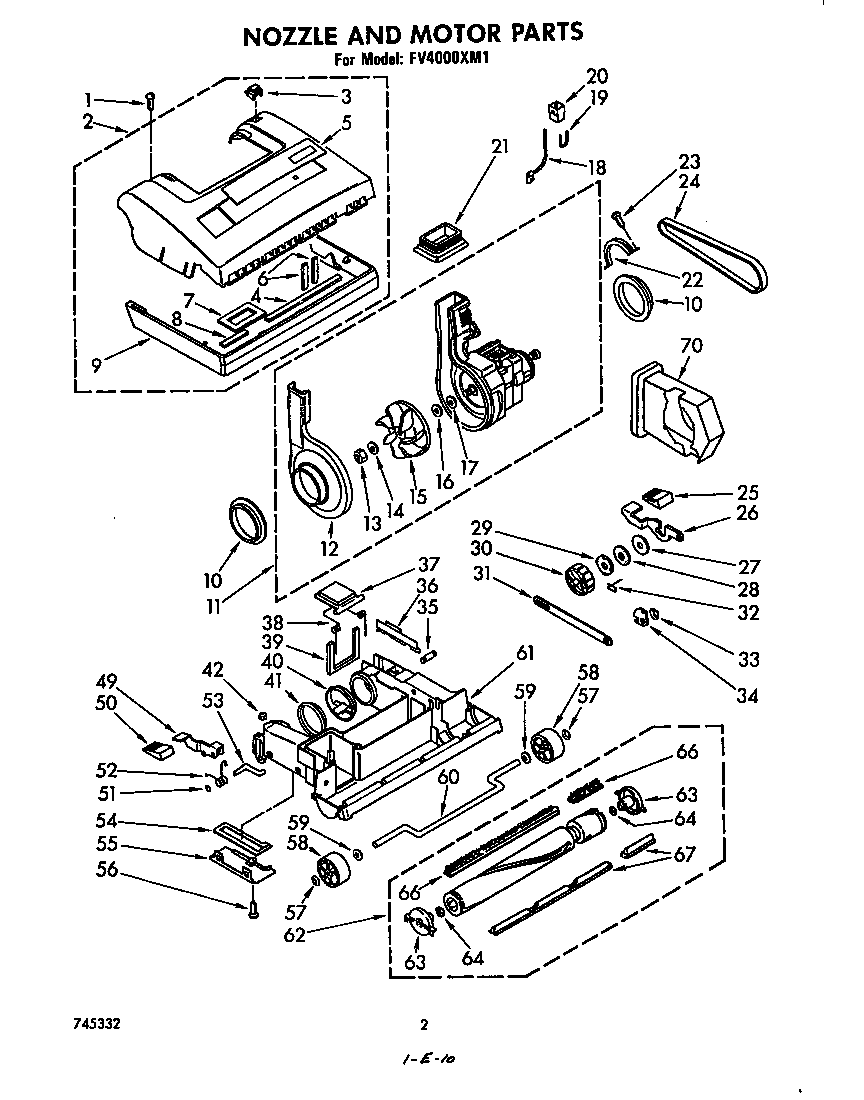

Nozzle and motor diagram

Brush, beater set of (1) 2" and (1) 10-1/4"

Part #676307

The manufacturer no longer makes this part, and there's no substitute part

Spring, Handle Release 744527
#52

Nozzle and motor diagram

Spring, handle release

Part #744527

The manufacturer no longer makes this part, and there's no substitute part

Wiring Diagram Label LIT744667

#NI

All parts diagram

Wiring diagram label

Part #LIT744667

The manufacturer no longer makes this part, and there's no substitute part

Bracket 744659
#22

Nozzle and motor diagram

Bracket

Part #744659

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 744575
#18

Nozzle and motor diagram

Lead wire

Part #744575

The manufacturer no longer makes this part, and there's no substitute part

Relief Stirrer 681675
#4

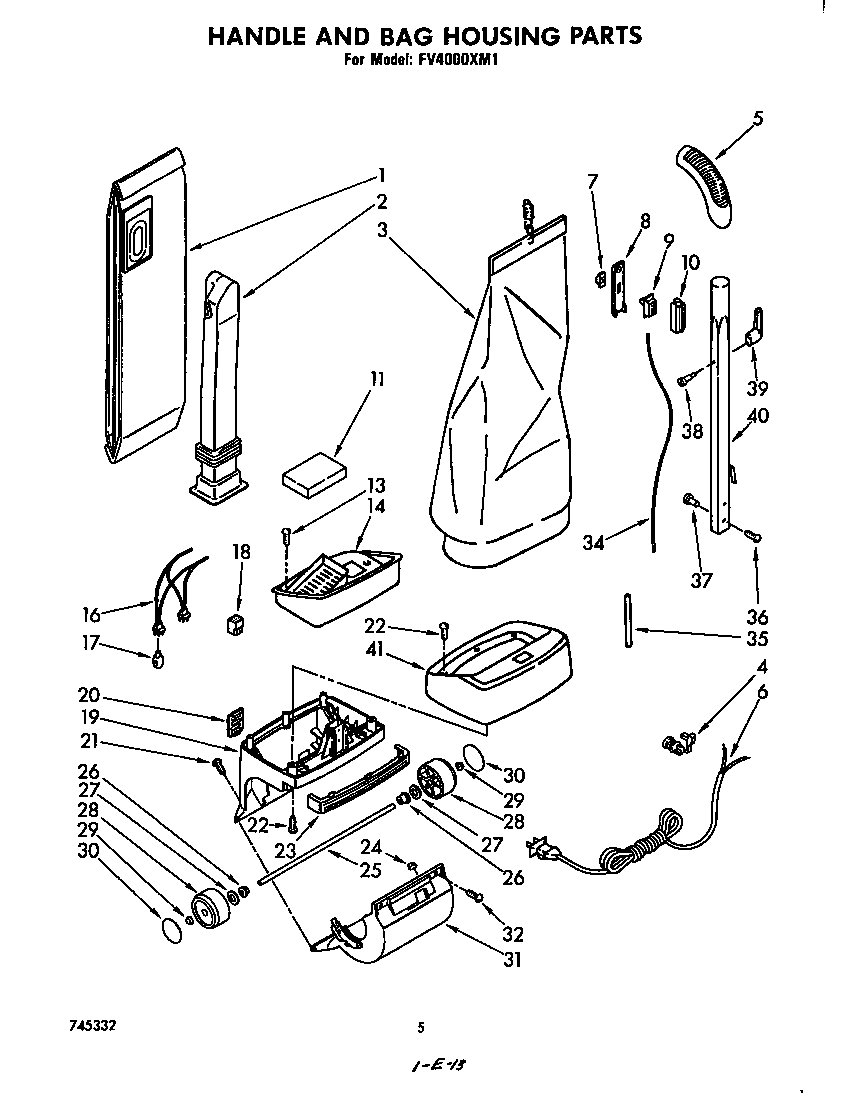

Handle and bag housing diagram

Relief stirrer

Part #681675

The manufacturer no longer makes this part, and there's no substitute part

Hose 745115
#2

Deluxe and standard attachments diagram

Hose

Part #745115

The manufacturer no longer makes this part, and there's no substitute part

Bumper 745307
#9

Nozzle and motor diagram

Bumper

Part #745307

The manufacturer no longer makes this part, and there's no substitute part

Lens 744614
#3

Nozzle and motor diagram

Lens

Part #744614

The manufacturer no longer makes this part, and there's no substitute part
