York
Heating & Cooling Combined Unit

Model # N2/3GED14H06401A (G2GE036SA) Official York heating & cooling unit

Here are the diagrams and repair parts for Official York N2-3GED14H06401A-G2GE036SA heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Wheel-blow 026-23232-704
#11

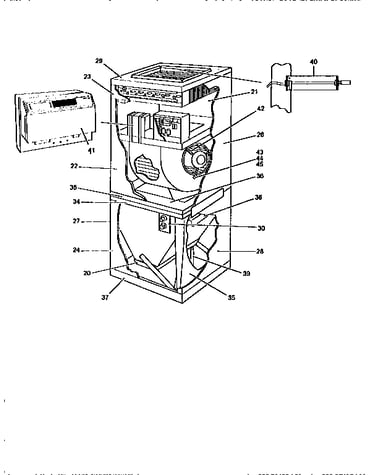

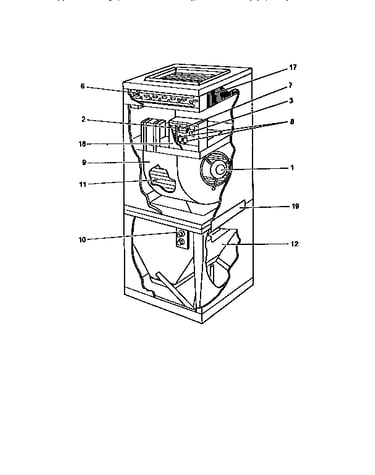

Indoor section diagram

Wheel-blow

Part #026-23232-704

The manufacturer no longer makes this part, and there's no substitute part

Coil Glycol 373-12934-700
#17

Indoor section diagram

Coil glycol

Part #373-12934-700

The manufacturer no longer makes this part, and there's no substitute part

Electrical-sensor, Ambient (indoor) 373-09243-000
#40

Indoor section diagram

Electrical-sensor, ambient (indoor)

Part #373-09243-000

The manufacturer no longer makes this part, and there's no substitute part

Housing, Blower (10 X 10) 373-12040-701
#9

Indoor section diagram

Housing, blower (10 x 10)

Part #373-12040-701

The manufacturer no longer makes this part, and there's no substitute part

Steel Sleeve 028-09412-003
#45

Indoor section diagram

Steel sleeve

Part #028-09412-003

The manufacturer no longer makes this part, and there's no substitute part

Plate, Tie, Horiz. Mtg, W/ Screws 363-84126-700
#19

Indoor section diagram

Plate, tie, horiz. mtg, w/ screws

Part #363-84126-700

The manufacturer no longer makes this part, and there's no substitute part

Harness, Wiring Control 373-09706-000
#4

Indoor section diagram

Harness, wiring control

Part #373-09706-000

The manufacturer no longer makes this part, and there's no substitute part

Label, Wiring, Id 035-10844-000
#8A

Indoor section diagram

Label, wiring, id

Part #035-10844-000

The manufacturer no longer makes this part, and there's no substitute part

Motor, Blower, Gd "icm", Programmed 024-25814-704
#1

Indoor section diagram

Motor, blower, gd "icm", programmed

Part #024-25814-704

The manufacturer no longer makes this part, and there's no substitute part

Plate 073-02469-000
#30

Indoor section diagram

Plate

Part #073-02469-000

The manufacturer no longer makes this part, and there's no substitute part
