GE
Electric Wall Oven

Model # JCKS10WM2WW Official GE electric oven

Here are the diagrams and repair parts for Official GE JCKS10WM2WW electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

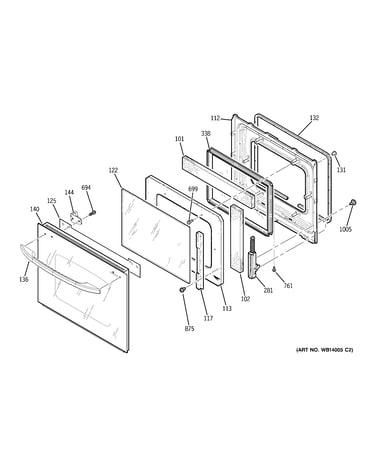

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Sensor WB21T10017
#253

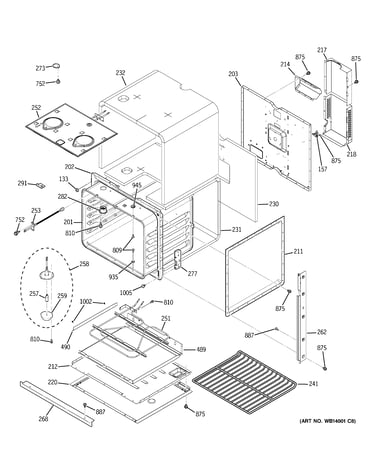

Body parts diagram

Sensor

Part #WB21T10017

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10017. Substitute parts can look different from the original.
BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
Wall Oven High-limit Thermostat WB24T10081
#157

Body parts diagram

Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Range Broil Element WB44T10080
#252

Body parts diagram

Range broil element

Part #WB44T10080

Replaced by #WB44T10099

?
Manufacturer substitution
This part replaces WB44T10080. Substitute parts can look different from the original.
$87.54 |
6% OFF Phone Price : $93.54
In Stock
Range Halogen Light Bulb WB08T10021
#257

Body parts diagram

Range halogen light bulb

Part #WB08T10021

Replaced by #WB49X29679

?
Manufacturer substitution
This part replaces WB08T10021. Substitute parts can look different from the original.
This item is not returnable
$47.12 |
11% OFF Phone Price : $53.12
In Stock
Blower Assembly WB26T10057
#32

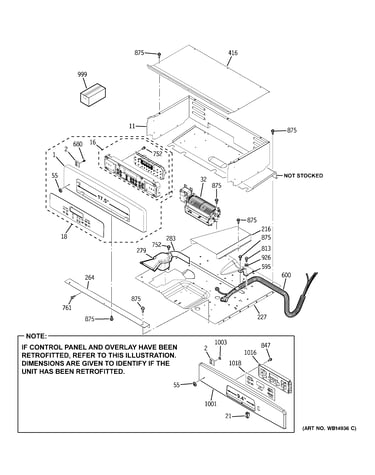

Control panel diagram

Blower assembly

Part #WB26T10057

Replaced by #WB26T10060

?
Manufacturer substitution
This part replaces WB26T10057. Substitute parts can look different from the original.
$145.12 |
8% OFF Phone Price : $157.12
In Stock
Screw WB01X1137
#809

Body parts diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Bake Element WB44T10081
#251

Body parts diagram

Range bake element

Part #WB44T10081

Replaced by #WB44T10109

?
Manufacturer substitution
This part replaces WB44T10081. Substitute parts can look different from the original.
$71.38 |
8% OFF Phone Price : $77.38
In Stock
Halogen Lamp WB25T10030
#258

Body parts diagram

Halogen lamp

Part #WB25T10030

Replaced by #WB25T10096

?
Manufacturer substitution
This part replaces WB25T10030. Substitute parts can look different from the original.
$59.64 |
9% OFF Phone Price : $65.64
In Stock
Rocker Switch WB24K0011
#21

Control panel diagram

Rocker switch

Part #WB24K0011

Replaced by #WB24K5022

?
Manufacturer substitution
This part replaces WB24K0011. Substitute parts can look different from the original.
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Screw (black) WB01K5029
Screw (black)

Part #WB01K5029

Replaced by #WB1K5029

?
Manufacturer substitution
This part replaces WB01K5029. Substitute parts can look different from the original.
This item is not returnable
$8.11
In Stock
