Model # ET20NKXWW01 Official Whirlpool refrigerator
Here are the diagrams and repair parts for Official Whirlpool ET20NKXWW01 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

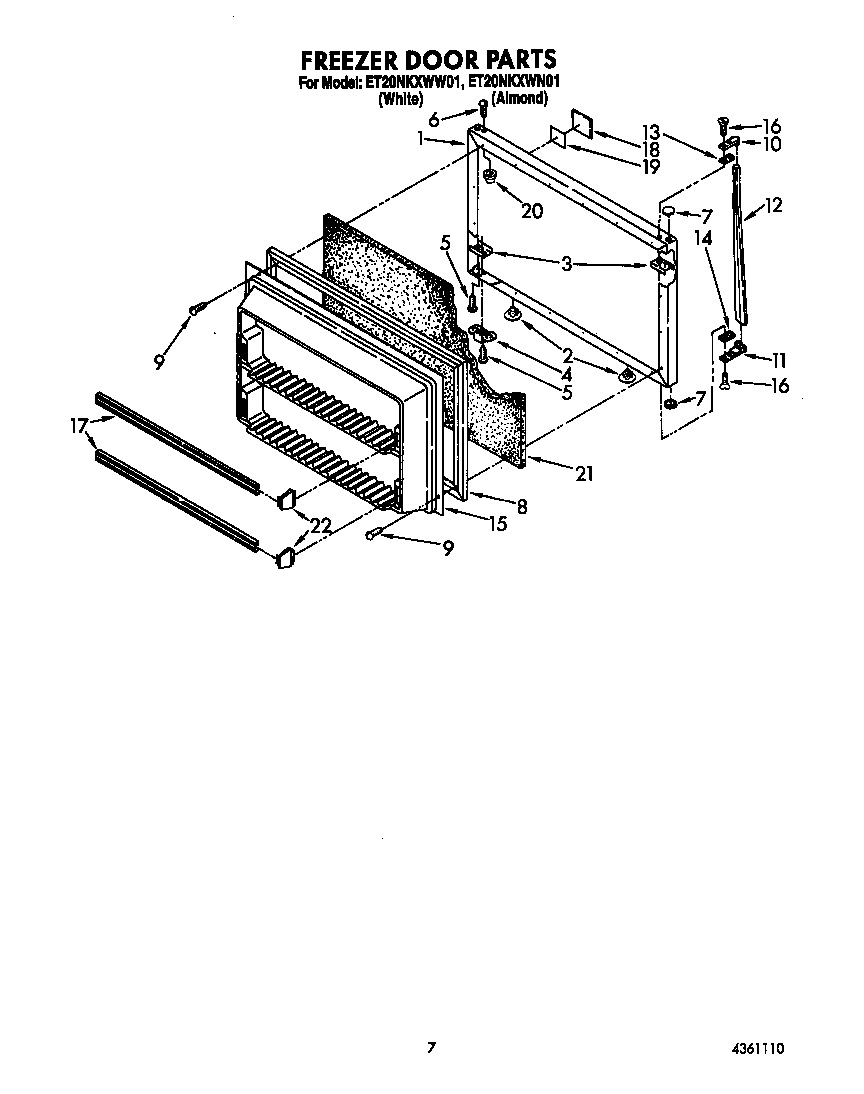

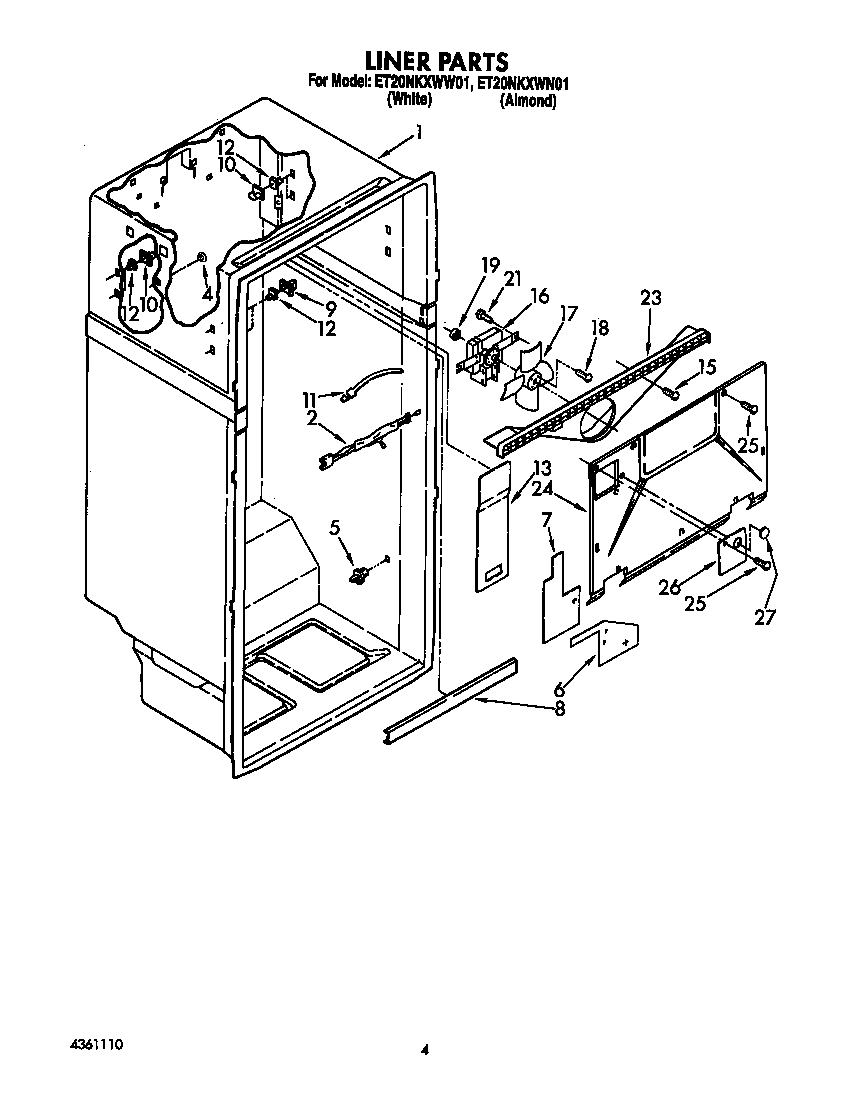

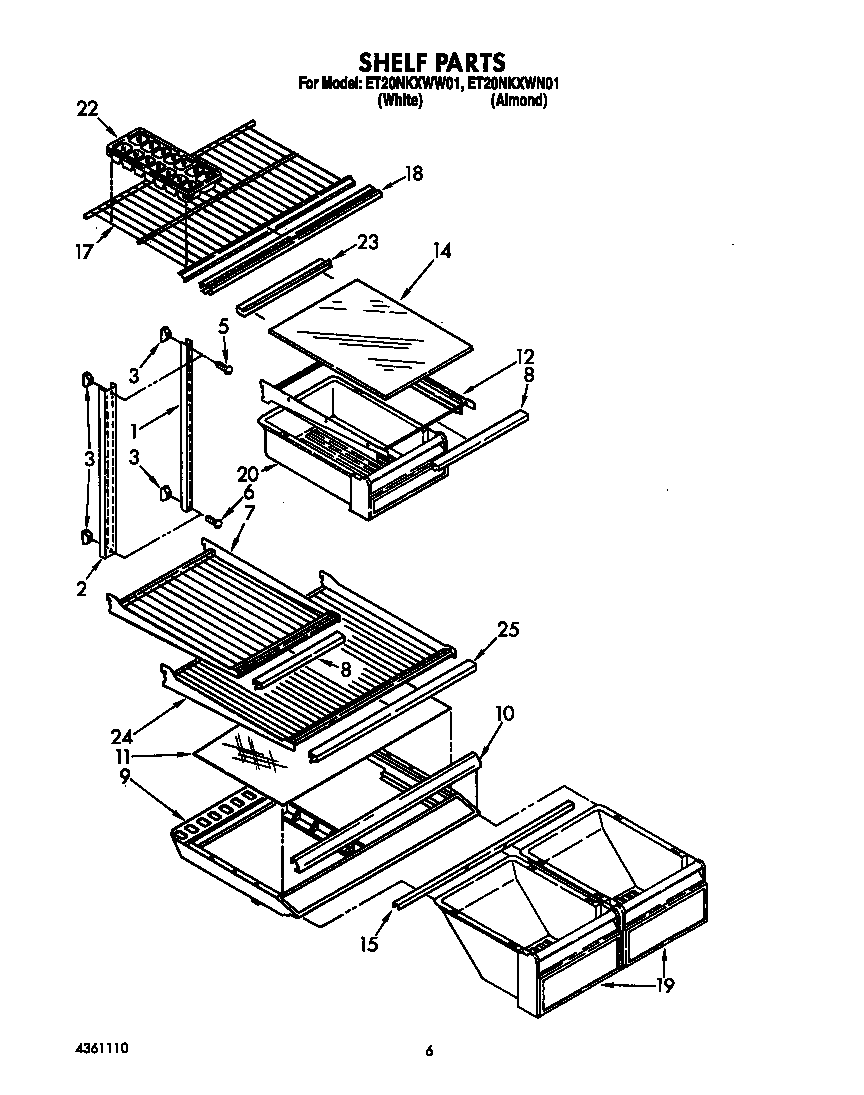

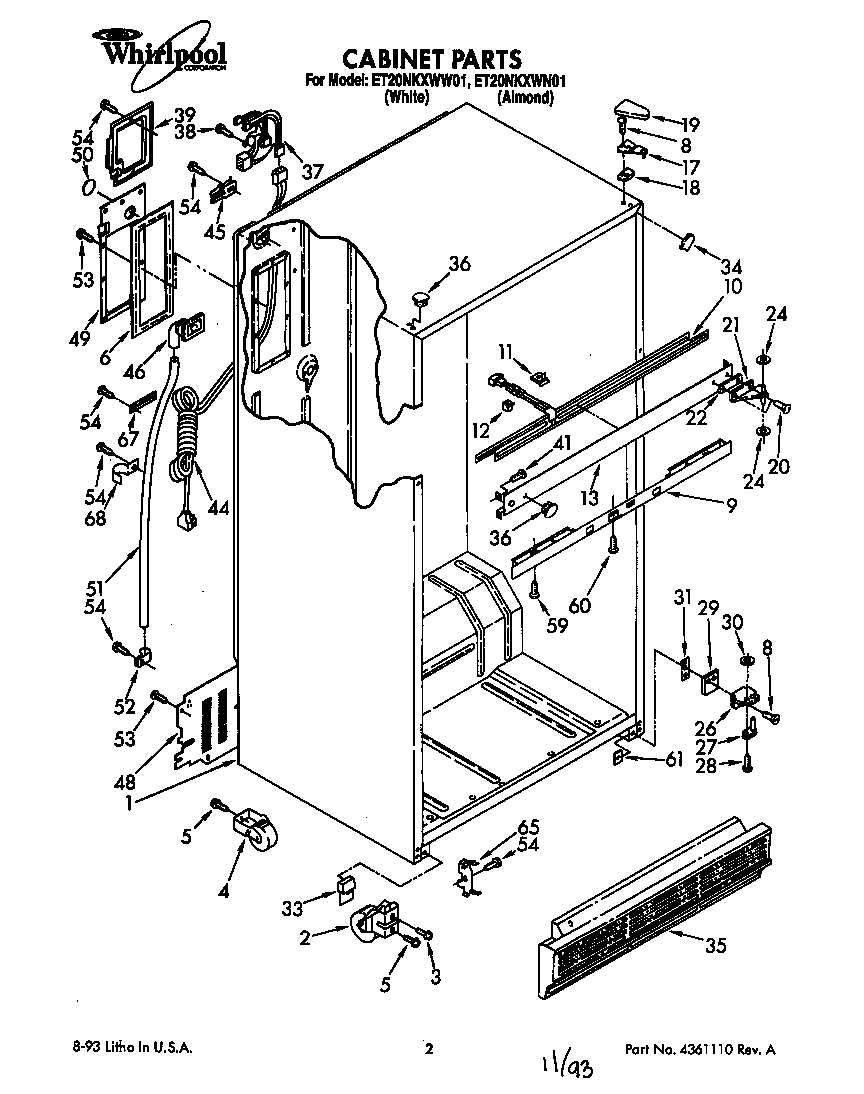

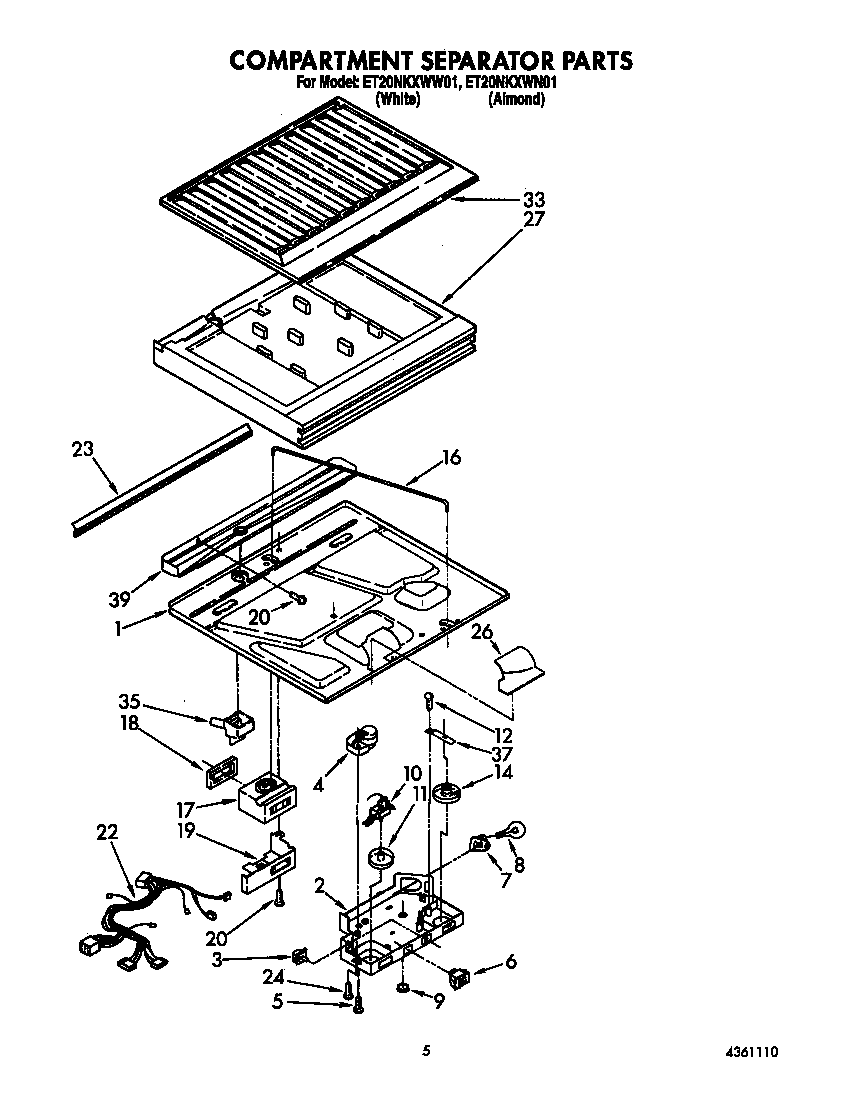

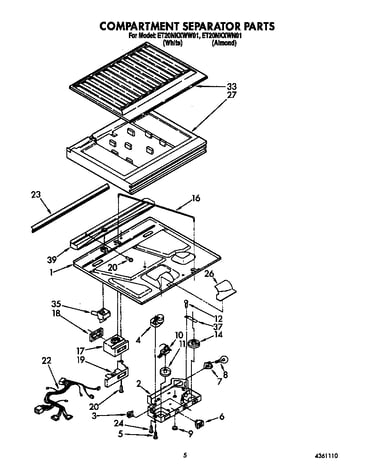

SELECT DIAGRAM
Browse Parts forET20NKXWW01 Refrigerators
- #11

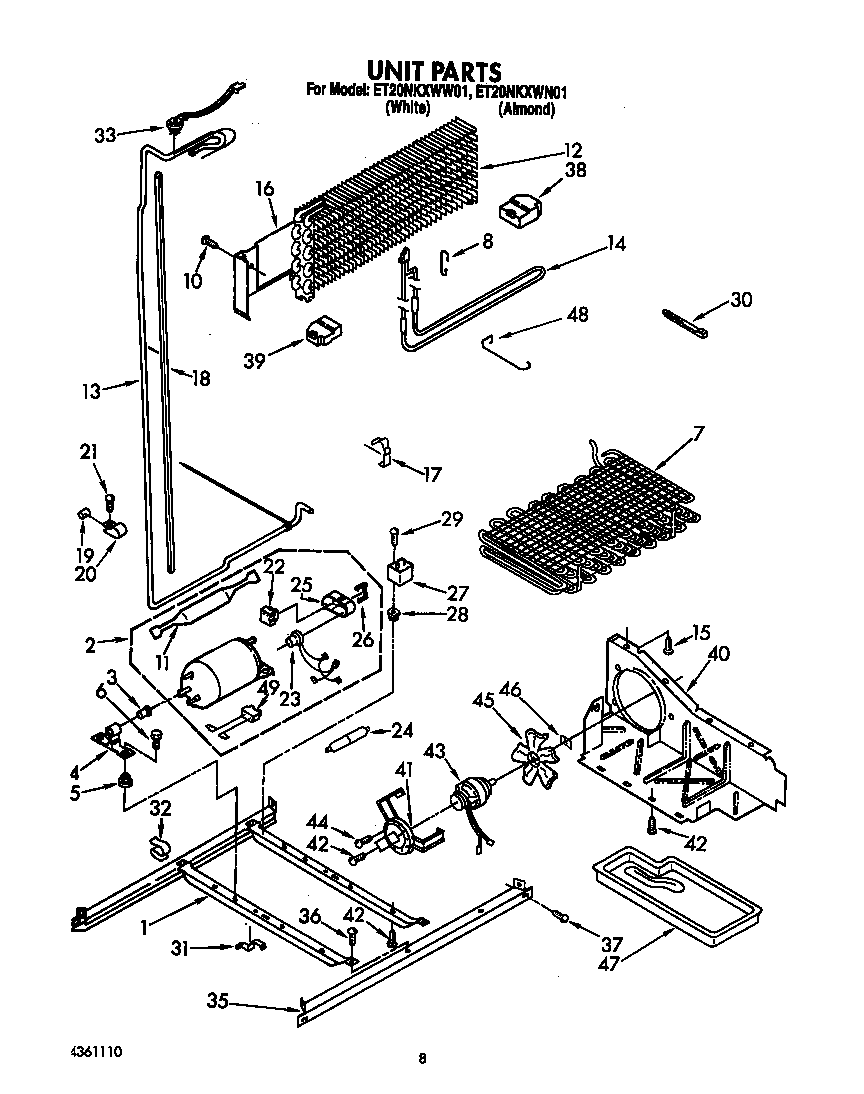

Unit diagram
Drier tubePart #4318249
Replaced by #W10843121
?Manufacturer substitutionThis part replaces 4318249. Substitute parts can look different from the original.$30.82 |16% OFF Phone Price : $36.82In Stock - #33

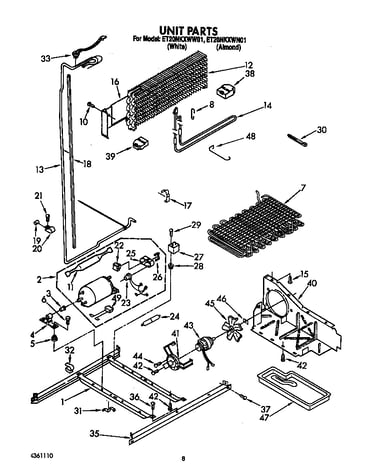

Unit diagram
Bimetl-delPart #2149641
Replaced by #WP4387503
?Manufacturer substitutionThis part replaces 2149641. Substitute parts can look different from the original.$37.72 |14% OFF Phone Price : $43.72In Stock - #42
Unit diagram
ScrewPart #488624
Replaced by #WP488729
?Manufacturer substitutionThis part replaces 488624. Substitute parts can look different from the original.This item is not returnable$4.17 |19% OFF Phone Price : $5.17In Stock - Screw
Part #487909
Replaced by #WP488729
?Manufacturer substitutionThis part replaces 487909. Substitute parts can look different from the original.This item is not returnable$4.17 |19% OFF Phone Price : $5.17In Stock #NI
All parts diagram
Spray paint (white)Part #350930
Replaced by #350930
?Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnable$15.69 |11% OFF Phone Price : $17.69In Stock- #47
Unit diagram
Refrigerator drain panPart #1105523
Replaced by #WPW10614158
?Manufacturer substitutionThis part replaces 1105523. Substitute parts can look different from the original.$52.66 |10% OFF Phone Price : $58.66In Stock #NI
All parts diagram
Danby appliance touch-up paint, 0.6-oz (white)Part #72017
$8.29 |11% OFF Phone Price : $9.29In Stock#NI
All parts diagram
Appliance silicone lubricantPart #542638
Replaced by #WP542638
?Manufacturer substitutionThis part replaces 542638. Substitute parts can look different from the original.$26.69 |18% OFF Phone Price : $32.69In Stock#NI
All parts diagram
Appliance touch-up paint, 0.6-oz (black)Part #72032
This item is not returnable$9.02 |10% OFF Phone Price : $10.02In Stock- #29

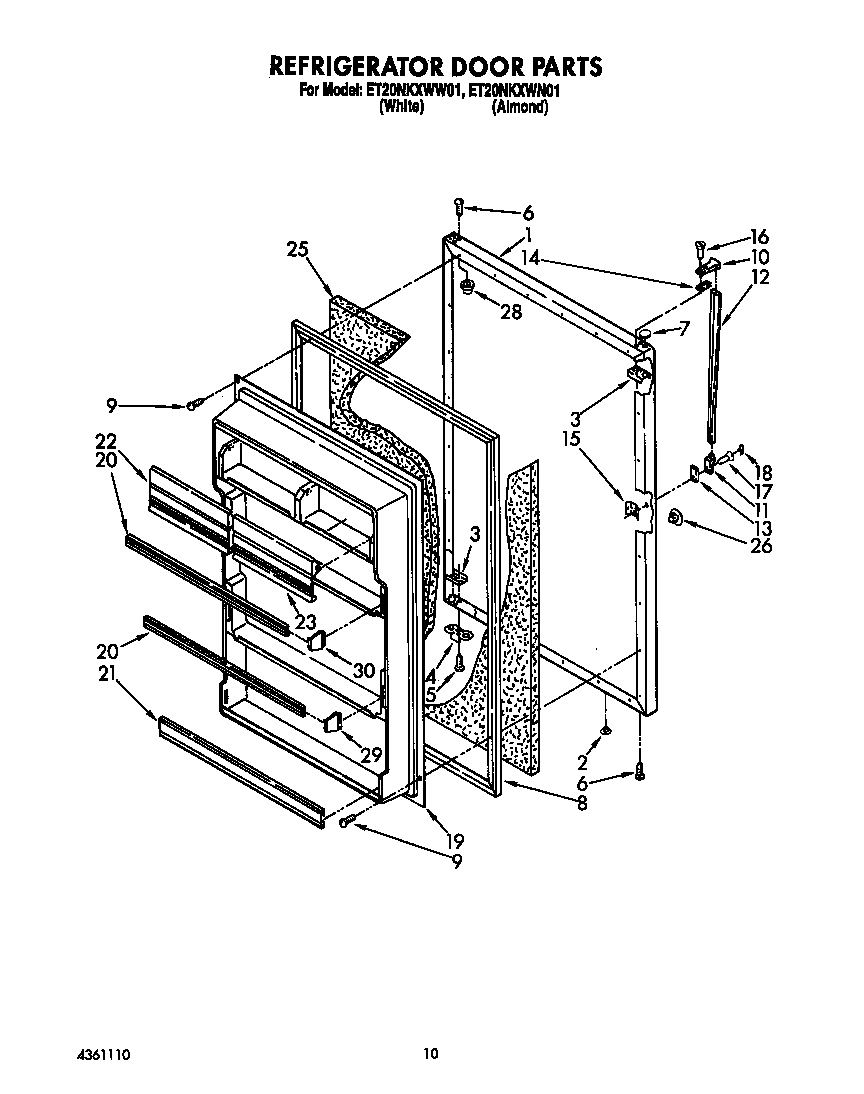

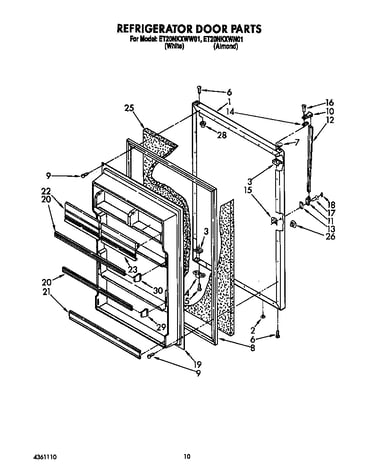

Refrigerator door diagram
Refrigerator end cap trimPart #1106861
Replaced by #4318297
?Manufacturer substitutionThis part replaces 1106861. Substitute parts can look different from the original.This item is not returnable$16.92 |11% OFF Phone Price : $18.92Back Order
